Envirovent heatSava Installation Manual page 19

05 Installation

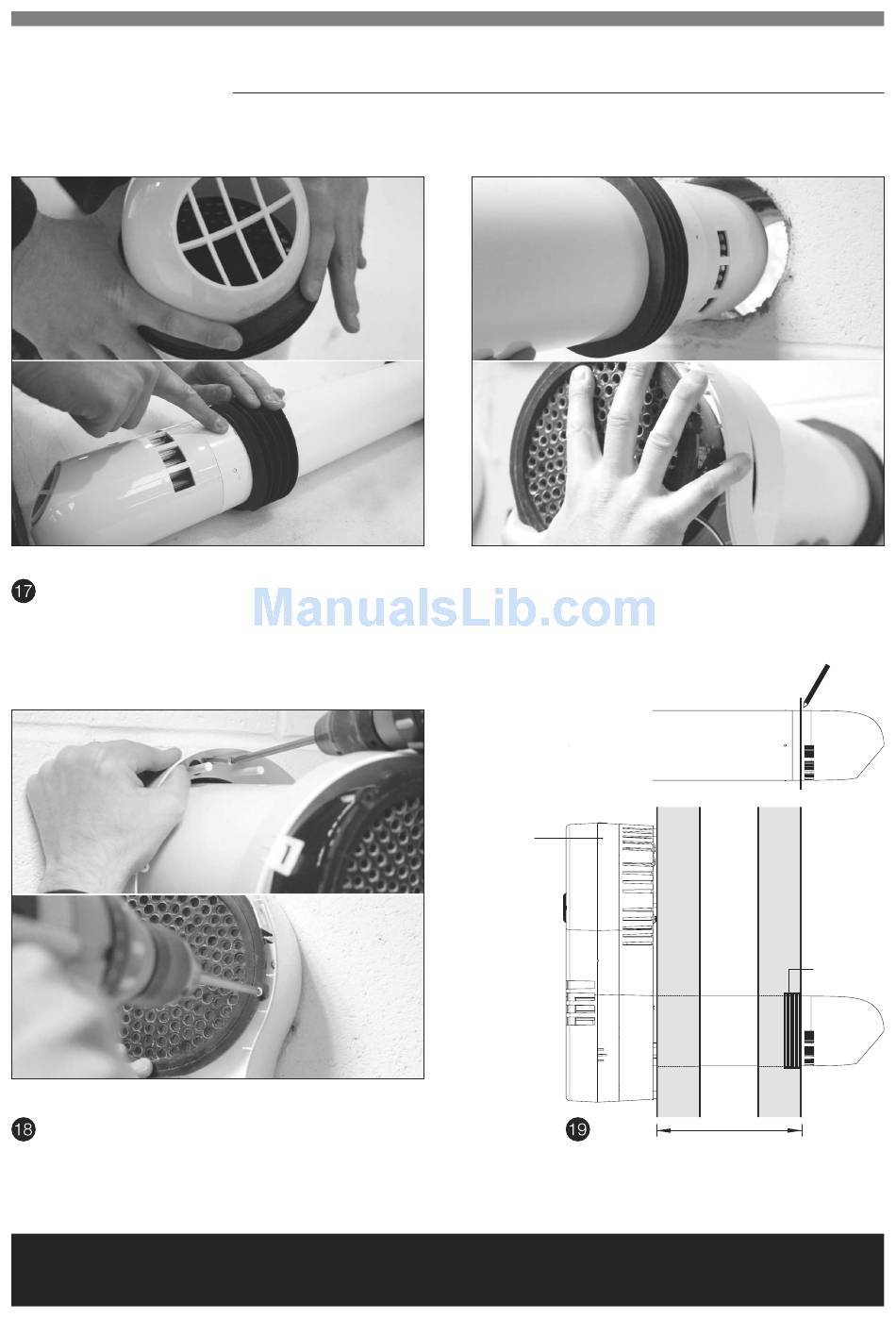

Installation Process - Wall Seal option
Fig.17A
Take the wall seal and fit it over the heat cell. The seal
must be fitted inside the wall depth. Use the marked seal
line as reference (Fig.17A).
Fig.18A
Feed the power cable through the hole (See page 12,
Fig.5A & 5B). Secure the rear and centre assembly
together using the screws provided (Fig.18A).
AFTER INSTALLING THIS UNIT PLEASE LEAVE THIS INSTALLATION GUIDE WITH THE USER
DO NOT THROW AWAY
Fig.17B
Carefully insert the heat cell through the aperture ensuring the
cowl end is facing downwards (Fig.17B).
heatSava
INTERNAL
60mm + wall depth = Seal Line
Mark out
seal line
EXTERNAL
Wall seal
18
