Envirovent heatSava Installation Manual page 12

05 Installation

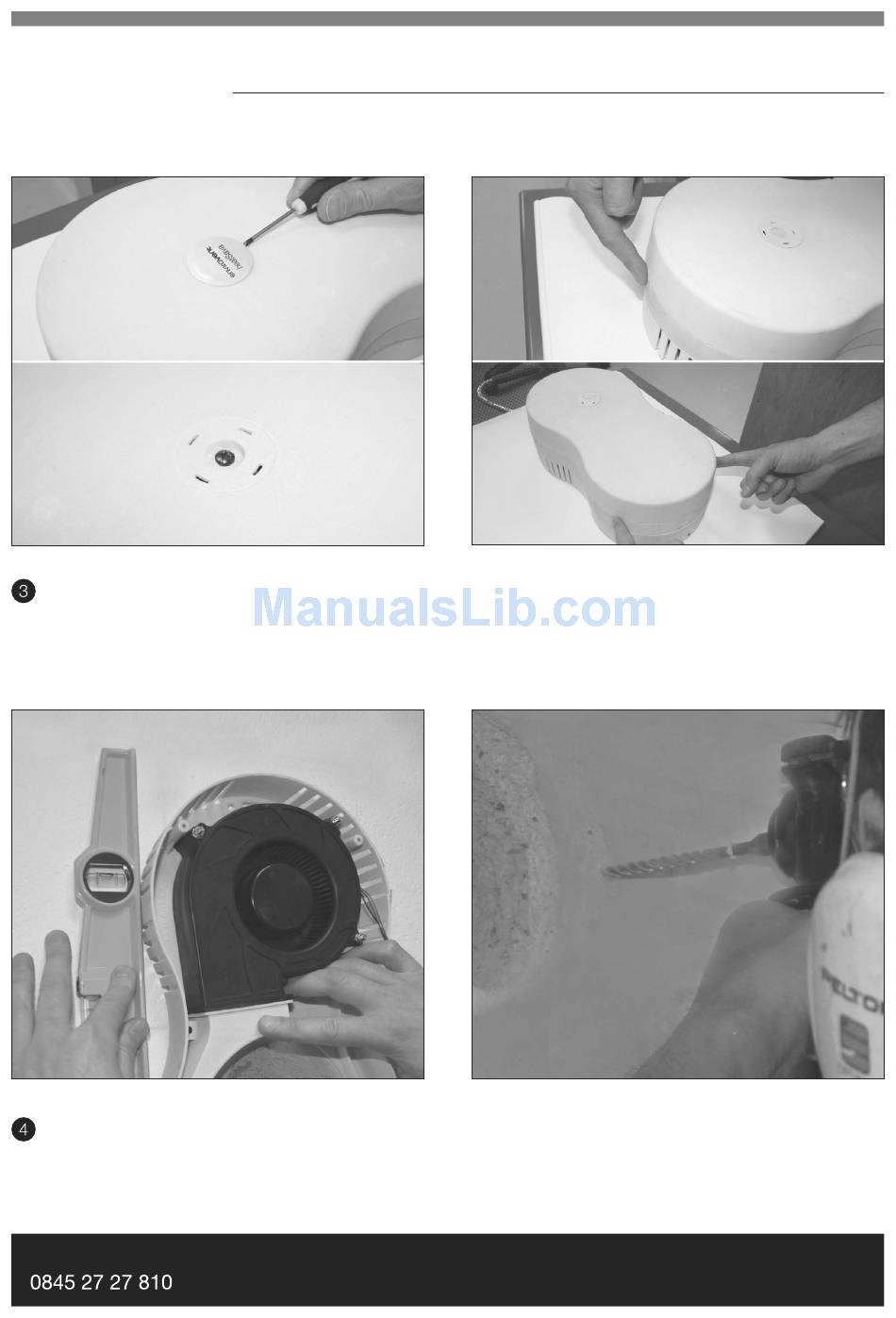

Installation Process - Front Cover
Fig.3A
Using a screwdriver remove the badge and undo screw
(Fig.3A). Next remove the front cover of the unit using the
release clips as shown.
Installation Process - Rear Assembly
Fig.4A
Using a spirit level, align the rear assembly of the unit to
the wall ensuring it lines up with the marked out fixing
holes locations (Fig.4A).
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
Fig.3B
To remove the front cover, release the top clip first and then
release the two clips at the bottom by pushing in at the points
indicated on the centre assembly of the unit (Fig.3B).
Drill 3x fixing holes and fit 3x wall plugs.
