05 Installation

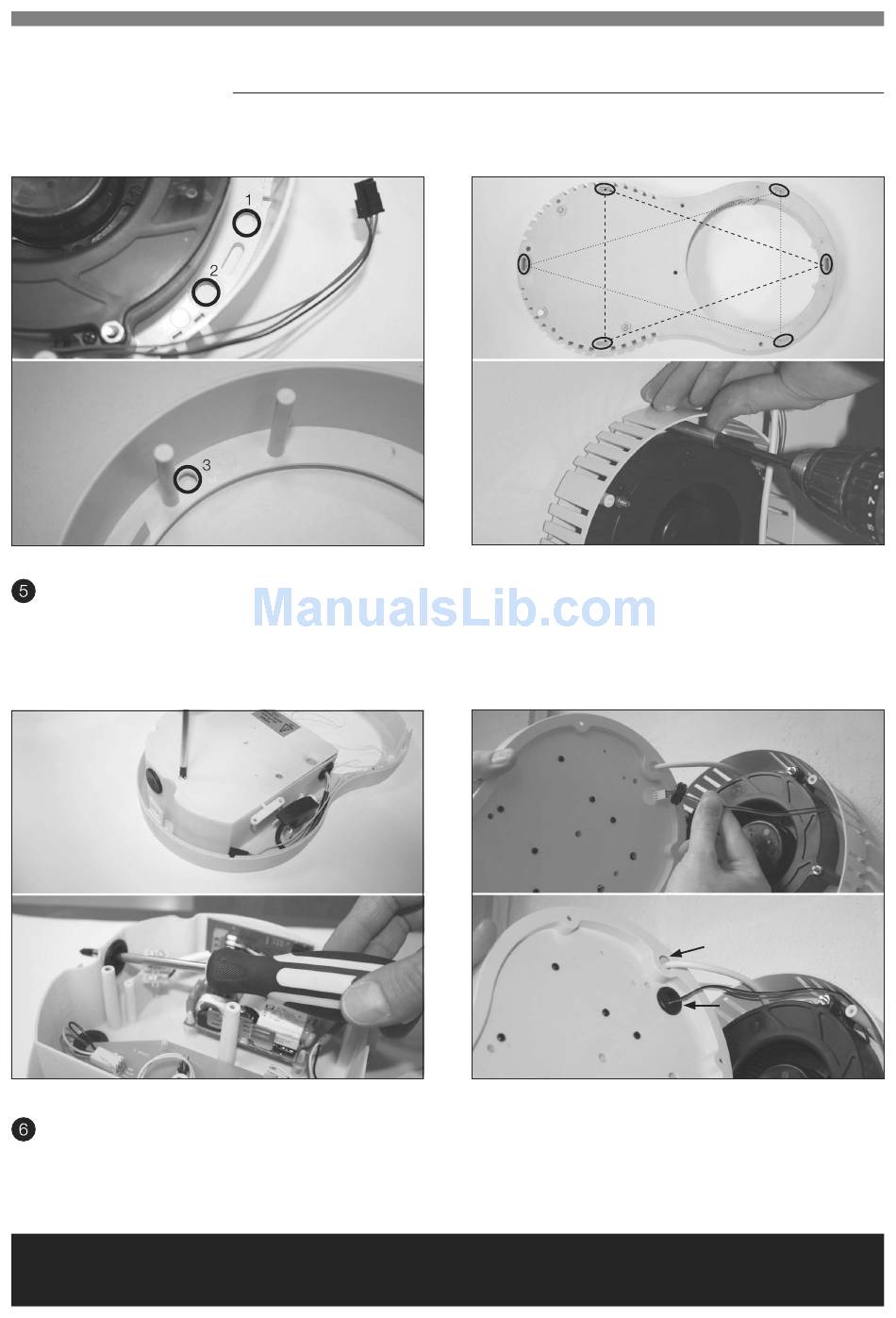

Installation Process - Rear Assembly
Fig.5A
There are 3 cable entries on the rear assembly. Locate
the one suitable for the install and pull the mains cable
through the selected entry hole (Fig.5A).
Installation Process - Centre Assembly
Fig.6A
Detach the electronics lid from the centre assembly by
removing the screws. Then using a screwdriver pierce
through the grommet (Fig.6A).
AFTER INSTALLING THIS UNIT PLEASE LEAVE THIS INSTALLATION GUIDE WITH THE USER
DO NOT THROW AWAY
Fig.5B
Fit the rear assembly to the wall using the 3 screws (Fig.5B).
Fig.6B
Feed the power cable through the hole. Push the fan cable
through the hole and secure using the grommet. Inside connect
the fan cable to the fan board (Fig.6B).
