05 Installation
Installation Process - Centre Assembly

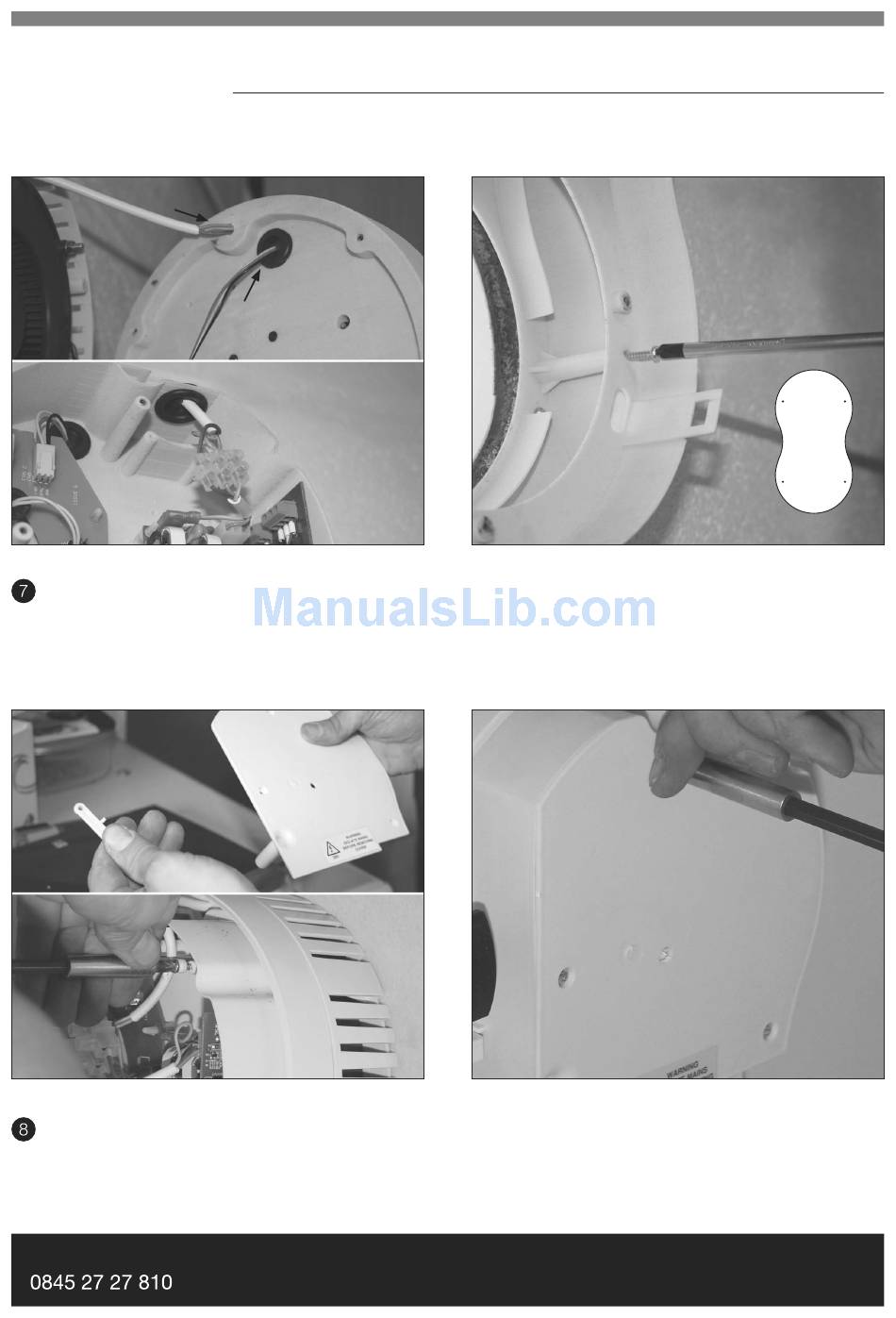

Fig.7A
Pull the mains cable through the entry hole and pierced
grommet in the centre assembly. Connect the cable to the
mains supply or SELV board depending on the model being
installed (Fig.7A). See pages 21-22 for wiring diagrams.
Fig.8A
Detach the strip from the electronics lid and securely fix it
in place to restrain the cable (Fig.8A).
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
Fig.7B
Now securely fix the centre assembly to the rear assembly
together on the 4 fixing points using the screws provided
(Fig.7B).
Fig.8B
Make sure all cables are connected correctly, then fix the
electronics lid back on using the screws provided (Fig.8B).
