Envirovent heatSava Installation Manual page 16

05 Installation

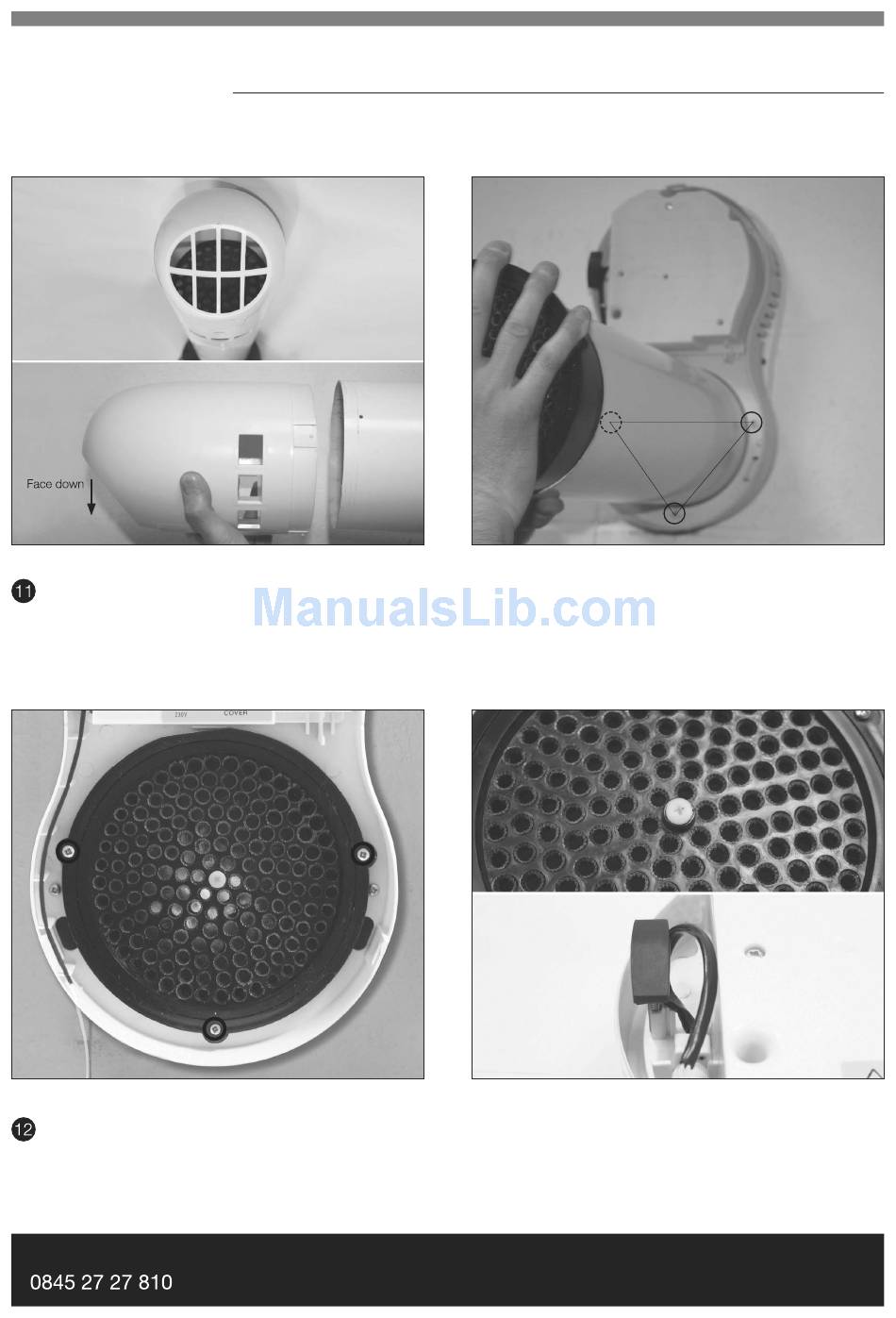

Installation Process - Heat Cell Insertion
Fig.11A
The heat cell can now be inserted through the aperture.
The cowl end is removable to enable correct orientation.
Apply solvent cement and ensure it is always facing
downwards (Fig.11A).
Fig.12A Fig.12A
Secure the heat cell to the 3 fixing points on the centre
assembly using the screws provided (Fig.12A).
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
Fig.11B
Carefully insert the heat cell ensuring it meets the 3 fixing feet
(Fig.11B).
Fig.12B Fig.12B
Ensure the plastic screw is fixed to the centre of the heat cell
and the cell key is placed back in its holder (Fig.12B).
