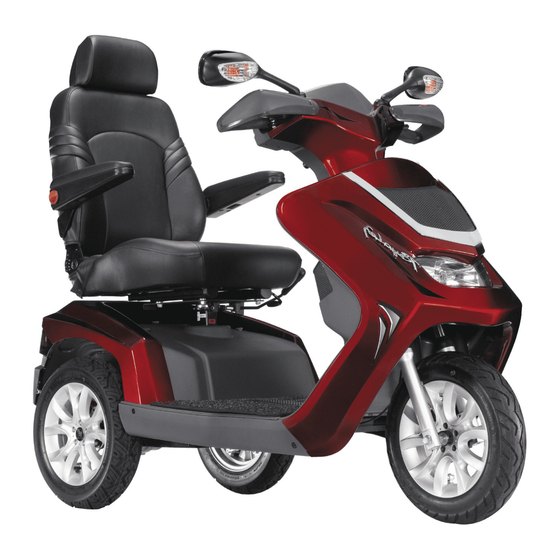

Summary of Contents for Drive Royale
- Page 2 Never use mobile Make sure that there equipment while the phones or radio are no obstacles behind batteries are charging. transmitters such as you while reserving walkie-talkies your scooter. Royale By Drive Owner’s Handbook Page 1...
- Page 3 To prevent injury to yourself or others, Do not drive or sit on the scooter when in always ensure that the power is switched off freewheel mode. when getting on or off of the scooter.
- Page 4 Modifications tyres. It is critically important that tyre Drive Medical Product has designed your scooter pressure is maintained between 25 – 30 psi (2.0 – 2.4 bar). to be as practical as possible. However, under no circumstances should you modify, add, remove, or disable any part or function of your scooter.
- Page 5 (Note: It is difficult to evaluate the effect on the overall immunity of the powered scooter). Report all incidents of unintended movement or brake release to the powered scooter manufacturer, and note whether there is a radio wave source nearby. Royale By Drive Owner’s Handbook Page 4...
- Page 6 Width 73cm (29”) Height 135cm (53”) Seat Width 51cm (20”) Seat Height 71cm (28”) Seat Depth 46cm (18”) Back Height 70cm (27.5”) Wheel Base 100cm (39”) Ground Clearance 15cm (6”) Footwell 46cm (18”) Royale By Drive Owner’s Handbook Page 5...
- Page 7 Temperature “ C / F” modes Hazard Light (11) Flashes when reverse is Horn (12) Reverse Light engaged. Headlight button (13) „MODE‟ switch (14) Error Will Message „SET‟ switch (15) Side lights control (16) Royale By Drive Owner’s Handbook Page 6...
- Page 8 Then press the MODE button until the the kph or mph is flashing hour is flashing. Then press SET to change to the Then press SET to change until the required setting. hour is at the required setting Royale By Drive Owner’s Handbook Page 7...
- Page 9 Press the HAZARD button to operate the Motor Error Contact Dealer hazard warning light, which will flash and a Other Contact Dealer buzzer will sound. Press the button again to stop the lights. Royale By Drive Owner’s Handbook Page 8...
- Page 10 Battery (26Ahr ~ 75Ahr) 1.Short Circuit Protection 2.Reverse Power Protection Output Detection 3.Overheat Protection 4.Charging Plug Protection Operating Humidity 20％ ~ 85 % Measure L 185mm×W 130mm×H 195mm Weight 1.7K g Color Blue Royale By Drive Owner’s Handbook Page 9...
- Page 11 Please keep the battery and connectors clean Charging Port otherwise the charging and battery performance will be poor. Royale By Drive Owner’s Handbook Page 10...
- Page 12 If the Never hose off your scooter or place it in braiding is dark brown, red, silver, purple or gold direct contact with water. then the brush needs replacing. Royale By Drive Owner’s Handbook Page 11...
- Page 13 Replace if necessary. Do not store annually your dealer competent your scooter in damp or humid conditions technician. Service schedules are available from as this will lead to mildew and rapid Drive Medical. deterioration of the upholstery parts. Royale By Drive Owner’s Handbook Page 12...
- Page 14 The scooter has been pushed faster than the programmed "Rollaway Speed" parameter when the Park Brake has been mechanically released. Turn the scooter off and then back on again. Royale By Drive Owner’s Handbook Page 13...
-
Page 15: Warranty Conditions
Warranty Conditions below. Warranty Conditions: Any work or replacement part installation must be carried out by an authorized Drive Medical dealer / service agent. To apply the warranty should your scooter require attention please contact the designated service agent listed above. - Page 16 Discharge test Forwards Wheels and Reverse Tyres Wear Emergency stop Pressure Left turn Bearings Right turn Wheel nuts Slope test Motors Over obstacles Wiring List Items repaired Noise Connections Brake Brushes Chassis Condition Steering Royale By Drive Owner’s Handbook Page 15...
- Page 17 Royale By Drive Owner’s Handbook Page 16...
Need help?
Do you have a question about the Royale and is the answer not in the manual?
Questions and answers
Royale 4.I have Error7 which variously says lever problem/ loose throttle connections etc. It may be a simple and obvious problem. How do I get into it?
To troubleshoot Error 7 (Speed Pot Error) on the Drive Royale 4:
1. Check the throttle and its wiring for open or short circuits.
2. Ensure the throttle is correctly set up.
3. If the issue persists, contact your service agent.
This answer is automatically generated
Can you leave the battery charger connected to the gel battery's in my monarch Royale 4 mobility scooter
The manual does not explicitly state whether the battery charger can be left connected to the gel batteries in a Drive Royale 4 mobility scooter. However, it advises removing the charger after charging to prevent damage.
This answer is automatically generated
