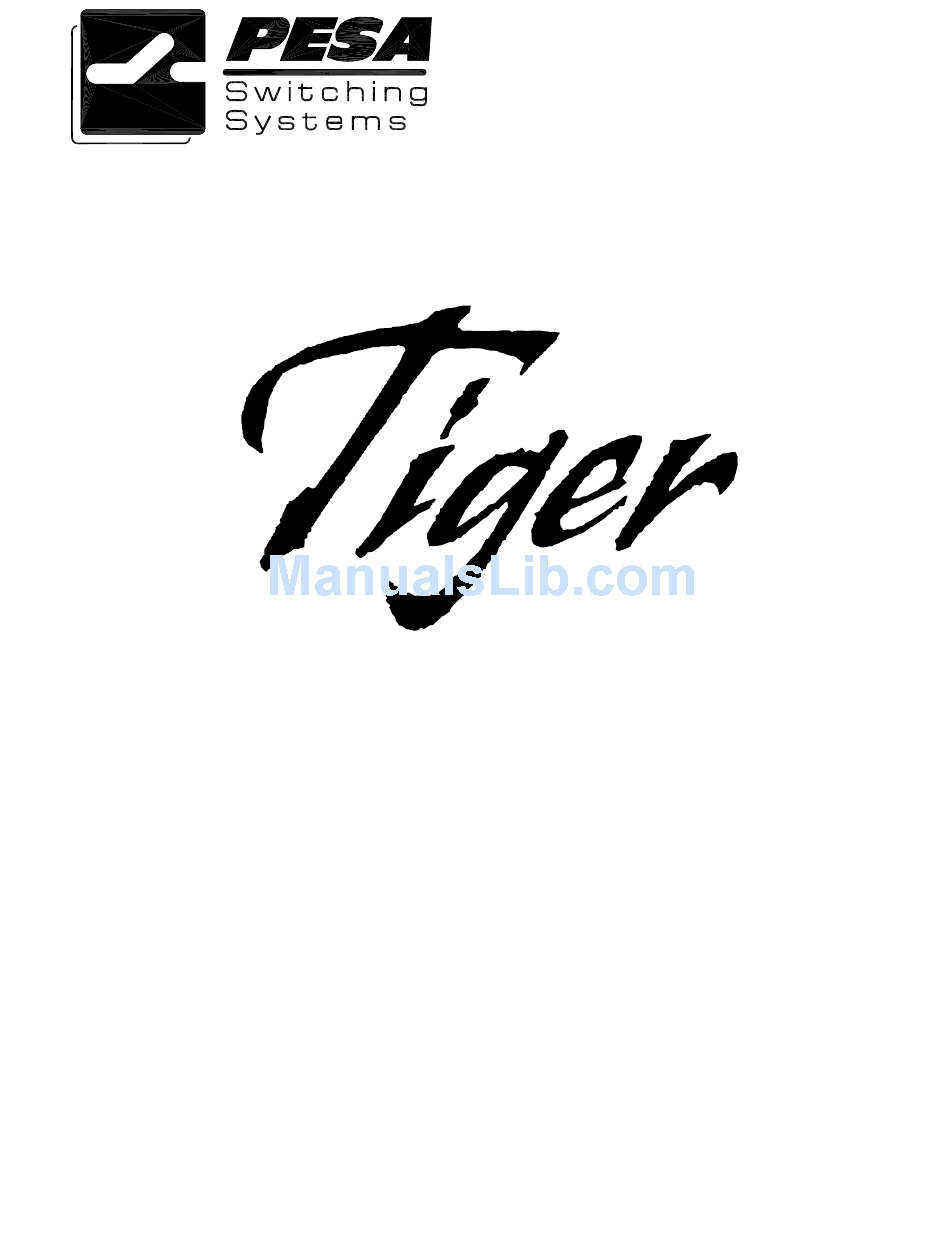

Page 1 Video Routing Switcher PESA Switching Systems, Inc. 330-A Wynn Drive Northwest Huntsville, AL 35805-1961 http://www.pesa.com (256) 726-9200 Part No. 81-9059-0403-0 Revision I (September, 2005)
Page 2: Service Department
RCP-SLCXY, RCP-STAT1, RCP-STAT2, RCP-TP, RCP-XY, RM4000, RM5000, RM5488A, Route 66, RS422 Port Switcher, SDVDA 3001, System 5, System V, Tiger, Truck Link, VDA 3001, VDA 3002, VDA 3003, VDA 3005, VDA 3006, VDARS422, Virtual Panel, VP, VPNet, Win3300, Win3500, and Win3500Plus are trademarks of PESA Switching Systems, Inc. in the United States and/or other countries.
Page 3: Fcc Statement
Tiger Video Routing Switcher FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including...
Page 4 Tiger Video Routing Switcher...
Page 5 Tiger Video Routing Switcher...
Page 6 Tiger Video Routing Switcher...
Page 7: Table Of Contents
Tiger Video Routing Switcher Table of Contents CHAPTER 1 – INTRODUCTION........................... 1 General ..................................1 Safety Warnings ..............................1 Product Description ..............................1 Specifications ................................2 General ................................2 Power Requirements................................2 Physical Characteristics ..............................2 Operational Environment..............................2 Analog.................................. 2 Input Characteristics ................................
Page 8 Tiger Video Routing Switcher S1 – Output Offset Code Select............................27 S2 – Input Offset Code Select............................28 S3 – Strobe Assignment..............................29 S4 - House Sync Signal Line Select ..........................30 Output Combiner Board (Analog and Digital) ....................31 S1 –...
Page 9 Tiger Video Routing Switcher Code Select ................................ 44 Monitor Control Port............................45 Matrix ................................45 Matrix Control..............................45 Output ................................45 Digital Output Monitor Crosspoint Board ......................45 Matrix ................................45 Matrix Control..............................45 Output ................................45 Digital Output Combiner Board ..........................46 Microprocessor..............................
Page 10 Tiger Video Routing Switcher Troubleshooting..............................55 Subassembly LEDs ............................55 Dual Reference/Alarm Interface Board ........................... 55 Output Monitor Control Board (Analog and Digital) ...................... 56 Input Buffer Board (Analog and Digital)......................... 56 Output Combiner Board (Analog) ........................... 57 Output Combiner Board (Digital)............................ 58 48x16 Matrix Board (Analog) ............................
Page 11 Tiger Video Routing Switcher House Black................................71 House Sync................................71 Index ..................................71 Input Offset................................72 Level..................................73 Level Order................................73 Levels of Control List............................74 Local Modem................................. 74 Lock..................................74 Lock Priority................................74 Logical Input ................................. 75 Logical Output............................... 75 Logical Switch...............................
Page 12 Tiger Video Routing Switcher Status Method................................ 86 Stop Bit.................................. 87 Strobe..................................87 Sync Reference ..............................87 System 5 Device ..............................87 TIA ..................................87 Tieline..................................88 User Account ................................. 89 User Name ................................89 User Password ............................... 89 Vertical Interval..............................89 Vertical Sync Signal ..............................
Page 13 Tiger Video Routing Switcher Tables Table 1. Equipment List ..............................6 Table 2. PESA CPU Link Protocols ..........................11 Table 3. PESA CPU Link Protocols ..........................13 Table 4. Connector Interface Board Switch S1 ......................22 Table 5. Dual Reference/Alarm Interface Board Switch S1 ..................24 Table 6.
Page 14 Tiger Video Routing Switcher viii Table of Contents...
Page 15: Chapter 1 - Introduction
Product Description Each Tiger video routing switcher can switch 144 inputs to 144 outputs and may contain a mix of both analog and digital components. Multiple chassis (both audio and video) may be connected into a system operated by a single controller.
Page 16: Specifications
Tiger Video Routing Switcher Specifications General Power Requirements Auto Range ...............90-260 VAC, 47-63 Hz Power Consumption.................1050 VA Physical Characteristics Height..............21 in (534 mm) (12 Rack Units) Width .................... 19 in (483 mm) Depth..................... 18 in (457 mm) Weight....................130 lb (59 kg) Operational Environment Temperature ....................0-40°...
Page 17: Pulse And Bar Responses
Tiger Video Routing Switcher Pulse and Bar Responses Factor (2T) ..................... 0.2% Bar Slope......................0.2% Pulse/Bar Ratio ....................0.2% Pulse Sharp......................Chrominance/Luminance Gain Inequality..................±1% Max. Delay Inequality....................±1 nS Non-Linear Distortions All Tests 10-90%, 3.58MHz or 12.5-87.5%, 4.43MHz Differential Gain ............... 0.1% at 4.43 MHz Differential Phase................0.1°...
Page 18: Output Characteristics
Tiger Video Routing Switcher Output Characteristics Impedance ..................... 75 Ω BNC Return Loss ..............>15 dB 5 MHz to 270 MHz Signal Amplitude ........800 mV ±10%, Terminated into 75 Ω DC Offset ..............±0.5 V, Terminated into 75 Ω Rise/Fall Times ......0.6 nS ±100 pS (20-80%) Terminated into 75 Ω...
Page 19: Chapter 2 - Installation
Chapter 2 – Installation Shipping Damage Inspection Immediately upon receipt, all shipping containers should be inspected for damage caused in transit. If any damage is noted, save all packing material and contact both PESA and the carrier as soon as possible. Unpacking CAUTION This equipment contains static sensitive devices.
Page 20: Table 1. Equipment List
Note 1 Analog Output Combiner Board with Expansion 9 max per mainframe 81-9028-0442-0 2 each AC Power Cable 81-9059-0403-0 1 each Tiger Video Routing Switcher Manual 81-9065-2014-0 Note 1 Dummy Load Board 81-9065-2071-0 Note 1 Output Combiner Board Extender 81-9065-2072-0...
Page 21: Installation In Equipment Rack
Tiger Video Routing Switcher Installation in Equipment Rack WARNING Due to the weight of this equipment, installation or removal requires at least two persons in order to avoid possible personal injury or equipment damage. This equipment should only be installed in a standard 19-inch equipment rack and only in such a manner as to avoid any tipping hazard from uneven loading of the rack.
Page 22: Interface Connections
Tiger Video Routing Switcher Interface Connections For reasons of personal safety, and to prevent damage to the equipment or cables, the following guidelines should be followed when connecting cables to this equipment. 1. Install the equipment in the rack before connecting cables.
Page 23: Connector Interface Board
Protocol (Document No. 81-9062-0300-0). See Figure 2 for an orientation view showing contact locations. The PANEL PORT connectors are connected to PESA Remote Control Panels with daisy-chained cables constructed with 3-contact connectors (Part No. 81-9029-0780-0) and shielded, twisted-pair audio cable (Part No. 81-9028-0043-2, Belden 8451, or equivalent) as shown in Figure 3. The connector body has an integral strain relief which requires the use of a nylon cable tie which is included with the connector.
Page 24: Prc System Expansion Connector (Prc Control)
This 5-contact connector is a loop-through connector used to provide an RS-422 serial communication interface using the PESA PRC Protocol (Document No. 81-9062-0316-0). It is wired in parallel with the DB-9-Male PRC CONTROL connector. See Figure 4 for an orientation view showing contact locations.
Page 25: Control Connectors (Serial 1, Serial 2)
These DB9-Male connectors provide RS-232 serial communication interfaces. See Figure 6 for an orientation view showing contact locations. NOTE Although two system controllers may be installed in a Tiger Video Routing Switcher, only one will be active at any given time. SERIAL 1 and SERIAL 2 will only communicate with the active system controller.
Page 26: Figure 7. Rs-232 Cpu Link (Null Modem) Cable
Tiger Video Routing Switcher Figure 7. RS-232 CPU Link (Null Modem) Cable Figure 8. RS-232 CPU Link (AT Serial Modem) Cable Chapter 2 – Installation...
Page 27: Control Connectors (Prc Control, Serial 4)
These DB9-Male connectors provide RS-422 serial communication interfaces. See Figure 9 for an orientation view showing contact locations. NOTE Although two system controllers may be installed in a Tiger Video Routing Switcher, only one will be active at any given time. PRC CONTROL and SERIAL 4 will only communicate with the active system controller.
Page 28: Figure 10. Rs-422 Serial Cable
Tiger Video Routing Switcher Figure 10. RS-422 Serial Cable Figure 11. RS-422 CPU Link Cable Chapter 2 – Installation...
Page 29: Dual Reference/Alarm Interface Board
ALARM is connected to an external, customer supplied, monitoring circuit with a cable constructed with one 3-contact, screw-terminal connector (PESA Part No. 81-9029-0811-0) and customer supplied cable, as shown in Figure 13. The connector body has an integral strain relief, which requires the use of a nylon cable tie (PESA Part No.
Page 30: Alarm System Expansion Connector (Alarm Control Port)
See Figure 14 for an orientation view showing contact locations. ALARM CONTROL PORT may be connected to other PESA PRC type equipment with a cable assembly (Part No. 81-9028-0395-0) constructed as shown in Figure 15. If this cable must be constructed in the field, consult Drawing No.
Page 31: Alarm Interface Connector (Alarm Control Port)
Tiger Video Routing Switcher Alarm Interface Connector (ALARM CONTROL PORT) This DB9-Male connector provides an interface for an external, customer supplied, alarm monitor and control system, usually a PC. See Figure 16 for an orientation view showing contact locations. The Alarm System External Control Interface (ECI) may be operated in either RS-232 (point-to-point) mode or RS-422 (multidrop) mode.
Page 32: House Sync Input Connectors (Ref #1, Ref #2)
Connect one of the OUTPUT connectors to the monitor with coaxial cable and standard BNC connectors. In a system containing multiple Tiger Video routing switchers, LOOP INPUT is used to daisy-chain the output monitor control boards together. This allows a single monitor to view any of the outputs in the system.
Page 33: Power Connectors
AC receptacles. Connect the AC line cords (PESA Part No. 81-9028-0442-0) to the Backplane power connectors and then to an AC power source. This equipment is now powered-up and ready for the system controller software to be configured.
Page 34: Large Level Expansion Feature
Tiger Video Routing Switcher Large Level Expansion Feature Tiger Video routing switchers have a large level expansion feature which allows the creation of systems supporting levels with more than 144 physical inputs and/or outputs, without the need for video distribution amplifiers.
Page 35: Switch And Jumper Settings
Tiger Video Routing Switcher Switch and Jumper Settings Connector Interface Board The Connector Interface board switch (S1) is an eight-position, toggle-style, DIP switch which controls the strobe assignment and the selection of input and offset codes. See Figure 20 for the location of this switch.
Page 36: S1 - Strobe Assignment, Input And Output Offset Code Select
Tiger Video Routing Switcher S1 – Strobe Assignment, Input and Output Offset Code Select S1 is an eight-position, toggle-style, DIP switch consisting of eight single-pole, single-throw (SPST) switches numbered 1 through 8. It is used to assign the routing switcher to one of fifteen strobes and select the input and output offset codes.
Page 37: Dual Reference/Alarm Interface Board (Analog And Digital)
Tiger Video Routing Switcher Dual Reference/Alarm Interface Board (Analog and Digital) The Dual Reference/Alarm Interface board switches (S1 and S2) are four-position, slide-style, DIP switches which control the selection of the CPU address, communication speed, and enable/disable house sync signal inputs. The Alarm Interface board jumper uses three eight-position SIP sockets to allow the selection of the communication mode.
Page 38: S1 - Cpu Address Select
Tiger Video Routing Switcher S1 – CPU Address Select S1 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select one of sixteen CPU addresses. See Table 5 for switch settings.
Page 39: S2 - Communication Speed Select, House Sync Error Alarm Enable/Disable
J9, J10 and J11 are eight-position SIP sockets installed on the Dual Reference/Alarm Interface board for use as the communication mode select jumper. The communication mode is selected by installing an eight-position DIP shunt (PESA Part No. 81-9029-0667-6) as follows: •...
Page 40: Output Monitor Control Board
Tiger Video Routing Switcher Output Monitor Control Board The Output Monitor Control board switches (S1 through S4) are four-position, slide-style, DIP switches which control the strobe assignment, selection of input and output offset codes, and selection of a house sync line for synchronized switching. See Figure 22 for the location of these switches.
Page 41: S1 - Output Offset Code Select
1 through 4. It is used to select one of sixteen output offset codes. See Table 7 for switch settings. NOTE Each Tiger video output monitor control board has one output per matrix monitored. Each of these outputs must be assigned a unique output offset code.
Page 42: S2 - Input Offset Code Select
Tiger Video Routing Switcher S2 – Input Offset Code Select S2 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select one of sixteen input offset codes. See Table 8 for switch settings.
Page 43: S3 - Strobe Assignment
Tiger Video Routing Switcher S3 – Strobe Assignment S3 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to assign the output monitor control board to one of fifteen strobes.
Page 44: S4 - House Sync Signal Line Select
Tiger Video Routing Switcher S4 - House Sync Signal Line Select S4 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select which of four lines in the house sync signal, is to be used for synchronized switching.
Page 45: Output Combiner Board (Analog And Digital)
Tiger Video Routing Switcher Output Combiner Board (Analog and Digital) The Output Combiner board switches (S1 and S2) are four-position, slide-style, DIP switches which control the selection of a house sync line for synchronized switching. See Figure 23 for the location of these switches.
Page 46: S1 - House Sync Signal Line Select
Tiger Video Routing Switcher S1 – House Sync Signal Line Select S1 is a 4 position DIP switch consisting of four single pole, single throw (SPST) switches numbered 1 through 4. It is used to select which of four lines in each house sync signal, is to be used for synchronized switching.
Page 47: Subassembly Installation
Tiger Video Routing Switcher Subassembly Installation If specified when ordered, the switches and jumpers on the subassemblies will already be properly configured. Otherwise, please refer to “Switch and Jumper Settings” on page 19 prior to installing these items. Installation of Rear Subassemblies Figure 24 shows the location of the subassemblies installed from the rear of this equipment.
Page 48: Dual Reference/Alarm Interface Board Installation
Tiger Video Routing Switcher Dual Reference/Alarm Interface Board Installation The Dual Reference/Alarm Interface board is located as shown in Figure 24 and is installed as follows: 1. Align the support plate of the Dual Reference/Alarm Interface board with the card guides in the chassis.
Page 49: Output Combiner Board Installation
Tiger Video Routing Switcher Output Combiner Board Installation The Output Combiner boards are located as shown in Figure 24 and are installed as follows: 1. Align the printed circuit board of the Output Combiner board with the card guides in the chassis.
Page 50: Power Supply Installation
Tiger Video Routing Switcher Power Supply Installation NOTE This equipment contains two power supply assemblies connected in parallel. Only one power supply assembly is required to power this equipment. The second power supply assembly serves as a backup for the first. One power supply assembly may safely be removed while the other power supply assembly is connected to the power source.
Page 51: Chapter 3 - Operation
Tiger Video Routing Switcher Chapter 3 – Operation General This equipment is designed to be operated by a system controller such as the PESA 3500Plus System Controller. For detailed operational information, please refer to the system controller manual. External Reference/Alarm Interface Board The External Reference/Alarm Interface board contains a single chip implementation of a 68HC11 controller surrounded by system monitoring circuits and an RS-232 or RS-422 serial port for external interface.
Page 52: System Controller Status Alarm (Ct1/Ct2)
An A/D converter is used to monitor the alarm signal generated by a system controller (e.g. 3500Plus) installed in a Tiger video routing switcher. If the signal is lower than 2.0 Volts for a period of 10mS, the alarm is considered active. There are two system controller alarm signals that are monitored, one for each system controller installed in the Tiger video routing switcher.
Page 53: Power Transitions
Tiger Video Routing Switcher Power Transitions No data is retained over power transitions. Upon reset, all status is initialized and all current error conditions are reported to the external control interface. Protocol Message Format <Address><Cmd><CmdInfo><Checksum><Terminator> (ASCII) • Address identifies the Alarm Interface board to which the control is communicating.
Page 54: Command Set
Tiger Video Routing Switcher Command Set Status Query The status command allows the ECI to poll the Alarm Interface board for active alarms. • Command Structure: <Address> Q <CS> <lf> • Response Structure: <Address> R [<Alarm Codes>…..] <CS> <lf> The alarm codes indicate those alarms that presently active. The codes concatenate in the response until all active alarms are listed.
Page 55: Sample Query And Response
Tiger Video Routing Switcher Sample Query and Response Command is sent to query for alarm conditions • 1Q82<lf> where: • 1 is a decimal number in ASCII representing the address of the Alarm Interface board • Q is a query request for active alarm status •...
Page 56 Tiger Video Routing Switcher Chapter 3 – Operation...
Page 57: Chapter 4 - Functional Description
Tiger Video Routing Switcher Chapter 4 – Functional Description Midplane Board The Midplane boards are responsible for the distribution of power, control signals, house sync, alarm signals, and video signals throughout the routing switcher. Controller Interface Board The Controller Interface board is responsible for providing a passive interface between the Midplane boards and the System Controllers.
Page 58: Alarm Output
Tiger Video Routing Switcher RS422 communications mode. U15 (RS232 receiver/transmitter) controls alarm control port communications when in the RS232 communication mode. Alarm Output U6 (octal register) drives the indicator LEDs (LED1 - LED3) and the alarm output driver U10 (opto- coupler).
Page 59: Monitor Control Port
Tiger Video Routing Switcher Monitor Control Port The monitor control port is comprised of U32 (RS485 receiver/transmitter), U26 (operational amplifier), and their associated components. U32 enables the receipt and transmission of data over the RS422 (PRC) control port. U26 buffers the data reception lines prior to the receive data being applied to U32.
Page 60: Digital Output Combiner Board
Tiger Video Routing Switcher Digital Output Combiner Board The electronic circuits on this board are divided into the microprocessor, code and confidence scan, input, matrix, output, control port, power, and matrix control circuits. Microprocessor The heart of the microprocessor circuit is the 68HC16Z1 processor (U65). Reset for U65 is provided by U66 (microprocessor supervisor) and clock for U65 is provided by Y1 (32.768KHz clock).
Page 61: Output
Tiger Video Routing Switcher Output Each output stage consists of a reclocker and a cable driver. Output 1 (OUT1) will be discussed as typical of all output stages. The active video signal from the combiner matrix stage is AC coupled into the output stage by C5. The reclocker (U2) expects a differential ECL level signal on its input (U2 pins 5 and 6).
Page 62: 48X16 Digital Crosspoint Board
Tiger Video Routing Switcher precision resistors and into the associated 48x16 Digital Crosspoint boards installed in the routing switcher. The cable driver is also responsible for driving the digital video signal loop-back output. 48x16 Digital Crosspoint Board The electronic circuits on this board are divided into the power, matrix control, input, matrix, output circuits.
Page 63: Matrix
Tiger Video Routing Switcher the differential pair are buffered by successive emitter follower circuits. Emitter follower Q101 (with base resistor R341 and emitter resistor R342) forms a buffer stage, followed by a second emitter follower formed from Q96 (with base resistor R344 and emitter resistor R320). R695 a build-out resistor, and the emitter resistor R320 double as a termination resistance for the signal.
Page 64: Monitor Control Port
Tiger Video Routing Switcher Monitor Control Port The monitor control port is comprised of U32 (RS485 receiver/transmitter), U26 (operational amplifier), and their associated components. U32 enables the receipt and transmission of data over the RS422 (PRC) control port. U26 buffers the data reception lines prior to the receive data being applied to U32.
Page 65: Analog Output Combiner Board
Tiger Video Routing Switcher Analog Output Combiner Board The electronic circuits on this board are divided into the microprocessor, code and confidence scan, input, matrix, output, control port, power, and matrix control circuits. Microprocessor The heart of the microprocessor circuit is the 68HC16Z1 processor (U58). Reset for U58 is provided by U52 (microprocessor supervisor) and clock for U58 is provided by Y1 (32.768KHz clock).
Page 66: Control Port
Tiger Video Routing Switcher The active video signal from the combiner matrix stage is coupled into the output stage by R686. The first stage of the output amplifier (U2) in conjunction with adjustable resistors R2 and R14, provides the means to adjust the DC offset on the output and to adjust the high frequency response of the output.
Page 67: Input
Tiger Video Routing Switcher (CLKOUT) for the crosspoints. U48, U51, U50, and their support gates are responsible for decoding the position ID (MTX_ID_0 and MTX_ID_1) and for providing data signals (DATA0, DATA1, and DATA2) at the appropriate times to the crosspoints. Reset for the crosspoints is provided by U49 (microprocessor supervisor) and its associated circuits.
Page 68 Tiger Video Routing Switcher Chapter 4 – Functional Description...
Page 69: Chapter 5 - Maintenance And Repair
Tiger Video Routing Switcher Chapter 5 – Maintenance and Repair Periodic Maintenance NOTE This equipment has been designed so maintenance operations can be performed while the equipment is operational (has power applied). Only the power supply assemblies and the AC line circuits contain potentially lethal shock hazards.
Page 70: Output Monitor Control Board (Analog And Digital)
Tiger Video Routing Switcher Output Monitor Control Board (Analog and Digital) Color Schematic Legend Normal State Troubleshooting Info Power OK Indicates that input voltage to the PCB is within design parameters. If LED is OFF: 1. Remove and reinstall board to verify backplane connector is properly seated.
Page 71: Output Combiner Board (Analog)
Tiger Video Routing Switcher Output Combiner Board (Analog) Color Schematic Legend Normal State Troubleshooting Info Combiner Active Indicates that the combiner is in use. This LED will be ON if at least one crosspoint on the board is active. Com Active Indicates that the PRC bus is in use.
Page 72: Output Combiner Board (Digital)
Tiger Video Routing Switcher Output Combiner Board (Digital) Color Schematic Legend Normal State Troubleshooting Info CPU Error Indicates the absence of software errors. If this LED is ON: 1. Contact PESA Customer Service Com Active Indicates that the PRC bus is in use.
Page 73: 48X16 Matrix Board (Analog)
Tiger Video Routing Switcher 48x16 Matrix Board (Analog) Color Schematic Legend Normal State Troubleshooting Info Module Active Indicates that the module is in use. This LED will be ON if at least one crosspoint on the board is active. Power OK Indicates that input voltage to the PCB is within design parameters.
Page 74: Power Supply Assemblies
2. Contact PESA Customer Service. PESA Customer Service If the troubleshooting information above has not solved your problem, please contact the PESA Customer Service Department. Skilled technicians are available to assist you 24 hours per day, seven days per week.
Page 75: Adjustment (Analog)
Tiger Video Routing Switcher Adjustment (Analog) Although the Tiger Video Routing Switcher is tested and adjusted before shipment from the factory, readjustment may be necessary when parts are replaced or the equipment configuration changes. All adjustments are made on the Output Combiner boards.
Page 76: High Frequency Response Adjustment
Tiger Video Routing Switcher High Frequency Response Adjustment Set the high frequency response as follows: 1. Adjust the sweep generator for a 1.0V p-p sweep from 100KHz to 60MHz into a 75 ohm load. Set timing markers for 1MHz intervals.
Page 77: Repair
Tiger Video Routing Switcher Repair Before attempting to repair this equipment, please consult your warranty documents and/or the PESA Customer Service Department. Unauthorized repairs may void your warranty. WARNING The power supply assemblies in this equipment are not field/user serviceable. These offline switching power supplies contain internal voltages in excess of 300VDC and are not isolated from the AC power source.
Page 78 Tiger Video Routing Switcher 81-9062-0407-0 CPU Link Protocol No. 1 (P1) 81-9062-0408-0 CPU Link Protocol No. 1 Extensions (P1E) 81-9062-0409-0 Unsolicited Status Protocol (USP) 81-9062-0410-0 Truck Link Protocol (TRK) 81-9062-0448-0 PESA Internet Remote Control Protocol (PIRC) Chapter 5 – Maintenance and Repair...
Page 79: Glossary
Tiger Video Routing Switcher Glossary (Revised: 02-19-01) AES/EBU Informal name for a digital audio standard established jointly by the Audio Engineering Society (www.aes.org) and the European Broadcasting Union (www.ebu.ch). All Call A diagnostic procedure that causes a single physical input to be switched to a range of physical outputs, for a specified component, with a single command.
Page 80: Black Burst
Tiger Video Routing Switcher Black Burst A composite color video signal which has sync, color burst, and black video. It is used to synchronize other video sources to the same sync and color information. See also: House Sync. Block A group of contiguous crosspoints in a routing switcher which form the smallest unit on which confidence is checked.
Page 81: Chop
Tiger Video Routing Switcher Chop Rapidly switch two different video signals into a monitor or other piece of test equipment. This is done to compare some characteristic of the signals, usually for quality control. Chop Rate The parameter used to control the switching rate when chopping two signals. The signal switching...
Page 82: Composite Video
Tiger Video Routing Switcher Composite Video A type of video signal which contains luminance, chrominance, blanking, and synchronizing information. NTSC, PAL, and SECAM are composite video signals, as opposed to RGB video which is not. See also: Vertical Sync Signal.
Page 83: Data Key
Tiger Video Routing Switcher Data Key A user configurable control panel key, whose assigned function is used when the panel is in any mode except Salvo Select Mode. Many control panels have user configurable keys. Each key can be assigned two functions, one as a data key and one as a salvo key.
Page 84: Destination Number
Tiger Video Routing Switcher Destination Number A number assigned to each destination by the controller and used by CPU Protocol 1. Destination numbers are also assigned to reentries. Destination Status See: Status. Diagonal A diagnostic procedure that causes a range of physical inputs to be switched to a range of physical outputs, in a diagonal pattern starting from a specified coordinate and continuing until the either the inputs or outputs are exhausted, for a specified component, with a single command.
Page 85: Follow Switch
Tiger Video Routing Switcher Follow Switch A switch where a single source is switched to a single destination on all levels. Example: Assume the existence of a source VTR1 which is defined on levels VIDEO and AUDIO, and a destination MON1 which is defined on the same levels. VTR1 is switched to MON1 on both the VIDEO level and AUDIO level.
Page 86: Input Offset
Tiger Video Routing Switcher Input Offset In matrix space, the amount by which the origin of a component on strobe x, is offset from the origin of strobe x, measured along the input axis. The coordinates of crosspoints in matrix space are determined by the strobe they reside on, and their input and output numbers.
Page 87: Level
Tiger Video Routing Switcher Level A group of related components that are switched together. A level is sometimes referred to as a level of control and is the basic granularity seen by a user. The components which comprise a level will always be switched together except when performing diagnostic operations.
Page 88: Levels Of Control List
Tiger Video Routing Switcher Levels of Control List A named list of the levels a specific control panel is authorized to control. Multiple panels may share a levels of control list. Levels of control list names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces.
Page 89: Logical Input
Tiger Video Routing Switcher Logical Input One or more physical inputs which are switched together as a group. Logical inputs and outputs are switched level-by-level. Since each level may have more than one component, switching a single logical input or output may involve switching more than one physical input or output.
Page 90: Matrix Space
Tiger Video Routing Switcher Matrix Space A three-dimensional mathematical model of the crosspoints in a switching system. The coordinates of crosspoints in matrix space are given in the form (input,output) on strobe x. When a switching system is physically made up of only one routing switcher, the crosspoint coordinates are the same as the input and output connector numbers, and the resulting matrix space has only two dimensions.
Page 91 Tiger Video Routing Switcher Figure B Strobe numbers are used to introduce a third dimension into matrix space. Every routing switcher in a switching system is assigned to a strobe. In systems using more than one strobe (and, therefore having three-dimensional matrix space), crosspoint coordinates are given in the form (input,output) on strobe x.
Page 92: Ntsc
Tiger Video Routing Switcher NTSC National Television Standards Committee. The NTSC was responsible for setting television and video standards in the United States. The NTSC standard for television defines a composite video signal with a refresh rate of 60 half-frames (interlaced) per second. Each frame contains 525 lines and can contain 16 million different colors.
Page 93: Pal
Tiger Video Routing Switcher Figure B Phase Alternating Line, the dominant television standard in Europe. The United States uses a different standard, NTSC. Whereas NTSC delivers 525 lines of resolution at 60 half-frames per second, PAL delivers 625 lines at 50 half-frames per second.
Page 94: Password
Personal computer. Typically used to run control system software such as Win3500Plus. PESA control system software is designed to operate on any IBM® compatible personal computer (AT® or later) with a Microsoft Windows™ operating system (3.1, 95, 98, or NT).
Page 95: Port
The first character must be a letter. Port names are optional because a port is identified by its address. PRC Device A device designed to be compatible with the PESA Routing Control protocol (PRC). Ocelot, Cougar, Jaguar, Tiger, and Cheetah routing switchers are PRC devices. See also: RM5 Device.
Page 96: Reentry
Because the system controller does not output any modem configuration information, the remote modem must be completely transparent to the controller. The only modems tested by PESA for use as remote modems are the Practical Peripherals PM288MT II and the U.S. Robotics Sportster 28.8 using the following initialization strings: PM288MT II: AT S0=2 Q1 X4 &C1 &D0 &K3 &S1 &W0 &Y0...
Page 97: Requester Code
Tiger Video Routing Switcher Requester Code A property of panels and ports which allows them to be grouped with other panels or ports for the purpose of establishing lock and protect authority. Panel requester codes not explicitly defined automatically default to the panel address.
Page 98: Salvo Include List
Tiger Video Routing Switcher Salvo Include List A named list of the salvos a specific control panel is authorized to control. A salvo include list may be shared by multiple panels. Salvo include list names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces.
Page 99: Smpte
Tiger Video Routing Switcher SMPTE Society of Motion Picture and Television Engineers (www.smpte.org). A professional organization that recommends standards for the television and film industries. Soft Destination Key See: Soft Key. Soft Key A special type of data key whose assigned function may be changed locally by a panel user.
Page 100: Source Include List
Tiger Video Routing Switcher Source Include List A named list of the sources a specific control panel is authorized to control. A source include list may be shared by multiple panels. Source include list names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces.
Page 101: Stop Bit
Tiger Video Routing Switcher Stop Bit In asynchronous communications, a bit that indicates that a byte of data has just been transmitted. Every byte of data is preceded by a start bit and followed by a stop bit. Strobe The third dimension of matrix space.
Page 102: Tieline
Tiger Video Routing Switcher Tieline A special type of logical switch that allows a logical input on one level to be switched to a logical output on a different level. Example 1 - Switch a signal from analog camera ANCAM into an analog-to-digital converter...
Page 103: User Account
Tiger Video Routing Switcher User Account A set of privileges and an optional user password saved as a user name. User accounts provide a means of restricting access to certain system functions on a user-by-user basis. User Name An eight-character string consisting of upper case letters, numbers, spaces, and some symbols: Permitted: ! @ # $ % ^ &...
Page 104 Tiger Video Routing Switcher Glossary...
Page 105 Tiger Video Routing Switcher Revision History Rev. Date Description 01-31-98 Initial release. C. Jaynes 07-24-98 Added Section 1.4 and revised warning statements to G. Tarlton conform with CE marking requirements. 02-07-00 Added analog video Declaration of Conformity per G. Tarlton ECO-3152.
