PESA Tiger Owner's Manual

Audio routing switcher
Hide thumbs Also See for Tiger:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

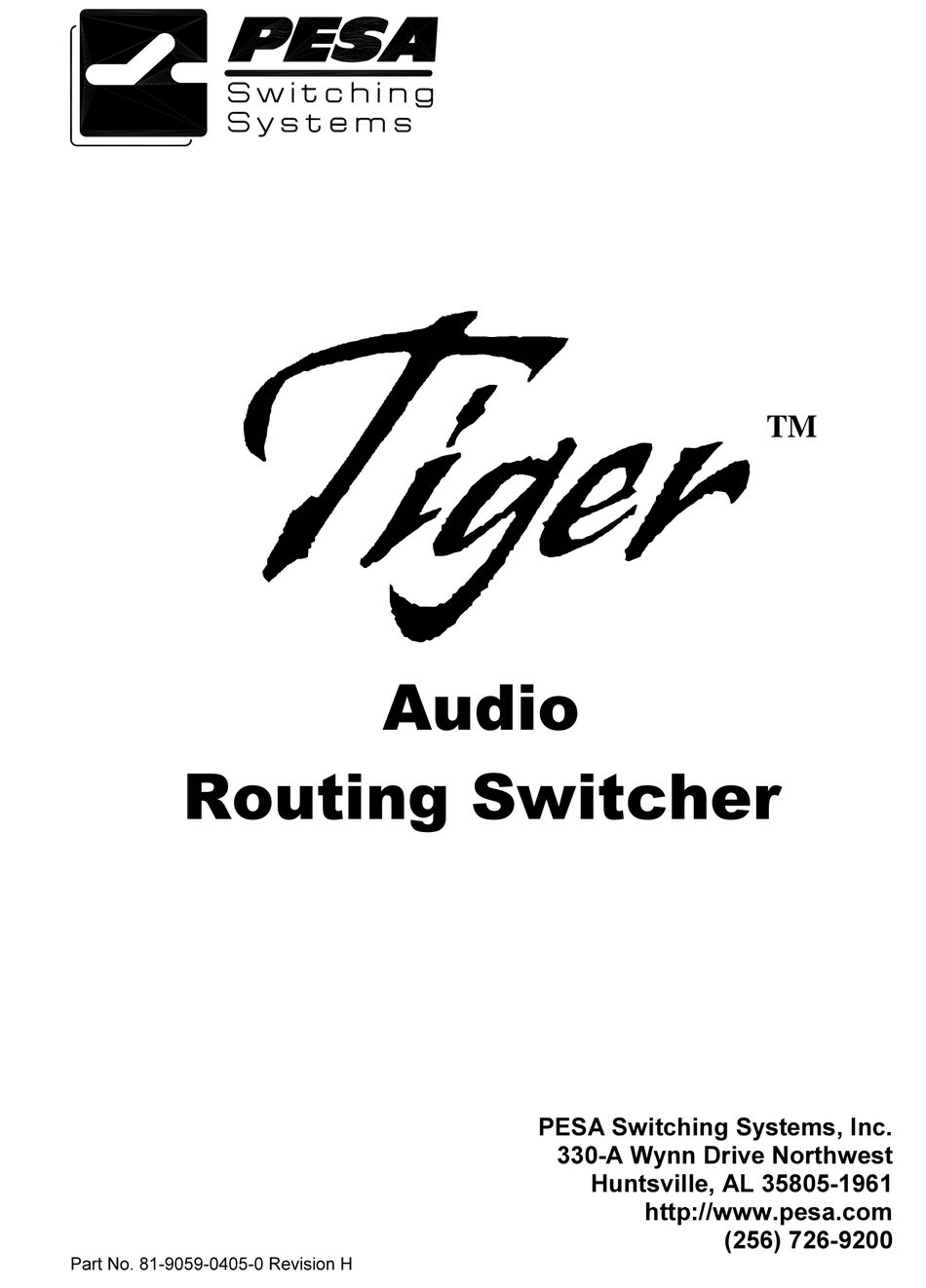

TM
$XGLR
5RXWLQJ 6ZLWFKHU
3(6$ 6ZLWFKLQJ 6\VWHPV ,QF
$ :\QQ 'ULYH 1RUWKZHVW
+XQWVYLOOH $/
KWWSZZZSHVDFRP

3DUW 1R  5HYLVLRQ +

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tiger and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PESA Tiger

Summary of Contents for PESA Tiger

  • Page 1 $XGLR 5RXWLQJ 6ZLWFKHU 3(6$ 6ZLWFKLQJ 6\VWHPV ,QF $ :\QQ 'ULYH 1RUWKZHVW +XQWVYLOOH $/  KWWSZZZSHVDFRP   3DUW 1R  5HYLVLRQ +...
  • Page 2 RCP-SLCXY, RCP-STAT1, RCP-STAT2, RCP-TP, RCP-XY, RM4000, RM5000, RM5488A, Route 66, RS422 Port Switcher, SDVDA 3001, System 5, System V, Tiger, Truck Link, VDA 3001, VDA 3002, VDA 3003, VDA 3005, VDA 3006, VDARS422, Virtual Panel, VP, VPNet, Win3300, Win3500, and Win3500Plus are trademarks of PESA Switching Systems, Inc. in the United States and/or other countries.
  • Page 3 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU )&& 6WDWHPHQW This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU...

  • Page 5: Table Of Contents

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Table of Contents CHAPTER 1 – INTRODUCTION .......................... 1 General..................................1 Safety Warnings..............................1 Product Description ..............................1 Specifications................................2 General ................................2 Power Requirements................................2 Physical Characteristics..............................2 Operational Environment ..............................2 Analog................................. 2 Input Characteristics................................2 Output Characteristics ...............................
  • Page 6 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU S4 - Reserved for Future Use ............................24 S5 - Output Offset Code Select - Matrix A ........................25 S6 - Input Offset Code Select - Matrix A ........................26 S7 - Output Offset Code Select - Matrix B........................27 S8 - Input Offset Code Select - Matrix B ........................
  • Page 7 Output Monitor Control Board (Analog and Digital) ...................... 61 Alarm Interface Board..............................62 Carrier Board Gain Adjustment ........................62 Output Monitor Control Board Gain Adjustment ..................... 62 PESA Customer Service............................ 62 Repair..................................63 Replacement Parts ............................63 Factory Service ..............................63 PESA Documentation ............................
  • Page 8 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Black Burst ................................66 Block..................................66 Block Checking..............................66 Blocked Destination.............................. 66 Blocked Source ..............................66 Breakaway Switch ..............................66 Category................................66 Chop..................................67 Chop Rate ................................67 Component................................67 Composite Video ..............................68 Confidence ................................68 Confidence Error..............................
  • Page 9 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Port..................................82 PRC Device................................82 Protect ................................... 82 Protect Priority..............................82 Protocol................................. 82 Readback................................82 Readback Error ..............................82 Reentry.................................. 83 Remote Modem..............................83 Requester Code ..............................84 RM5 Device................................84 Salvo ..................................84 Salvo Entry ................................84 Salvo Include List ..............................
  • Page 10 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Figure 7. Output Signal Cable ..........................10 Figure 8. PRC INTERFACE Connector ........................11 Figure 9. RS-422 Serial Cable ..........................11 Figure 10. ALARM CLOSURE Connector ......................12 Figure 11. Alarm Closure Switch Cable ........................12 Figure 12.

  • Page 11: Safety Warnings

    3URGXFW 'HVFULSWLRQ Each Tiger audio routing switcher can switch 144 dual-channel inputs to 144-dual channel outputs, or be configured as a 288x144 or 144x288 single-channel routing switcher. Each chassis may contain a mix of both analog and digital components, and multiple chassis (both audio and video) may be connected into a system operated by a single controller.
  • Page 12 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6SHFLILFDWLRQV *HQHUDO 3RZHU 5HTXLUHPHQWV Auto Range..............100-240 VAC, 47-63 Hz Power Consumption .................. 300 VA 3K\VLFDO &KDUDFWHULVWLFV Height..............14 in (356 mm) (8 Rack Units) Width..................... 19 in (483 mm) Depth ..................... 16 in (406 mm) Weight .................... 85 lb (38.6 kg) 2SHUDWLRQDO (QYLURQPHQW Temperature ....................0-40°...
  • Page 13 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU )UHTXHQF\ &KDUDFWHULVWLFV 5HIHUHQFH  .+] Sine Wave Response ..........<±0.1 dB, 20 Hz to 20 KHz <-3.0 dB to 200 KHz Square Wave Response (Overshoot and Ringing) <±5%, 3 KHz, 100 µs Rise Time (20 V p-p) <±10%, 100 KHz, 10 µs Rise Time (5 V p-p) 'LVWRUWLRQ &KDUDFWHULVWLFV Total Harmonic Distortion ............
  • Page 14 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KDSWHU  ± ,QWURGXFWLRQ...

  • Page 15: Specifications

    &KDSWHU  ± ,QVWDOODWLRQ 6KLSSLQJ 'DPDJH ,QVSHFWLRQ Immediately upon receipt, all shipping containers should be inspected for damage caused in transit. If any damage is noted, save all packing material and contact both PESA and the carrier as soon as possible. 8QSDFNLQJ &$87,21 This equipment contains static sensitive devices.

  • Page 16: Table 1. Equipment List

    2 each AC Power Cable 81-9029-0811-0 Note 1 WECO Audio Connectors 81-9059-0405-0 1 each Tiger Audio Routing Switcher Manual 81-9065-2074-0 Note 1 Audio Input Buffer Board Extender 81-9065-2075-0 Note 1 Audio Carrier Board Extender Note 1: This item is optional or may be ordered in varying quantities. Please consult your purchase order to verify that you have received the correct quantity.

  • Page 17: Interface Connections

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU ,QVWDOODWLRQ LQ (TXLSPHQW 5DFN :$51,1* Due to the weight of this equipment, installation or removal requires at least two persons in order to avoid possible personal injury or equipment damage. This equipment should only be installed in a standard 19-inch equipment rack and only in such a manner as to avoid any tipping hazard from uneven loading of the rack.

  • Page 18: Figure 1. Rear View

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Figure 1. Rear View Figure 2. Interface Connectors &KDSWHU  ± ,QVWDOODWLRQ...

  • Page 19: Figure 3. Input Signal Connector

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU ,QSXW 6LJQDO &RQQHFWRUV $ ,13876 % ,13876 These 3-contact connectors provide the input signal interface. See Figure 3 for an orientation view showing contact locations. The INPUT connectors are connected to the audio signal sources with cables constructed with 3-contact connectors (Part No.

  • Page 20: Figure 6. Output Signal Connector

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 2XWSXW 6LJQDO &RQQHFWRUV $ 2873876 % 2873876 These 3-contact connectors provide the output signal interface. See Figure 6 for an orientation view showing contact locations. The OUTPUT connectors are connected to the audio signal sources with cables constructed with 3-contact connectors (Part No.

  • Page 21: Figure 8. Prc Interface Connector

    This DB-9 Male connector provides an RS-422 serial communication interface to the required external system controller (e.g. 3500Plus). J290 - PRC INTERFACE uses PESA PRC Protocol (Document No. 81-9062-0316-0), and is wired in parallel with the 5-contact PRC CONTROL system expansion connector.

  • Page 22: Figure 10. Alarm Closure Connector

    3-contact, screw-terminal connector (PESA Part No. 81-9029-0811-0) and customer supplied cable, as shown in Figure 11. The connector body has an integral strain relief which requires the use of a nylon cable tie (PESA Part No. 81-9021-0028-8). Figure 10. ALARM CLOSURE Connector Figure 11.

  • Page 23: Figure 12. Alarm Interface Connector

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU $ODUP ,QWHUIDFH &RQQHFWRU -  $/$50 ,17(5)$&( This DB9-Male connector provides an interface for an external, customer supplied, alarm monitor and control system, usually a PC. See Figure 12 for an orientation view showing contact locations. The Alarm System External Control Interface (ECI) may be operated in either RS-232 (point-to-point) mode or RS-422 (multidrop) mode.
  • Page 24 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU +RXVH 6\QF ,QSXW &RQQHFWRUV 5() $ 5() $ 5() % 5() % This equipment contains two External Reference Interface boards with one serving as the backup for the other. Together, the boards are capable of accepting two different house sync signals (e.g. NTSC and PAL). REF A1 and REF B1 are used for one house sync signal, REF A2 and REF B2 are used for the other.

  • Page 25: Figure 15. Output Mon Connectors

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 2XWSXW 0RQLWRU &RQQHFWRUV 287387 021 $ 287387 021 % These 3-contact connectors provide the output signal interface for the optional Output Monitor Control boards. See Figure 15 for an orientation view showing contact locations. OUTPUT MON A and OUTPUT MON B are connected to the customer supplied monitoring equipment with cables constructed with 3-contact connectors (Part No.

  • Page 26: Figure 17. Prc Control Connector

    DB9-Male PRC INTERFACE connector. See Figure 17 for an orientation view showing contact locations. J284 – PRC CONTROL may be connected to other PESA PRC-type equipment with a cable assembly (Part No. 81-9028-0395-0) constructed as shown in Figure 18. If this cable must be constructed in the field, consult Drawing No.

  • Page 27: Figure 19. Alarm Control Connector

    This 5-contact connector is a loop-through connector used to provide an RS-422 serial communication interface using the PESA PRC Protocol (Document No. 81-9062-0316-0). It is wired in parallel with the DB9-Male ALARM INTERFACE connector. See Figure 19 for an orientation view showing contact locations.

  • Page 28: Power Connectors

    AC receptacles. Connect the AC line cords (PESA Part No. 81-9028-0143-0) to the Backplane power connectors and then to an AC power source. This equipment is now powered-up and ready for the system controller software to be configured.

  • Page 29: Figure 21. Backplane Switches

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6ZLWFK DQG -XPSHU 6HWWLQJV If specified when ordered, all DIP switches and jumpers were correctly set prior to shipment. %DFNSODQH 6ZLWFK 6HWWLQJV The Backplane switches (S1 through S4) are four-position, slide-style, DIP switches which control the selection of the strobe, input offset codes, and output offset codes.

  • Page 30: Table 2. Backplane Switch S1

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  6WUREH $VVLJQPHQW  0DWUL[ $ S1 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to assign Matrix A to one of fifteen strobes. See Table 2 for switch settings.

  • Page 31: Table 4. Backplane Switch S3

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  6WUREH $VVLJQPHQW  0DWUL[ % S3 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to assign Matrix B to one of fifteen strobes. See Table 4 for switch settings. Table 4.

  • Page 32: Figure 22. Output Monitor Control Board Switches

    2XWSXW 0RQLWRU &RQWURO %RDUG 6ZLWFK 6HWWLQJV $QDORJ DQG 'LJLWDO The optional Tiger Audio Output Monitor Control board controls two 144x1 routing switchers installed inside the Tiger audio routing switcher. It enables the system operator to monitor the output signal downstream of the last amplifier and switch circuits.

  • Page 33: Table 6. Output Monitor Control Board Switch S1

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  6WUREH $VVLJQPHQW  0DWUL[ $ S1 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to assign Matrix A output monitoring to one of fifteen strobes.

  • Page 34: S4 - Reserved For Future Use

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  6WUREH $VVLJQPHQW  0DWUL[ % S3 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to assign Matrix B output monitoring to one of fifteen strobes.

  • Page 35: S5 - Output Offset Code Select - Matrix A

    1 through 4. It is used to select one of sixteen Matrix A output offset codes. See Table 10 for switch settings. 127( Each Tiger audio output monitor control board has one output per matrix monitored. Each of these outputs must be assigned a unique output offset code.

  • Page 36: S6 - Input Offset Code Select - Matrix A

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  ,QSXW 2IIVHW &RGH 6HOHFW  0DWUL[ $ S6 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select one of sixteen Matrix A input offset codes. See Table 11 for switch settings.

  • Page 37: S7 - Output Offset Code Select - Matrix B

    1 through 4. It is used to select one of sixteen Matrix B output offset codes. See Table 12 for switch settings. 127( Each Tiger audio output monitor control board has one output per matrix monitored. Each of these outputs must be assigned a unique output offset code.

  • Page 38: S8 - Input Offset Code Select - Matrix B

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  ,QSXW 2IIVHW &RGH 6HOHFW  0DWUL[ % S8 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select one of sixteen Matrix B input offset codes. See Table 13 for switch settings.

  • Page 39: Alarm Interface Board Switch And Jumper Settings

    J1, J2 and J3 are eight-position SIP sockets installed on the Alarm Interface board for use as the communication mode select jumper. The communication mode is selected by installing an eight- position DIP shunt (PESA Part No. 81-9029-0667-6) as follows: œ...

  • Page 40: S1 - Communication Speed

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  &RPPXQLFDWLRQ 6SHHG S1 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select one of two communication speeds. See Table 14 for switch settings.

  • Page 41: S2 - Cpu Address Select

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  &38 $GGUHVV 6HOHFW S2 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select one of sixteen CPU addresses. See Table 15 for switch settings.

  • Page 42: Carrier Board Switch Settings (Analog)

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &DUULHU %RDUG 6ZLWFK 6HWWLQJV $QDORJ The analog Carrier board switches (S1 and S2) are four-position, slide-style, DIP switches which control house sync line select. See Figure 24 for the location of these switches. œ S1 House sync line select œ...

  • Page 43: S1 - House Sync Line Select

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  +RXVH 6\QF /LQH 6HOHFW S1 is a four-position, slide-style, DIP switch consisting of four single-pole, single-throw (SPST) switches numbered 1 through 4. It is used to select which of four lines in the house sync signals is to be used for synchronized switching.

  • Page 44: Carrier Board Switch Settings (Digital)

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &DUULHU %RDUG 6ZLWFK 6HWWLQJV 'LJLWDO The digital Carrier board switches (S1 and S2) are four-position, slide-style, DIP switches which control house sync line select. See Figure 25 for the location of these switches. œ S1 House sync line select œ...

  • Page 45: S1 - Reserved For Future Use

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6  5HVHUYHG IRU )XWXUH 8VH S1 is a 4 position DIP switch consisting of four single pole, single throw (SPST) switches numbered 1 through 4. It is reserved for future use. See Table 18 for switch settings. Table 18.

  • Page 46: Power Supply Jumper Settings

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 3RZHU 6XSSO\ -XPSHU 6HWWLQJV The Power Supply jumpers use three-pin headers to allow the selection of the over temp shut down mode and fan voltage. See Figure 26 for the location of these jumpers. œ J1 Over Temp Shut Down Mode Select œ...

  • Page 47: J1 Over Temp Shut Down Mode Select Jumper

    - 2YHU 7HPS 6KXW 'RZQ 0RGH 6HOHFW -XPSHU J1 is a three-pin header installed on the Power Supply for use as the over temp shut down mode select jumper. The automatic shut down mode is selected by installing a two-socket jumper (PESA Part No. 81-9029-0335-0) as follows: œ...

  • Page 48: Subassembly Installation

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6XEDVVHPEO\ ,QVWDOODWLRQ If specified when ordered, the switches and jumpers on the subassemblies will already be properly configured. Otherwise, please refer to Switch and Jumper Settings on page19. 3RZHU 6XSSO\ ,QVWDOODWLRQ 127( This equipment contains two power supply assemblies connected in parallel.

  • Page 49: Carrier Board Installation

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Figure 27. Front View &DUULHU %RDUG ,QVWDOODWLRQ The Carrier boards are located as shown in Figure 27 on page 39 and are installed as follows: Align the first Carrier board with the card guides in the chassis. Carefully insert the Carrier board into the chassis until the connectors on the Carrier board make contact with the Backplane connectors.

  • Page 50: Output Monitor Control Board Installation

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 2XWSXW 0RQLWRU &RQWURO %RDUG ,QVWDOODWLRQ The Output Monitor Control board is located as shown in Figure 27 on page 39 and is installed as follows: Align the Output Monitor Control board with the card guides in the chassis. Carefully insert the Output Monitor Control board into the chassis until the connectors on the Output Monitor Control board make contact with the Backplane connectors.

  • Page 51: Circuit Board Retaining Bracket Installation

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Figure 28. Circuit Board Retaining Brackets &LUFXLW %RDUG 5HWDLQLQJ %UDFNHW ,QVWDOODWLRQ The Input Buffer Board Retaining Brackets and the Carrier Board Retaining Brackets are located as shown in Figure 28 on page 41. These brackets are installed using captive thumbscrews which engage threaded inserts in the chassis.
  • Page 52 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KDSWHU  ± ,QVWDOODWLRQ...

  • Page 53: Chapter 3 - Operation

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KDSWHU  ± 2SHUDWLRQ *HQHUDO This equipment is designed to be operated by a system controller such as the PESA 3500Plus System Controller. For detailed operational information, please refer to the system controller manual. $ODUP ,QWHUIDFH %RDUG The Alarm Interface board contains a single chip implementation of a 68HC11 controller surrounded by system monitoring circuits and an RS-232/RS-422 serial port for external interface.

  • Page 54: House Sync Error Alarm (Vt1/Vt2)

    An A/D converter is used to monitor the software fault alarm signal generated by the optional output monitor control board. If the signal is lower than 2.0 Volts for a period of 10mS, the alarm is considered active. Only one output monitor control board can be installed in each Tiger audio routing switcher.

  • Page 55: Power Transitions

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 3RZHU 7UDQVLWLRQV No data is retained over power transitions. Upon reset, all status is initialized and all current error conditions are reported to the external control interface. 3URWRFRO 0HVVDJH )RUPDW [<Address>]<Cmd><CmdInfo><Checksum><Terminator> œ Address identifies the Alarm Interface board to which the control is communicating. The Address field is not used when address 0 (zero) has been selected.

  • Page 56: Command Set

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &RPPDQG 6HW 6WDWXV 4XHU\ The status command allows the ECI to poll the Alarm Interface board for active alarms. œ Command Structure: <Address> Q <CS> <lf> œ Response Structure: <Address> R [<Alarm Codes>…..] <CS> <lf> The alarm codes indicate those alarms that presently active. The codes concatenate in the response until all active alarms are listed.

  • Page 57: Sample Query And Response

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6DPSOH 4XHU\ DQG 5HVSRQVH Command is sent to query for alarm conditions œ 1Q82<lf> where: œ 1 is a decimal number in ASCII representing the address of the Alarm Interface board œ Q is a query request for active alarm status œ...
  • Page 58 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KDSWHU  ± 2SHUDWLRQ...

  • Page 59: Chapter 4 - Functional Description

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KDSWHU  ± )XQFWLRQDO 'HVFULSWLRQ ,QSXW &RQQHFWRU ,QWHUIDFH %RDUG This board is a passive interface between 3-pin connectors and the frame Backplane. 144 individual input connectors are routed to multi-pin connectors on the opposite side of the board. From the mating multi-pin connectors, signals are routed through the Backplane to the Input Buffer boards.

  • Page 60: Secondary Switches

    (ALL CALL) to a different input selected by each output. Two diagnostic tools that are available from the PESA controller are “ALL CALL” and “DIAGONAL”. All call allows one signal , e.g., Tone, to be placed on all outputs, a “DIAGONAL” switches input one to output one, input two to output two, three to three, etc.
  • Page 61 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU PIN 7, which is “OFF”. If the system includes more than 144 inputs and an input is selected which is outside of the range of the frame (1-144) the "OFF" is selected. This allows the outputs to be wire-ORed when multiple frames are in the system (systems with over 144 inputs).

  • Page 62: External Reference Interface Board

    3RZHU 6XSSO\ With proper airflow, the Tiger Audio Power Supply will provide 4 amps each from ±20 volts. It will also supply 15 amps of +5 volts. These ratings are for line voltages from 95 to 250 volts AC or DC. Although the unit may operate outside of this range, higher temperatures will be generated with a significant reduction in life expectancy.

  • Page 63: Alarm Interface Board

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU A power factor correction circuit forms the input stage. This provides a regulated 350VDC to the output modules. Each module provides one regulated isolated output voltage. After the modules, the output of each goes through an isolation diode. This allows the supplies to be paralleled for backup with auto switchover. They do not normally share the output load.

  • Page 64: Alarm Monitor

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU $ODUP 0RQLWRU The alarm monitor circuit on the Alarm Interface board is composed of U9 (16X1 multiplexer) and its associated components. The microprocessor uses U19 to select the various alarm outputs from the power supplies and circuit cards installed in the frame. $ODUP 2XWSXW U6 (octal register) drives the indicator LEDs (LED2-LED4) and the alarm output driver U4 (opto-coupler).

  • Page 65: Matrix

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 0DWUL[ &RQWURO The Output Monitor Control board provides a control data stream for each of the two monitor outputs. The microprocessor generates MON_DATA and MON_CLK on U5 pins 23 and 24, respectively. U5 pin30 is used to differentiate between the two outputs. This pin is held low for the first output and is held high for the second.
  • Page 66 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KDSWHU  ± )XQFWLRQDO 'HVFULSWLRQ...

  • Page 67: Maintenance

    The air filter should be checked monthly to ensure that an adequate supply of clean air is available to cool this equipment. If the air filter is dirty, it may be cleaned or replaced with a new air filter (PESA Part No.

  • Page 68: Troubleshooting

    Indicates that output voltage is within design parameters. If LED is OFF: 1. Check input power connections. 2. Replace the power supply. 3. Contact PESA Customer Service. Over Temp Indicates that the power supply operating temperature is within design parameters. If LED is ON: 1.
  • Page 69 If LED is OFF: 1. Remove and reinstall board to verify backplane connector is properly seated. 2. Check power supplies for proper operation. 3. Contact PESA Customer Service. [ &URVVSRLQW %RDUG $QDORJ Color Schematic Legend Normal State Troubleshooting Info Module Active Indicates that the module is in use.
  • Page 70 PRC bus. CPU Error Indicates the absence of software errors. If this LED is ON: 1. Contact PESA Customer Service Indicates that input voltage to the PCB is within design parameters. If LED is OFF: 1. Remove and reinstall board to verify backplane connector is properly seated.
  • Page 71 Troubleshooting Info CPU Error Indicates the absence of software errors. If this LED is ON: 1. Contact PESA Customer Service Comm Active Indicates that the PRC bus is in use. It is normal for this LED to flicker on and off as data is being transmitted over the PRC bus.

  • Page 72: Carrier Board Gain Adjustment

    PESA Customer Service Department. 3(6$ &XVWRPHU 6HUYLFH If the troubleshooting information above has not solved your problem, please contact the PESA Customer Service Department. Skilled technicians are available to assist you 24 hours per day, seven days per week.
  • Page 73 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 5HSDLU Before attempting to repair this equipment, please consult your warranty documents and/or the PESA Customer Service Department. Unauthorized repairs may void your warranty. :$51,1* The power supply assemblies in this equipment are not field/user serviceable. These offline switching power supplies contain internal voltages in excess of 300VDC and are not isolated from the AC power source.
  • Page 74 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KDSWHU  ± 0DLQWHQDQFH DQG 5HSDLU...

  • Page 75: All Call

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU *ORVVDU\ (Revised: 02-19-01) $(6(%8 Informal name for a digital audio standard established jointly by the Audio Engineering Society (www.aes.org) and the European Broadcasting Union (www.ebu.ch). $OO &DOO A diagnostic procedure that causes a single physical input to be switched to a range of physical outputs, for a specified component, with a single command.

  • Page 76: Black Burst

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU %ODFN %XUVW A composite color video signal which has sync, color burst, and black video. It is used to synchronize other video sources to the same sync and color information. See also: House Sync. %ORFN A group of contiguous crosspoints in a routing switcher which form the smallest unit on which confidence is checked.

  • Page 77: Chop

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &KRS Rapidly switch two different video signals into a monitor or other piece of test equipment. This is done to compare some characteristic of the signals, usually for quality control. &KRS 5DWH The parameter used to control the switching rate when chopping two signals. The signal switching rate is determined as follows: Video Frame...

  • Page 78: Composite Video

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU &RPSRVLWH 9LGHR A type of video signal which contains luminance, chrominance, blanking, and synchronizing information. NTSC, PAL, and SECAM are composite video signals, as opposed to RGB video which is not. See also: Vertical Sync Signal. &RQILGHQFH A property of a block that indicates whether or not the circuitry controlling the crosspoints in the block is functioning correctly.

  • Page 79: Data Key

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 'DWD .H\ A user configurable control panel key, whose assigned function is used when the panel is in any mode except Salvo Select Mode. Many control panels have user configurable keys. Each key can be assigned two functions, one as a data key and one as a salvo key.

  • Page 80: Destination Number

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 'HVWLQDWLRQ 1XPEHU A number assigned to each destination by the controller and used by CPU Protocol 1. Destination numbers are also assigned to reentries. 'HVWLQDWLRQ 6WDWXV See: Status. 'LDJRQDO A diagnostic procedure that causes a range of physical inputs to be switched to a range of physical outputs, in a diagonal pattern starting from a specified coordinate and continuing until the either the inputs or outputs are exhausted, for a specified component, with a single command.

  • Page 81: Follow Switch

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU )ROORZ 6ZLWFK A switch where a single source is switched to a single destination on all levels. Example: Assume the existence of a source VTR1 which is defined on levels VIDEO and AUDIO, and a destination MON1 which is defined on the same levels. VTR1 is switched to MON1 on both the VIDEO level and AUDIO level.

  • Page 82: Input Offset

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU ,QSXW 2IIVHW In matrix space, the amount by which the origin of a component on strobe x, is offset from the origin of strobe x, measured along the input axis. The coordinates of crosspoints in matrix space are determined by the strobe they reside on, and their input and output numbers.
  • Page 83 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Figure B *ORVVDU\...

  • Page 84: Level

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU /HYHO A group of related components that are switched together. A level is sometimes referred to as a level of control and is the basic granularity seen by a user. The components which comprise a level will always be switched together except when performing diagnostic operations.

  • Page 85: Levels Of Control List

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU /HYHOV RI &RQWURO /LVW A named list of the levels a specific control panel is authorized to control. Multiple panels may share a levels of control list. Levels of control list names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces.

  • Page 86: Logical Input

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU /RJLFDO ,QSXW One or more physical inputs which are switched together as a group. Logical inputs and outputs are switched level-by-level. Since each level may have more than one component, switching a single logical input or output may involve switching more than one physical input or output.

  • Page 87: Matrix Space

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 0DWUL[ 6SDFH A three-dimensional mathematical model of the crosspoints in a switching system. The coordinates of crosspoints in matrix space are given in the form (input,output) on strobe x. When a switching system is physically made up of only one routing switcher, the crosspoint coordinates are the same as the input and output connector numbers, and the resulting matrix space has only two dimensions.
  • Page 88 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Figure B Strobe numbers are used to introduce a third dimension into matrix space. Every routing switcher in a switching system is assigned to a strobe. In systems using more than one strobe (and, therefore having three-dimensional matrix space), crosspoint coordinates are given in the form (input,output) on strobe x.

  • Page 89: Ntsc

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 176& National Television Standards Committee. The NTSC was responsible for setting television and video standards in the United States. The NTSC standard for television defines a composite video signal with a refresh rate of 60 half-frames (interlaced) per second. Each frame contains 525 lines and can contain 16 million different colors.

  • Page 90: Pal

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Figure B Phase Alternating Line, the dominant television standard in Europe. The United States uses a different standard, NTSC. Whereas NTSC delivers 525 lines of resolution at 60 half-frames per second, PAL delivers 625 lines at 50 half-frames per second. See also: NTSC, SECAM.

  • Page 91: Password

    Personal computer. Typically used to run control system software such as Win3500Plus. PESA control system software is designed to operate on any IBM® compatible personal computer (AT® or later) with a Microsoft Windows™ operating system (3.1, 95, 98, or NT).

  • Page 92: Readback

    The first character must be a letter. Port names are optional because a port is identified by its address. 35& 'HYLFH A device designed to be compatible with the PESA Routing Control protocol (PRC). Ocelot, Cougar, Jaguar, Tiger, and Cheetah routing switchers are PRC devices. See also: RM5 Device.
  • Page 93 Because the system controller does not output any modem configuration information, the remote modem must be completely transparent to the controller. The only modems tested by PESA for use as remote modems are the Practical Peripherals PM288MT II and the U.S. Robotics Sportster 28.8 using the following initialization strings: PM288MT II: AT S0=2 Q1 X4 &C1 &D0 &K3 &S1 &W0 &Y0...

  • Page 94: Salvo

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 5HTXHVWHU &RGH A property of panels and ports which allows them to be grouped with other panels or ports for the purpose of establishing lock and protect authority. Panel requester codes not explicitly defined automatically default to the panel address. See also Lock, Lock Priority, Protect.

  • Page 95: Salvo Include List

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6DOYR ,QFOXGH /LVW A named list of the salvos a specific control panel is authorized to control. A salvo include list may be shared by multiple panels. Salvo include list names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces.

  • Page 96: Soft Key

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6037( Society of Motion Picture and Television Engineers (www.smpte.org). A professional organization that recommends standards for the television and film industries. 6RIW 'HVWLQDWLRQ .H\ See: Soft Key. 6RIW .H\ A special type of data key whose assigned function may be changed locally by a panel user. Control system software is used to designate a data key as either a soft source key or a soft destination key.

  • Page 97: Source Include List

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6RXUFH ,QFOXGH /LVW A named list of the sources a specific control panel is authorized to control. A source include list may be shared by multiple panels. Source include list names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces.

  • Page 98: Stop Bit

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 6WRS %LW In asynchronous communications, a bit that indicates that a byte of data has just been transmitted. Every byte of data is preceded by a start bit and followed by a stop bit. 6WUREH The third dimension of matrix space. Every routing switcher in a switching system is assigned a strobe.

  • Page 99: Analog

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU 7LHOLQH A special type of logical switch that allows a logical input on one level to be switched to a logical output on a different level. Example 1 - Switch a signal from analog camera ANCAM into an analog-to-digital converter (A/D) and then into digital video tape recorder DIGVTR: (Figure A) Connect a cable between the appropriate output connector of the analog routing switcher and the input of the A/D, and a cable between the output of the A/D and the appropriate input connector on the digital routing...

  • Page 100: Sync Reference

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Tieline names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces. The first character must be a letter. 8VHU $FFRXQW A set of privileges and an optional user password saved as a user name. User accounts provide a means of restricting access to certain system functions on a user-by-user basis.

  • Page 101: Working Directory

    7LJHU $XGLR 5RXWLQJ 6ZLWFKHU :RUNLQJ 'LUHFWRU\ The location on the PC hard drive where control system software such as Win3500Plus is installed. If the default settings of the Win3500Plus installation program were used, this will be c:\win3500p for 16-bit versions of the Microsoft Windows OS, and c:\program files\win3500p for 32-bit versions.
  • Page 102 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU *ORVVDU\...
  • Page 103 7LJHU $XGLR 5RXWLQJ 6ZLWFKHU Revision History Rev. Date Description 07-27-98 Initial release. G. Tarlton 09-18-98 Revised and expanded. G. Tarlton 07-20-99 Revised to remove preliminary status per ECO-3355. G. Tarlton 02-07-00 Revised and expanded per ECO-3561. G. Tarlton 02-16-00 Revised Figures 10 and 15 per ECO-3572. G.
