8. After configuring the virtual disk, highlight "Next" and press Enter. Press Y to confirm

the creation of the virtual disk. It will now be listed in the Topology Pane (left).

Administration Console Method

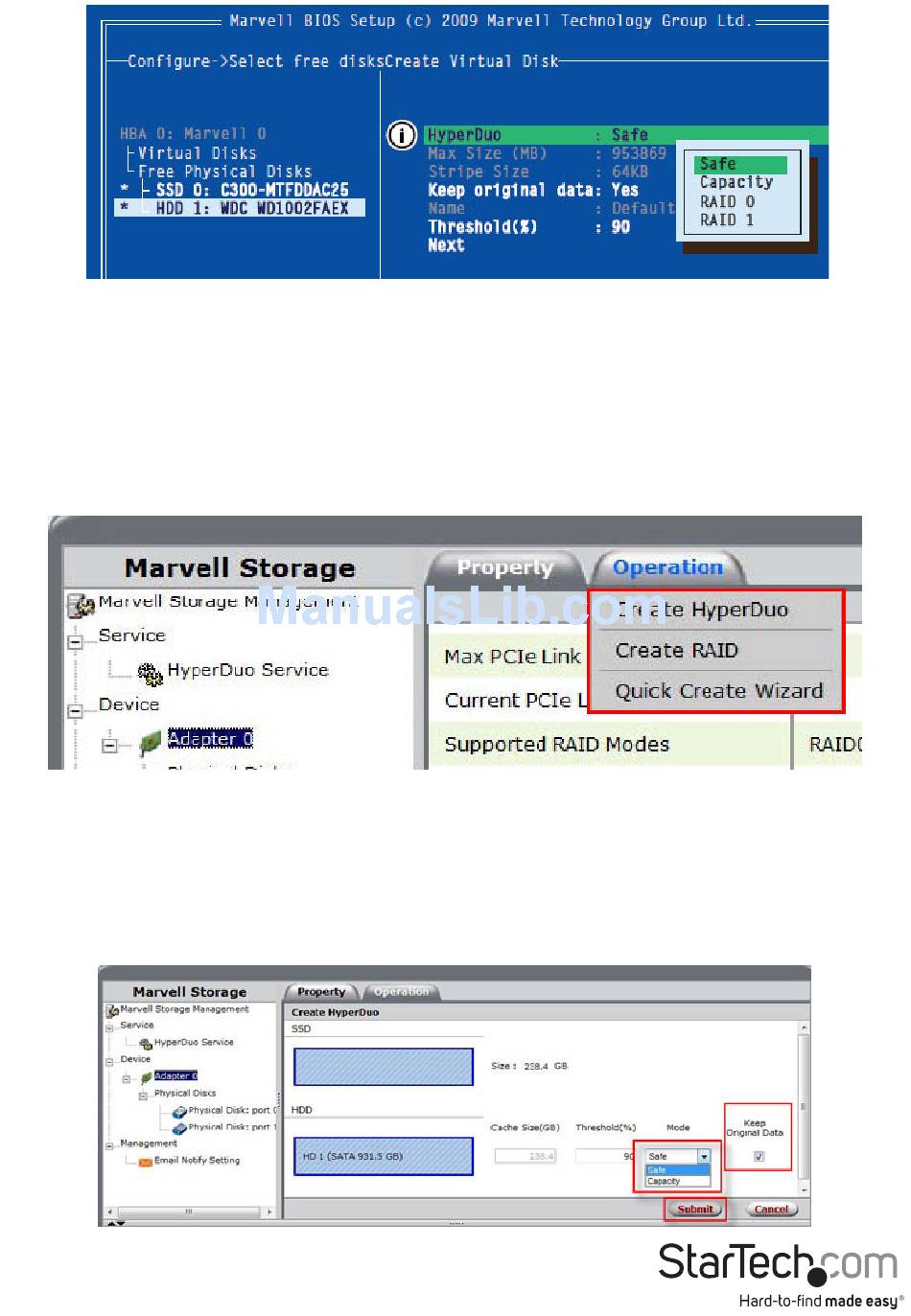

1. From the left pane of main screen of the Marvell Storage Utility (MSU), select the

adapter and hover the mouse over the "Operation" tab.

2. Select "Create HyperDuo"

3. Select either Safe mode or Capacity mode from the drop-down in the right pane.

Click the "Submit" button once you have selected the appropriate options for

your operation.

NOTE: If Safe mode is selected, you will have the option to select the checkbox

marked "Keep Original Data" – this option is NOT available in Capacity mode, as it is

inherently data-destructive.
