Port Multiplier

Port Multiplier (PM) allows for multiple SATA drives (up to 4) to be connected to a
single SATA host port. PM allows for easy, cost-effective storage scalability both inside
and outside the PC or server. It is commonly used to connect a multi-drive SATA/eSATA
hard drive enclosure/backplane using a single cable. This greatly expands the storage
capabilities of the SATA controller beyond its normal port count.
Note: Only the two SATA ports on the card can use the Port Multiplier feature. Only one
of these SATA ports can use the Port Multiplier feature at a time. The card supports up
to 4 drives connected via Port Multiplier, and 7 drives total (including two mSATA SSD).
Mac OS does not support Port Multiplier.

Operation

RAID Configuration

Card BIOS Method
WARNING! Creating a RAID virtual disk destroys all data on the physical disks included
in the virtual disk set. Make sure to back up all data before continuing.
1. When prompted on startup, press Ctrl+M to enter the card BIOS utility
Press <Ctrl>+<M> to enter BIOS Setup or <Space> to continue_
2. Using the arrow keys to navigate, move to "HBA0: Marvell 0" and press Enter to
select

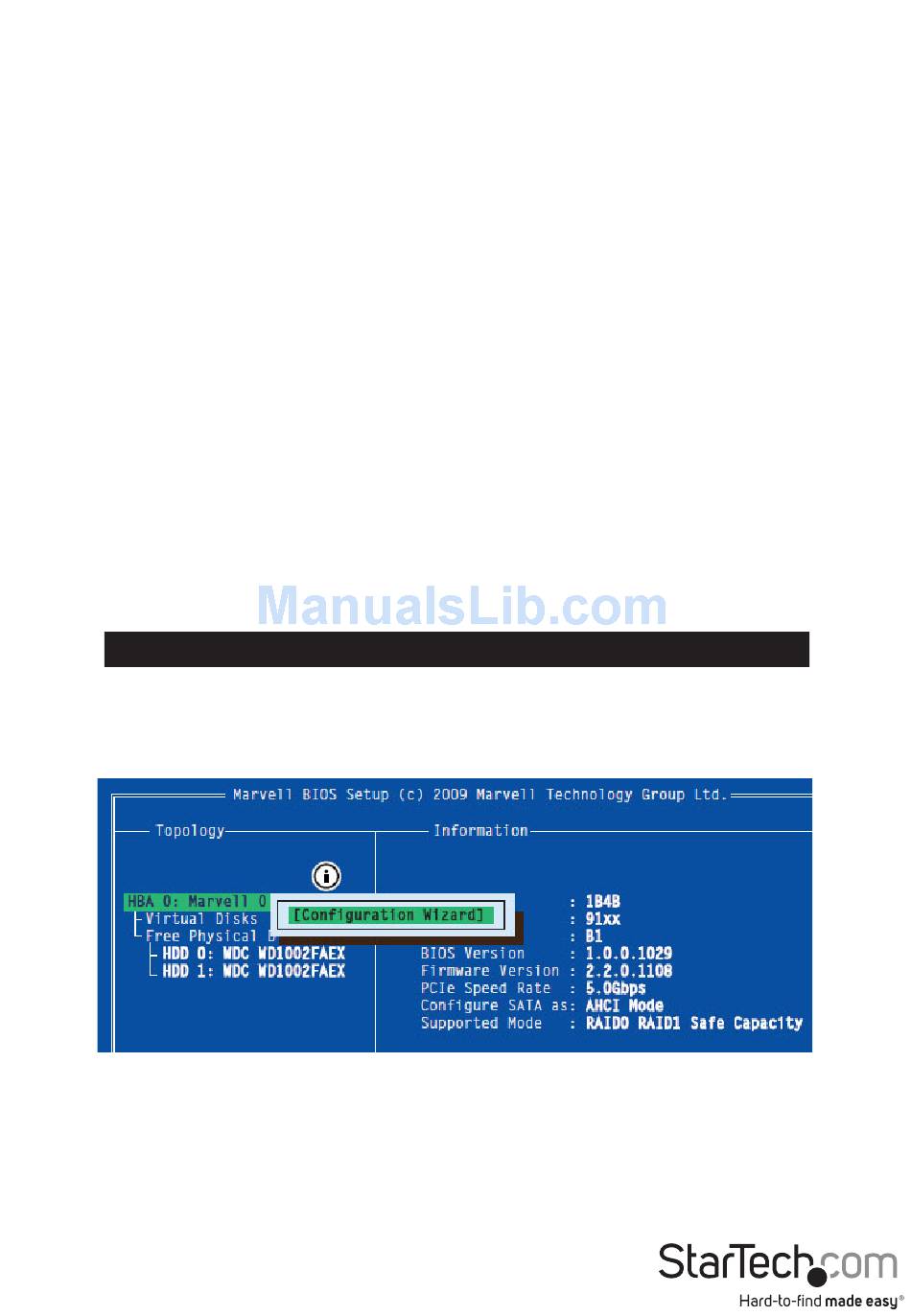

3. Press Enter again to open the Configuration Wizard
4. Use the arrow keys to scroll through the list of free physical disks to select the drives
that will be part of the RAID set. Press Space to select/de-select a disk.
NOTE: When a disk is selected, an asterisk (*) appears to the left of the disk label.
5. After selecting the required disks, press Enter to continue.
