Appendix E: Wiring Details

Signal inputs and outputs

Input 1: VGA

15 way D-type connector
1 R
2 G
3 B
4 unused
5 Digital Ground (H Sync)
6 R Ground
7 B Ground
8 G Ground
9 +5 V
10 Digital Ground (V Sync/DDC)
1 unused
12 SDA
13 H Sync
14 V Sync
15 SCL
Reference Guide

APPENDIX E: WIRING DETAILS

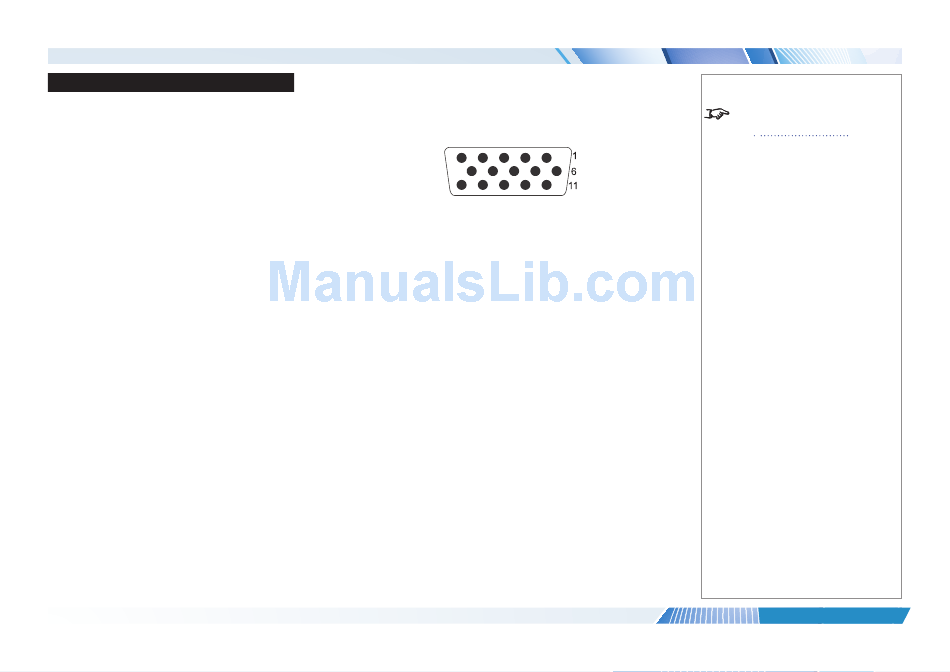

VGA: pin view of female connector
Notes
For full details of all input settings,
see Input Configuration in the
Operating Guide.
