3.5.6 Motion Detection

Enter Alarm Service Settings page to configure Motion Detection function.
Motion Detect Armed
When you enable motion detect armed, the camera can be triggered to send email alerts
and record images. In the camera monitoring page, the green icon turn to red and an
alert sound you will hear,
Motion Detect Sensibility
you can choose High, Medium, Low

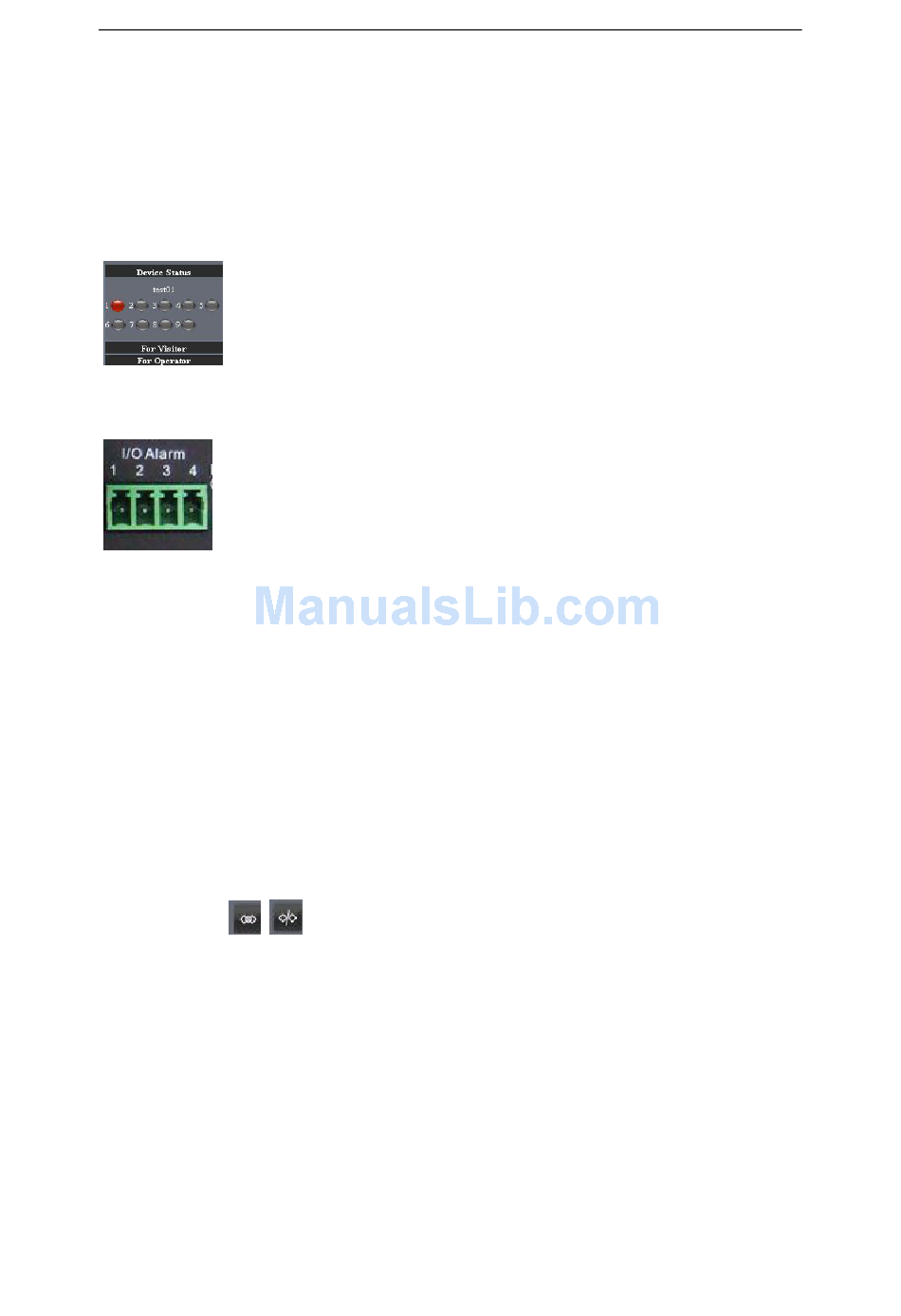

I/O PINS:1) Output(+5V) 2) Output 3) Alarm input 4) Input (GND)
Alarm Input Armed
Input Pins: The input pins can be used for 1-way external sensor input. For example,
you may connect a Person Infrared Sensor (PIR) to it for motion detection. When
external sensor triggered, IPCAM can be programmed to send an email with picture or
control the internal relay output.
If you link a external alarm with Pin3 and Pin4,when enable alarm input armed, external
alarm is enabled.
IO Linkage on Alarm
Enable IO linkage on alarm,Pin1 will output +5V when alarm triggered, and output LOW
when alarm release automatically.
Switch on/off buttons control Pin1 output manually.
Send Mail on Alarm
Sent picture and mail inform to customer‟s e-mail after alarmed.(firstly you should finish
the Mail Service Settings.)
