  • Page 1: User Manual

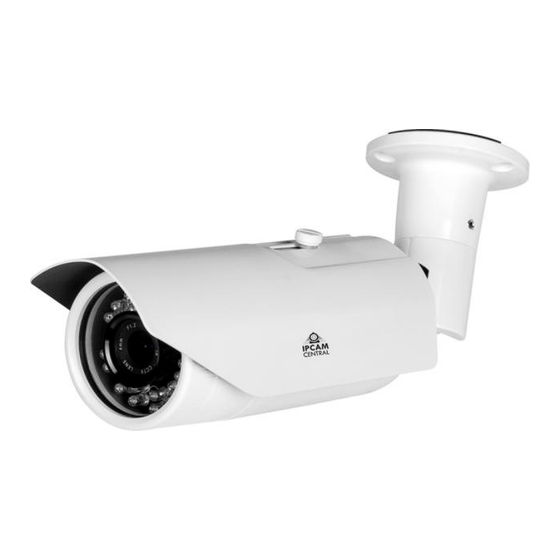

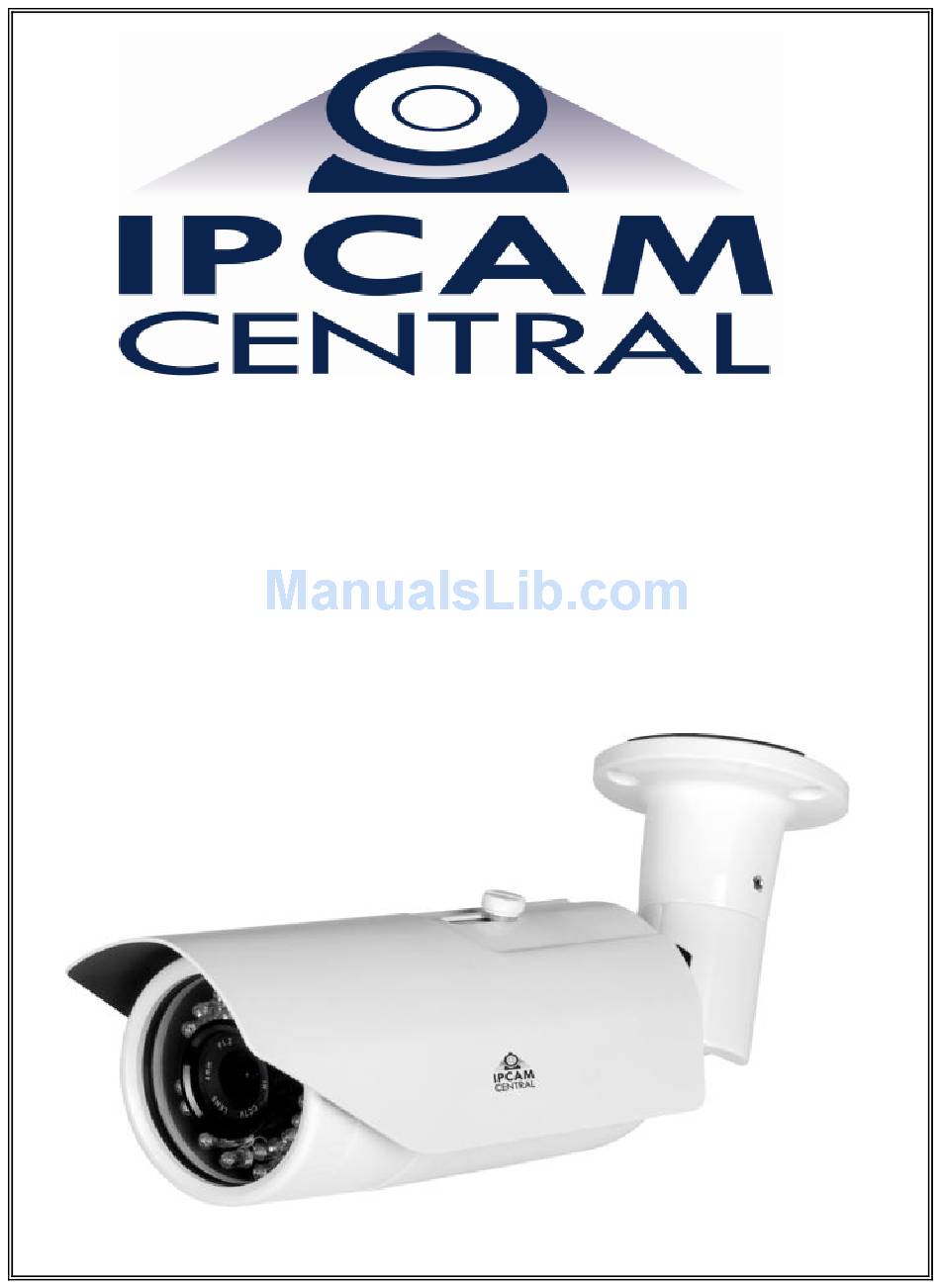

    User Manual IPCC-9605E...
  • Page 2 Notice FCC Warning The Megapixel Network Bullet camera has been tested and found to comply with the limits for a Class A digital device pursuant to the FCC rules. This equipment can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 3: Table Of Contents

    with instructions and guidelines contained in this manual Table of Contents Contents ..............２ Chapter Ⅰ System Introduction ........1.1 Product Discription ........... 1.2 Product Features ......... ５ 1.3 System Requirement ........７ 1.4 Technical Specification ......... ７ 1.5 Warning ............9 ChapterⅡ...
  • Page 4 4.2.1 Video view ........１７ 4.2.2 PTZ Control ........１８ 4.2.3 PTZ Function ........ １８ 4.2.4 Intelligent Control ......19 4.2.5 Common used short-cut button ..２０ 4.3 Camera Setting ......... ２１ 4.3.1 System ......... ２１ 4.3.2 Network ........２４ 4.3.3 Camera ........

  • Page 5: Chapter Ⅰ System Introduction

    Chapter Ⅰ System Introduction 1.1 Product Description This manual mainly introduces the settings and operation of this HD IP IR Bullet camera. This camera has adapt CMOS image sensor, combine with newest Network coding technology, and is able to provide user high-definition, high frame rate and high SNR real-time image.
  • Page 6  PTZ Remote control  Unique Intelligent control like Web frame selection to zoom+ &zoom-, Vector control, 3D location.  Quick focus  Headline setting and display, no more than 24 Character.  Preset points, Patrol Scan, Pattern Scan, Auto Scan, Regular Scan, Motion Detect ...

  • Page 7: System Requirement

    RTP、RTSP、SNMP), and can adjust the bit flow rate and frame transmission rate. Date, Time and OSD info can be set on the web interface. Saturation, Brightness, Contrast, Sharpness can be flexible  adjusted. 1.3 System Requirement The requirement to computer to control this camera: Processor：Intel Pentium 4 2.4 GHz or above RAM：512 MB or above Internet access：100M Ethernet port...
  • Page 8 BLC： On/Off White Balance: Auto/Manual/Day/Cloudy/Filament lamp/fluorescent Mirror Function： Off/Horizontal/Vertical 3D Location： Intelligent Vector control： Yes Web frame selection to zoom+ &zoom-：Yes Motion detect： 4 zones Alarm： 1way in, 1 way out (optional) OSD Language： Chinese/English Video standard： NTSC/PAL optional Video compress standard：H.264 Dual stream/ MJPEG Max frame rate：...

  • Page 9: Warning

    Power： 12VDC Max power consumption：12VDC@12W Working temperature： -20℃ ~ 50℃ Working humidity： 0~90% RH（no condensation） 1.5 Warning When login, user should do internet setting first. Please make sure  the Gateway setting should be the same with this dome. IP address can’t be same as other device, otherwise no video is ...

  • Page 10: Chapterⅱ Camera Install Mount

    Chapter Ⅱ Camera Install Mount 2.1 Install tips Please note no falling down and roughly bit to this dome Please do not line this dome directly to Sunlight or Hard light Please avoid circumstance like -10℃ to 50℃ temperature, or high humidity, frequent shocking.

  • Page 11: Chapterⅲ Ie Browser Setting

    Chapter Ⅲ IE Brower Setting For video viewing, user should do settings to the IE Browser on monitor or other video device, and please do according to the pop-up tips. Tips when set the IE Browser： IE version supported：Internet Explorer 6.0 or above； ...
  • Page 12 Figure 3-1 3. Select the “Internet” icon, and then click “Custom Level”, the following interface will pop up： Figure 3-2 4. Set all “Disable” to “Enable”; Switch to “Privacy” option, and disable the checkbox of “Block pop-ups” １２...

  • Page 13: Install Video Viewing Software

    Figure 3-3 3.3 Install Video viewing software Steps to install are as below： (1) Login After the dome is powered for about 60 seconds, please open the IE browser and then enter IP address, such as http://192.168.1.18 ( Default setting),The user login dialog box will be displayed, as shown below.
  • Page 14 Figure3-4 (2) A pop-up window says “whether download ActiveX control”, please accept , download and run it. (3) Refresh browser and video will come out. Figure3-5 １４...

  • Page 15: Chapterⅳ System Operation

    Chapter Ⅳ System Operation In this chapter, basic function and operation are introduced. 4.1 Login After the dome is powered for about 60 seconds, please open the IE browser and then enter IP address, Default setting is http://192.168.1.18 (Sub-net mask is 255.255.255.0, Gateway is 192.168.1.1). Note: Local IP address should be setted before login.

  • Page 16: View

    Figure4-1-2 Below interface is shown if login succeed. Figure4-1-3 Since H.264/MJPEG dual coding format supported, user may choose “MJPEG” button to check live video under “MJPEG” Coding Method. 4.2 View １６...

  • Page 17: Video View

    In view interface, user can set Video viewing, PTZ control, PTZ function, frequently used short-cut button. 4.2.1 Video view Video view: setting of Stream type, Video size, Play mode, Color mode, Luminance. Click “view” button to enter setting interface as below: Figure 4-2-1 Stream type: H.264 Major stream, Minor stream, MJPEG Video size: Picture can be 1X, 1/2X, Fit...

  • Page 18: Ptz Control

    4.2.2 PTZ Control PTZ Control：To control the direction, horizontal speed, vertical speed: Figure 4-2-2 PTZ Control PTZ Direction：8 directions Horizontal speed：1 — 8 optional Vertical speed：1 — 8 optional 4.2.3 PTZ Function (not support) PTZ Function： １８...

  • Page 19: Intelligent Control

    Figure 4-2-3 Preset：1--220 call Tour：1--4 call Autopan：1--4 call Pattern：1 call 4.2.4 Intelligent control  Intelligent control like Web frame selection to zoom+ &zoom-,Vector control, 3D location. Figure 4-2-4 １９...

  • Page 20: Common Used Short-Cut Button

    1. Left click, the click point will be center of the pic, namely 3D location; 2. Left double click, the click point will be the center and zoom+; 3. Left-bottom or Left-up to frame, camera will zoom+ with framed as center; Right-bottom or Right-up to frame, camera will zoom- with framed as center；...

  • Page 21: Camera Setting

    4.3 Setting Setting：setting of detailed parameter of camera, including System, Network, Camera, Audio& Video, PTZ function, Alarm, User, Log. Figure 4-3-1 Camera setting 4.3.1 System System: it is about the system info of camera, time and advanced setting. System info: The initial system setting is basic system info, like Basic info, Network settings, Alarm settings, NTP settings, H.264 video setting, MJPEG video setting.
  • Page 22 Figure 4-3-2 Camera system info Basic info: Version, Timezone, Product info, Serial No. Network setting: MAC address, IP Address, Default Gateway, Subnet Mask. Alarm setting: Alarm Server IP, Alarm Contract NTP Setting：NTP Server IP。 H.264 Video Setting: Major stream parameter, Minor stream parameter (Frame rate/ Bite rate/ GOV No.) MJPEG Video setting：Resolution, Frame rate Time: Timezone setting, NTP setting, Sync now.
  • Page 23 Figure 4-3-3 Time setting Timezone: Select timezone from list and click “save”. The optional timezone is about 26pcs, vary from “GMT-12:00~GMT~GMT+13:00”. Factory default setting is GMT(Greenwich Mean Time), so Beijing time is GMT+08:00. If “Daylight saving time” is used in your area, please turn it on also. NTP Set: NTP Server IP is normally the IP address of camera Sync time: Sync time at set time Sync interval: Set a interval to sync time...

  • Page 24: Network

    Figure 4-3-4 Advance setting File Import: Click , and choose .ifc file to upload and update. Reboot after update. Please contact your supplier for the updating file. Factory settings: Click “Reset” to set all parameter to factory default setting, and you may choose “Maintain current IP” to keep the IP address, otherwise, the IP address will be 192.168.1.18.
  • Page 25 Figure 4-3-5 Network Network：Setting of Network parameter Figure 4-3-6 Network setting DHCP：Dynamic Host Configuration Protocol, is part of the TCP/IPC Protocol, is used to distribute dynamic IP address to IP Camera. If On, then the IP address and Subnet mask .etc can’t be changed, only be allotted by Server. If Off, then do the setting of by user himself, but please make sure the IP address and Gateway address in a same network segment.
  • Page 26 PPPOE: Connect main server of Ethernet to a remote access concentrator through a simple bridge device. “User name” and “Password” is needed for activating it. FTP: FTP is protocol of application layer, which is based on transport layer, and provide service like file transportation to user. Also this IP camera supports FTP upload image function.
  • Page 27 User name: Sender’s name:  Password: Sender’s password  To: Set the name of receiver’s email address.  CC: set the email address of carbon copy.  Note: No limit for user name and password in this version. Click “save” to activate settings When “email”...
  • Page 28 Figure 4-3-11 QoS setting IGMP: It is a multicast protocol of Internet protocol, used by IP Host to report the group member situation to the direct connected Router. Figure 4-3-12 IGMP setting SIP: It is a signal control protocol, based on application layer, and it can be used to create, change, or release the conversation of one participant or multi-participant.

  • Page 29: Camera

    Figure4-3-13 STP server DDNS: Mapping user’s dynamic IP address to a fixed DNS. Every time user connect device to Network, the client program will send the dynamic IP address through signal to server program of Server host. Then the server program will provide DNS service and realize DDNS.
  • Page 30 balance setting and reset. Figure 4-3-16 Camera setting Basic setting: Settings of Camera system, Mirror function, BLC, DNR.etc Figure4-3-17 Basic Set Power frequency: 50HZ/60HZ Horizontal Mirror: Image horizontal mirror display ３０...
  • Page 31 Vertical Mirror: Image vertical mirror display BLC: It is divide image into different section, every section be exposed separately. In this way, objective can be ideally exposed even in a strong backlight circumstance. Optional levels are Low, Medium, High. DeadPixel correct: Correct the deal pixel of CCD/CMOS. WDR: This technology enables camera to see the characteristic of image in strong contrast.
  • Page 32 Exposure mode: Program mode, Shutter mode, Manual mode. Scene select: “Indoor”- to eliminate the light flashing effect. Others like “Outdoor” “Auto”. AGC MAX: Make the gain of amplifying circuit adjust automatically with the signal. Higher the AGC, lighter in night. User can control it according to real effect.
  • Page 33 over high sharpness, image will be of distortion and dazzling. Brightness: Raising the light intensity of Unit projection area can get brighter effect of total image while over top brightness will cause lack of transparency. Contrast: Contrast is the key to image visual effect. Normally, higher contrast leads to clearly marked image and bright color.

  • Page 34: Audio/Video

    Figure4-3-21Reset 4.3.4 Audio& Video Audio & Video: Setting of audio, video, OSD text, privacy zone, store path ３４...
  • Page 35 Figure4-3-22 Audio & Video Stream type: Major, Minor, MJPEG Resolution:1280*960、1280*720、640*480. Frame rate: It is handled and transferred frame number in a second. More coherent image with bigger frame rate, but the performance of dealing with other incident of CPU. With smaller frame rate, image will be of more interruption, but CPU can deal with more incidents.
  • Page 36 OSD Setting includes TXT OSD, Time OSD, Date OSD. TXT OSD：Set the context and display place. Enter content in “Context”,, it can be about 24 characters or 24pcs Chinese characters. X coord and Y coord can set to integer between “0-99”. And it shows the context location relative to the “0”of top-left of image.
  • Page 37 Figure4-3-24 Motion 【Sensitivity】: set the motion detect sensitivity, which range from 1-100. Recommend: 15。 【Zone】:You can set four motion detect zone, just draw a frame with mouse . When alarm alert in setted zone, the alarm will be activated and also there is record in log.
  • Page 38 Figure4-3-25 Private zone This IP PTZ Dome support privacy zone function. When there are some particular zone which should not be seen in survey zone, user may set this zone into privacy zone. Mask will be added so the operation staff can’t see unauthorized zone from the monitor.

  • Page 39: Ptz Function

    The file type of Image is jpg/bmp, video is avi/ifv。 4.3.5 PTZ Function For this camera, only “Iris” “Focus” “Zoom” can work. Others are design for HD IP IR PTZ Dome Series. PTZ Function: Preset, Autopan, Pattern, Preset tour, Protocol set, Transparant serial Figure4-3-27 PTZ Function Preset: When camera pan to important point, which needs higher security,...
  • Page 40 Figure4-3-28 Preset point Autopan： Figure4-3-29 Autopan Pattern： ４０...
  • Page 41 Figure4-3-30 Pattern Preset tour:(under updating) There are 3 preset tours in system, No.1 will activate preset points 1-10, No.2 will activate preset points11-20 while No.3 will activate preset points 21-30. Figure4-3-31 Preset ４１...

  • Page 42: Rtc Function

    Protocol set: Set the address, protocol and baud rate Figure4-3-32 Protocol set 4.3.6 RTC Function Timed tour: Set the camera to tour timely. Figure4-3-33 Timed tour ４２...

  • Page 43: Alarm

    The PTZ Dome support timed tour. User may set tour with his own situation. Tour consists of 6 pcs time quantum and preset points, autopan, pattern.etc. Act mode: User can choose to be “close” “once” “everyday” “user-self” Act time: Only available under Act mode-“user-self”. User can set the start time, end time and action of this time quantum.

  • Page 44: Record

    Net contact: the network transfer method of alarm signal. Alarm server IP: The IP address of Alarm server User can set alarm respond method of each channel: I/O output, Mail, Local save, FTP, Audio. Please click “save” to save the settings. 4.3.8 Record (This Camera does not support) Record: The settings and replay of local SD card.

  • Page 45: User

    Peripheral equipment manage: User can read the SD card state of total size and used space and operate the SD card. When pull out SD card, please choose “format” first, otherwise data may be damaged. Replay: Figure4-3-36 Replay Search: Set the start time and end time of video, then click “search”, file of video in this time period will be listed.

  • Page 46: Log

    ， below window will pop up. Add user: Click Figure4-3-38 Add user Enter user name and password. Figure4-3-39 Check new user 4.3.10 Log Log: Record of the operation of Camera. Figure4-3-40 System Log ４６...

  • Page 47: Appendixⅰ Frequent Break Down

    Appendix Ⅰ Frequent breakdown Below table contains detailed analyzation of breakdowns and solutions. Problem Possible reason Solution Power line connected wrongly Re-connect power line Power failure Repair or change Power supply Damage of Fuse of PCB Board Change fuse initialization Launch immediately after power Launch in 10s after power off operation...
  • Page 48 IP address is same with other Set unique IP address device Image blur Not Focus Manually adjust ４８...
