IPCAM User Manual
3

SOFTWARE OPERATION

3.1IP Camera Tool

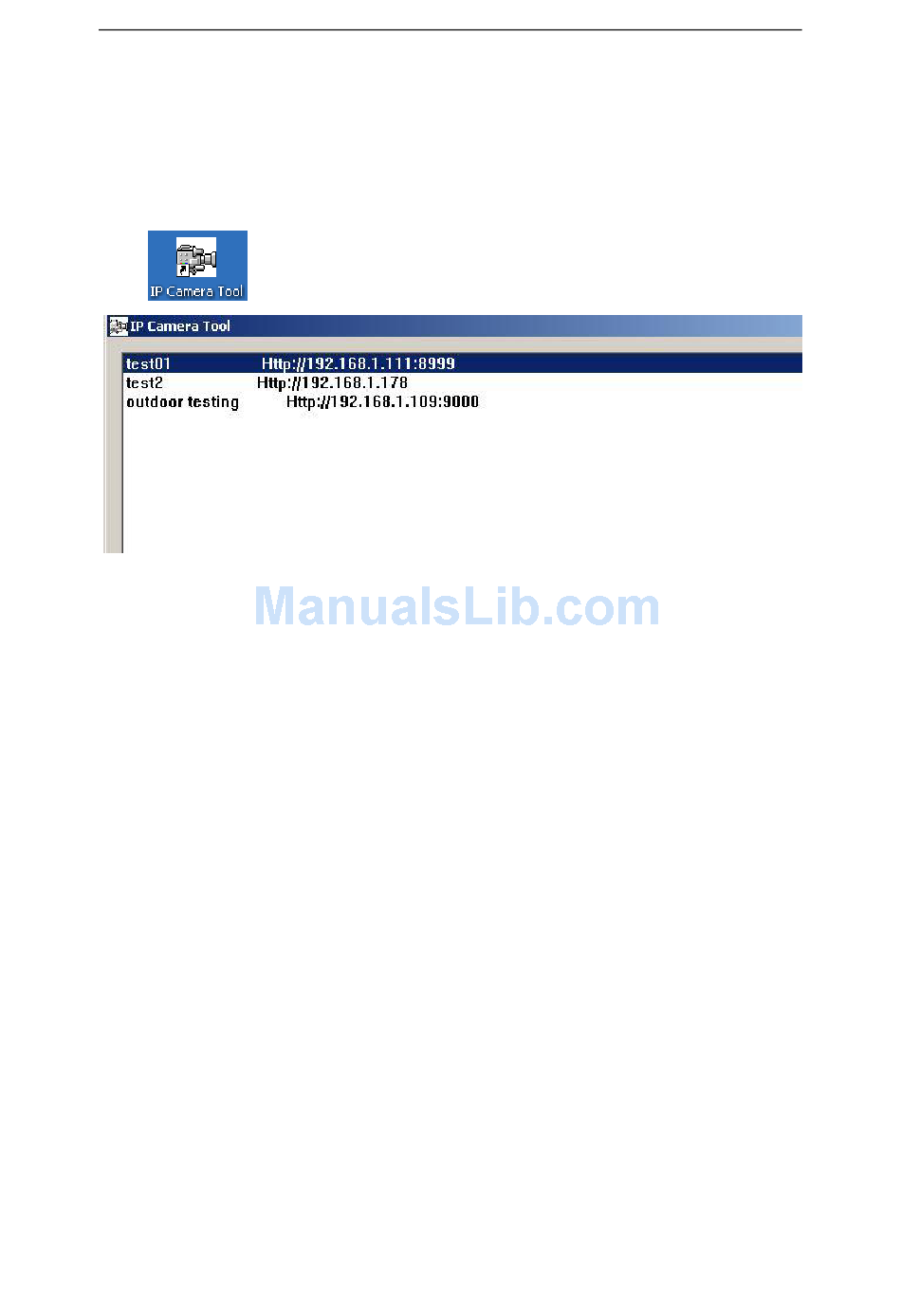

When the Device has been mounted properly, you can double click the icon "IP Camera
Tool"
and a dialog box as Figure 1.9 will pop up.
Figure 1.9
Note
: The software searches IP Servers automatically over LAN.
There are 3 cases:
1 No IP Camera found within LAN. After about 1 minute search, the Result Field will
show "not found IP Server" and the program shut automatically;
2 IP Cameras having been installed within LAN. All the IP Cameras will be listed and the
total number is displayed in the result field as shown in Figure 2.0.
3 The IP Cameras installed within LAN do not share the same subnet with the monitoring
PC. A prompt as shown in result field (prompt: Subnet doesn‟t match,dbclick to change!).
Click the left mouse button to choose the prompt and click the right mouse, choose
Network Configuration to set the IP address of the Camera to the same subnet as LAN.
Five Options
Choose the IP Camera list and Click right mouse button,there are five options,Basic
Properties, Network Configuration, Upgrade Firmware, Refresh Camera List, Flush Arp
Buffer as shown Figure 2.0.
13 / 67
