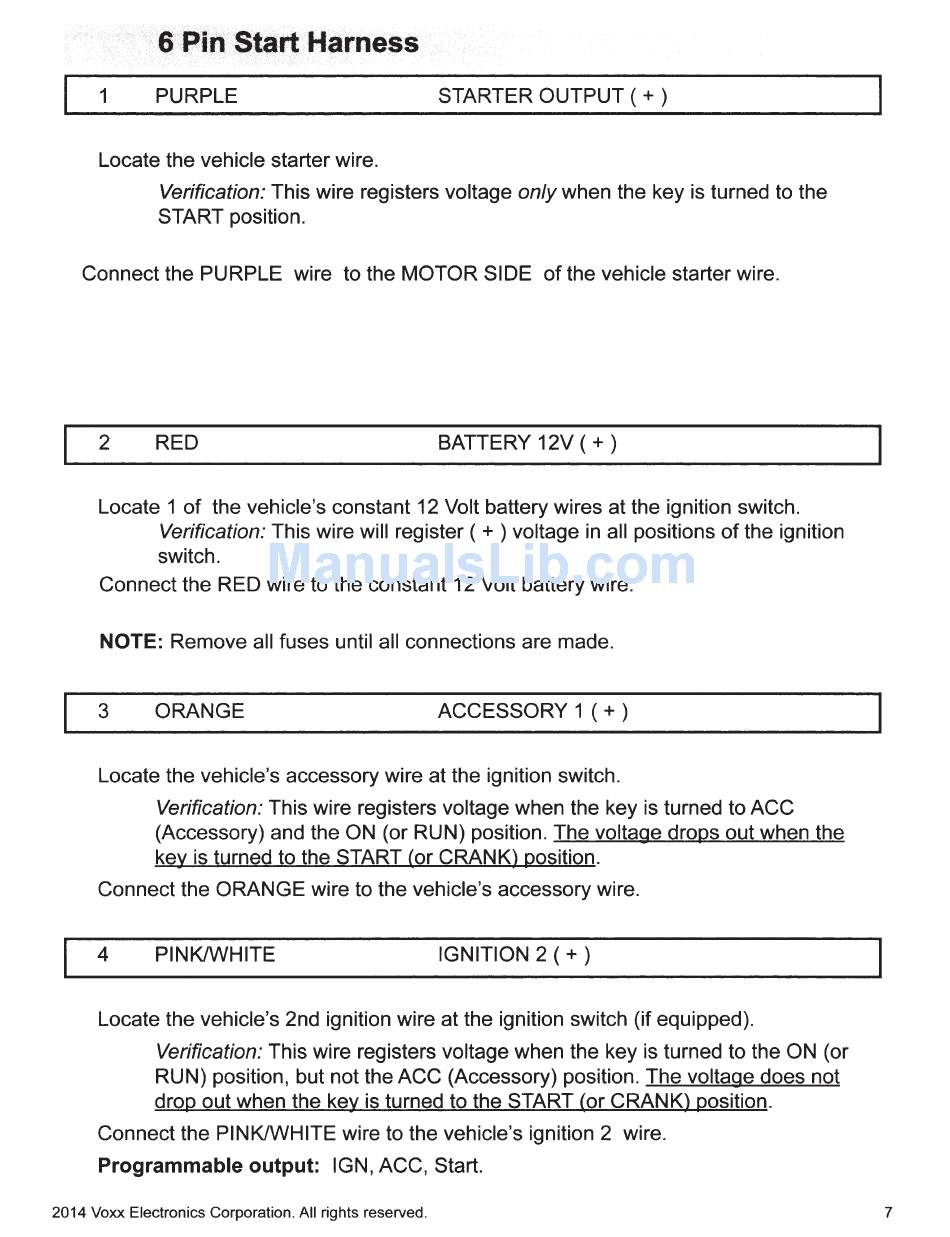

6 Pin Start Harness
1
PURPLE STARTER OUTPUT ( + )
Locate the vehicle starter wire.
Verification: This wire registers voltage only when the key is turned to the
START position.
Connect the PURPLE wire to the MOTOR SIDE of the vehicle starter wire.
2 RED BATTERY 12V ( +)
Locate 1 of the vehicle's constant 12 Volt battery wires at the ignition switch.
Verification: This wire will register ( + ) voltage in all positions of the ignition
switch.
Connect the RED wire to the constant 12 Volt battery wire.
NOTE: Remove all fuses until all connections are made.
3
ORANGE ACCESSORY 1 ( + )
Locate the vehicle's accessory wire at the ignition switch.
Verification: This wire registers voltage when the key is turned to ACC
(Accessory) and the ON (or RUN) position. The voltage drops out when the
key is turned to the START (or CRANK) position.
Connect the ORANGE wire to the vehicle's accessory wire.
4 PINK/WHITE IGNITION 2 ( + )
Locate the vehicle's 2nd ignition wire at the ignition switch (if equipped).
Verification: This wire registers voltage when the key is turned to the ON (or
RUN) position, but not the ACC (Accessory) position. The voltage does not
drop out when the key is turned to the START (or CRANK) position.
Connect the PINK/WHITE wire to the vehicle's ignition 2 wire.
Programmable output: IGN, ACC, Start.
2014 Voxx Electronics Corporation. All rights reserved. 7
