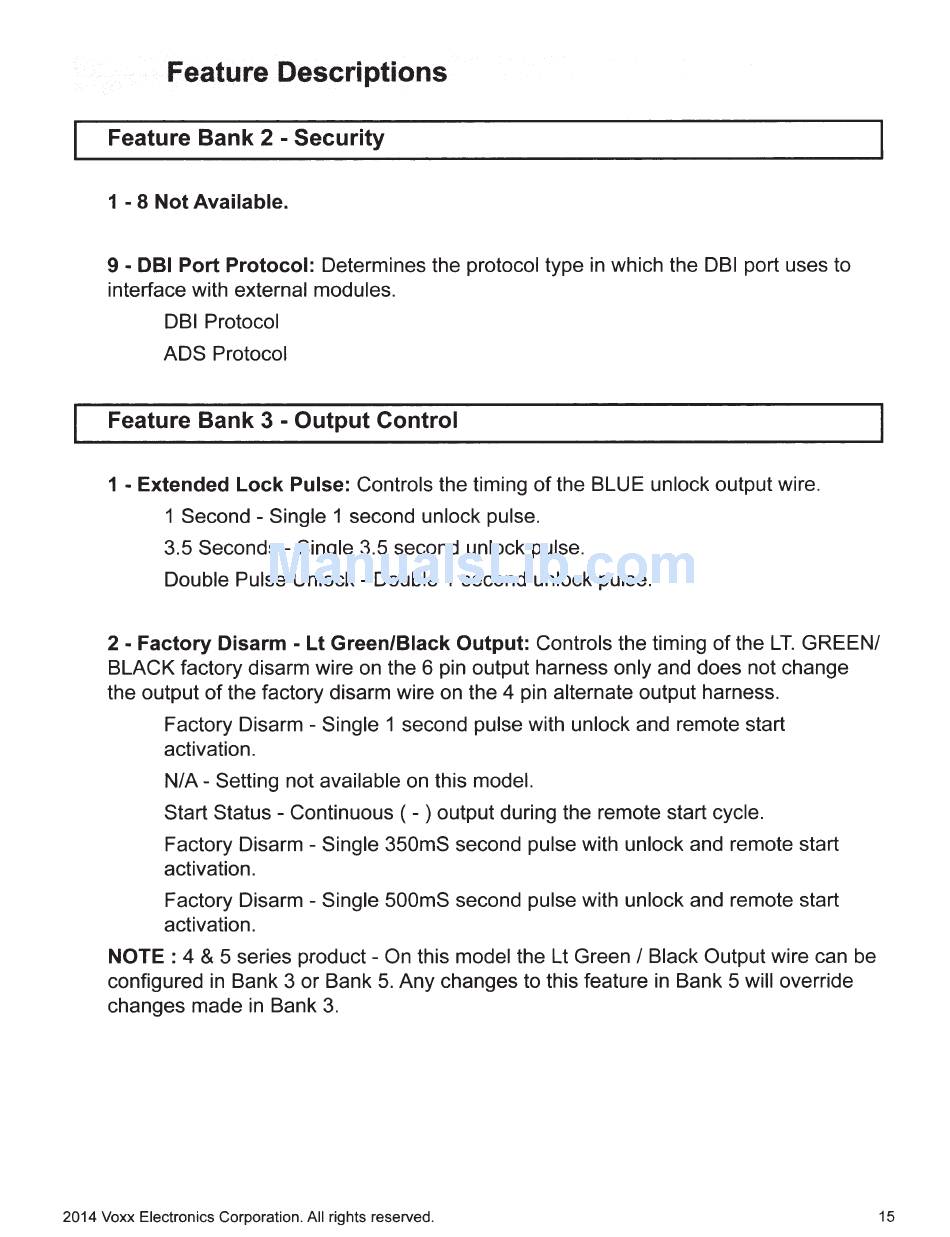

Feature Descriptions
Feature Bank 2- Security
1 - 8 Not Available.
9- OBI Port Protocol: Determines the protocol type in which the OBI port uses to
interface with external modules.
OBI Protocol
ADS Protocol
Feature Bank 3 - Output Control
1 -Extended Lock Pulse: Controls the timing of the BLUE unlock output wire.
1 Second - Single 1 second unlock pulse.
3.5 Seconds - Single 3.5 second unlock pulse.
Double Pulse Unlock - Double 1 second unlock pulse.
2 - Factory Disarm - Lt Green/Black Output: Controls the timing of the LT. GREEN/
BLACK factory disarm wire on the 6 pin output harness only and does not change
the output of the factory disarm wire on the 4 pin alternate output harness.
Factory Disarm - Single 1 second pulse with unlock and remote start
activation.
N/A- Setting not available on this model.
Start Status- Continuous (-)output during the remote start cycle.
Factory Disarm - Single 350mS second pulse with unlock and remote start
activation.
Factory Disarm - Single 500mS second pulse with unlock and remote start
activation.
NOTE : 4 & 5 series product - On this model the Lt Green I Black Output wire can be
configured in Bank 3 or Bank 5. Any changes to this feature in Bank 5 will override
changes made in Bank 3.
