www.proform.com
Model No. PFTL99108.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if parts are
missing, DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
1-888-533-1333
CALL TOLL-FREE:
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Pro-Form 1280 Premier ES
Summary of Contents for Pro-Form 1280 Premier ES

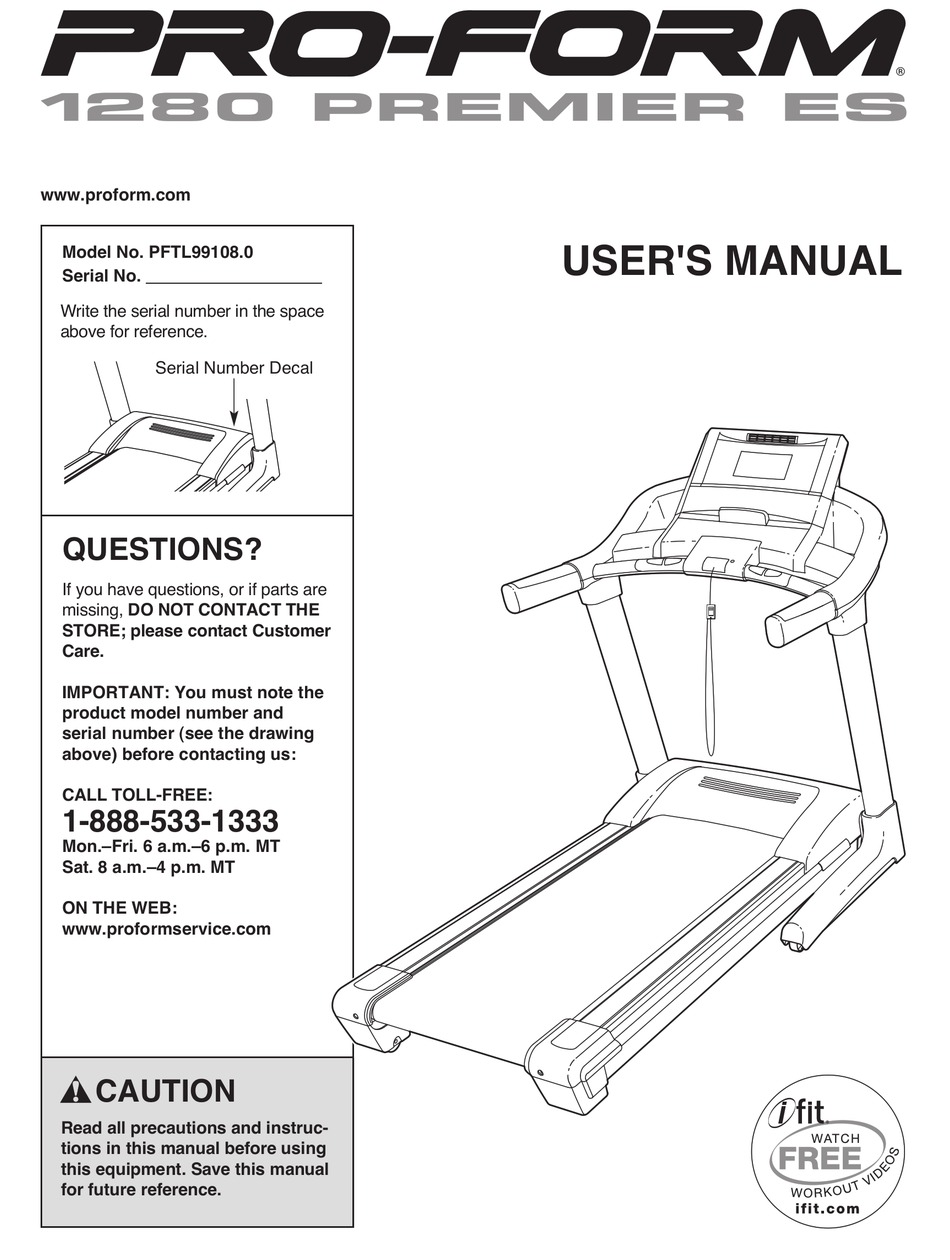

- Page 1 www.proform.com USER'S MANUAL Model No. PFTL99108.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are missing, DO NOT CONTACT THE STORE; please contact Customer Care. IMPORTANT: You must note the product model number and serial number (see the drawing...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARNING DECAL PLACEMENT ............. .2 IMPORTANT PRECAUTIONS . -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product. - Page 4 20. Never leave the treadmill unattended while it 24. Inspect and properly tighten all parts of the is running. Always remove the key, unplug treadmill regularly. DANGER: the power cord, and switch the reset/off cir- cuit breaker to the off position when the Always unplug the power treadmill is not in use.
-
Page 5: Before You Begin
Thank you for selecting the revolutionary PROFORM ual. To help us assist you, note the product model ® 1280 PREMIER ES treadmill. The 1280 PREMIER ES number and serial number before contacting us. The treadmill offers an impressive selection of features de-... -
Page 6: Assembly
ASSEMBLY To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 2. Identify the Left Upright (73) and the Right Upright (74). Hold the Right Upright (74) near the Right Base Cover (77). See the inset drawing. Make sure that the long tie is extending from the rectangular hole in the Right Upright. Tie the long tie securely around the end of the Upright Wire (75).
- Page 8 4. Have a second person hold the console assembly near the Uprights (73, 74). Console Assembly Connect the Upright Wire (75) to the Console Wire Harness (71). See the inset drawing. The connectors should slide together easily and snap into place. If they do not, turn one con- nector and try again.
- Page 9 7. Slide the Right Upright Sleeve (96) up against the console assembly. Attach the Right Upright Sleeve with a #8 x 3/4" Screw (4) and a #8 x 3/4" Tek Screw (84) as shown. Console Assembly Attach the Left Upright Sleeve (not shown) to the console assembly as described above.
- Page 10 If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the re- ceiver included with the chest pulse sensor. 1. Make sure that the power cord is unplugged. Remove the indicated #8 x 3/4" Screws (4) from the Pulse Receiver Cover (70) on the back of the console assembly.
-
Page 11: Operation And Adjustment
OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor, Your treadmill features a walking belt coated with high- performance lubricant. - Page 12 CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE To turn on the power, see page 13. To personalize console settings, see page 13. To use the manual mode, see page 14. To use a preset workout, see The treadmill console offers an impressive array of page 16.
- Page 13 HOW TO TURN ON THE POWER To select the settings mode, first remove the key from the console. Then, hold down the Stop button while IMPORTANT: If the treadmill has been exposed to reinserting the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power.
- Page 14 HOW TO USE THE MANUAL MODE the incline buttons numbered 0 to 12. Each time you press one of the buttons, the incline will gradu- 1. Insert the key into the console. ally change until it reaches the selected incline set- ting.
- Page 15 Regardless To measure of which your heart rate, stand on display the foot rails mode you select, the and hold the speed or metal contacts incline set- on the Contacts ting will appear in the display for a few seconds handrail—...
- Page 16 HOW TO USE A PRESET WORKOUT At the end of the first one-minute segment of the workout, a series of tones will sound. If a different 1. Insert the key into the console. speed and/or incline setting is programmed for the second segment, the speed setting and/or incline See HOW TO TURN ON THE POWER on page setting will appear in the display for a moment to...
- Page 17 HOW TO CREATE A CUSTOM WORKOUT To program a speed setting and an incline setting for the first one-minute segment of the workout, 1. Insert the key into the console. simply adjust the speed and incline of the treadmill as desired by pressing the speed and incline but- See HOW TO TURN ON THE POWER on page tons.
- Page 18 HOW TO USE A CUSTOM WORKOUT At the end of the first one-minute segment of the workout, a series of tones will sound. If a different 1. Insert the key into the console. speed and/or incline setting is programmed for the second segment, the speed and/or incline setting See HOW TO TURN ON THE POWER on page will appear in the display for a moment to alert you.
- Page 19 HOW TO USE THE SOUND SYSTEM THE OPTIONAL CHEST PULSE SENSOR To play music or audio books through the consoleʼs An optional chest pulse sensor offers hands-free oper- sound system, you must connect your MP3 player, CD ation as it tracks your heart rate during your workouts. To purchase the optional chest pulse sensor, see player, or other personal audio player to the console.
-
Page 20: How To Fold And Move The Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord. -
Page 21: Troubleshooting
TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 22 Lower the treadmill (see HOW TO LOWER THE TREADMILL FOR USE on page 20). Remove the four indicated #8 x 3/4" Screws (4), and remove the Motor Hood (44). Next, locate the Reed Switch (20) and the Magnet (12) on the left side of the Pulley (11). Turn the Pulley View until the Magnet is aligned with the Reed Switch.
- Page 23 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
-
Page 24: Exercise Guidelines
EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning any time. During the first few minutes of exercise, your exercise program, consult your physician. body uses carbohydrate calories for energy. Only after This is especially important for persons over the first few minutes of exercise does your body begin age 35 or persons with pre-existing health... -
Page 25: Part List
PART LIST—Model No. PFTL99108.0 R0109A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description Foot Rail Cover Right Rear Foot Foot Rail Rear Wheel #8 x 3/4" Cushion Screw 3/8"... - Page 26 Key No. Qty. Description Key No. Qty. Description Latch Warning Decal Incline/Controller Wire 1/2" Console Ground Screw Incline Stop Bracket #8 x 1" Screw Stop Bracket Spacer Speaker Cover – 4" White Wire, M/F Idler Roller Washer – Userʼs Manual Note: Specifications are subject to change without notice.
-
Page 27: Exploded Drawing
EXPLODED DRAWING A—Model No. PFTL99108.0 R0109A... - Page 28 EXPLODED DRAWING B—Model No. PFTL99108.0 R0109A...
- Page 29 EXPLODED DRAWING C—Model No. PFTL99108.0 R0109A...
- Page 30 EXPLODED DRAWING D—Model No. PFTL99108.0 R0109A...
- Page 31 EXPLODED DRAWING E—Model No. PFTL99108.0 R0109A...
-
Page 32: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
