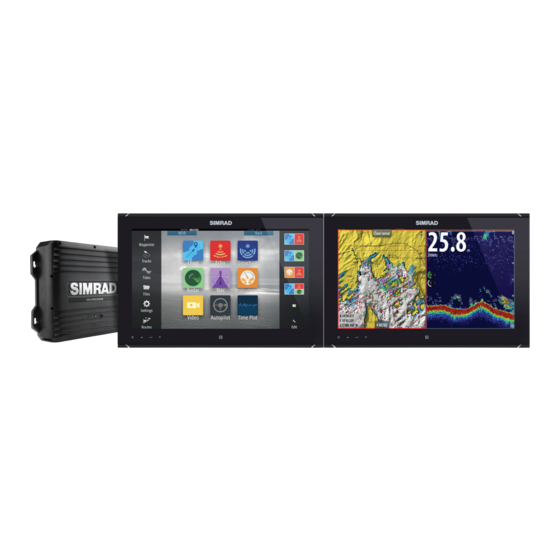

NSO evo3S MPU
Installation Manual
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSO19 evo3s and is the answer not in the manual?

Questions and answers

Related Manuals for Simrad NSO19 evo3s

Summary of Contents for Simrad NSO19 evo3s

  • Page 1 NSO evo3S MPU Installation Manual ENGLISH...
  • Page 2 Preface Disclaimer As Navico is continuously improving this product, we retain the right to make changes to the product at any time which may not be reflected in this version of the manual. Please contact your nearest distributor if you require any further assistance. It is the owner’s sole responsibility to install and use the equipment in a manner that will not cause accidents, personal injury or property damage.
  • Page 3 If you are unsure, contact your service provider to confirm rates and restrictions. Trademarks ® Navico is a registered trademark of Navico Holding AS. ® Simrad is used by license from Kongsberg. ® ™ HDMI and HDMI , the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

  • Page 4: Table Of Contents

    Contents Introduction System overview Operating the system Parts included Connectors Installation General mounting guidelines Wall mounting Wiring Access to connectors Wiring guidelines Control devices Monitors Power Serial port Ethernet USB port Video in HDMI out Card reader Software setup First time startup Software setup sequence The settings dialog System settings...

  • Page 5: Introduction

    Introduction System overview The basic system consists of the processor and one or two monitors. The system can be configured and installed in various configurations: • One processor with one monitor (A) • One processor with two independent monitors (B) •...

  • Page 6: Parts Included

    Parts included NSO evo3-S Marine Processor Unit (MPU) MPU Power cable, 2 m (6.5') Micro-C power cable, 1.3 m (4.3') Micro-C drop cable, male-female plugs, 1.8 m (6') Micro-C T-connectors (x3) Micro-C terminators, 120 ohm, (male and female) NMEA 0183 serial cable, 8 wires, 2 m (6.5') Ethernet adaptor, 5 pin female to RJ45 male Installation kit: •...

  • Page 7: Connectors

    Connectors NETWORK 1 NETWORK 3 VIDEO 1 IN HDMI 1 OUT PoE 15W USB 1 NMEA2000 SERIAL 1 SERIAL 2 POWER COMBINED 45W MAX NETWORK 2 USB 2 VIDEO 2 IN HDMI 2 OUT SD CARD Network 1 and Network 2 ports (Ethernet with PoE) Network 3 (Ethernet) Video 1 IN and Video 2 IN HDMI 1 OUT and HDMI 2 OUT...

  • Page 8: Installation

    Installation General mounting guidelines Warning: Do not install the unit in a hazardous/flammable atmosphere. Ú Note: Choose a mounting location that will not expose the unit to conditions that exceed the technical specifications. Mounting location Ensure that the selected area allows for: •...

  • Page 9: Wall Mounting

    Wall mounting Installation | NSO evo3S MPU Installation Manual...

  • Page 10: Wiring

    Wiring Access to connectors For easier access to connectors, remove the bottom front of the unit. Wiring guidelines Don't: • Make sharp bends in the cables • Run cables in a way that allows water to flow down into the connectors •...

  • Page 11: Power

    Monitors must conform to the supported resolutions and refresh rates as defined in the Technical specification. Power The unit is designed to be powered by a 12 or 24 V DC system. It is protected against reverse polarity, under voltage and over voltage (for a limited duration).
  • Page 12 Power controlled by ignition The unit will turn on once ignition is turned on to start engines. Ú Note: Engine start batteries and house batteries should have a common ground connection. Purpose Color Power control wire Yellow Ignition switch Power controlled by master slave bus The yellow power control wire can either be an input that will turn on the unit when power is applied, or an output that turns on other devices when the unit is powered on.
  • Page 13 External alarm Siren Buzzer For sirens that draw more than 1 A, use a relay. Purpose Color External alarm output Blue Siren and relay Buzzer NMEA 2000 The NMEA 2000 data port allows receiving and sharing of a multitude of data from various sources.

  • Page 14: Serial Port

    • A single drop cable has a maximum length of 6 meters (20 ft). The total length of all drop cables combined should not exceed 78 meters (256 ft) • The backbone needs to have a terminator at each end of the backbone. The terminator can be a terminator plug or a unit with built-in terminator NMEA 2000 device Drop-cable...
  • Page 15 Connector details Unit socket (male) Purpose NMEA 0183 Listener A (Rx_A) NMEA 0183 Listener B (Rx_B) NMEA 0183 Talker A (Tx_A) NMEA 0183 Talker B (Tx_B) RS422 Talker + (Tx+) RS422 Talker - (Tx-) RS422 Listener - (Rx-) RS422 Listener + (Rx+) NMEA 0183 and Touch screen control, cable details Description Color...

  • Page 16: Ethernet

    The port(s) uses the NMEA 0183 (serial balanced) standard, and can be configured in the software for different baud rates up to 38,400 baud. Talkers and listeners Only one talker (output device) can be connected to a serial input (RX) on the unit, in accordance with the NMEA0183 protocol.

  • Page 17: Video In

    USB connector details Unit socket (female) The unit is equipped with standard USB type-A connector(s). Video in The unit can be connected to two composite video sources, and display video images on its display. Ú Note: Camera cables are not supplied, and will need to be selected to suit termination - BNC at the unit, and typically BNC or RCA plug at the camera end.

  • Page 18: Card Reader

    HDMI cable requirements Ú Note: The unit should be turned off prior to connecting or disconnecting an HDMI cable. While the HDMI standard does not state maximum cable length, signal may be compromised on long runs. Only use Navico or other high quality HDMI certified cables. 3rd party cables should be tested before installation.

  • Page 19: Software Setup

    Software setup First time startup When the unit is started for the first time, or after a reset, the unit displays a series of dialogs. Respond to the dialog prompts to make fundamental settings. You can perform further setup and later change settings using the system settings dialogs. Software setup sequence This setup sequence focus on the settings done during installation and setup of the system.
  • Page 20 PIN code Sets a PIN code to prevent unauthorized access to your system's settings. Note: Record the PIN code and store it in a safe place. When you establish password protection, the PIN code must be entered when any of the following are selected.

  • Page 21: Alarms

    Alarms Settings List of all available alarm options in the system, with current settings. From this list you can activate, deactivate and change alarm limits. Siren enable The Siren enabled option must be set in order for the unit to activate the buzzer when an alarm condition arises.
  • Page 22 Adjust antenna height Set the radar scanner height relative to the water surface. The Radar uses this value to calculate the correct STC settings. Select antenna length Select the proper antenna length. Adjust range offset The radar sweep should commence at your vessel (a radar range of zero). You may need to adjust the radar range offset to achieve this.
  • Page 23 By default, this control is set to auto and normally should not need to be adjusted. However, if there is significant metallic clutter around the radar, sidelobe suppression may need to be increased. To adjust the sidelobe suppression value: Set radar range to between 1/2 nm to 1 nm and the sidelobe suppression to auto Take the vessel to a location where sidelobe returns are likely to be seen.

  • Page 24: Echosounder Settings

    Echosounder settings A compatible echosounder module (or another unit which has built-in sonar) shared over the Ethernet network is required to view echosounder images on the unit. Network echosounder mode The network echosounder mode setting selects whether only one or multiple echosounder sources can be selected at the same time.
  • Page 25 Installation Use this dialog to setup and configure available sources. Source Select this option to display a list of sources available for setup. The settings you make in the rest of the dialog pertain to the source selected. Search depth Noise may cause the echosounder to search for unrealistic depths.

  • Page 26: Autopilot Settings

    calculate the adjustment, divide the SOG by the paddlewheel speed, and multiply the product by 100. Calibration range: 50-200 %. Default is 100 %. Water speed averaging Averages water speed by measuring your speed at a selected interval of time. Water speed intervals range from one to thirty seconds.
  • Page 27 NAC-1 specific installation settings Commissioning Used to calibrate your boat’s steering (cable steer or hydraulic steering) with the NAC-1. Ú Note: The autopilot must be commissioned prior to first use and any time after autopilot default settings have been restored. Cable steer calibration Ú...

  • Page 28: Fuel Settings

    AC70/AC80 Specific installation settings The AC70/AC80 computers do not have any specific installation settings available in the MFD. Ú Note: The MFD cannot be used to configure or commission an AP70/AP80 system. For more information, refer to the documentation included with the autopilot system. Fuel settings The fuel utility monitors a vessel's fuel consumption.

  • Page 29: Wireless Settings

    Reset Fuel Flow - restores only the Fuel K-Value setting, if set in Calibrate. Only Navico devices can be reset. Calibrate Calibration may be required to accurately match measured flow with actual fuel flow. Access calibration from the Refuel dialog. Calibration is only possible on Navico’s Fuel Flow sensor. Start with a full tank and run the engine as it would normally be operated.

  • Page 30: Network Settings

    If the unit is part of a source group, all source selection changes will affect all units belonging to the same group. Ú Note: In order to enable group selection, the unit must be set to the Simrad group. Devices with no selected group can use different sources than the rest of the network devices.
  • Page 31 Device list Selecting a device in this list will bring up additional details and options for the device. All devices allow allocation of an instance number in the configure option. Set unique instance numbers on any identical devices on the network to allow the unit to distinguish between them.
  • Page 32 Ú Note: The system can only transmit or receive one waypoint at a time on creation of that waypoint. For bulk import or export of waypoints see the operator manual. NMEA 0183 setup The NMEA 0183 port(s) must be set to suit the speed of connected devices, and can be configured to output only the sentences required by listening devices.

  • Page 33: 3Rd Party Support

    3rd party support C-Zone CZone connection to NMEA 2000 When interfacing to CZone network it is recommended to use a BEP Network interface bridge to join the two network backbones together. The CZone / NMEA 2000 Network interface bridge isolates the power of the two networks, but allows data to be freely shared between both sides.

  • Page 34: Naviop

    Naviop If this device is on the same NMEA 2000 network as a Naviop Loop system, this device can be used to operate the Naviop Loop system. For details, refer to the documentation following the Naviop system. Mercury If the unit is on the same NMEA 2000 network as a compatible Mercury Marine VesselView product or VesselView Link, specific features are automatically unlocked on the unit.

  • Page 35: Dimensional Drawings

    Dimensional drawings NSO-evo3S MPU Dimensional drawings | NSO evo3S MPU Installation Manual...

  • Page 36: Technical Specifications

    Technical specifications NSO evo3S MPU Electrical Supply voltage 9 - 31.2 V DC Power consumption - Max 45 W Power consumption - OFF 1 W Recommended fuse rating 3 Amp Low power standby mode Yes Protection Reverse polarity and temporary over-voltage to 36 V Alarm output current 1 Amp Processors iMX8 Quad Max (x2)

  • Page 37: Supported Data

    Supported data NMEA 2000 compliant PGN List NMEA 2000 PGN (receive) 59392 ISO Acknowledgement 59904 ISO Request 60160 ISO Transport Protocol, Data Transfer 60416 ISO Transport Protocol, Connection M. 65240 ISO Commanded Address 60928 ISO Address Claim 126208 ISO Command Group Function 126992 System Time 126996...
  • Page 38 129283 Cross Track Error 129284 Navigation Data 129539 GNSS DOPs 129540 AIS Class B Extended Position Report 129545 GNSS RAIM Output 129549 DGNSS Corrections 129551 GNSS Differential Correction Receiver Signal 129793 AIS UTC and Date Report 129794 AIS aids to Navigation 129798 AIS SAR Aircraft Position Report 129801...
  • Page 39 130585 Entertainment - Bluetooth Source Status NMEA 2000 PGN (transmit) 60160 ISO Transport Protocol, Data Transfer 60416 ISO Transport Protocol, Connection M. 126208 ISO Command Group Function 126992 System Time 126993 Heartbeat 126996 Product Info 127237 Heading/Track Control 127250 Vessel Heading 127258 Magnetic Variation 127502...
  • Page 40 NMEA 0183 supported sentences TX / RX - GPS Name Description Datum reference Global positioning system (GPS) fix data Geographic position - Loran-C Geograpic position - Latitude/longitude GNSS DOP and active satellites GNSS fix data GNSS satellites in view Course over ground and ground speed Time and date TX / RX - Navigation Name...
  • Page 41 TX / RX - Wind TX / RX - AIS / DSC Name Description Digital selective calling information Expanded digital selective calling AIS VHF data-link message AIS VHF data-link own-vessel report Ú Note: AIS sentences are not bridged to or from NMEA 2000. TX / RX - MARPA Ú...
  • Page 42 NSO evo3S Installation Manual ENGLISH...
  • Page 43 Preface Disclaimer As Navico is continuously improving this product, we retain the right to make changes to the product at any time which may not be reflected in this version of the manual. Please contact your nearest distributor if you require any further assistance. It is the owner’s sole responsibility to install and use the equipment in a manner that will not cause accidents, personal injury or property damage.
  • Page 44 If you are unsure, contact your service provider to confirm rates and restrictions. Trademarks ® Navico is a registered trademark of Navico Holding AS. ® Simrad is used by license from Kongsberg. ® Bluetooth is a registered trademark of Bluetooth SIG, Inc. ™ C-Monster is a trademark of JL Marine Systems, Inc.
  • Page 45 Navico product references This manual refers to the following Navico products: • Broadband Radar™ (Broadband Radar) • GoFree™ (GoFree) • Halo™ Pulse Compression Radar (Halo Radar) About this manual Images used in this manual might not exactly match the screen on your unit. Important text conventions Important text that requires special attention from the reader is emphasized as follows: Ú...
  • Page 46 Contents Introduction Parts included Front controls Connectors Card reader Installation General mounting guidelines Bezel fitment and removal Cable retainer installation Panel mounting Bracket mounting Wiring Wiring guidelines Power NMEA 2000 NMEA 0183 USB port J1939 port Ethernet HDMI ports Video in Software setup First time startup Software setup sequence...

  • Page 47: Introduction

    Introduction Parts included Display unit Suncover Bezels • 1 set black bezels • 1 set silver bezels Power cable and connector block RJ45 to 5-pin Ethernet adapter cable NMEA 0183 connector block Documentation pack Cable retainer kit NMEA 2000 starter kit Ú...

  • Page 48: Front Controls

    Front controls Touch screen Power key • Press and hold: turns the unit ON/OFF • Short press once: displays the System Controls dialog • Repeat short presses: toggles through preset dimming levels WheelKey - user configurable key, refer to "Configure WheelKey" on page 22. Default without an autopilot connected to the system •...

  • Page 49: Card Reader

    Card reader A memory card can be used for: • Chart data • Software updates • Transfer of user data • System backup Ú Note: Do not download, transfer or copy files to a chart card. Doing so can damage chart information on the chart card.

  • Page 50: Installation

    Installation General mounting guidelines Warning: Do not install the unit in a hazardous/flammable atmosphere. Ú Note: Choose a mounting location that will not expose the unit to conditions that exceed the technical specifications. Mounting location Ensure that the selected area allows for: •...

  • Page 51: Bezel Fitment And Removal

    It is important to test the GPS performance before the location of the unit is decided. Construction material (steel, aluminum, or carbon) and heavy structure might affect GPS performance. Avoid a mounting location where metal obstacles block the view of the sky. A well placed external GPS module can be added to overcome poor performance.

  • Page 52: Cable Retainer Installation

    Cable retainer installation With the cable and plug fitted in place, secure the cable to the retention bracket using a cable tie. Do not secure in such a way that it applies strain to the cable, or causes the plug or socket to be bent out of alignment.

  • Page 53: Wiring

    Wiring Wiring guidelines Don't: • Make sharp bends in the cables • Run cables in a way that allows water to flow down into the connectors • Run the data cables adjacent to radar, transmitter, or large/high current carrying cables or high frequency signal cables.
  • Page 54 It is protected against reverse polarity, under voltage, and over voltage (for a limited duration). A fuse or circuit breaker should be fitted to the positive supply. For recommended fuse rating refer to "Technical specifications" on page 40. Purpose Color +12/24 V DC DC negative Black...
  • Page 55 Purpose Color Power control wire Yellow Ignition switch Power controlled by master slave bus The yellow power control wire can either be an input that will turn on the unit when power is applied, or an output that turns on other devices when the unit is powered on. It can be configured at the installation stage to control the power state of displays and compatible devices.

  • Page 56: Nmea 2000

    External alarm Siren Buzzer For sirens that draw more than 1 A, use a relay. Purpose Color External alarm output Blue Siren and relay Buzzer NMEA 2000 The NMEA 2000 data port allows receiving and sharing of a multitude of data from various sources.

  • Page 57: Nmea 0183

    • A single drop cable has a maximum length of 6 meters (20 ft). The total length of all drop cables combined should not exceed 78 meters (256 ft) • The backbone needs to have a terminator at each end of the backbone. The terminator can be a terminator plug or a unit with built-in terminator NMEA 2000 device Drop-cable...

  • Page 58: Usb Port

    NMEA 0183 connector details Cable plug (female) Unit socket (male) Top row Bottom row Purpose Port 1 Port 3 TX_B (-) Port 1 Port 3 TX_A (+) Port 1 Port 3 RX_B (-) Port 1 Port 3 RX_A (+) Port 2 Port 4 TX_B (-) Port 2...

  • Page 59: J1939 Port

    USB connector details Unit socket (female) The unit is equipped with standard USB type-A connector(s). J1939 port The J1939 port can be used for engine communication and diagnostics. This option is commonly used for diesel engines. Warning: Before connecting to the J1939 bus, ensure that your engine manufacturer not have restrictions for connecting other equipment to this bus.

  • Page 60: Hdmi Ports

    Ethernet connector details Unit socket (female) The unit is equipped with standard RJ45 connector(s). Ethernet expansion device Connection of network devices can be made via an Ethernet expansion device. Additional expansion devices can be added to provide the required number of ports. HDMI ports HDMI connector details Unit socket (female)
  • Page 61 Video in connector details Unit socket (female) Purpose Ground Signal Video input configuration Configurations to video input are made in the video panel. Refer to the Operator Manual for more information. Wiring | NSO evo3S Installation Manual...

  • Page 62: Software Setup

    Software setup First time startup When the unit is started for the first time, or after a reset, the unit displays a series of dialogs. Respond to the dialog prompts to make fundamental settings. You can perform further setup and later change settings using the system settings dialogs. Software setup sequence General settings - refer to "System settings"...

  • Page 63: Alarms

    PIN code Sets a PIN code to prevent unauthorized access to your system's settings. Note: Record the PIN code and store it in a safe place. When you establish password protection, the PIN code must be entered when any of the following are selected.

  • Page 64: Radar Installation

    Siren enable The Siren enabled option must be set in order for the unit to activate the buzzer when an alarm condition arises. Its setting also determines the operation of the external alarm output. Radar installation The radar system requires radar sensor specific settings in order to adjust for a number of variables found in different installations.
  • Page 65 Adjust bearing alignment This option is used to align the heading marker on the screen with the center line of the vessel. This will compensate for any slight misalignment of the scanner during installation. Misalignment that is not corrected for will compromise target tracking and can result in dangerous misinterpretation of potential navigation hazards.

  • Page 66: Echosounder Settings

    Main radar PPI Radar overlay on a chart Adjust open array park angle The park angle is the final resting position of the antenna relative to the heading line of the radar when the radar is set to standby. The antenna will stop rotating at the desired offset. Adjust local interference reject Interference from some onboard sources can interfere with the Broadband radar.
  • Page 67 Structure depth offset All transducers measure water depth from the transducer to the bottom. As a result, water depth readings do not account for the distance from the transducer to the lowest point of the boat in the water or from the transducer to the water surface. •...
  • Page 68 • To show the depth from the lowest point of the vessel to the bottom, set the offset equal to the vertical distance between the transducer and the lowest part of the vessel, A (negative value). • To show the depth from the water surface to the bottom, set the offset equal to the vertical distance between the transducer and the water surface, B (positive value) •...

  • Page 69: Autopilot Settings

    Restore echosounder defaults Restore echosounder settings to the factory supplied defaults. ForwardScan installation Available when the ForwardScan feature is connected. For setup information, refer to the Operator Manual. LiveSight installation Available when a LiveSight transducer is connected. For setup information, refer to the documentation following the LiveSight transducer. Autopilot settings The Autopilot settings dialog depends on which autopilot computer that is connected to the system.

  • Page 70: Fuel Settings

    Hydraulic system calibration Virtual rudder feedback (VRF) calibration is used for vessels with hydraulic steering when no rudder feedback is available. Ú Note: The rudder source must be set to VRF to be able to run this calibration. Start the calibration process by selecting the VRF calibration option, and follow the onscreen instructions.
  • Page 71 Fuel remaining measurement The Fuel remaining measurement can be determined from fuel used by engine(s), or fuel level from tank sensors. Nominal fuel consumption is required to set the scale on the fuel economy gauge. This value should be determined from experience, over time. Alternatively the boat builder or designer may be able to give an approximate value to use.

  • Page 72: Wireless Settings

    Ú Note: The Calibrate option is only available when Set to full is selected, and a Fuel Flow is connected and set up as a source. Ú Note: A maximum of 8 engines is supported using Fuel Flow sensors. Fuel Level With the use of a Navico Fluid Level device connected to a suitable tank level sensor, it is possible to measure the amount of fuel remaining in any equipped tank.
  • Page 73 If the unit is part of a source group, all source selection changes will affect all units belonging to the same group. Ú Note: In order to enable group selection, the unit must be set to the Simrad group. Devices with no selected group can use different sources than the rest of the network devices.
  • Page 74 Damping If data appears erratic or too sensitive, damping may be applied to make the information appear more stable. With damping set to off, the data is presented in raw form with no damping applied. Calibration An offset (positive or negative) can be applied to correct data inaccuracies from NMEA 2000 sources.
  • Page 75 J1939 settings Silent mode When enabled the unit only listens to the J1939 port(s). When disabled the unit sends a request to the connected device for specific data. Ú Note: For communication details refer to the engine manufacturer. Software setup | NSO evo3S Installation Manual...

  • Page 76: 3Rd Party Support

    3rd party support C-Zone CZone connection to NMEA 2000 When interfacing to CZone network it is recommended to use a BEP Network interface bridge to join the two network backbones together. The CZone / NMEA 2000 Network interface bridge isolates the power of the two networks, but allows data to be freely shared between both sides.

  • Page 77: Naviop

    Naviop If this device is on the same NMEA 2000 network as a Naviop Loop system, this device can be used to operate the Naviop Loop system. For details, refer to the documentation following the Naviop system. Mercury If the unit is on the same NMEA 2000 network as a compatible Mercury Marine VesselView product or VesselView Link, specific features are automatically unlocked on the unit.

  • Page 78: Appendix

    Appendix Dimensional drawings 16" . mm 19" . mm 24" . mm Appendix | NSO evo3S Installation Manual...

  • Page 79: Technical Specifications

    Technical specifications NSO evo3S Display Resolution 1920 x 1080 Brightness 1000 nits Touch screen Full touch screen (multi-touch) Viewing angles in degrees (typical value at 80° top/bottom, 80° left/right contrast ratio = 10) Electrical Supply voltage 12/24 V DC (10 - 31.2 V DC min - max) Power consumption - Max 16"...

  • Page 80: Supported Data

    Supported data NMEA 2000 compliant PGN List NMEA 2000 PGN (receive) 59392 ISO Acknowledgement 59904 ISO Request 60160 ISO Transport Protocol, Data Transfer 60416 ISO Transport Protocol, Connection M. 65240 ISO Commanded Address 60928 ISO Address Claim 126208 ISO Command Group Function 126992 System Time 126996...
  • Page 81 129284 Navigation Data 129539 GNSS DOPs 129540 AIS Class B Extended Position Report 129545 GNSS RAIM Output 129549 DGNSS Corrections 129551 GNSS Differential Correction Receiver Signal 129793 AIS UTC and Date Report 129794 AIS aids to Navigation 129798 AIS SAR Aircraft Position Report 129801 Cross Track Error 129802...
  • Page 82 NMEA 2000 PGN (transmit) 60160 ISO Transport Protocol, Data Transfer 60416 ISO Transport Protocol, Connection M. 126208 ISO Command Group Function 126992 System Time 126993 Heartbeat 126996 Product Info 127237 Heading/Track Control 127250 Vessel Heading 127258 Magnetic Variation 127502 Switch Bank Control 128259 Speed, Water referenced 128267...
  • Page 83 NMEA 0183 supported sentences TX / RX - GPS Name Description Datum reference Global positioning system (GPS) fix data Geographic position - Loran-C Geograpic position - Latitude/longitude GNSS DOP and active satellites GNSS fix data GNSS satellites in view Course over ground and ground speed Time and date TX / RX - Navigation Name...
  • Page 84 TX / RX - Wind TX / RX - AIS / DSC Name Description Digital selective calling information Expanded digital selective calling AIS VHF data-link message AIS VHF data-link own-vessel report Ú Note: AIS sentences are not bridged to or from NMEA 2000. TX / RX - MARPA Ú...
  • Page 85 PGN/SPN list J1939 SPN/PGN Description NMEA2000 PGN 190 / 61444 Engine Speed 127488 102 / 65270 Engine Turbocharger Boost 127488 Pressure 100 / 65263 Engine Oil Pressure 127489 175 / 65262 Engine Oil Temperature 1 127489 110 / 65262 Engine Coolant Temperature 127489 167 / 65271 Alternator Potential (Voltage)
  • Page 86 NSO evo3S Operator Manual ENGLISH...
  • Page 87 Documentation, the English language version of the Documentation will be the official version of the Documentation. Trademarks ® Navico is a registered trademark of Navico Holding AS. ® Simrad is used by license from Kongsberg. ® Bluetooth is a registered trademark of Bluetooth SIG, Inc. ® C-MAP is a registered trademark of Navico Holding AS.
  • Page 88 • Broadband Sounder™ (Broadband Sounder) • DownScan Imaging™ (DownScan) • DownScan Overlay™ (Overlay) • FishReveal™ (FishReveal) • ForwardScan™ (ForwardScan) • GoFree™ (GoFree) • Genesis® (Genesis) • Halo™ Pulse Compression Radar (Halo Radar) • StructureMap™ (StructureMap) Copyright Copyright © 2020 Navico Holding AS. Compliance statements Europe Navico declare under our sole responsibility that the product conforms with the...
  • Page 89 Warning: The user is cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Ú Note: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 90 Viewing the manual on the screen The PDF viewer included in the unit makes it possible to read the manuals and other PDF files on the screen. The manuals can be read from a storage device connected to the unit or copied to the unit’s internal memory.
  • Page 91 Introduction Front controls Touch screen Power key • Press and hold: turns the unit ON/OFF • Short press once: displays the System Controls dialog • Repeat short presses: toggles through preset dimming levels WheelKey - user configurable key, refer to "Configurable WheelKey" on page 18. Default without an autopilot connected to the system •...
  • Page 92 Man Over Board (MOB) button Settings button Select to access application and feature settings dialogs. These dialogs are used to configure the feature during installation and for making user settings. The settings dialogs are explained toward the end of each application chapter. Toolbar buttons Provide access to options and tools that are not specific to any panel.
  • Page 93 • A MOB waypoint is created at the vessel’s position • The display switches to a zoomed chart panel, centered on the vessel's position • The system displays navigation information back to the MOB waypoint Multiple MOB waypoints can be created. The vessel continues to show navigation information to the initial MOB waypoint.
  • Page 94 Menu button Displays the menu of the active panel. Use menu options to customize the image. The panel menu options are further explained later in this manual in each application chapter. Instrument bar The instrument bar displays information from sensors connected to the system. By default, the instrument bar is shown on the panel.
  • Page 95 Basic operation Turning the system on and off The system is turned on by pressing the Power key. Press and hold the Power key to turn the unit off. If the key is released before the shut-down is completed, the power off process is cancelled. You can also turn the unit off from the System Controls dialog.
  • Page 96 Standby mode In Standby mode, the backlight for screen and keys are turned off to save power. The system continues to run in the background. You select Standby mode from the System Controls dialog. Switch from Standby mode to normal operation by a short press on the Power key. Display illumination Brightness You can cycle the preset backlight levels by short presses on the Power key.
  • Page 97 Customizing your system Customizing the Home page wallpaper The Home page's wallpaper can be customized. You can select one of the pictures included with the system, or you can use your own picture in .jpg or .png format. The images can be available on any location that can be seen in the storage browser. When a picture is chosen as the wallpaper, it is automatically copied to the Wallpaper folder.
  • Page 98 The shadow cursor on a multiple panel page When using the cursor on a sonar (sonar, DownScan, or SideScan) image on a multiple panel page, the cursor is shadowed on the other sonar (sonar, DownScan, and SideScan), chart and radar panels. Customizing favorite pages Adding new favorite pages Ú...
  • Page 99 Reset the instrument bar You can reset the instrument bar from the edit menu option to show the predefined default gauges. Fuel economy gauge You can display a fuel economy gauge in the instrument bar on application pages. Select the predefined Fuel activity bar or change a gauge source to the Fuel Economy option found in the Vessel category of the choose data dialog.
  • Page 100 Open the System Controls dialog Select the adjust splits option. The adjustment icon appears on the multiple panel page. Select the adjustment icon and move the split to the desired position Use menu options to save or discard your changes. Enabling or disabling features A compatible device connected to the unit should automatically be identified by the system.
  • Page 101 Adding displays to a Bridge Ú Note: All displays must be turned on to be available for bridge configuration. Open the Bridge Configuration dialog Select to configure a new bridge or to edit an existing - The Bridge Configuration for the selected bridge will be shown, and all displays that are not already assigned to a bridge will be listed Select the display you want to add to the bridge - Arrange the displays from left to right in the same physical layout as the displays on...
  • Page 102 Customizing your system | NSO evo3S Operator Manual...
  • Page 103 Charts The Chart panel North indicator Vessel Chart range scale Grid lines* Range rings* * Optional chart items. Optional chart items can be turned on/off individually from the chart settings dialog. Chart data The system can be delivered with preloaded cartography. For a full selection of supported charts, visit the product web site.
  • Page 104 Zooming the chart The chart range scale and range rings interval (when turned on) are shown on the chart panel. You change the scale by zooming the chart in or out. Panning the chart You can move the chart in any direction by: •...
  • Page 105 Ú Note: Pop-up information has to be enabled in chart settings to see basic item information. Using the cursor on the panel By default, the cursor is not shown on the panel. When you activate the cursor, the cursor position window is displayed. When the cursor is active, the panel does not pan or rotate to follow the vessel.
  • Page 106 Continue positioning the remaining routepoints Save the route by selecting the save option in the menu. Find objects on chart panels You can search for other vessels or various chart items from a chart panel. Activate the cursor on the panel to search from the cursor position. If the cursor is not active, the system searches for items from the vessel's position.
  • Page 107 Define the four corners of the search area, by entering corner coordinates. The following settings must be defined: • Track width - controls how much space is in between parallel legs (the legs with the longest length). • Number of vessels - controls how many SAR routes are generated. An SAR route is created for each vessel.
  • Page 108 To return the chart to vessel position use the return to vessel option. Controlling the view angle You can control the view angle by selecting the rotate icon, and then panning the chart panel. • To change the direction you are viewing, pan horizontally •...
  • Page 109 Transparency Adjusts the transparency of the overlay. With a minimum transparency setting, the panel details are almost hidden by the overlay. Palette Specifies the colors used to show water temperatures. A legend is shown on the panel that identifies the colors associated with the recorded temperatures. Clear history Deletes all heat map data gathered up to the moment it is selected.
  • Page 110 No Photo overlay Photo overlay, land only Full Photo overlay Photo transparency The Photo transparency sets the opaqueness of the photo overlay. With minimum transparency settings the chart details are almost hidden by the photo. Minimum transparency Transparency at 80 Raster charts Changes the view to that of a traditional paper chart.
  • Page 111 Depth palette Controls the Depth palette used on the map. Navigation Color shades depth areas based on depth range values set by the system. If the depth is within a certain range the system will select the exact color of that range. It colors darker shades of blue in shallower water and whiter in deeper water.
  • Page 112 Ú Note: This option is grayed out if the data is not available in the map card inserted. Genesis Layer The Genesis Layer displays high-resolution contours contributed by Genesis users that have passed a quality check. This option toggles the Genesis layer on/off on the chart image. Available only if the C-MAP chart contains Genesis Layer data.
  • Page 113 No Depth highlight range Depth highlight range: 6 m - 12 m Shallow water highlight This highlights areas of shallow water between 0 and the selected depth (up to 10 meters/30 feet). No shallow water highlighted Shallow water highlight: 0 m - 3 m Safety depth The Navionics charts use different shades of blue to distinguish between shallow and deep water.
  • Page 114 Palettes Used for selecting the image's color palette. SCL History Select to display previously recorded data on the chart overlay. SC Density Controls the density of the SonarChart and SonarChart Live contours. Colored seabed areas Used for displaying different depth areas in different shades of blue. Navionics Dynamic tides and current icons Shows tides and currents with a gauge and an arrow instead of the diamond icons used for static tides and current information.
  • Page 115 Chart details Provides you with different levels of geographical layer information. Easy View Magnifying feature that increases the size of chart items and text. Ú Note: There is no indication on the chart showing that this feature is active. Chart settings The options in the chart settings dialog depends on which chart source is selected in the system.
  • Page 116 Pop-up information Determines whether basic information for panel items is displayed when you select the item. Grid lines Turns on/off viewing of longitude and latitude grid lines on the panel. Waypoints, Routes, and Tracks Turns on/off displaying of these items on chart panels. Charts | NSO evo3S Operator Manual...
  • Page 117 Waypoints, routes, and tracks Waypoints, Routes, and Tracks dialogs These dialogs give access to advanced edit functions and settings for these items. Waypoints About waypoints A waypoint is a user generated mark positioned on the: • chart • echosounder image •...
  • Page 118 Delete a waypoint You can delete a waypoint from the edit waypoint dialog or by selecting the delete menu option when the waypoint is activated. You can also delete waypoints from the waypoints tool on the home page. You can delete MOB waypoints the same way. Waypoint alarm settings You can set an alarm radius for each individual waypoint you create.
  • Page 119 The edit track dialog can also be accessed by selecting the waypoints tool on the home page. Dock-to-dock Autorouting and Easy Routing The Dock-to-dock Autorouting and Easy Routing suggest new routepoint positions based on information in the map and on your boat's size. Before you can start using this feature the boat draught, width and height must be entered into the system.
  • Page 120 The edit route dialog You can manage routes and routepoints, and change route properties using the Edit Route dialog. This dialog is activated by selecting an active route's pop-up or from the menu by selecting the route then the details option. The dialog can also be accessed by using the Waypoints tool on the Home page and then selecting a route in the dialog.
  • Page 121 • Select the track in the Tracks dialog and set the color for the entire track in the Edit Track dialog. • Select to let the system color the track based on source data and high/low settings. Refer to "Color tracks based on data" on page 29. C-MAP Embark You can access the C-MAP Embark web site from a PC or use the C-MAP Embark app on your smart device to manage:...
  • Page 122 Navigating About navigating The navigation function included in the system allows you to navigate to the cursor position, to a waypoint, or along a predefined route. If autopilot functionality is included in your system, the autopilot can be set to automatically navigate the vessel.
  • Page 123 If Loran is enabled in the Navigation settings dialog, there are two position panels. This is indicated with arrow symbols on left and right side of the panel. You toggle between the panels by: • selecting the left or right arrow symbols GPS position info Loran position info Use menu options...
  • Page 124 The Great circle route is the shortest path between two points. However, if you are to travel along such a route, it would be difficult to steer manually as the heading would constantly be changing (except in the case of due north, south, or along the equator). Rhumb lines are tracks of constant bearing.
  • Page 125 Datum This system uses the WGS datum format, which is a standard for use in cartography and satellite navigation (including GPS). You can change the datum format to match other systems. Coordinate system Used to set the geographic coordinate system used on your system. Phantom Loran Enables use of Phantom Loran positioning system.
  • Page 126 TripIntel About TripIntel TripIntel lets you store and recall information on trips. You can use the information to make informed decisions prior to commencing a trip, or when a trip is underway. Current trip statistics The Information tab on the TripIntel page shows current trip statistics: •...
  • Page 127 Adjust total distance Select the Adjust total distance button to change the Total distance. Use this option if you have not recorded a trip or part of a trip that you have taken and want to include the distance in the Total distance statistic. Reset fuel economy Select Reset fuel economy to reset the fuel economy in the Fuel economy gauge on the Instrument bar.
  • Page 128 Change trip recording names Trips are given generic names when they are created. You can change the trip name to a more meaningful one by selecting it on the History list and then select the name in the Trip History details dialog. TripIntel | NSO evo3S Operator Manual...
  • Page 129 Radar About radar Several radar sensors are supported. The menu options available depend on the radar sensor(s) connected to the system. The Radar panel Radar information window Heading line* Compass* Range rings * Quick image controls Data bar** * Optional radar symbology. Radar symbology can be turned ON/OFF collectively from the radar menu, or individually as described in radar settings dialog.
  • Page 130 Ú Note: A heading sensor must be present in the system for radar overlay. When the radar overlay is selected, basic radar operational functions are available from the Chart panel’s menu. Selecting radar overlay source on chart panels To select the radar source of the radar overlay displayed on the chart panel, use the Radar options and then Source chart panel menu options to select the radar source.
  • Page 131 Ú Note: Radar sector blanking is only available for Halo radars. Main radar PPI Radar overlay on a chart Adjusting the radar image You may be able to improve the radar image by adjusting the radar sensitivity, and by filtering out the random echoes from sea and weather conditions. The radar control images are located in the upper right corner of the radar panel.
  • Page 132 Sea clutter Sea clutter is used to filter the effect of random echo returns from waves or rough water near the vessel. When you increase Sea clutter, filtering the on-screen clutter caused by the echoes of waves is reduced. The system includes predefined Sea clutter settings for harbor and offshore conditions, in addition to the manual mode where you can adjust the settings.
  • Page 133 Radar threshold The threshold sets required signal strength for the lowest radar signals. Radar returns below this limit are filtered and are not displayed. Default value: 30%. Target expansion Target expansion increases the length of targets in range, making them easier to see. Rejecting radar interference Interference could be caused by radar signals from other radar units operating in the same frequency band.
  • Page 134 • Diverging targets are blue colored on all radar image palettes. • Approaching target colors on radar image palettes: - Black/Red palette - Yellow - White/Red palette - Yellow - Black/Green palette - Red - Black/Yellow palette - Red VelocityTrack settings Use this dialog to set speed thresholds of targets to be colored.
  • Page 135 Target trails You can set how long the trails generated from each target on your radar panel remain. You can also turn OFF target trails. Ú Note: True motion is recommended when using Target trails Clearing target trails from the panel When target trails are displayed on the panel, the radar menu expands to include an option where you can clear target trails from your radar panel temporarily.
  • Page 136 When true motion is selected, the true motion reset option is available from the menu. This allows for manually resetting the radar image and vessel symbol to its starting position. Ú Note: True motion is only available when the PPI is in either north up or course up orientation mode.
  • Page 137 Select the adjustment option from the menu if you need to reposition the marker, then adjust the marker by dragging it into position on the radar image Select the save option to save your settings Placing EBL/VRM markers by using the cursor Position the cursor on the radar image Activate the menu Select one of the EBL/VRM markers...
  • Page 138 Ú Note: MARPA requires heading data for both the radar and the unit. MARPA target symbols The system uses the target symbols shown below. Acquiring MARPA target. Typically it takes up to 10 full rotations of the scanner. Tracking MARPA target, not moving or at anchor. Tracking and safe MARPA target with extension lines.
  • Page 139 Ú Note: The record menu option is available if recording is turned on in the Advanced system settings. If more than one radar is available, you can select which source you want to record. Radar settings Radar symbology You can select which optional radar items that should be turned on/off collectively from the menu.
  • Page 140 About AIS If a compatible AIS (Automatic Identification System) is connected to the system, AIS targets can be displayed and tracked. You can also see messages and position for DSC transmitting devices within range. AIS targets can be displayed as overlay on chart and radar images. The AIS is an important tool for safe travelling and collision avoidance.
  • Page 141 AIS information on radar panels The radar data bar includes information about targets. The targets are listed with the closest target on top, and are color coded to indicate target status. Calling an AIS vessel If the system includes a VHF radio supporting DSC (Digital Select Calling) calls over NMEA 2000 or NMEA 0183, a DSC call can be initiated to other vessels from the unit.
  • Page 142 - The waypoint is saved to your waypoint list. This waypoint name is prefixed with MOB AIS SART - followed by the unique MMSI number of the SART. For example, MOB AIS SART - 12345678. • Activate the MOB function - The display switches to a zoomed chart panel, centered on the AIS SART position - The system creates an active route to the AIS SART position Ú...
  • Page 143 Vessel settings MMSI Used for entering your own MMSI (Maritime Mobile Service Identity) number into the system. You need to have this number entered to receive addressed messages from AIS and DSC vessels. You also need to have your MMSI number entered to avoid seeing your own vessel as an AIS target.
  • Page 144 Echosounder About echosounder Any transducers must be connected to a sonar hub or another unit that is sharing sonar data. The image Surface Bottom Fish arches Range scale Depth Temperature Frequency Multiple sources You can specify the source for the image in the active panel. You can display different sources simultaneously using a multi-panel page configuration.
  • Page 145 To resume normal scrolling, clear the cursor. Recording log data Start recording log data You can start recording log data and save the file internally in the unit, or save it onto a storage device connected to the unit. When the data is being recorded, there is a flashing red symbol in the top left corner and a message appears periodically at the bottom of the screen.
  • Page 146 MAP Genesis. You can sign in and transfer files at a later time when the unit is connected to the internet. Customizing the image Use the menu to customize the image. When the cursor is active, some options in the menu are replaced with cursor mode features.
  • Page 147 - A line is drawn between the measuring points, and the distance listed in the Cursor Information window Continue selecting new measuring points if required Use menu options to re-position the start point and the end point as long as the measuring function is active.
  • Page 148 Zoom bars The Zoom mode presents a magnified view of the sounder image on the left side of the panel. By default, the zoom level is set to 2x. You can select up to 8x zoom. The range zoom bars on the right side of the display shows the range that is magnified. If you increase the zooming factor the range is reduced.
  • Page 149 Amplitude scope options Regular Enhanced Horizontal Removes the amplitude scope from the panel. Regular Displays the amplitude scope vertically on the side of the panel. There are no customizable options to the appearance of the regular amplitude scope display. If the cursor is placed on the panel, the amplitude scope continues to display the newest echo sounding as it appears on the panel.
  • Page 150 Color Displays each amplitude value with the same color as in the panel. For amplitudes close to or below the gain threshold, the color is gray. The gray amplitudes indicate no echo target returns. The gray amplitudes replace the background color that is shown on the panel which also indicates no echo targets.
  • Page 151 Changing colors Ú Note: Use carefully, some color changes can hide obstructions and other objects. Select the color marker menu option Select one or more colors you want to change Select the marker color menu option to display replacement colors Select the replacement color Select the back menu option to save your changes.
  • Page 152 When color erase is applied, the color erase menu option changes from off to showing a color bar. Remove all color changes to turn the color erase feature off. Minute marker Determines if the minute marker line (A) is shown on the image. Each black and each white stripe in the line represents 1 minute.
  • Page 153 Structure depth offset All transducers measure water depth from the transducer to the bottom. As a result, water depth readings do not account for the distance from the transducer to the lowest point of the boat in the water or from the transducer to the water surface. •...
  • Page 154 SideScan About SideScan SideScan provides a wide coverage in high detail of the seabed to the sides of your boat. The SideScan panel is available when a SideScan capable transducer is connected to the system. The SideScan panel Range scale Range icons Zooming the image Use the range icons or change the range menu setting to specify the distance out to the left...
  • Page 155 Setting up the image Use the SideScan menu to set up the image. When the cursor is active, some options in the menu are replaced with cursor mode features. Select the clear cursor option to return to the normal menu. Source Ú...
  • Page 156 More options Pause Pauses the image, allowing you to examine the image in detail. The pause function stops the echosounder from pinging. The system is not collecting data when paused in this manner. Range Lines Range lines can be added to the image to make it easier to estimate distance. Recording SideScan data Displays the record log dialog.
  • Page 157 DownScan About DownScan DownScan provides detailed images of structure and fish directly below your boat. The DownScan panel is available when a DownScan capable transducer is connected to the system. The DownScan panel Zooming the image You can zoom the image. The zoom level is shown on the image.
  • Page 158 Range The range setting determines which water depth that is visible on the screen. Ú Note: Setting a deep range in shallow water may cause the system to lose track of the depth. Preset range levels Select a preset range level manually from the menu. Auto range In auto range, the system automatically displays the whole range from the water surface to the bottom.
  • Page 159 Wave action and boat wakes can cause onscreen clutter near the surface. The TVG (Time Variable Gain) option reduces surface clutter by decreasing the sensitivity of the receiver near the surface. More options Pause Pauses the image, allowing you to examine the image in detail. The pause function stops the echosounder from pinging.
  • Page 160 3D Sonar About 3D Sonar 3D Sonar is a multi-beam sonar technology that allows anglers to see fish, underwater structures and bottom contours in customizable, three-dimensional views. The 3D Sonar page is available when a 3D Sonar capable transducer is connected to the system.
  • Page 161 Saving waypoints To save a waypoint, position the cursor on the panel and then select the new waypoint menu option. If the cursor is positioned on a 3D image, no depth information is included for the waypoint. The waypoint on a 3D image is drawn with a line beneath it to indicate its point on the sea floor.
  • Page 162 Setting up the image Source Ú Note: Available only if multiple sources with the same capability are available. Used to specify the source for the image in the active panel. You can display different sources simultaneously, using a multi-panel page configuration. Menu options for each panel are independent.
  • Page 163 The Auto option automatically adjusts the settings to the optimal levels. Auto sensitivity can be adjusted (+/-) to your preference while still maintaining the auto sensitivity functionality. More options Pause Pauses the image, allowing you to examine the image in detail. The pause function stops the echosounder from pinging.
  • Page 164 StructureMap About StructureMap The StructureMap feature overlays SideScan images from a SideScan source on the map. This makes it easier to visualize the underwater environment in relation to your position, and aids in interpreting SideScan images. The StructureMap image StructureMap can be displayed as an overlay on your chart panel. When StructureMap overlay is selected, the chart menu increases to show the StructureMap options.
  • Page 165 StructureMap tips • To get a picture of taller structures (a wreck, etc.) — do not drive over it, instead, steer the boat so the structure is on the left or right side of your vessel. • Do not overlap history trails when conducting a side-by-side scan of an area. Using StructureMap with mapping cards StructureMap allows you to maintain full chart capability and can be used with preloaded cartography as well as C-MAP, Navionics, and other third-party charting cards compatible...
  • Page 166 ForwardScan About ForwardScan ForwardScan sonar is a navigational aid that helps you monitor the underwater environment in front of your vessel while carrying out slow speed maneuvers. To use the ForwardScan feature you must have a ForwardScan transducer mounted on your vessel.
  • Page 167 Depth Controls depth range. Depth range is set to auto mode by default. Forward range Controls the forward looking search range. Maximum Forward range is 91 meters (300 feet). Noise rejection Filters out signal interference and reduces on-screen clutter. Show zones Displays warning zones (yellow) and critical zones (red) on the screen.
  • Page 168 Red - Critical Yellow - Warning Green - Safe Setting up ForwardScan extensions Select ForwardScan in the chart settings dialog to view the ForwardScan heading extension on the chart panel. ForwardScan installation settings Specify the setup in the ForwardScan installation dialog. Critical forward range and Critical depth Critical Forward Range and Critical Depth are user-selected thresholds that define a critical zone forward of your vessel.
  • Page 169 Warning forward range and warning depth Set the warning forward range and warning depth thresholds that define the warning zone lines shown on the ForwardScan image. Offset angle The offset angle is used to fine tune the transducer angle if the transducer is not installed parallel to the waterline.
  • Page 170 Autopilot Safe operation with the autopilot Warning: An autopilot is a useful navigational aid, but DOES NOT replace a human navigator. Warning: Ensure the autopilot has been installed correctly, commissioned and calibrated before use. Ú Note: For safety reasons a physical standby key should be available. Ú...
  • Page 171 Autopilot controller, disengaged Autopilot controller, engaged Mode button Mode dependent information Mode dependent buttons Engage/Standby button Engaging and disengaging the autopilot To engage the autopilot: • Select the engage button to activate last active mode • Select the mode button to display the list of available modes, then select the preferred mode The autopilot will engage in the selected mode, and the autopilot controller will change to show active mode options.
  • Page 172 Heading hold mode (A) In this mode the autopilot steers the vessel on the set heading. When the mode is activated, the autopilot selects the current compass heading as the set heading. Ú Note: In this mode the autopilot does not compensate for any drifting caused by current and/or wind (W).
  • Page 173 Skip Skips the active waypoint and steers towards the next waypoint. This option is only available when navigating a route with more than one waypoint between the vessel position and the end of the route. Cancel Cancels active navigation and deselects the current route or waypoint navigation. The autopilot is switched to heading hold mode, steering the vessel on the heading that was active when the cancel button was selected.
  • Page 174 Turn patterns The system includes a number of turn patterns, available when the autopilot is in auto mode. The number of turn patterns depend on autopilot computer. Ú Note: Turn patterns are not available if the boat type is set to sail. To start a turn Select the port or starboard options in the turn dialog.
  • Page 175 Warning: Do not use the DCT turn pattern unless the seabed is suitable. Do not use it in rocky waters where the depth is varying significantly over a small area. Ú Note: If depth data is lost during DCT the autopilot will automatically switch to auto mode.
  • Page 176 For more information about the autopilot system, refer to the separate documentation following the autopilot system. Autopilot sources A professional autopilot system has its own source groups. If the MFD is going to be used to operate the professional autopilot system, the MFD must use the same source groups as the autopilot system.
  • Page 177 Passive unit – open system: request command by selecting the Take command button • The command is immediately transferred Unlocked unit: lock/unlock other units by selecting the information field Locked unit: request command by selecting the Take command button • A request is sent to the unit in control Unit in control: confirm request for command transfer •...
  • Page 178 • User settings can be changed for various operational conditions or user preferences. • Installation settings are defined during commissioning of the autopilot system. No changes should later be done to these settings. The following sections describe the user settings per autopilot computer. For installation settings, refer to the installation manual.
  • Page 179 • Init rudder: Defines how the system moves the rudder when switching from manual steering to an automatic mode. - Rudder limit: Determines the maximum rudder movement in degrees from midship position that the autopilot can command the rudder in the automatic modes. The Rudder limit setting is only active during autosteering on straight courses, not during course changes.
  • Page 180 Trolling motor autopilot Safe operation with the autopilot Warning: An autopilot is a useful navigational aid, but DOES NOT replace a human navigator. Warning: Ensure the autopilot has been installed correctly, commissioned and calibrated before use. Ú Note: For safety reasons a physical standby key should be available. Ú...
  • Page 181 Autopilot controller, engaged Mode button Mode dependent information Mode dependent buttons Engage/Standby button When the autopilot controller is the active panel, it is outlined with a border. Engaging and disengaging the autopilot To engage the autopilot: • Select the engage button to activate last active mode •...
  • Page 182 Change the position in anchor mode Use the arrow buttons to reposition the vessel when in anchor mode. Each press on a button will move the anchor position 1.5 m (5 ft) in the selected direction. Heading lock mode In this mode the autopilot steers the vessel on the set heading. When the mode is activated, the autopilot selects the current compass heading as the set heading.
  • Page 183 Turn variables All turn patters have settings that you can adjust before you start a turn, or at any time when the boat is in a turn. U-turn Changes the current set heading by 180°. Turn variable: • Turn radius C-turn Steers the vessel in a circle.
  • Page 184 Trolling motor speed control In Heading lock mode, Nav. mode and in Turn pattern steering the autopilot system can control the trolling motor speed. The set target speed is displayed in the autopilot controller. There are two ways to control the target speed of the trolling motor: •...
  • Page 185 Trolling motor autopilot| NSO evo3S Operator Manual...
  • Page 186 Outboard autopilot Safe operation with the autopilot Warning: An autopilot is a useful navigational aid, but DOES NOT replace a human navigator. Warning: Ensure the autopilot has been installed correctly, commissioned and calibrated before use. Ú Note: For safety reasons a physical standby key should be available. Ú...
  • Page 187 The autopilot controller for outboard motors Control bar Autopilot controller, disengaged Autopilot controller, engaged Mode indication Mode buttons Turns button Mode dependent buttons Standby button When the autopilot controller is the active panel, it is outlined with a border. Engaging and disengaging the autopilot To engage the autopilot: •...
  • Page 188 Autopilot modes The autopilot has several steering modes. The number of modes and features within the mode depend on the autopilot computer, the boat type and available inputs. Non-Follow Up mode (NFU) In this mode the port and starboard buttons are used to control the rudder. Activate this mode by selecting the port or starboard button when the autopilot is in standby.
  • Page 189 NAV mode options While in NAV mode the following buttons are available in the autopilot controller: Restart Restarts the navigation from the vessel’s current position. Skip Skips the active waypoint and steers towards the next waypoint. This option is only available when navigating a route with more than one waypoint between the vessel position and the end of the route.
  • Page 190 The turn rate is identical to Turn rate setting. C-turn Steers the vessel in a circle. Turn variable: • Rate of turn. Increasing the value makes the vessel turn a smaller circle. Spiral Makes the vessel turn in a spiral with a decreasing or increasing radius. Turn variables: •...
  • Page 191 To initiate a DCT turn • Steer the boat to the depth you want to track, and in the direction of the depth contour • Activate auto mode, then select depth contour tracking while monitoring the depth reading • Select the port or starboard button to initiate the depth contour steering to follow the bottom sloping to starboard or to port Port option Starboard option...
  • Page 192 Commissioning Used to calibrate your boat’s steering (cable steer or hydraulic steering) with the NAC-1. Ú Note: The autopilot must be commissioned prior to first use and any time after autopilot default settings have been restored. Steering response Used to increase or decrease the steering sensitivity. A low response level reduces the rudder activity and provides a more loose steering.
  • Page 193 Instruments About Instrument panels The panels consist of multiple gauges that can be arranged on dashboards. The panels can be created with analog, digital, and bar gauges. Pre-defined dashboards and templates are included. Example: Activating/deactivating feature applications Use the system settings features option to activate/deactivate the application. You can stop and then uninstall the feature from the manage features and apps option.
  • Page 194 Copying an existing layout Select to copy an existing layout that you have made. Use menu options to name the dashboard and manage gauges on the dashboard. Using a built-in template Select a pre-defined template to create a dashboard. The template dashboards reflect your vessel configuration.
  • Page 195 Video About the video function The video function allows you to view videos or camera sources on your system. Ú Note: The video images are not shared from the Ethernet network. You can only view the video on the unit connected to the video source. For information about how to connect the camera, see the unit's separate installation manual.
  • Page 196 Audio About the audio function If a compatible audio server is properly installed/connected and setup with your system, you can use the unit to control and customize the audio system on your vessel. For installation, setup and connection information, refer to the unit's installation manual and to the documentation included with the audio device.
  • Page 197 Speaker zones This device can be set up to control different audio zones. The number of zones depends on the audio server connected to your system. You can adjust balance, volume and volume limit settings individually for each zone. Adjustments to the bass and tremble settings will alter all zones. Master volume control By default, the volume for all speaker zones are adjusted when you adjust the volume.
  • Page 198 Lists of Sirius channels Several options are available for displaying the Sirius channels. Sirius favorite channels You can create your favorite channels from within the list of all channels and the list of subscribed channels. Selecting a Sirius channel To select a channel: •...
  • Page 199 Weather About the weather feature The system includes weather functionality that allows the user to view forecast data overlaid on the chart. This helps gaining a clear understanding of the weather conditions that are likely to appear. The system supports weather data in GRIB format, available for download from various weather service suppliers.
  • Page 200 Importing GRIB data GRIB data imported into memory can be displayed as chart overlay. The file can be imported from any location that can be seen in the storage manager. Ú Note: GRIB data that is imported overwrites the GRIB data in memory. You can import the GRIB files: •...
  • Page 201 GRIB information window The GRIB information window shows the date and time for the GRIB weather forecast, and the selected forecast time in brackets. A negative value in the brackets indicates historic weather data. If you select a position on the chart, the information window expands to include weather details for the selected position.
  • Page 202 Precipitation color shading City forecast icon Wind barb Storm icon SST color bar SST color shading Local weather The local weather dialog shows current weather and weather forecast for your current location. Weather options View options Precipitation Shades of color are used to show precipitation type and intensity. The darkest color indicates the highest intensity.
  • Page 203 You can define how the color codes are used to identify the wave height. Refer to "Adjusting color codes" on page 126. Forecast wind barbs Forecast wind barbs can be shown or hidden on the weather panel. Surface features Turns surface features on/off. Surface features include fronts, isobars, and pressure points. Surface features cannot be shown at the same time as Wind.
  • Page 204 Tropical statements You can read tropical statements including information about tropical weather conditions. These statements are available for the entire Atlantic and the Eastern Pacific. Adjusting color codes You can define the sea surface temperature range and wave height color coding. The temperature above warm and below cool values is displayed as progressively darker red and darker blue.
  • Page 205 Internet connection Internet usage Some features in this product use an internet connection to perform data downloads and uploads. Internet usage via a connected mobile/cell phone internet connection or a pay-per-MB type internet connection may require large data usage. Your service provider may charge you based on the amount of data you transfer.
  • Page 206 Built-in WiFi Select this option to enable or disable the internal WiFi. Disabling the internal WiFi reduces the unit’s power consumption. WiFi networks Shows the WiFi network connection status. If the MFD is connected to the internet (WiFi hotspot), the hotspot name (SSID) is shown. Built-in hotspot The system turns this on when connecting with another unit.
  • Page 207 Using your phone with the MFD About phone integration The following functions are available when connecting a phone to the unit: • read and send text messages • view caller ID for incoming calls iPhone limitations: • only incoming calls and messages received while the phone is connected to the MFD are available •...
  • Page 208 By default, the message list shows all messages. The list can be filtered to show only sent or received messages. Creating a text message Ú Note: This option is not available for iPhones. To create a new text message: • select the new message option in the message dialog To respond to a text message or to a phone call: •...
  • Page 209 • the phone is connected and the alert type is set to pop-up or notification, but there is either no alert or the alert is very delayed • the phone is connected and there is no sound on the phone when talking See details for how to display the device details in "Managing Bluetooth devices"...
  • Page 210 Simulator About The simulation feature lets you see how the unit works without being connected to sensors or other devices. The status bar indicates if the simulator is toggled on. Retail mode In this mode a retail demonstration for the selected region is shown. If you operate the unit when retail mode is running, the demonstration pauses.
  • Page 211 Tools and settings This chapter includes description for tools and for settings that are not specific to any application panel. For application settings, refer to the relevant chapter for the application. Tools and settings are available from the Home page. The toolbar Waypoints Includes waypoints, routes, and trails dialogs used for managing these user defined items.
  • Page 212 System settings Language Controls the language used on this unit. Boat settings Used to specify the physical attributes of the boat. Text size Used for setting the text size in menus and dialogs. Key beeps Controls the loudness of the beep sound that occurs when physical interaction is made with the unit.
  • Page 213 Power control Setting that determines unit's response to the signal applied to the power control wire. For more information, refer to the unit's installation manual. Advanced Used for configuration of advanced settings and how your system displays various user interface information. Registration Guidance for online registration of the device.
  • Page 214 Alarms About the alarm system The system continuously checks for dangerous situations and system faults while the system is running. Type of messages The messages are classified according to how the reported situation affects your vessel. The following color codes are used: Color Importance Critical alarm...
  • Page 215 Alarm dialogs The alarm dialogs are activated from the Alarm settings dialog or by selecting the Alarm button on the toolbar. Active alarms Lists all active alarms with details. Alarms remain active until the alarm is acknowledged or the reason for the alarm is removed. Alarms history Lists the alarm history with time stamp.
  • Page 216 Maintenance Preventive maintenance The unit does not contain any field serviceable components. Therefore, the operator is required to perform only a very limited amount of preventative maintenance. Sun cover It is recommended that you always fit the sun cover when the unit is not in use. Cleaning the display unit To clean the screen: •...
  • Page 217 Update the software when connected to internet If the unit is connected to internet, the system will automatically check for software updates for the unit and for connected devices. Ú Note: Some software update files might be larger than the space available in the unit. If so, you will be prompted to insert a storage device.
  • Page 218 Service report The system has a built-in service assistant that creates a report about the unit. The service report is used to assist in technical support enquiries. It can also include information about devices connected to the network(s). The report includes the software version, serial number, and information from the settings file.
  • Page 219 User Data File version 6 • Used to export waypoints, routes and colored tracks/trails. User Data File version 5 • Used to export waypoints and routes with a standardized universally unique identifier (UUID), which is very reliable and easy to use. The data includes such information as the time and date when a route was created.
  • Page 220 Import system settings Warning: Importing system settings overwrites all existing system settings. Connect a storage device to the unit Browse the memory and select the desired backup file to start the import Maintenance| NSO evo3S Operator Manual...
  • Page 221 Integration of 3 party devices Several 3 party devices can be connected to the unit. The applications are displayed on separate panels or integrated with other panels. A device connected to the NMEA 2000 network should automatically be identified by the system.
  • Page 222 Panning and tilting the FLIR camera When the connection to the FLIR camera is established, pan and tilt panel buttons appear on the video panel. The left and right arrow buttons control the camera’s pan. The up and down arrow buttons tilt the camera. Select one of the arrow buttons on the panel to control the camera.
  • Page 223 Evinrude engine integration If an Evinrude engine control head is available on the NMEA 2000 network, the Evinrude engines can be monitored and controlled from the unit. When the feature is also enabled in the advanced settings features dialog: • An Evinrude icon is added to the home page - select it to display the engine instrument panel.
  • Page 224 The Power-Pole controller displays control buttons for each Power-Pole that is paired to the unit. Single press the AUTO buttons to raise and lower the Power-Poles automatically all the way up and down. The manual up and down buttons raise and lower the poles as high or low as you want.
  • Page 225 Battery icons Color Indicates Green Good level Yellow Marginal level Failing/critical level Battery and AC source connections Color Indicates Blue Current flow Grey No current flow Emergency power transfer If your engine battery is low and you want to transfer power from the aux battery to the engine battery, select this option.
  • Page 226 Appendix Touchscreen operation Basic touchscreen operation on the different panels is shown in the table below. The panel sections in this manual have more information about panel specific touchscreen operation. Icon Description Tap to: • Activate a panel on a multi-panel page •...
  • Page 227 Keyboard operation overview All keys on the keyboard work as usual when entering text in a text field. Keyboard operation and shortcuts are shown in the table below. Unless noted all references are single short presses on the key. Ú Note: The shortcuts refer to US keyboard layout.
  • Page 228 Using the mouse to control the system The mouse pointer becomes visible when you move the mouse, and it will auto-hide after a few seconds of inactivity. • Press the left key to position the cursor on a panel or to select an option. •...
  • Page 229 Icon Definition GPS signal strength: strong, medium, and weak. The placement of the GPS and obstructions between it and satellites can affect the signal strength. In some cases, a well-placed external GPS antenna might be needed. GPS signal strength with the Wide Area Augmentation System (WAAS) is strong, medium, and weak.
