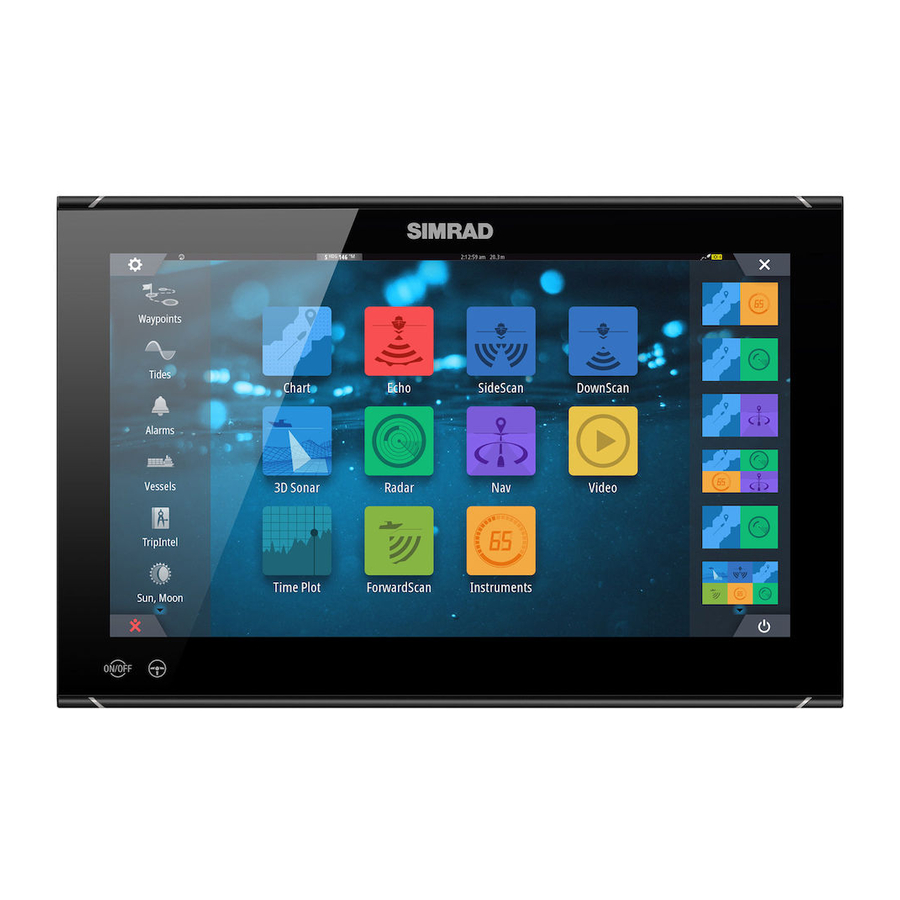

- Page 1 NSO evo3S Installation Manual ENGLISH www.simrad-yachting.com...
- Page 3 However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to Preface | NSO evo3S Installation Manual...
- Page 4 SD-3C, LLC in the United States, other countries or both. ® SmartCraft VesselView is a registered trademark of Mercury. ® Suzuki is a registered trademark of Suzuki. ® Yamaha is a registered trademark of Yamaha. Preface | NSO evo3S Installation Manual...
- Page 5 The manual assumes that the reader has basic knowledge about this type of equipment with regards to: • installation work to be carried out • nautical terminology and practices Translated manuals Available translated versions of this manual can be found on the following website: • www.simrad-yachting.com Preface | NSO evo3S Installation Manual...
-
Page 6: Table Of Contents
Autopilot settings Fuel settings Wireless settings Network settings 36 3rd party support C-Zone Naviop Mercury Suzuki Marine Yamaha engine integration Evinrude engine integration Power-Pole FLIR camera setup 39 Appendix Dimensional drawings Technical specifications Supported data Contents | NSO evo3S Installation Manual... -
Page 7: Introduction
Power cable and connector block RJ45 to 5-pin Ethernet adapter cable NMEA 0183 connector block Documentation pack Cable retainer kit NMEA 2000 starter kit Ú Note: Supplied with the system pack only. Panel mounting kit Introduction | NSO evo3S Installation Manual... -
Page 8: Front Controls
HDMI OUT - HDMI video output VIDEO IN - composite video input HDMI IN - HDMI video input NMEA 0183 - NMEA 0183 data POWER - 12 - 24 V DC input, external alarm and power control Introduction | NSO evo3S Installation Manual... -
Page 9: Card Reader
• Software updates • Transfer of user data • System backup Ú Note: Do not download, transfer or copy files to a chart card. Doing so can damage chart information on the chart card. Introduction | NSO evo3S Installation Manual... -
Page 10: Installation
WiFi unit at least 1 m (3 ft) away from: - other WiFi enabled products - products that send wireless signals in the same frequency range - equipment that might generate interference Installation | NSO evo3S Installation Manual... -
Page 11: Bezel Fitment And Removal
Touchscreen performance can be affected by the location of the unit. Avoid locations where the screen is exposed to: • direct sunlight • prolonged rainfall or floating water Bezel fitment and removal Ú Note: The unit in the illustration is an example only. Installation | NSO evo3S Installation Manual... -
Page 12: Cable Retainer Installation
Panel mounting Refer to the separate mounting template for panel mounting instructions. Bracket mounting For bracket mounting refer to separate documentation supplied with the bracket kit (sold separately). Installation | NSO evo3S Installation Manual... -
Page 13: Wiring
4 3 2 1 Unit socket (male) Cable plug (female) Purpose DC negative +12/24 V DC External alarm Power control Power connection The unit is designed to be powered by 12 or 24 V DC system. Wiring | NSO evo3S Installation Manual... - Page 14 Power control wire, connected to supply power Yellow Power controlled by ignition The unit will turn on once ignition is turned on to start engines. Ú Note: Engine start batteries and house batteries should have a common ground connection. Wiring | NSO evo3S Installation Manual...
- Page 15 If all power control masters are off, power control slaves can be turned on using their own power key. This however will not turn on any other units connected to the power bus. Wiring | NSO evo3S Installation Manual...
-
Page 16: Nmea 2000
NMEA 2000 devices. The backbone needs to run within 6 m (20 ft) of the locations of all products to be connected, typically in a bow to stern layout. The following guidelines apply: • The total length of the backbone should not exceed 100 meters (328 ft) Wiring | NSO evo3S Installation Manual... -
Page 17: Nmea 0183
The unit has a built in NMEA 0183 serial interface, providing both input and output. The port(s) uses the NMEA 0183 (serial balanced) standard, and can be configured in the software for different baud rates up to 38,400 baud. Wiring | NSO evo3S Installation Manual... -
Page 18: Usb Port
The USB devices should be standard PC compatible hardware. Ú Note: USB cable length should not exceed 5 m when using regular cables. Lengths over 5 m may be possible with the use of an active USB cable. Wiring | NSO evo3S Installation Manual... -
Page 19: J1939 Port
The Ethernet port(s) can be used for transfer of data and synchronization of user created data. It is recommended that each device in the system is connected to the Ethernet network. No special setup is required for establishing an Ethernet network. Wiring | NSO evo3S Installation Manual... -
Page 20: Hdmi Ports
The video images will not be shared with another unit via the network. It is only possible to view video on the unit connected to the video source. Ú Note: Both NTSC and PAL formats are supported. Wiring | NSO evo3S Installation Manual... - Page 21 Video in connector details Unit socket (female) Purpose Ground Signal Video input configuration Configurations to video input are made in the video panel. Refer to the Operator Manual for more information. Wiring | NSO evo3S Installation Manual...
-
Page 22: Software Setup
Used to specify the physical attributes of the boat. Time Configure time settings to suit vessel location, along with time and date formats. Configure WheelKey Configures the action of the WheelKey on the front of the unit. Software setup | NSO evo3S Installation Manual... -
Page 23: Alarms
Use the feature option to enable or disable features that are not automatically enabled or disabled by the system. Alarms Settings List of all available alarm options in the system, with current settings. From this list you can activate, deactivate and change alarm limits. Software setup | NSO evo3S Installation Manual... -
Page 24: Radar Installation
Point the vessel towards the jetty Adjust the range offset to make the jetty echo appear as a straight line on the display Software setup | NSO evo3S Installation Manual... - Page 25 Sectors are setup relative to the heading line of the radar. The bearing of the sector is measured from the center line of the sector. Ú Note: Sector blanking should be applied very carefully to avoid reducing the radar’s usefulness in identifying valid and potentially dangerous targets. Software setup | NSO evo3S Installation Manual...
-
Page 26: Echosounder Settings
When a DownScan capable transducer is connected to your system, you can overlay DownScan images on the regular Echosounder image. When overlay DownScan is activated, the Echosounder panel menu expands to include basic DownScan options. Software setup | NSO evo3S Installation Manual... - Page 27 All transducers measure water depth from the transducer to the bottom. As a result, water depth readings do not account for the distance from the transducer to the lowest point of the boat in the water or from the transducer to the water surface. Software setup | NSO evo3S Installation Manual...
- Page 28 Transducer temperature sensors are one of two impedances - 5k or 10k. Where both options are given for the same model transducer, refer to paperwork supplied with transducer to determine impedance. Software setup | NSO evo3S Installation Manual...
-
Page 29: Autopilot Settings
NAC-1 drive cable • confirm that the motor can be manually moved smoothly in each direction • check for other mechanical issues • check wiring connections • repeat the rudder calibration. Software setup | NSO evo3S Installation Manual... -
Page 30: Fuel Settings
Device list. For general source selection information, refer to "Network settings" on page 32. Vessel setup The Vessel setup dialog must be used to select the number of engines, the number of tanks and vessel’s total fuel capacity across all tanks. Software setup | NSO evo3S Installation Manual... - Page 31 To calibrate multiple engines repeat the steps above, one engine at a time. Alternatively, run all engines simultaneously, and divide the Actual amount used by the number of engines. This assumes reasonably even fuel consumption on all engines. Software setup | NSO evo3S Installation Manual...
-
Page 32: Wireless Settings
When a device is connected to more than one source providing the same data, the user can choose the preferred source. Before commencing with source selection make sure all external devices and networks are connected and turned on. Software setup | NSO evo3S Installation Manual... - Page 33 If the unit is part of a source group, all source selection changes will affect all units belonging to the same group. Ú Note: In order to enable group selection, the unit must be set to the Simrad group. Devices with no selected group can use different sources than the rest of the network devices.
- Page 34 Ú Note: Other MFDs cannot decode this information back to NMEA 0183, to use the data as a source. To share data a physical NMEA 2000 or NMEA 0183 connection is still required. Software setup | NSO evo3S Installation Manual...
- Page 35 When enabled the unit only listens to the J1939 port(s). When disabled the unit sends a request to the connected device for specific data. Ú Note: For communication details refer to the engine manufacturer. Software setup | NSO evo3S Installation Manual...
-
Page 36: 3Rd Party Support
NSO evo3S once the dipswitch is set. Allow this to complete, without interruption. Setting CZone to display at startup With this option selected, the CZone control page is shown first, every time the NSO evo3S is powered up. Backlight Enabling this causes the NSO evo3S to synchronize its backlight setting with that of any CZone Display Interfaces set up to share backlight settings. -
Page 37: Naviop
When valid data is received from the gateway, the Charge button is added to the control bar. For more information about the battery charge functionality, refer to the Operator manual. For installation, wiring and setup information, refer to the Power-Pole documentation supplied with the Charge module. 3rd party support | NSO evo3S Installation Manual... -
Page 38: Flir Camera Setup
Compatible FLIR cameras are plug and play when used in conjunction with a device acting as a DHCP host. For setup on networks not utilizing a DHCP host, refer to the website www.simrad-yachting.com, or contact technical support. 3rd party support | NSO evo3S Installation Manual... -
Page 39: Appendix
Appendix Dimensional drawings 16" . mm 19" . mm 24" . mm Appendix | NSO evo3S Installation Manual... -
Page 40: Technical Specifications
Physical Dimensions (W x H x D) Refer to "Dimensional drawings" on page 39 Weight (display only) 16" unit 3.9 kg (8.6 lbs.) 19" unit 4.8 kg (10.5 lbs.) 24" unit 7.8 kg (17.2lbs.) Appendix | NSO evo3S Installation Manual... - Page 41 Compass Safe Distance - Metric, imperial 50 cm Mounting type Panel mount or bracket (optional accessory) Appendix | NSO evo3S Installation Manual...
-
Page 42: Supported Data
GNSS Position Data 129033 Time & Date 129038 AIS Class A Position Report 129039 AIS Class B Position Report 129040 AIS Class B Extended Position Report 129041 AIS aids to Navigation 129283 Cross Track Error Appendix | NSO evo3S Installation Manual... - Page 43 Entertainment - System Configuration Status 130581 Entertainment - Zone Configuration Status 130582 Entertainment - Zone Volume Status 130583 Entertainment - Available Audio EQ Presets 130584 Entertainment - Bluetooth Devices 130585 Entertainment - Bluetooth Source Status Appendix | NSO evo3S Installation Manual...
- Page 44 GNSS Sats in View 130074 Route and WP Service - WP List - WP Name & Position 130306 Wind Data 130310 Environmental Parameters 130311 Environmental Parameters 130312 Temperature 130577 Direction Data 130578 Vessel Speed Components Appendix | NSO evo3S Installation Manual...
- Page 45 Recommended minimum navigation information Cross-track error - measured Routes Waypoint location TX / RX - Sonar TX / RX - Compass Name Description Heading, deviation and variation Heading true True heading and status Rate of turn Appendix | NSO evo3S Installation Manual...
- Page 46 Expanded digital selective calling AIS VHF data-link message AIS VHF data-link own-vessel report Ú Note: AIS sentences are not bridged to or from NMEA 2000. TX / RX - MARPA Ú Note: These are only output sentences. Appendix | NSO evo3S Installation Manual...
- Page 47 The unit will act as a gateway and resend received J1939 PGN/SPN over NMEA 2000. Ú Note: Some data are only sent when requested, refer to "J1939 settings" on page 35. For communication details refer to the engine manufacturer. Appendix | NSO evo3S Installation Manual...
