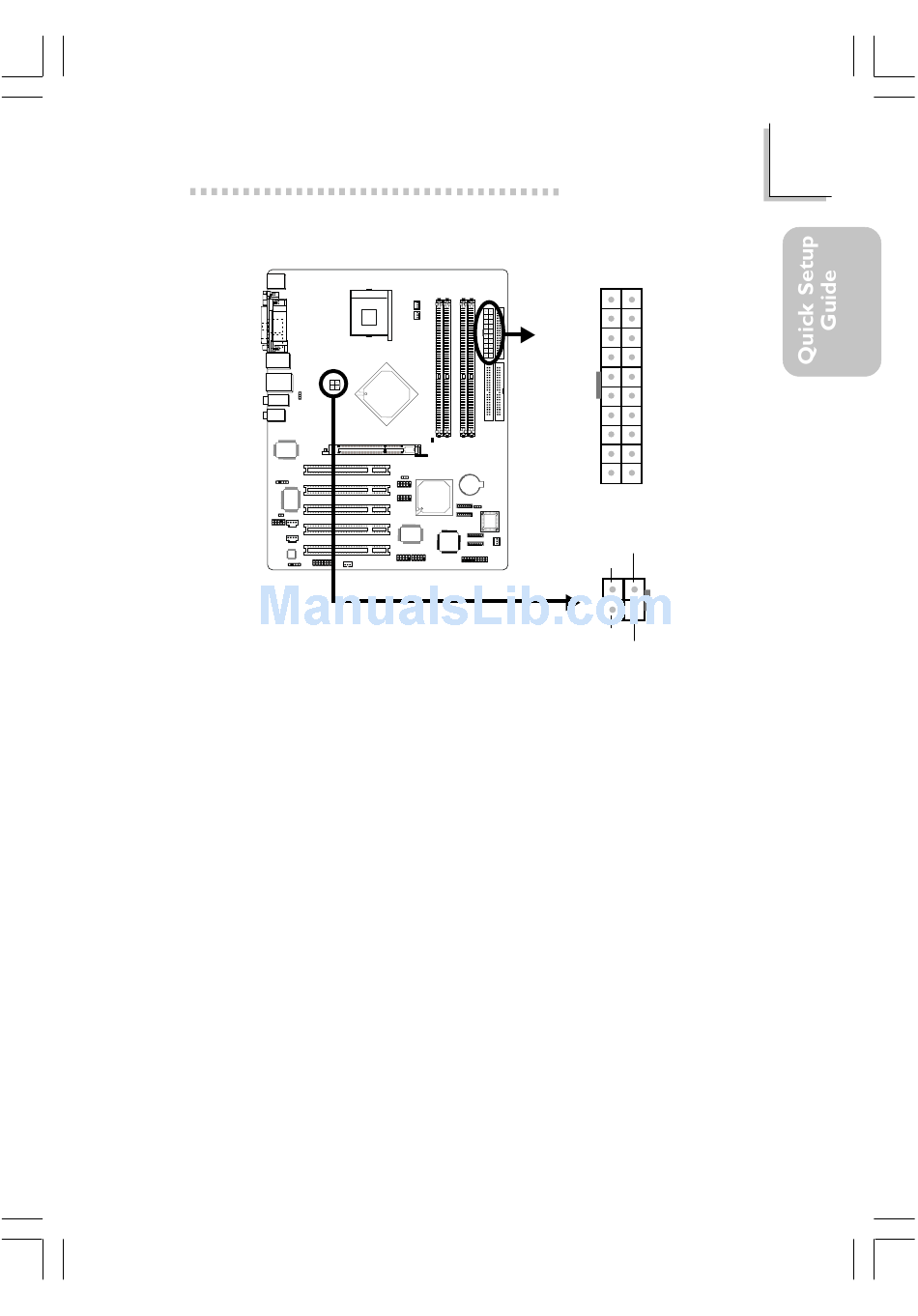

1.4.15 Power Connectors

The system board requires a minimum of 250 Watt power supply to
operate. Your system configuration (amount of memory, add-in cards,
peripherals, etc.) may exceed the minimum power requirement. To en-
sure that adequate power is provided, use a 300 Watt (or greater)
power supply.
865pe infinity 74740410 1.pmd 15
Quick Setup Guide
11 1
3.3V 3.3V
-12V 3.3V
Ground
Ground
PS-ON +5V
Ground Ground
Ground +5V
Ground
Ground
-5V PW-OK
+5V 5VSB
+5V +12V
20 10
+12V
Ground
1 3
2 4
Ground
+12V
