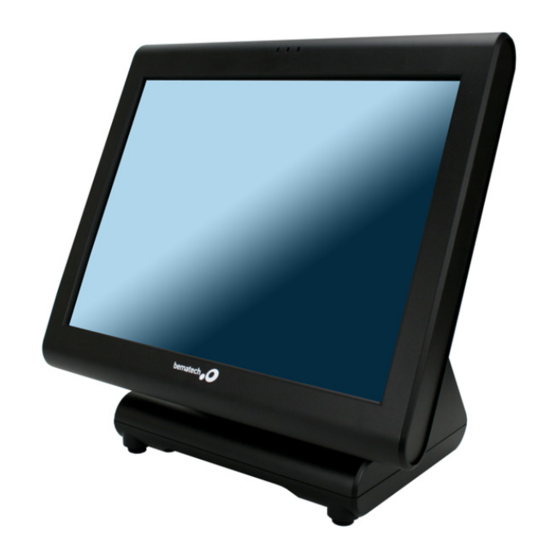

Bematech SB-9015D User Manual

All in one touch screen system
Hide thumbs Also See for SB-9015D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
User's Manual
SB-9015D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-9015D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bematech SB-9015D

Summary of Contents for Bematech SB-9015D

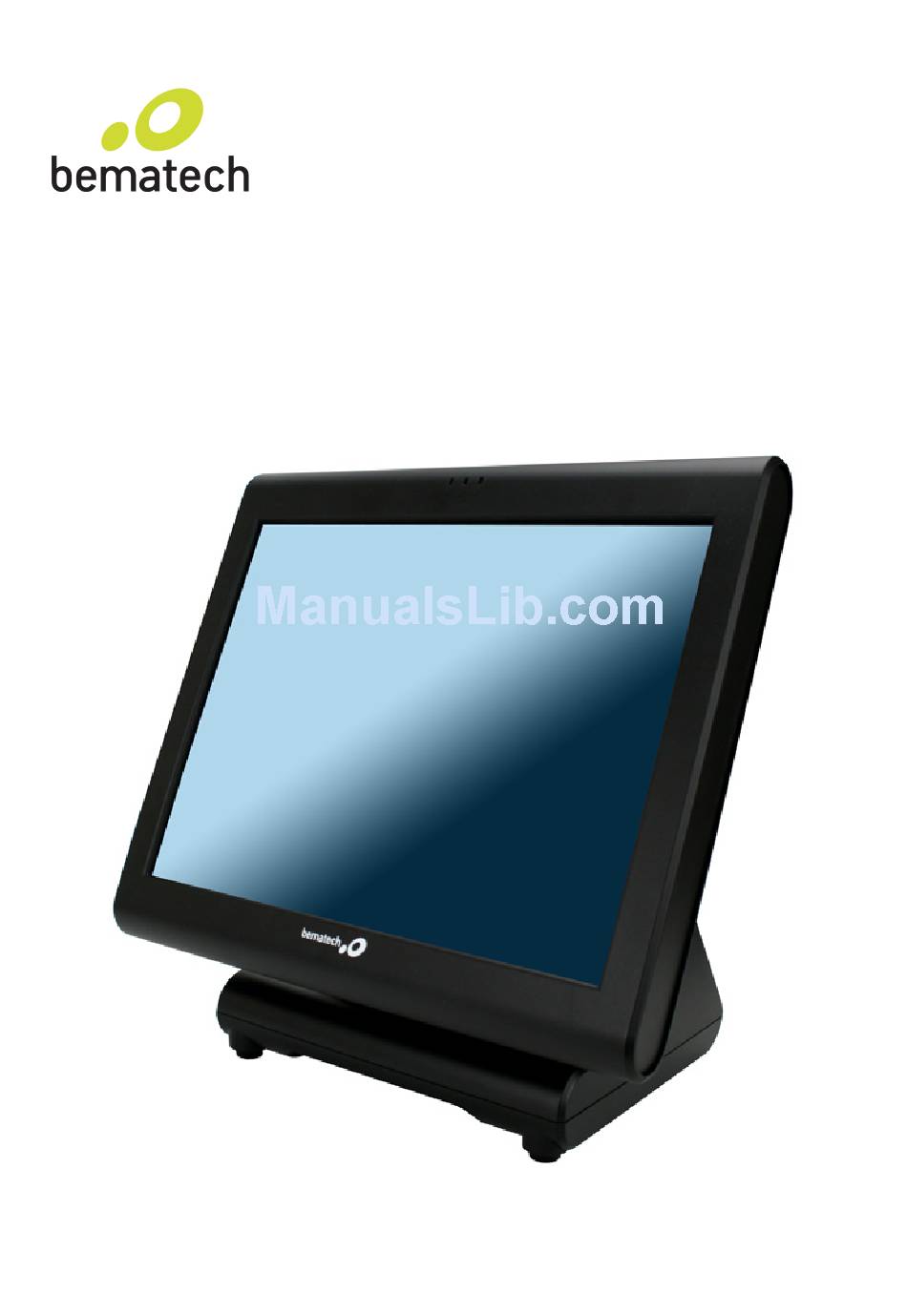

  • Page 1 User’s Manual SB-9015D...

  • Page 2: Liability Disclaimer

    Copyrights not installed and used in accordance with the instructions, may cause harmful interference to radio ©2012 Logic Controls. All rights reserved. The communications. However, there is no guarantee information in this document is subject to change that interference will not occur in a particular without prior notice in order to improve reliability, installation.

  • Page 3: Weee Notice

    Commission of the European Community. WEEE Notice The WEEE mark applies only to countries within the European Union (EU) and Norway. This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union.

  • Page 4: Table Of Contents

    Contents Copyrights ....................i Liability Disclaimer ...................i Regulatory Information................i FCC Notices......................i CE Notice ......................i WEEE Notice......................ii Contents....................iii 1. Features ....................1 2. Unpacking the Box................2 3. Hardware Setup..................3 3.1. Quick Tour ....................3 Front View...................... 3 Back View ...................... 3 Back Panel I/O ....................
  • Page 5 6. I/O Definition..................35 6.1. Power Connector ..................35 6.2. Serial Port ....................35 6.3. Cash Drawer ....................35 7. Specification..................37 Contents...

  • Page 6: Features

    Features ® Intel low power consumption and high performance technology Durable ultra-slim & robust die-casting aluminum chassis easy upgrade and assembly/disassembly 4x USB 2.0,1 x DB-standard 25-pin parallel port, 6 x RS-232, 2 X Gigabit Ethernet port (RJ-45), 1 X VGA port, 1 X COM2 (RJ-50) and cash drawer port (RJ-11) equipped.

  • Page 7: Unpacking The Box

    Unpacking the Box Verify that the box contains the following items. 1. Device X 1 2. Power Adapter X 1 3. Power Cord X 1 4. Drive and Utility DVD X 1 5. RJ50 to DB9 COM port adapter cable X 1 Chapter 2...

  • Page 8: Hardware Setup

    Hardware Setup 3.1. Quick Tour Front View LED Indicator The Power indicator will glow green when power is on. The HDD indicator will blink green when the HDD is accessed. The LAN indicator will blink green when transferring data though the LAN. Back View Chapter 3...

  • Page 9: Back Panel I/O

    Back Panel I/O Note: For details of I/O ports on the back panel, please refer to Chapter 7 – I/O Definition. 3.2. Peripherals Installation Power Adapter Connect the 4-pin output jack of the adapter to the DC 19V jack on the back panel of the device.

  • Page 10: Lan Cable

    LAN Cable Connect one end of RJ-45 LAN cable to the LAN port on the back panel of the device, another end to your internet device. Cash Drawer Connect one end of 6-PIN RJ-11 cable to the Cash Drawer port on the back panel of the device, another end to your cash drawer.
  • Page 11 2. Connect the connector of the MSR assembly to the device. 3. Tighten the two M3 screws to fix the MSR assembly as shown below. 4. Finished. Chapter 3...

  • Page 12: Customer Display

    Customer Display A. Hardware Installation 1. Assemble the customer display base as shown. 2. Install the part assembled in the Step1 to the device as shown. 3. VFD cable are recommended to be fed in the direction as shown below. 4.
  • Page 13 5. Assemble other parts of VFD as shown below. 6. Finished. Note: 1. Be sure to adjust BIOS setting of COM port to supply 12V power. 2. For other info of VFD, Please refer to Customer Display manual. Chapter 3...
  • Page 14 B. Power Supply Configuration 1. Power up the 9015D and hit the DEL key to enter the BIOS. When the BIOS screen appears use the key on your external computer keyboard to select Advanced. Use the arrow keys of the external keyboard to select IO Configuration, and then press the ENTER key.
  • Page 15 3. Highlight 12V, and then press the Enter key. 4. Press the ESC key to return to the BIOS SETUP UTILITY screen of step 1, use the key on your external computer keyboard to select the EXIT. Use the key to highlight Save Changes and Exit. Chapter 3...

  • Page 16: Turn On The Device

    5. Press the Enter key, use the key to highlight the [Ok], press the Enter key again to save your voltage configuration and exit BIOS. 3.3 Turn on the Device 1. Make sure all peripherals are connected properly. 2. Press and hold the power switch until the power indicator on the front panel becomes green.

  • Page 17: Driver And Utility Installation

    Driver and Utility Installation 4.1. Before the installation All installation procedures described below are based on Microsoft Windows XP. 1. Connect an external USB CDROM drive to the USB port and insert the driver CD and turn on the device. The program autoruns and displays the DRIVER BANK screen.
  • Page 18 3. Click Next. 3. Read the License Agreement carefully and click Yes. 4. Click Next. 6. Click Finish. Chapter 4...

  • Page 19: Vga Driver Installation

    4.3. VGA Driver Installation 1. Click VGA Driver. 2. Click the proper item according to your aaplication. 3. Click Next. 4. Read the License Agreement carefully and click Yes. Chapter 4...

  • Page 20: Lan Driver Installation

    5. Click Next. 6. Click Next. 7. Select restart your computer right now or later, and then lick Finish. 4.4. LAN Driver Installation 1. On the main screen, click VIA 6130 LAN Drive. Chapter 4...
  • Page 21 2. Select the proper item according to your applications. 3. The driver will be installed automatically. 4. Click OK on the pop-up message box. Chapter 4...

  • Page 22: Audio Driver Installation

    4.5. Audio Driver Installation 1. On the main screen, click HD Audio Driver. 2. The driver is preparing to install. 3. Click Next. 4. Select “I Agree” and click Next. Chapter 4...
  • Page 23 5. Check “VIA HD Audio Codec Drive v7.300 30.090715” box, and then click Next. 6. Click Next. 7. Click Next. 8. Select restart your computer right now or later, and then lick Finish. Chapter 4...

  • Page 24: Touch Screen Driver And Software Utility Installation

    4.6 Touch Screen Driver and Software Utility installation 1. On the main screen, click Touch Panel Driver. 2. Click the proper item according to your OS. 2. Click Next. 3. Check the Install PS/2 interface driver box and click Next. Chapter 4...
  • Page 25 4. Click OK. 5. Check the box or not according to your needs, and then click Next. 6. Select an item according to your needs, and then click Next. Chapter 4...
  • Page 26 7. Click OK. 8. If you want to use Multi-Monitor, check the box and click Next. 9. If you don’t want ti install the program in the default directory, click Browse to select your own customized installation directory, and then click Next. Chapter 4...
  • Page 27 10. Click Next. 11. The driver starts to install. 12 Select the proper item according to your application, and then click Next. Chapter 4...

  • Page 28: Touchkit Utility Quick Guide

    TouchKit Utility Quick Guide 5.1. Launch TouchKit Utility Under Microsoft Windows XP, click “start” menu and select “Programs”, under ”TouchKit” menu, click “Configure Utility”. 5.2. General The General tab in Touchkit utility shows all of TouchKit touchscreen controllers installed as below, including RS232, USB and PS2 interfaces. Chapter 5...
  • Page 29 The function button is used for serial RS232 controllers only. Press this button to search the TouchKit serial controllers connected with the COM ports of the device. Whenever it finds a new TouchKit serial controller, a new serial controller icon object will be shown in the controller list window automatically.

  • Page 30: Settings

    PS2 un-installation, it needs to reboot the device to complete un-installation. 5.3. Settings There are function buttons and check boxes in the Settings tab. Beep Beep On Touch Check this check box to enable driver to generate a beep sound when touch touchscreen state is switched from untouched to touched state.
  • Page 31 duration. Linearization Style TouchKit utility provides you with both 9 points and 25 points calibration for linearization. You can select the suitable linearization type. Double Click Time Double Click Time is used to set double click time. Change this value will affects the double click behavior for all of the mouse devices connected to the device.
  • Page 32 event when the touchscreen state was switched from un-touched state to touched state. Then, the driver always generate mouse move event and is tracking the touch position until the touchscreen state switched to un-touch state. Click On Release With this Click On Release mode, the driver emulates a mouse click event when the touchscreen state was switched from touched state to un-touched state.

  • Page 33: Tools

    5.4. Tools There are function buttons and check boxes in the Tools tab. 4 Points Calibration, Clear and Calibration, and Linearization button Click the one of three these buttons and follow the instruction on the screen to do the screen calibration. Draw Test Chapter 5...

  • Page 34: Display

    After clicking this button, you can do the drawing test by drawing any path on the screen as shown below. You can remove all paths you drew by clicking Clear, or exit this screen by clicking Quit. 5.5. Display TouchKit driver utility supports multiple monitor and display system. To work with multiple monitor system, you need to do proper configuration to map the touchscreen working area to the correct system display area.
  • Page 35 Please follow below instructions to do the configuration: Enable multiple monitor Check this check box to enable multiple monitor support and uncheck it to disable multiple monitor support. When this function is disabled, the touchscreen will be mapped to the primary monitor automatically. When this function is enabled, user can double click on the monitor area in the monitor geometry window to assign the monitor area where the touchscreen will be mapped.
  • Page 36 specified monitor. Left screen The touchscreen will be mapped to the left half screen of the specified monitor. Upper screen The touchscreen will be mapped to the upper half screen of the specified monitor. Lower screen The touchscreen will be mapped to the lower half screen of the specified monitor.

  • Page 37: Edge Compensation

    5.6. Edge Compensation Edge Compensation property page contains functions of Edge Compensation for Top, Bottom, Left, Right, X Axis and Y Axis. In some cases, if it is difficult to touch items at the edges of the touch panel, you can set adjustment to reach the edges of the screen image.
  • Page 38 If you set the Edge to "Smaller", TouchKit will reduce the vertical position of the right edge. If you set the Edge to "Larger", TouchKit will extend the vertical position of the right edge. In some cases, cursor will be behind the finger when you touch the panel.
  • Page 39 If you click -10% button, the top, bottom , left and right edges will contract 10% of orientation to touch screen, and cursor will be moved 10 pixel of X and Y Axis to left and bottom. Click Default button to resume to the default value. Chapter 5...

  • Page 40: Power Connector

    I/O Definition Please refer the detailed technical information about all I/O ports as followings. 6.1. Power Connector Description Description +19V GROUND +19V GROUND 6.2. Serial Port COM Port 1/2/5/6 Description Description RI / 5V /12V 6.3. Cash Drawer Connector Description Description D_IN D_OUT...
  • Page 41 Cash Drawer Control Status Address Value Open 280H Bit 4 = 1 Close 280H Bit 4 = 0 Read Status 281H Bit 0 = 0/1 Chapter 6...
  • Page 42 Specification Chapter 7...
  • Page 43 Main Board ® Intel Atom Processor D525 ® Chipset Intel ICH8-M System Memory 1 x 204 pin DDR3 SO-DIMM Socket, up to 4 GB Thermal Solution Fan-less ® ® Windows XP/ XPe/ WES, WEPOS, POSReady, Windows 7, Linux* Display TFT LCD Size 15”...
  • Page 44 Operating Temperature C – 35 Storage Temperature C – 60 Humidity 20% – 85% RH, non-condensing * Please contact supplier for detail information Chapter 7...
