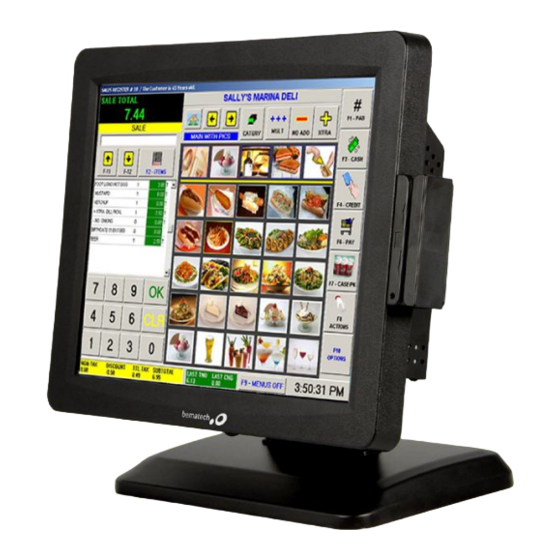

All-in-one touch pos terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SB9011D All-in-one Touch POS Terminal
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB9011D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bematech SB9011D

Summary of Contents for Bematech SB9011D

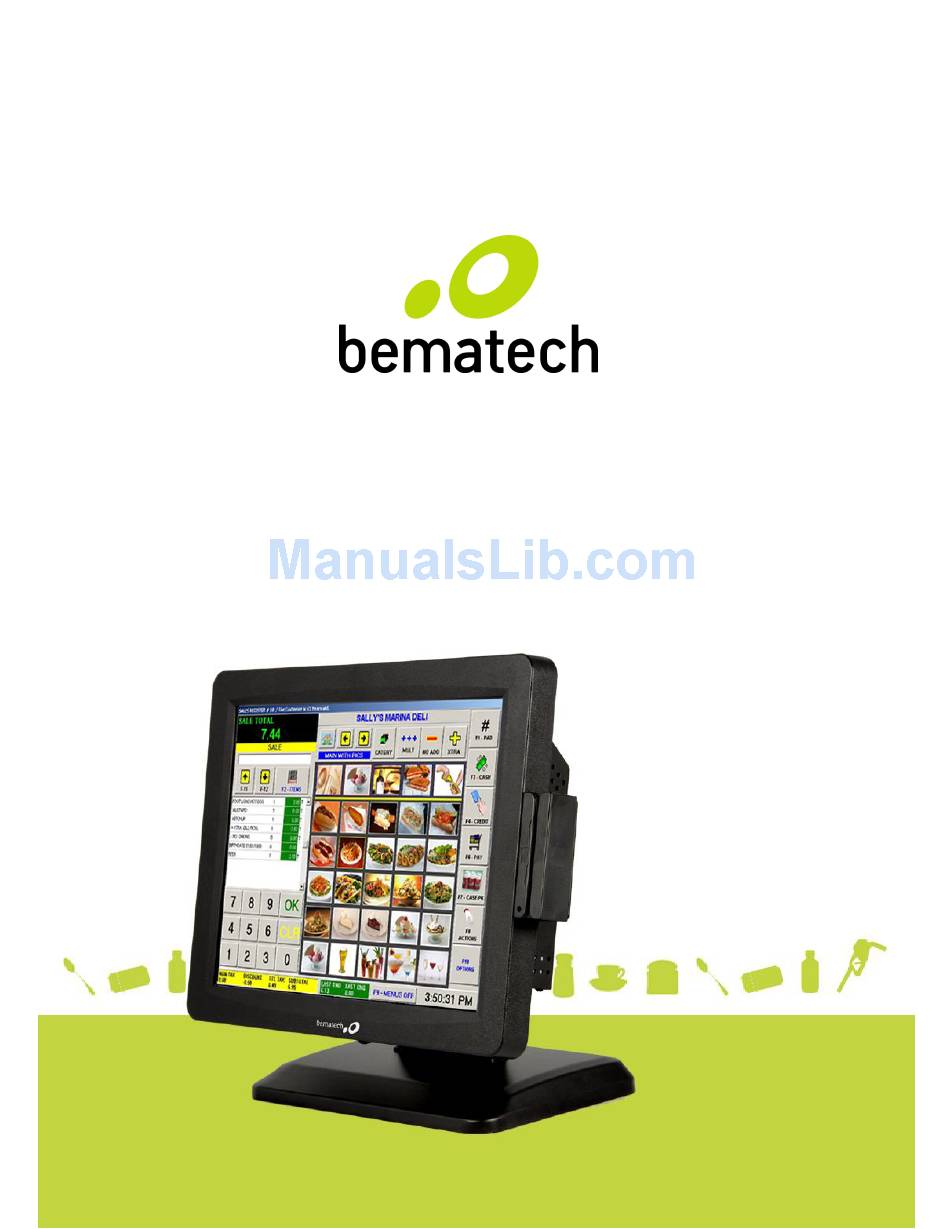

  • Page 1 SB9011D All-in-one Touch POS Terminal USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Overview .................... 2 Safety Information ..................2 Electromagnetic compatibility statement ..........3 2 Installation Guide ................4 Appearances ....................4 Rear panel I/O connectors ................5 3 Setup and Driver Installation ............6 Motherboard BIOS settings ................6 Touch screen driver installation: ..............

  • Page 3: Overview

    1 Overview Thank you for purchasing the SB9011D all-in-one touch POS terminal, Bematech is committed to continuously improve product quality and provide better after-sales service. In order to take full advantage of our devices, we strongly recommend that you take the time to read this manual before diving into software solution.

  • Page 4: Electromagnetic Compatibility Statement

    monitor screen. Wipe it clean with a soft terry cloth applied with a mild solution  Do not share the same power outlet with high-power electrical appliances; keep distance from high level magnetic interference.  Do not the use sharp pointed objects to work with the touch screen to avoid damage to the screen.

  • Page 5: Installation Guide

    2 Installation Guide 2.1 Appearances...

  • Page 6: Rear Panel I/O Connectors

    2.2 Rear panel I/O connectors At the rear panel of the SB9011D is a row of external I/O device connectors detailed as follows: POWER key: Turn power on/off MOUSE: Connection to PS/2 mouse KB: Connection to PS/2 keyboard LPT: DB25 parallel port for connection to POS printer VGA: VGA signal output for connection to external monitor COM 1.3.4.5.6: DB9 port for connection to serial devices...

  • Page 7: Setup And Driver Installation

    3 Setup and Driver Installation 3.1 Motherboard BIOS settings The POS terminal has a BIOS (Basic Input Output System) chip on the motherboard. Every time you start the terminals, the system will first run the BIOS self-test routine to check the main components of the system to ensure it is working properly.
  • Page 8 Main CMOS Setup Menu System Overview Item Help IP25X2 BIOS VER:1.00 2011-06-20 AMIBIOS Version :08.00.15 Built Date:06/20/11 While entering setup ID:LIPVB8106 BIOS auto detects the System summary Presence of SATA IDE Device Not detected Device. This displays CF Disk Device Not detected The status of auto SATA1 Device...

  • Page 9: Touch Screen Driver Installation

    Exit Menu Exit options Item Help Save Change and Exit Exit system setup Discard Change and Exit after saving the Discard Change changes. Load Optimal Default Help ↑↓ Select Item +/- Change Values F9 Setup Defaults Esc Exit ←→ Select Menu Enter Select Sub Menu F10 Save and Exit 3.2 Touch screen driver installation: Step 1: Navigate to the installer directory to find the setup.exe file.
  • Page 10 Step 2: When installation starts, click [Next] to proceed to the next step. Step 3: Installation in progress...
  • Page 11 Step 4: Uncheck “Install PS/2 interface driver” and click [Next] to continue installation. Step 5: Uncheck “install RS232 interface driver” and click [Next] to continue installation.
  • Page 12 Step 6: Select option “NONE”, click [Next] to continue installation. Step 7: When installing USB touch, please connect the USB controller and USB cable...
  • Page 13 Step 8: If there are additional touch monitors connected, please check “Support multi- monitor system”. Step 9: Select the destination location to install the touch driver. The default path is “C: \ Program Files \ eGalaxtouch”. Click [Next] to continue installation.
  • Page 14 Step 10: Select the Program Folder to install the utility. The default is “eGalaxtouch”. Click [Next] to continue installation. Step 11: Check the option to create a desktop shortcut icon.
  • Page 15 After install the driver successfully, identify the USB controller is installed as shown below. Touch function settings...
  • Page 16 Touch calibration Touch device line test...

  • Page 17: Troubleshooting

    4 Troubleshooting Terminal does not boot If the terminal cannot boot after repeated pressing of the power switch when connect to the power, the terminal power light remains off, the fan does not operate, and the BIOS beeping is not heard, it might be power supply problems. (a) Check the power adapter is plugged in correctly to the power outlet.
  • Page 18 the hardware and reboot; (e) If the above steps do not resolve this problem, reinstall the operating system. 3) The touch screen does not respond (a) Remove the touch driver and then install it again. (b) Execute the “eGalaxTouch utility and check if the interface port is working. 4) When touching the screen, cursor always returns to a fixed position.
  • Page 19 8) The cursor in the touch screen can only move in a small area or touch positions are inaccurate. (a) This situation usually occurs first time after installing the driver. Please run the touch screen calibration program. We also recommend you to do this after changing monitor resolution.

  • Page 20: Specifications

    5 Specifications MODEL SB9011D 15” All-in-one Touch POS Terminal Main Board Intel Atom Processor, D525 dual core 1.8GHz Chipset D525 + CH8M chipset Memory DDR3 1066/1333, up to 4GB Storage SATA 2.5 inch Hard Disk Drive, 160GB or higher Display LCD panel 15”...
  • Page 21 SB9011D All-in-one Touch POS terminal...
