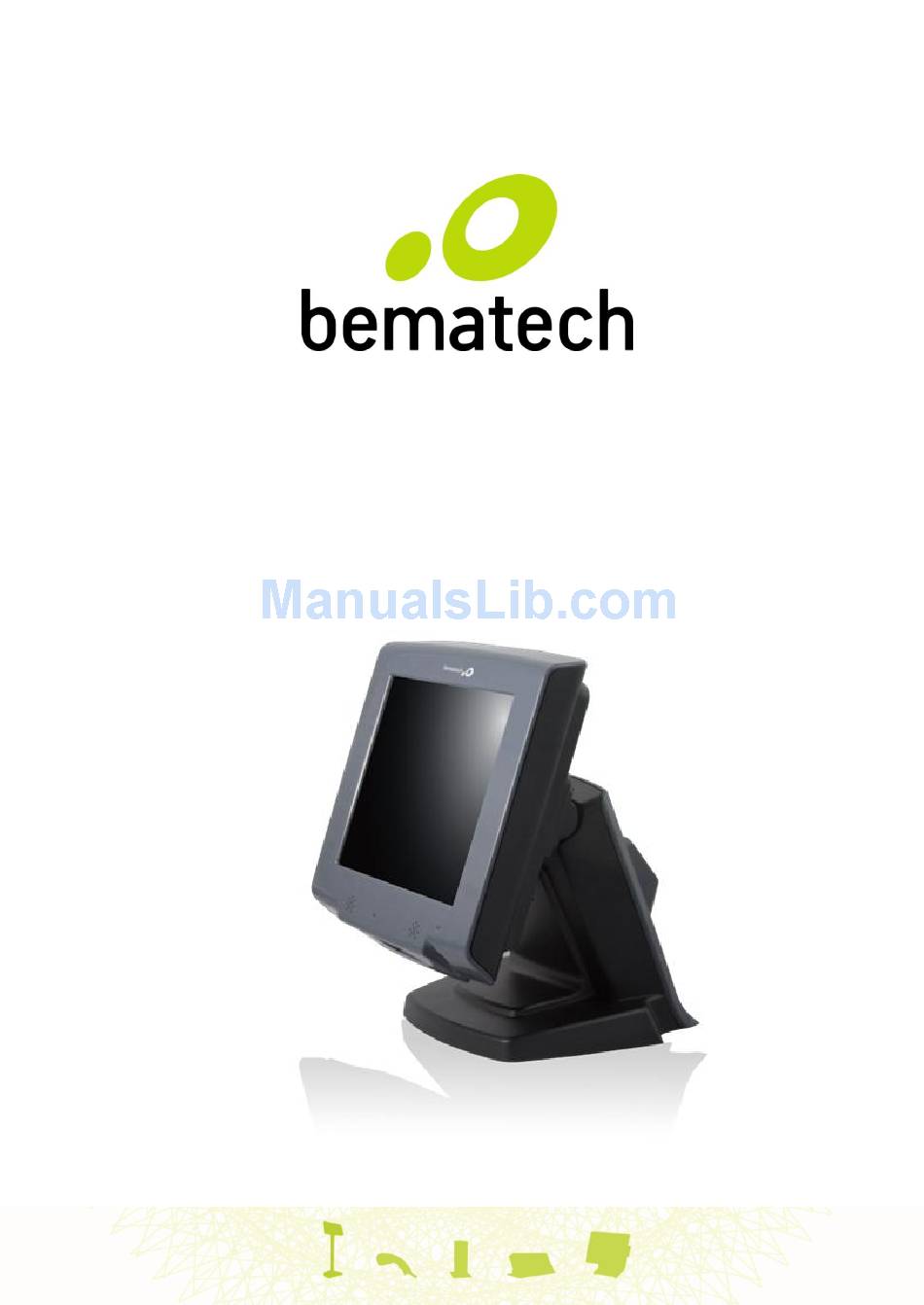

- Page 1 SB 8010A Android POS Terminal User’s Manual...
-
Page 2: Table Of Contents
Table of Contents 1 Overview 2 Standard Package Contents 3 Touch Screen Calibration 4 System View 5 Accessories 6 Change your language and Input Keyboard 7 How to install an Application 8 Motherboard Information 9 Specifications... -
Page 3: Overview
1 Overview The SB8010A is a cost effective all-in-one POS terminal with compact footprint and fanless design. With the capability to run Android, costly operating systems are not required, keeping cost of the POS solution to a minimum. Integration of VFD customer display, magnetic stripe reader and barcode scanner eliminates issues with device connectivity, mounting, compatibility and cable management. -
Page 4: Standard Package Contents
2 Standard Package Contents a. SB8010A POS terminal b. Power adaptor and cable c. Drivers and User manual NOTICE: SB8010A Input Power Voltage is from 19v~24v, only use Included Power Adaptor to avoid any Voltage problem. -
Page 5: Touch Screen Calibration
3 Touch Screen Calibration 1. First time boot up will need to calibrate 9 points. 2. Click Application Icon In Application list; click “Calibration” Follow the steps from there and click 9 points on each corner. And Save the calibration change. -
Page 6: System View
4 System View 1. I/O ports 2. Power switch button The button is below I/O ports. -
Page 7: Accessories
5 Accessories 1. Magnetic Card Reader and barcode scanner. 2. Customer Display... -
Page 8: Change Your Language And Input Keyboard
6 Change your language and Input Keyboard 1. Click Application Icon 2. Click Setting Icon 3. Click Language & Input Choose Language and Select the language you need. -
Page 9: How To Install An Application
7 How to install an Application 1. Save your application program in a USB flash drive and plug into one of SB8010A USB port. In the application list, click “OI File Manager”. 2. Click on the “home” icon. - Page 10 3. Scroll down to search for "udisk" folder and then click on “udisk”.
- Page 11 4. Find the application you want to install and click on the application to start. 5. Permissions required by the application will be displayed. Click "Install" to proceed.
- Page 12 6. Progress of installation will be shown. 7. Click "Done" when installation has finished.
-
Page 13: Motherboard Information
8 Motherboard Information ⑨ ⑩ ⑤ ⑥ ① ② ③ ⑦ ⑧ ④ ⑪ ⑬ ⑭ ⑫ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ① RJ11 for CashDrawer ⑫ Speaker Out ② HDMI ⑬ LVDS for Second LCD ③ USBx2 ⑭ LVDS for Main LCD ④... -
Page 14: Specifications
9 Specifications SYSTEM AUDIO CPU Support Cortex A9, dual core Output Built-in stereo speakers Memory Storage eMMC 8GB PERIPHERAL OPTIONS Operating System Android 4.2.2 Jelly Bean Customer Display VFD, 20 columns x 2 lines RS232, ESC/POS commands DISPLAY Magnetic Stripe Reader 3 track, RS232 LCD Panel 9.7"...
