Blade Grinding Attachment - Work Sharp Ken Onion Edition User Manual

13

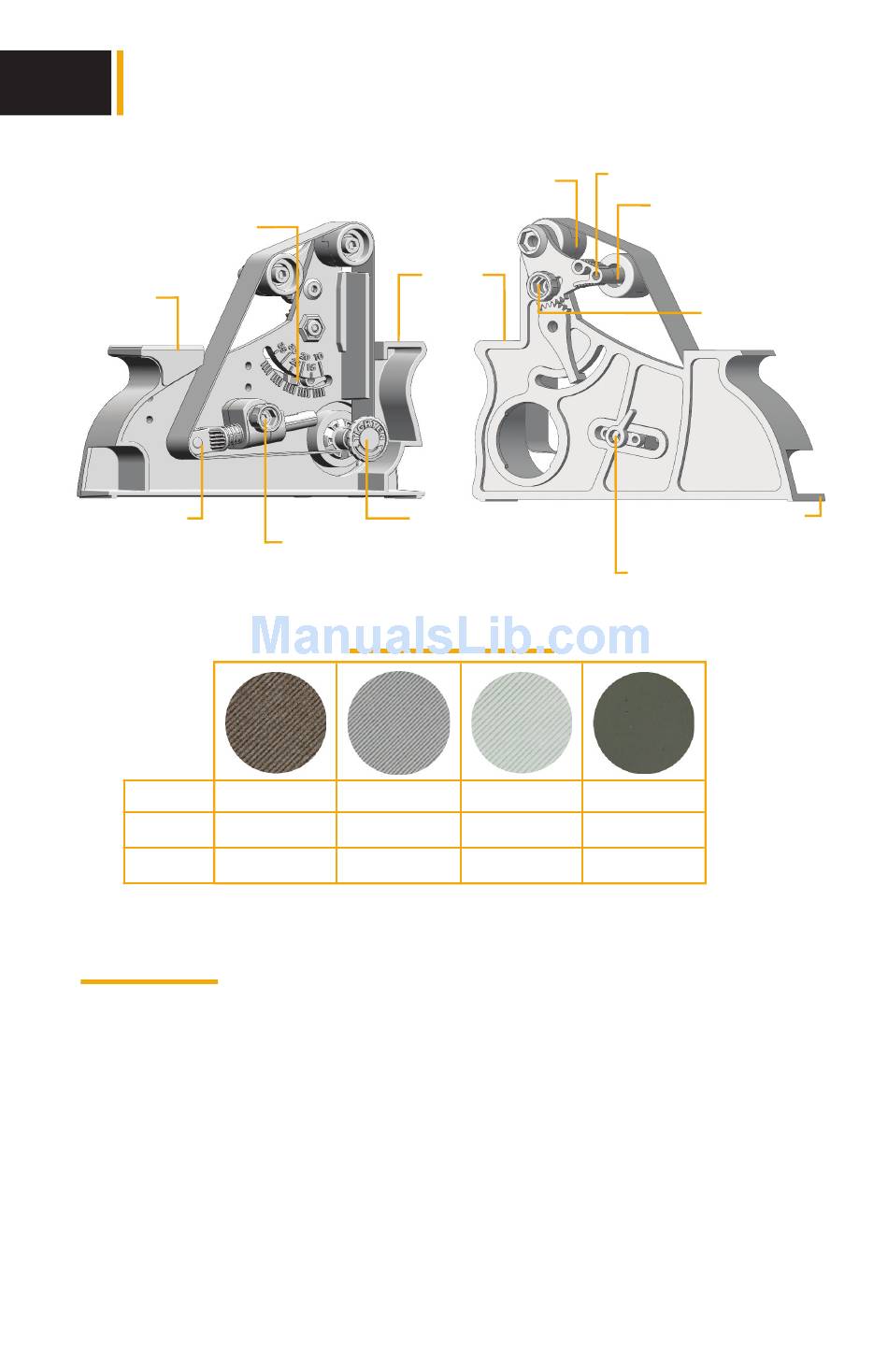

Blade Grinding Attachment

Angle
Indicator
Reference
Plate
Tensioner
Assembly
Grit
Size
Use
For reference, belts are equivalent to: X65 (P220) | X22 (P1000) | X4 (P3000)
Installation
Push lock release lever & rotate knife sharpening cassette to remove cassette.
Install Blade Grinding Attachment by aligning the chassis to the keyed 'on / off'
position then rotate into 'sharpening position'.
Install Left-Hand Belt Flange Fastener onto drive shaft.
Optional: Use a clamp to secure to work bench
Push in and turn tensioner clockwise to install / uninstall belt.
Use tracking knob to center belt on pulley.
24
Short Center Distance
Tracking
(Left-Handed Thread)
Knob
Belt Information:
X65 X22
Norax 65μ Norax 22μ
Shape Sharpen
90°
Grind
Plate
Hub Fastener
X4
Norax 4μ
Hone
Long Center Distance
Angle Adjustment
Lever
Angle Selection
Clamp Knob
Bench
Mount Tabs
Tensioner Assembly
Clamp Lever
12000MM
SiC 1μ
Strop
