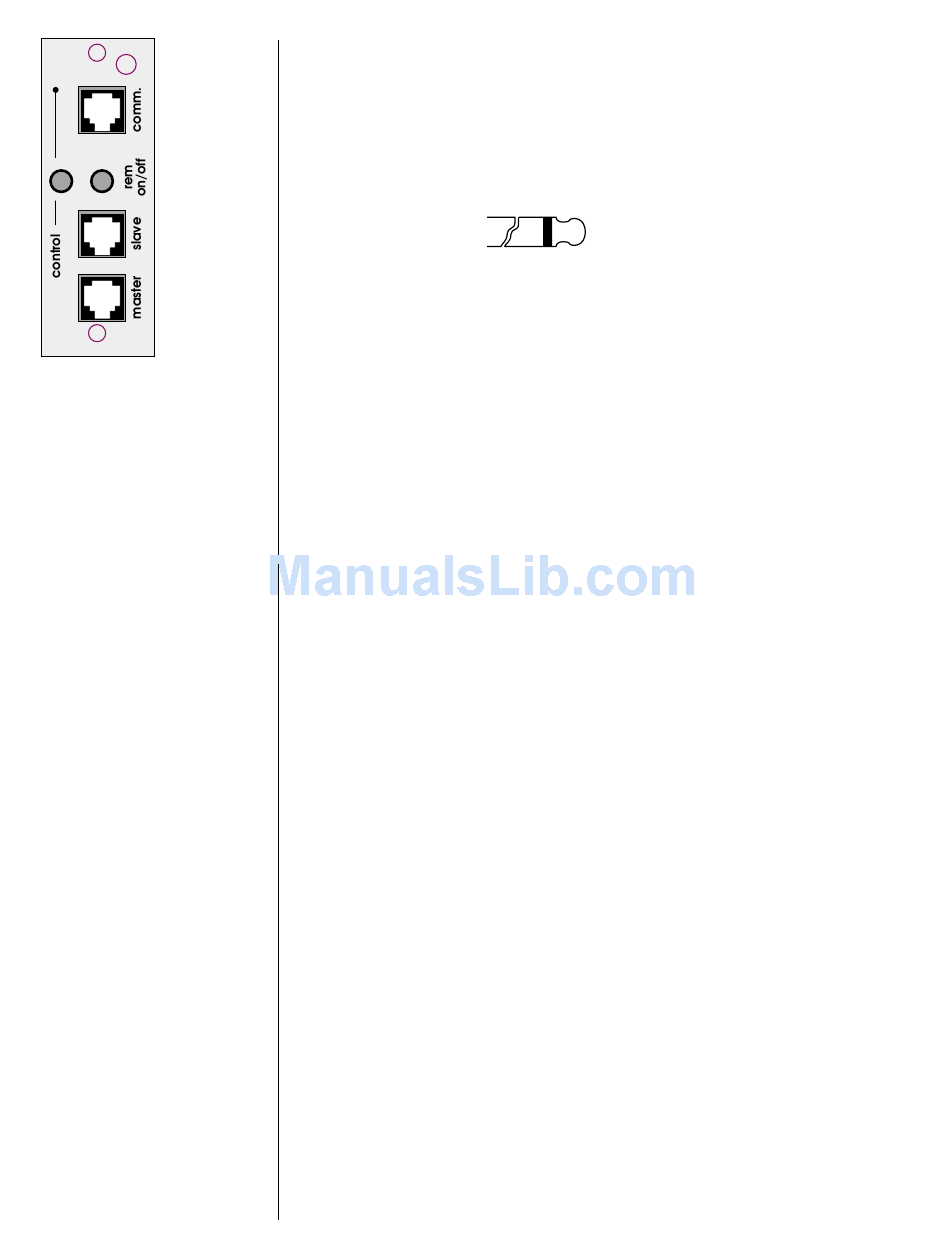

Each of the two remote on/off triggers can be configured by your installer
to provide either 5V or 12V trigger signals, either in response to the PAV/
PDSD system coming out of standby into operate, or in response to an in-
dependent IR command. The tip polarity for each of these triggers is as
shown below:
These triggers provide some degree of control and automation over prod-
ucts that lack more sophisticated communications capabilities. For example,
you could have one of these triggers toggle your amplifiers on and off accord-
ing to the operational status of the PAV/PDSD combination, while the other
served to lower the screen for your projection television when a particular IR
command was received.
The remaining two communications ports at the bottom of the module
provide for sophisticated inter-component communications between the
PAV/PDSD system and future Proceed products. Y our dealer can assist you
in taking advantage of these advanced features.
1 1
DB-15 CONNECTOR
This DB-15 connector is reserved for future applications. (After all, your
Digital Surround Decoder will be in your system a long, long time....)
+
5-12 volts @ less
than 100 mA
