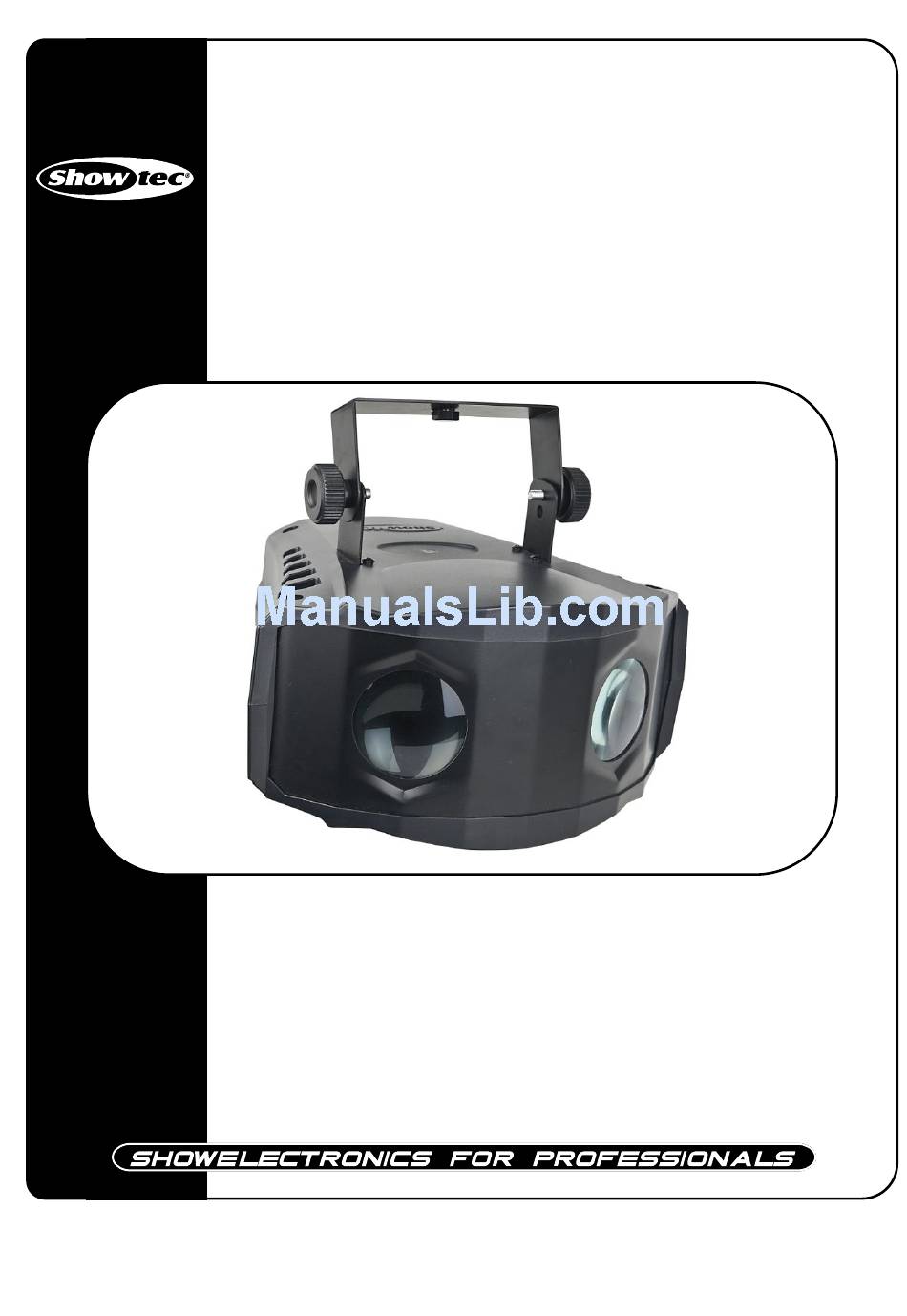

- Page 1 XB-Duomoon ORDERCODE 43072...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….……………. Backside…………………………………………………...…...….……………….…………………...……………….. Installation................…...……………………………………………………. Set Up and Operation..............……..……………………………………………. Control Modes…………………………………………………………………………………………………….…….. One XB-Duomoon (Automatic control)……………………………………………………..…………….…. One XB-Duomoon (Custom control)……………………………………………………………………….…. One XB-Duomoon (Sound control)……………………………………………………………………………. Multiple XB-Duomoons (Master/Slave control).…………………………………………..……………..Multiple XB-Duomoons (DMX control)………………………………………………………………..………. Dipswitch setting for DMX Mode…..……………..…………………………………………………………………. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec XB-Duomoon DMX with IEC powercable 0,9m • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
The XB-Duomoon can be placed on a flat stage floor or mounted to any kind of truss by a clamp. Improper installation can cause serious damage to people and property ! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device
Description of the device Features The Showtec XB-Duomoon is a LED centerpiece with high output and great effects. • Small compact LED scanner • Ideal for mobile DJ's and small venues • Blackout/static/strobe • Individual control of red, green, blue and white LEDs •... -
Page 9: Backside
Backside Fig. 2 DMX signal connector (OUT) 3-pin DMX signal connector (IN) 3-pin 5) Microphone Audio Sensitivity IEC In + Fuse 1A 250V Earth Safety eye DMX Dipswitches Fig.3... -
Page 10: Installation
Installation Remove all packing materials from the XB-Duomoon. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: One Xb-Duomoon (Sound Control)
For sound control dipswitch #9 must be set to ON. The other dipswitches must be OFF. Turn on the music, then the XB-Duomoon will react to the beat of the music. You can also adjust the Sensitivity, by using the sensitivity control. -
Page 12: Multiple Xb-Duomoons (Dmx Control)
Fig. 5 Note : Link all cables and set dip switches before connecting electric power After switching on, the XB-Duomoon will automatically detect whether DMX 512 data is received or not. If there is no data received, the problem may be: - The XLR cable from the controller is not connected with the input of the XB-Duomoon. -
Page 13: Dipswitch Setting For Dmx Mode
(DMX Dip Switches "ON") for each unit. Flip appropriate DMX dip switches on each unit. Example: 1. If you want to give a XB-Duomoon DMX address 133, you first have to find the number 133 in the DMX Chart. (See page 11) 2. -
Page 15: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 16: Dmx Channels
DMX Channels Channel 1 – Colors 0-12 Blackout 13-25 26-38 Green 39-51 Blue 52-64 White 65-77 Red+Green 78-90 Red+Blue 91-103 Red+White 104-116 Green+Blue 117-129 Green+White 130-142 Blue+White 143-155 Green+Blue+White 156-168 Red+Blue+White 169-181 Red+Green+White 182-194 Red+Green+Blue 195-207 Red+Green+Blue+White 208-233 Red+Green+Blue+White and Strobe Fast 234-255 Red+Green+Blue+White and Strobe Medium Channel 2 –... -
Page 17: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec XB-Duomoon requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. - Page 18 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 19: Product Specification
Product Specification Model: Showtec XB-Duomoon Voltage: 240V-50Hz (CE) Power Consumption: 30W LEDs: 40x Red, 32 Green, 16 Blue and 10 White (Total 98 LEDs) Fuse: 1A / 250V Weight: 2,62 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
