SECTION 7 − GMAW/GMAW-P/FCAW OPERATION

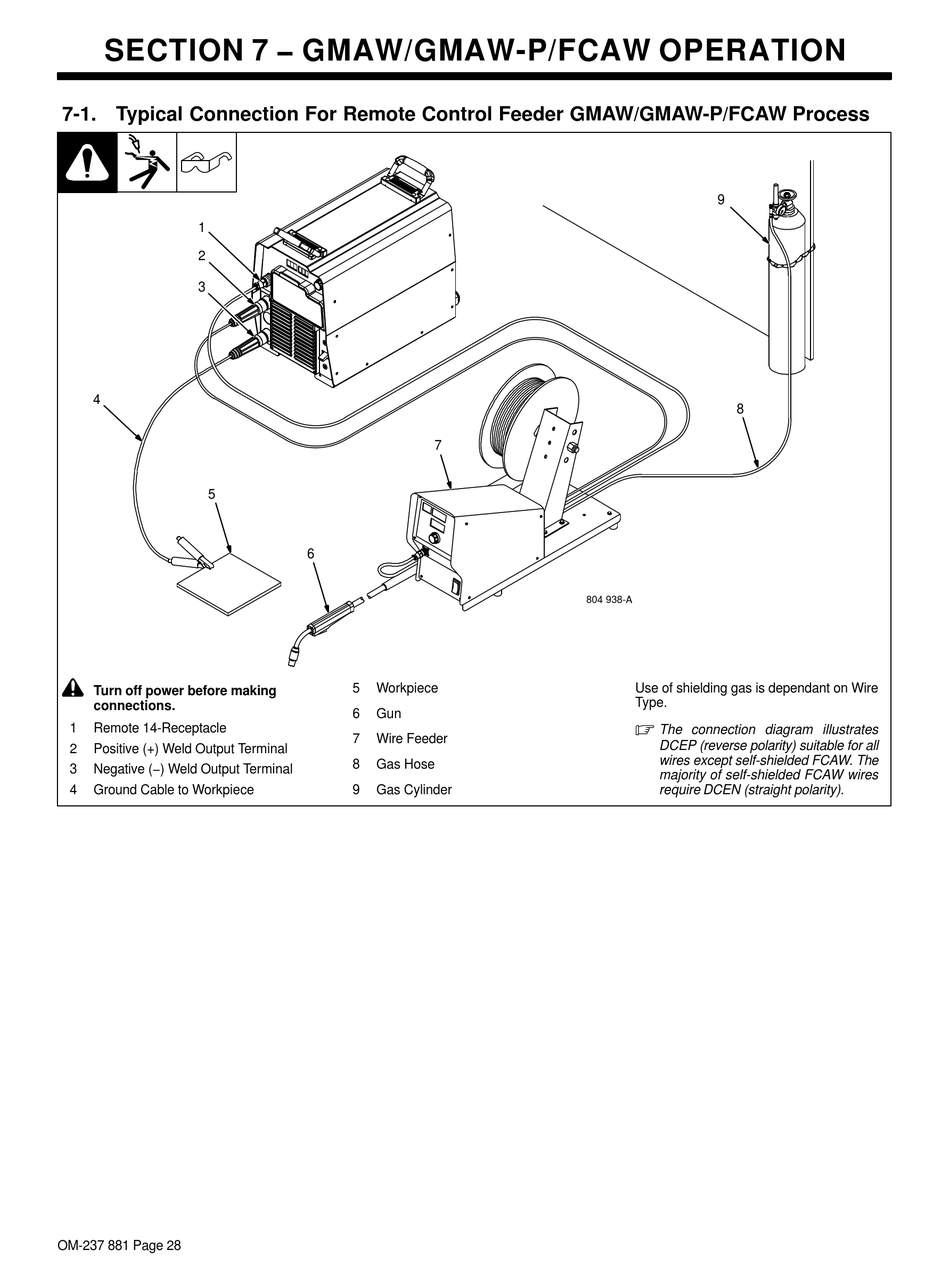

7-1. Typical Connection For Remote Control Feeder GMAW/GMAW-P/FCAW Process

1
2
3
4
5
!
Turn off power before making
connections.
1 Remote 14-Receptacle
2 Positive (+) Weld Output Terminal
3 Negative (−) Weld Output Terminal
4 Ground Cable to Workpiece
OM-237 881 Page 28
7
6
5 Workpiece
6 Gun
7 Wire Feeder
8 Gas Hose
9 Gas Cylinder
9
8
804 938-A
Use of shielding gas is dependant on Wire
Type.
.
The connection diagram illustrates
DCEP (reverse polarity) suitable for all
wires except self-shielded FCAW. The
majority of self-shielded FCAW wires
require DCEN (straight polarity).
