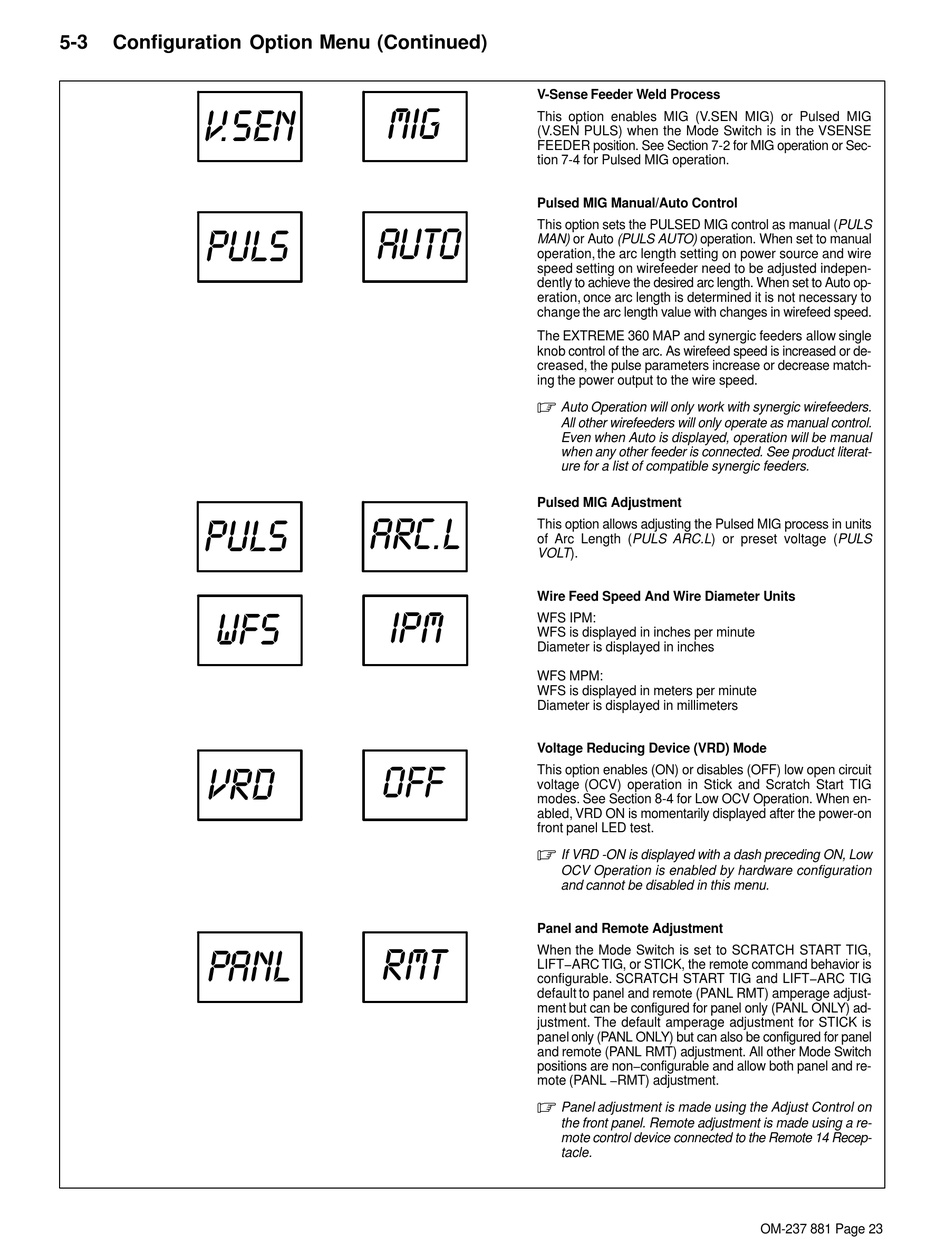

5-3 Configuration Option Menu (Continued)
V.SEN
PULS
PULS
WFS
VRD
PANL
V-Sense Feeder Weld Process
MIG
This option enables MIG (V.SEN MIG) or Pulsed MIG
(V.SEN PULS) when the Mode Switch is in the VSENSE
FEEDER position. See Section 7-2 for MIG operation or Sec-
tion 7-4 for Pulsed MIG operation.
Pulsed MIG Manual/Auto Control
AUTO
This option sets the PULSED MIG control as manual (PULS
MAN) or Auto (PULS AUTO) operation. When set to manual
operation, the arc length setting on power source and wire
speed setting on wirefeeder need to be adjusted indepen-
dently to achieve the desired arc length. When set to Auto op-
eration, once arc length is determined it is not necessary to
change the arc length value with changes in wirefeed speed.
The EXTREME 360 MAP and synergic feeders allow single
knob control of the arc. As wirefeed speed is increased or de-
creased, the pulse parameters increase or decrease match-
ing the power output to the wire speed.
.
Pulsed MIG Adjustment
ARC.L
This option allows adjusting the Pulsed MIG process in units
of Arc Length (PULS ARC.L) or preset voltage (PULS
VOLT).
Wire Feed Speed And Wire Diameter Units
IPM
WFS IPM:
WFS is displayed in inches per minute
Diameter is displayed in inches
WFS MPM:
WFS is displayed in meters per minute
Diameter is displayed in millimeters
Voltage Reducing Device (VRD) Mode
OFF
This option enables (ON) or disables (OFF) low open circuit
voltage (OCV) operation in Stick and Scratch Start TIG
modes. See Section 8-4 for Low OCV Operation. When en-
abled, VRD ON is momentarily displayed after the power-on
front panel LED test.
.
Panel and Remote Adjustment
RMT
When the Mode Switch is set to SCRATCH START TIG,
LIFT−ARC TIG, or STICK, the remote command behavior is
configurable. SCRATCH START TIG and LIFT−ARC TIG
default to panel and remote (PANL RMT) amperage adjust-
ment but can be configured for panel only (PANL ONLY) ad-
justment. The default amperage adjustment for STICK is
panel only (PANL ONLY) but can also be configured for panel
and remote (PANL RMT) adjustment. All other Mode Switch
positions are non−configurable and allow both panel and re-
mote (PANL −RMT) adjustment.
.
Auto Operation will only work with synergic wirefeeders.
All other wirefeeders will only operate as manual control.
Even when Auto is displayed, operation will be manual
when any other feeder is connected. See product literat-
ure for a list of compatible synergic feeders.
If VRD -ON is displayed with a dash preceding ON, Low
OCV Operation is enabled by hardware configuration
and cannot be disabled in this menu.
Panel adjustment is made using the Adjust Control on
the front panel. Remote adjustment is made using a re-
mote control device connected to the Remote 14 Recep-
tacle.
OM-237 881 Page 23
