- Page 1 Instructions for the use - Installation advices INDUCTION BUILT-IN COOKTOP ELBA QUALITY MADE IN ITALY H O M E A P P L I A N C E S Made in Italy...
- Page 3 Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
-
Page 4: Important Safety Precautions And Recommendations
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. - Page 5 • Do not use the appliance whilst in barefoot. • If you should decide not to use this appliance any longer (or decide to substitute another model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.
- Page 6 • WARNING: If the hob is cracked or otherwise damaged by falling objects etc., disconnect the appliance from the electrical power supply to avoid the possibility of electric shock and call Customer Service. • WARNING: When correctly installed, your product meets all safety requirements laid down for this type of product category.
-
Page 7: Features And Technical Data

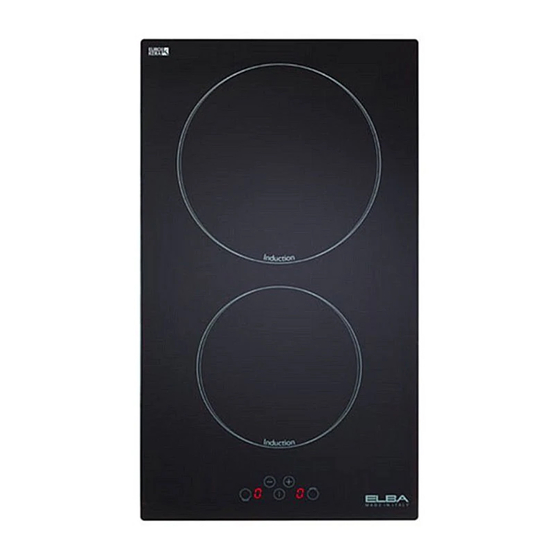

FEATURES AND TECHNICAL DATA Fig. 1.1 1. Induction cooking zone Ø 160 mm Normal Power: 1200 W Booster Power: 1400 W 2. Induction cooking zone Ø 200 mm Normal Power: 2300 W Booster Power: 3000 W 3. Touch controls Note: The Nominal and Booster Power may change depending on the size and material of the pan set on the cooking zone. -
Page 8: Touch Controls
Fig. 1.2 TOUCH CONTROLS ON/OFF key Rear cooking zone display Front cooking zone display Front cooking zone selector key Rear cooking zone selector key Automatic cooking (timer) display Increasing key (power or timer) Decreasing key (power or timer) Notes: • Each selection (by touching one of the keys) is indicated by an acoustic signal (beep). -
Page 9: Use Of Induction Hob
USE OF INDUCTION HOB The ceramic hob is fitted with induction cooking zones. These zones, shown by painted disks on the ceramic surface, are controlled by a touch control system. In the front central area of the hob, the displays of the touch control system indicate: Fig. -
Page 10: Remaining Heat Indicators
REMAINING HEAT INDICATORS When the temperature of a cooking zone is still hot, the relevant remaining heat indicator lights up on the display to alert you of the hot surface. Avoid touching the hob surface over the cooking area. Please pay special attention to children. -
Page 11: How To Switch On/Off Cooktop
HOW TO SWITCH ON/OFF THE COOKTOP Switching ON Fig. 2.2 Touch the key until the touch control system is lit (fig. 2.2). The displays of the cooking zones read “ ”. Notes: • If the safety Child Lock protection is active, the cooktop can be used only after having deactivated this protection (see chapter CHILD LOCK SAFETY). -
Page 12: Booster Function
BOOSTER FUNCTION This function allows the cooking zone to operate at the “Booster” maximum power (above the nominal power) for maximum 5 minutes; it could be used, for example, to rapidly heat up large amount of water. – The “Booster” function is always limited to a maximum of 5 minutes. To activate the “Booster”... -
Page 13: Operation Time Limit Of Cooking Zones
OPERATION TIME LIMIT OF POWER LEVEL OF OPERATION THE COOKING ZONES COOKING ZONES TIME LIMIT Each cooking zone is automatically 480 minutes switched Off after a maximum preset time if no operation is performed. maximum preset time limit 360 minutes depends on the set power level, as illustrated in this schedule. -
Page 14: Examples Of Cooking Power Setting
COOKING COOKING COOKING ZONE ZONE ZONE POWER Ø 160 mm Ø 200 mm LEVEL (Watt power) (Watt power) 1470 1200 2300 1400 3000 EXAMPLES OF COOKING POWER SETTING Cooking zone not operating Melting Sauces, butter, chocolate, gelatine Reheating Dishes prepared beforehand Simmering Rice, pudding, sugar syrup Defrosting... - Page 15 PROGRAM AUTOMATIC Fig. 2.6 SWITCHING OFF OF A COOKING ZONE This function permits to set a timer from “ ” to “ ” minutes for automatic turning Off the cooking zone/s. With the cooktop switched On: • Select the cooking zone and set the desired power level.
-
Page 16: Child Lock Safety
CHILD LOCK SAFETY When not using the induction hob, set the Child Lock safety to prevent children from accidentally switching On the cooking zones. • Ensure all cooking zones are switched Off. • If the cooktop is switched off, touch the key until the touch control system is lit. -
Page 17: Thermal Protections
MAXIMUM USABLE POWER FOR THE COOKING ZONES The power board manages a maximum total power of 3700 W. Should the cooking zones require more than 3700 W, the last selected power level has priority and the power of the other cooking zone is automatically reduced to the remaining power available. - Page 18 ERROR CODES ON THE DISPLAYS OF THE COOKING ZONES Error code Example What to do Switch Off the cooktop and disconnect it from the mains. Wait for about 1 minute, then Erxx reconnect the cooktop and turn on or Ex (not E2 or the cooking zones.
- Page 19 ADVICE FOR SAFE USE OF THE HOB • Before switching on make sure that you have the correct cooking zone for the hotplate chosen. It is advisable to put the pan on the hotplate before switching on and to take it away after switching off.
-
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE GENERAL ADVICE • Before you begin cleaning, you must ensure that the appliance is switched off and disconnected from the electrical power supply. • It is advisable to clean when the appliance is cold. • Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces. •... -
Page 21: Installation
Advice for the installer INSTALLATION CAUTION: • This appliance must be installed in accordance with these installation instructions. • This appliance shall only be serviced by authorised personnel. • This appliance is to be installed only by an authorised person in compliance with the current electrical regulations and in observation of the instructions supplied by the manufacturer. - Page 22 FITTING REQUIREMENTS This cooktop can be built into a working surface 30 to 40 mm thick and 600 mm deep. In order to install the ceramic hob into the kitchen fixture, a hole with the dimensions shown in figure 4.1 has to be made, keeping in consideration the following: •...
- Page 23 60 mm minimum between the side of the cut-out and the side wall Fig. 4.2 Fig. 4.3 Fig. 4.4 min 5 mm min 5 mm Oven with cooling fan min 30 mm min 30 mm Minimum clearances and Minimum clearances and ventilation requirements ventilation requirements (oven installed below)
- Page 24 FASTENING THE COOKTOP Each cooktop is provided with an installation kit including brackets and screws for fastening the cooktop to benches from 30 to 40 mm thick. The kit includes four “F” brackets and four self-threading screws “S” (fig. 4.6). •...
-
Page 25: Electrical Section
ELECTRICAL SECTION IMPORTANT: Installation must be carried out according to the manufacturer’s instructions. Incorrect installation may cause harm and damage to people, animals or property, for which the manufacturer accepts no responsibility. Before carrying out any work on the electrical section of the appliance, it must be disconnected from the mains. - Page 26 CONNECTION/REPLACEMENT THE POWER SUPPLY CABLE Important! This cooktop must connected to the electricity supply only by an authorised person. Turn the cooktop over and unhook the terminal board cover by inserting a screwdriver into the two hooks “A” (fig. 5.1). Open the cable gland by unscrewing screw “F”...
- Page 28 The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacturer commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances. www.elba-cookers.it H O M E A P P L I A N C E S Made in Italy...
