Elba 6222MC Instruction Manual

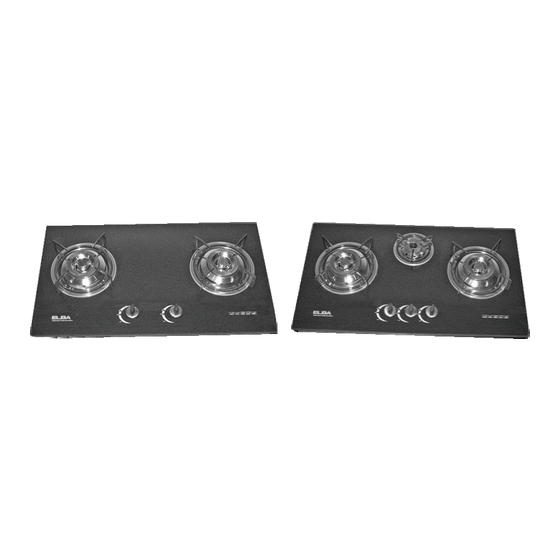

Glass stove
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

BEFORE YOU CALL FOR SERVICE

Before calling for service, be sure you read the following to avoid
an unnecessary service call.
TROUBLE
The ignition knob is not turned
After the ignition knob is
on properly.
released, the flames are
Air is entrapped in the rubber
extinguished.
gas hose.
Ignition pin is far from the ring
Although there are ignitions,
cap
the burners do no light on.
Install the battery wrongly
The ignition spark device is
Uneven flame
dirty or wet.
The rubber hose is bent.
The flames become yellowish.
Short of gas supply
The flames are extinguished
The air adjaster is not in a
while the unit is in use.
fixed position.
The slits in the burner caps
are clogged.
Abnormal sounds during
The burner caps are not
mounted properly.
combustion.
Gas leakage from cracks of
rubber hose.
Smell of gas.
Loose connection of rubber hose.
※ Consult your dealer if you may not solve problem.Be sure to turn off the main cock.
WHEN SERVICE IS REQUIRED
Turn off the gas supply main cock and consult with your dealer for service or
call your nearest authorized service agency.
When calling service,give the following information:
1.Your name,address and phone number.
2.Model name and serial number,and date of purchase.
3.Problem in detail.
4.If you incur any problems,please take the stove to our service
department for repair.
REMEDY
CAUSE
Turn it counter clockwise.
Open the main valve.
Repeat turning it on
several times.
More the ignition pin and
keep 3-5mm from the ring cap
Install the battery correcily.
Clean or dry up.
Install if properly or replace it
Replace gas cylinder.
Set it to desired position
properly. See figure#18
Clean the cap.
Mount them in place.
Replace it.
Secure the rubber hose
with the hose clamp.
7
INSTRUCTION MANUAL
GLASS STOVE
CONTENTS
FEATURE DIAGRAM
INSTALLATION INSTRUCTIONS
HOW TO OPERATE
IMPORTANT SAFETY INSTRUCTIONS
ADJUSTMENT OF COMBUSTION
CARE OF YOUR GAS COOKER
BEFORE YOU CALL FOR SERVICE
READ AND FOLLOW INSTRUCTION MANUAL BEFORE USE.
1
1
2
3~4
5
6
7
