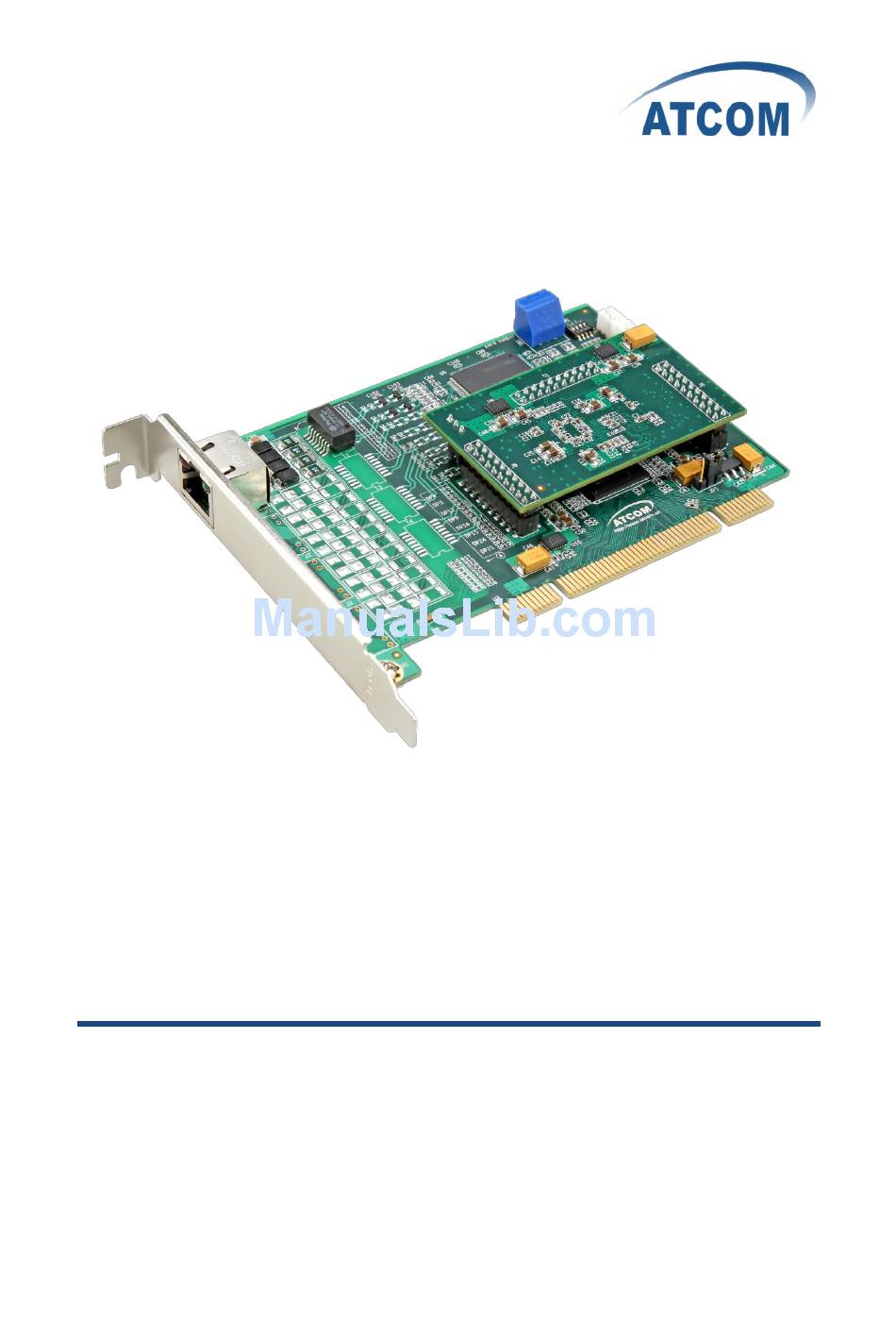

- Page 1 AX1D+EC32 ® ATCOM Digital Card AX1D/AXE1D Product Guide 25/06/2011 Written by Robert.Ao...
-
Page 2: Table Of Contents
Content CONTACT ATCOM ..........................2 CHAPTER 1 THE INTRODUCTION OF AX1D ..................3 CHAPTER 2 HARDWARE INTRODUCTION .................... 5 CHAPTER 3 SOFTWARE INSTALLATION....................9 CHAPTER 4 SOFTWARE CONFIGURATION ..................11 CHAPTER 6 REFERENCE ........................14 www.atcom.cn... -
Page 3: Contact Atcom
Contact ATCOM The Introduction of ATCOM Founded in 1998, ATCOM technology has been always endeavoring in the R&D and manufacturing of the internet communication terminals. The product line of ATCOM includes IP Phone, USB Phone, IP PBX, VoIP gateway and Asterisk Card. -
Page 4: Chapter 1 The Introduction Of Ax1D
1024 taps/128 ms tail per channel on all channel densities DTMF decoding and tone recognition Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction Does not increase the physical size of the card, and no additional slot is required www.atcom.cn... -
Page 5: Operating System
Pri CPE and PRI NET: EuroISDN 4ESS(AT&T) 5ESS(Lucent) DMS100 Hardware Requirement 1.6-Ghz Pentium IV 512 MB RAM 3.3V or 5V PCI 2.2 slot PCI Card Dimension 131.5mm (Length)*94mm (height) Operating System Linux (all versions, releases and distributions from 1.0 up) www.atcom.cn... -
Page 6: Chapter 2 Hardware Introduction
LED Green: If the PRI line is connected correctly, and it synchronizes to the other end successfully, then the LED Green will be green clearly. If the PRI line is connected correctly, and it is synchronizing to the other end, then both of the LED Green and LED Red will be on clearly. www.atcom.cn... - Page 7 SW1: It is used for selecting E1, T1, J1 mode, by default ATCOM will set it up according to your requirement before shipping out. Customer can set up E1, T1/J1 like the following: For E1 Mode For T1 and J1 Mode SW2: It is used when you have more than one PRI card in your server, if you have two cards in your server, then turn it to 0 in one card, and turn it to 1 in the other card;...
- Page 8 5.0v for power feedin g in the case that the 3.3v in the motherboard of PC is not enough for the card, but this phenomenon happens rarely. For Choosing 3.3v Power For Choosing 5.0v Power www.atcom.cn...
- Page 9 3.3v for the module, customer do not need to reset the jumper; the module can also choose 5.0v for power feeding in the case that the 3.3v in the motherboard of PC is not enough for the card, but this phenomenon happens rarely. For Selecting 3.3v Power For Selecting 5.0v Power www.atcom.cn...
-
Page 10: Chapter 3 Software Installation
To install asterisk and dahdi, we have to use “yum” command to install the following prerequisite packages: bison bison-devel zlib zlib-devel openssl openssl-devel gnutls-devel gcc gcc-c++ Download libpri, dahdi-linux-complete-2.4.1.2+2.4.1.tar.gz, and asterisk [root@localhost src]# wget http://downloads.asterisk.org/pub/telephony/libpri/releases/libpri-1.4.10.2.tar.gz Please download dahdi-linux-complete from ATCOM website. [root@localhost src]# Wget http://www.atcom.cn/downloads/TelephonyCard/drivers/AX1D/dahdi-linux-complete-2.4.1.2 +2.4.1.tar.gz [root@localhost src]# wget http://downloads.asterisk.org/pub/telephony/asterisk/releases/asterisk-1.6.2.6.tar.gz... - Page 11 Install asterisk 1) [root@localhost src]# tar -xvzf asterisk-1.6.2.6.tar.gz 2) [root@localhost asterisk-1.6.2.6]# ./configure 3) [root@localhost asterisk-1.6.2.6]# make 4) [root@localhost asterisk-1.6.2.6]# make install 5) [root@localhost asterisk-1.6.2.6]# make samples www.atcom.cn...
-
Page 12: Chapter 4 Software Configuration
; Span 1: AX1D/0/1 "AX1D (E1|T1) Card 0 Span 1" (MASTER) group=0,11 context=from-pstn switchtype = euroisdn signalling = pri_cpe channel => 1-15,17-31 context = default group = 63 2. Please add the following line in the end of chan_dahdi.conf file #include dahdi-channels.conf www.atcom.cn... - Page 13 Channel: 1 File Descriptor: 17 Span: 1 Extension: 300 Dialing: no Context: from-pstn Caller ID: 900 Calling TON: 33 Caller ID name: 900 Mailbox: none Destroy: 0 InAlarm: 0 Signalling Type: ISDN PRI Radio: 0 Owner: DAHDI/1-1 Real: DAHDI/1-1 www.atcom.cn...
- Page 14 DSP: yes Busy Detection: no TDD: no Relax DTMF: no Dialing/CallwaitCAS: 0/0 Default law: alaw Fax Handled: no Pulse phone: no DND: no Echo Cancellation: 128 taps currently ON Wait for dialtone: 0ms PRI Flags: Call PRI Logical Span: Implicit www.atcom.cn...
-
Page 15: Chapter 6 Reference
Chapter 6 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.openippbx.org/index.php?title=Main_Page http://www.atcom.cn/ www.atcom.cn...
