Summary of Contents for ATCOM AX-1600P

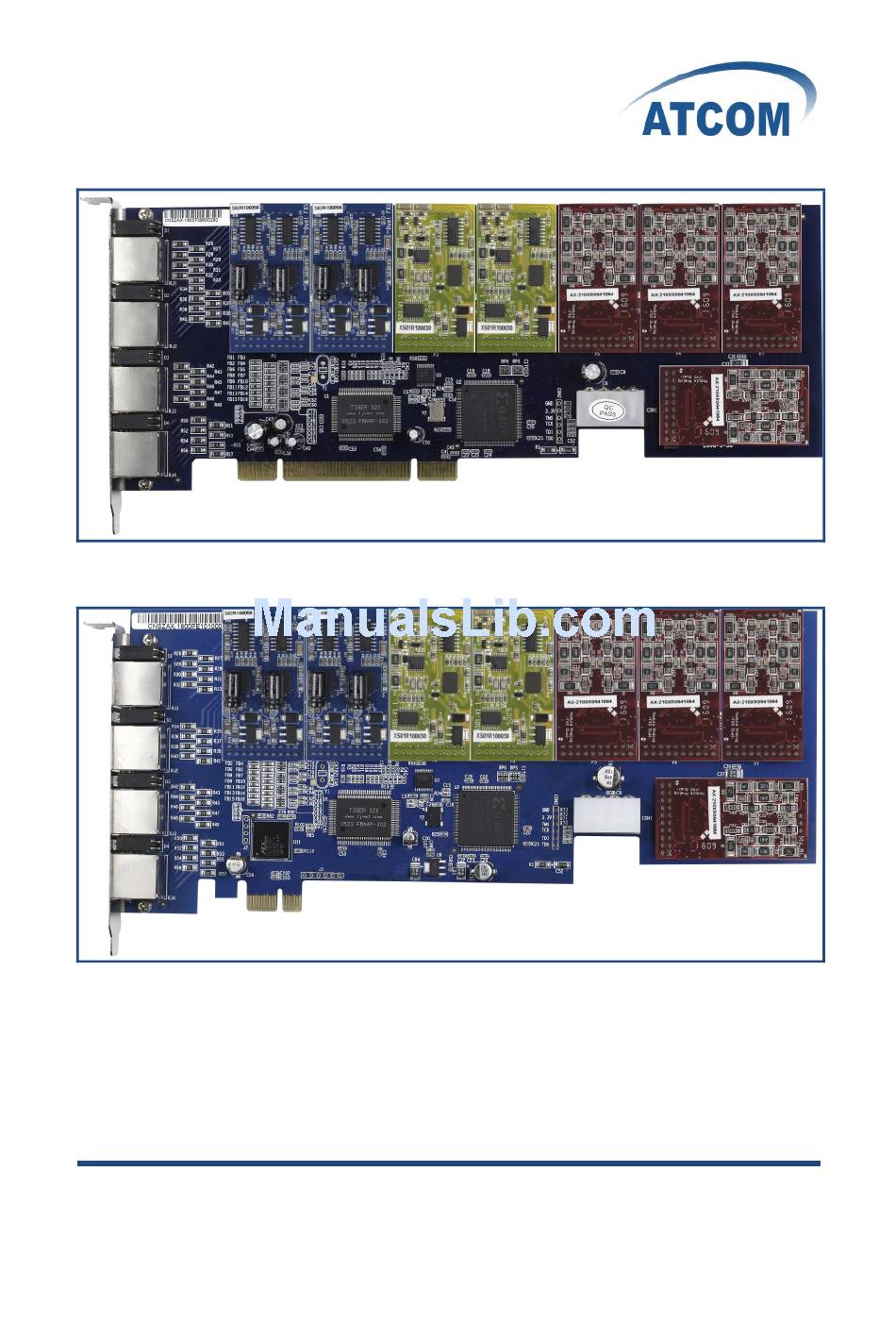

- Page 1 Figure: AX-1600P Figure: AXE-1600P ATCOM Analog Card 1600P/ AXE1600P ATCOM ATCOM ATCOM ® ® ® ® Analog Analog Analog Card Card Card AX- AX-1600P/ 1600P/ 1600P/AXE1600P AXE1600P AXE1600P Product Product Guide Guide Product Product Guide Guide Version: 1.1 2012-07-07...
-
Page 2: Table Of Contents
The Installation of AX-1600P/AXE1600P with Ubuntu 10.04 Content C C C C ONTACT ONTACT ONTACT ONTACT ATCOM ATCOM ATCOM ATCOM......................................................2 2 2 2 ......................................................C C C C HAPTER HAPTER HAPTER HAPTER 1 1 1 1 THE THE INTRODUCTION... -
Page 3: C C C C Ontact
ATCOM The Introduction of ATCOM Founded in 1998, ATCOM technology has been always endeavoring in the R&D and manufacturing of the internet communication terminals. The product line of ATCOM includes IP Phone, USB Phone, IP PBX, VoIP gateway and Asterisk Card. -
Page 4: C C C C Hapter
AX-1600P/ AX-1600P/ AXE1600P AXE1600P Overview the AX-1600P/ AX-1600P/AXE1600P AXE1600P AX1600P/AXE1600P Asterisk card is the telephony PCI/PCI-E card that supports up to sixteen FXO and FXS ports. Using AX1600P analog card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution which include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX. -
Page 5: C C C C Hapter
If you want to use any module with AXE1600P, you have to provide 12V power for the card. W W W W arning arning arning arning: Please do not plug and unplug the card and modules when the PC power is on. Power Feeding Connection Figure 1: AX-1600P www.atcom.cn... - Page 6 Figure 2: AX-210S Figure 3: AX-210XS Figure 4: AX-210X Figure 5: SP400 www.atcom.cn...
-
Page 7: C C C C Hapter
Please use the apt-get install command to install the above packages. Download asterisk,dahdi-linux and dahdi-tools root@atcom-desktop:~#wget http://downloads.asterisk.org/pub/telephony/asterisk/releases/asterisk-xx root@atcom-desktop:~#wget http://www.atcom.cn/cn/download/cards/ax800p/dahdi-linux-complete-2.4.1.2+2.4.1-3.0.tar.g Install dahdi-linux-complete root@atcom-desktop:~# cd /usr/src/ root@atcom-desktop:/usr/src/# tar -zxvf dahdi-linux-complete-2.4.1.2+2.4.1-3.0.tar.gz root@atcom-desktop:/usr/src/# cd dahdi-linux-complete-xxx+xxx root@atcom-desktop: dahdi-linux-complete-xxx+xxx# make root@atcom-desktop: dahdi-linux-complete-xxx+xxx# make install root@atcom-desktop: dahdi-linux-complete-xxx+xxx# make config www.atcom.cn... - Page 8 Install asterisk 1) root@atcom-desktop:/usr/src/# tar -xvzf asterisk-1.6.2.6.tar.gz 2) root@atcom-desktop:/usr/src/# cd asterisk-1.6.2.6 3) root@atcom-desktop: asterisk-1.6.2.6# ./configure 4) root@atcom-desktop: asterisk-1.6.2.6# make 5) root@atcom-desktop: asterisk-1.6.2.6# make install 6) root@atcom-desktop: asterisk-1.6.2.6# make samples www.atcom.cn...
-
Page 9: C C C C Hapter
2. Please use the “dahdi_genconf” command to configure the /etc/dahdi/system.conf file and generate /etc/asterisk/dahdi-channels.conf file. root@atcom-desktop:~# dahdi_genconf It does not show any output if dahdi_genconf run successfully. system.conf ---------------------------------------------------------------------------------------------------------------- # Span 1: WCTDM/16 "Wildcard TDM400P REV E/F Board 17" (MASTER) - Page 10 ......;;; line="15 WCTDM/16/14 FXSKS (SWEC: MG2)" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 15 callerid= group= context=default ;;; line="16 WCTDM/16/15 FXSKS (SWEC: MG2)" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 16 callerid= group= context=default www.atcom.cn...
-
Page 11: Configuration
–vv The right output of running dahdi_cfg –vv will like the following: DAHDI Tools Version - 2.4.1 DAHDI Version: 2.4..1.2 Echo Canceller(s): MG2 Configuration ====================== Channel map: Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01) Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02) ... - Page 12 C C C C hapter hapter hapter 5 5 5 5 Reference Reference hapter Reference Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.openippbx.org/index.php?title=Main_Page http://www.atcom.cn/ www.atcom.cn...
