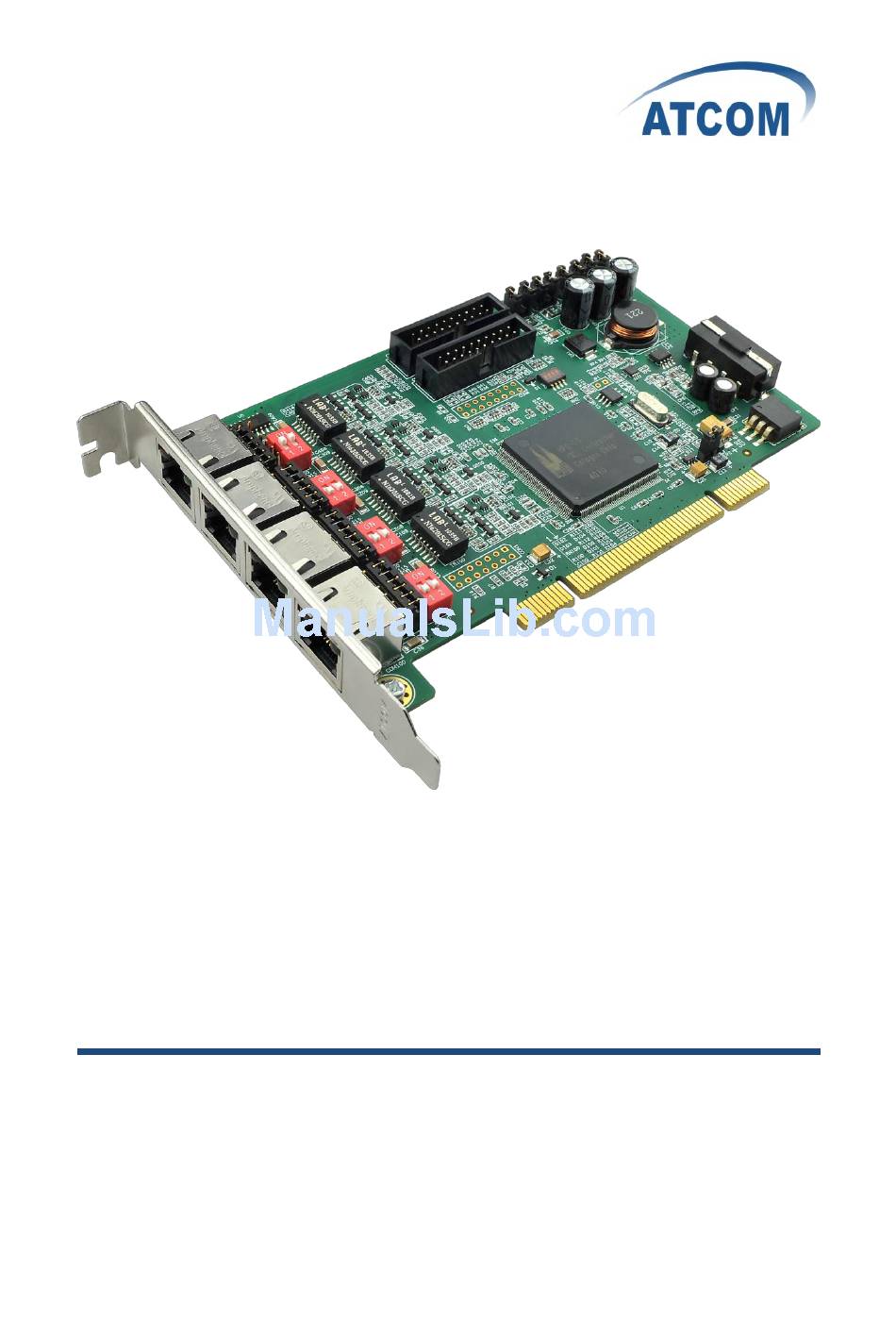

  • Page 1 AX4B ® ATCOM Digital Card AX4B/AX2B Product Guide 25/10/2011 Written by Robert.Ao...

  • Page 2: Table Of Contents

    Content CONTACT ATCOM ..........................2 CHAPTER 1 THE INTRODUCTION OF AX4B ..................3 CHAPTER 2 HARDWARE INTRODUCTION .................... 4 CHAPTER 3 SOFTWARE INSTALLATION....................7 CHAPTER 4 SOFTWARE CONFIGURATION ................... 9 CHAPTER 5 TEST ..........................13 CHAPTER 6 REFERENCE ........................14...

  • Page 3: Contact Atcom

    Contact ATCOM The Introduction of ATCOM Founded in 1998, ATCOM technology has been always endeavoring in the R&D and manufacturing of the internet communication terminals. The product line of ATCOM includes IP Phone, USB Phone, IP PBX, VoIP gateway and Asterisk Card.

  • Page 4: Chapter 1 The Introduction Of Ax4B

    Chapter 1 the Introduction of AX4B Overview of the AX4B AX4B Asterisk card is the telephony PCI card which supports four ISDN BRI ports. Using AX4B digital BRI card, open source Asterisk PBX and stand alone PC, users can create their IP PBX telephony solution which includes all the sophisticated features of traditional PBX, and extended features in IP PBX, such as voicemail, call transfer, call park, call pick up, call forward and so on.

  • Page 5: Chapter 2 Hardware Introduction

    For example, in the following picture, the first three ports are set to TE mode, and the fourth port is set to NT mode, so the J100, J200, J300 do not need jumpers, and the J400 is connected by jumper. www.atcom.cn...
  • Page 6 JP3: This connector is used to connect to a 4-PIN power supply, when ISDN phone is used, user need to provide 4-PIN power for the card; if you do not use ISDN phone, then you do not need to use JP3. SW1: It is not available now. CON2, CON3: The two connectors are not available now. www.atcom.cn...
  • Page 7 5.0v for power feedin g in the case that the 3.3v in the motherboard of PC is not enough for the card, but this phenomenon happens rarely. For selecting 3.3v power For selecting 5.0v power www.atcom.cn...

  • Page 8: Chapter 3 Software Installation

    [root@localhost src]# Wget http://downloads.asterisk.org/pub/telephony/dahdi-linux/releases/dahdi-linux-complete-2.5.0. 1+2.5.0.1.tar.gz [root@localhost src]# wget http://downloads.asterisk.org/pub/telephony/asterisk/releases/asterisk-1.8.7.1.tar.gz Install libpri [root@localhost src]# tar -xvzf libpri-1.4.12.tar.gz [root@localhost libpri-1.4.12]# make [root@localhost libpri-1.4.12]# make install Install dahdi-linux-complete [root@localhost src]# tar -xvzf dahdi-linux-complete-2.5.0.1+2.5.0.1.tar.gz [root@localhost src]# cd dahdi-linux-complete-2.5.0.1+2.5.0.1 [root@localhost dahdi-linux-complete-2.5.0.1+2.5.0.1]# make www.atcom.cn...
  • Page 9 [root@localhost dahdi-linux-complete-2.5.0.1+2.5.0.1]# make install [root@localhost dahdi-linux-complete-2.5.0.1+2.5.0.1]# make config Install asterisk 1) [root@localhost src]# tar -xvzf asterisk-1.8.7.1.tar.gz 2) [root@localhost asterisk-1.8.7.1]# ./configure 3) [root@localhost asterisk-1.8.7.1]# make 4) [root@localhost asterisk-1.8.7.1]# make install 5) [root@localhost asterisk-1.8.7.1]# make samples www.atcom.cn...

  • Page 10: Chapter 4 Software Configuration

    Chapter 4 Software Configuration 1. Please use cat /proc/interrupts command to check if the driver of AX4B is loaded or not, if the AX4B driver is loaded correctly, you can get one line with wcb4xxp 2310670 2218516 IO-APIC-fasteoi wcb4xxp If you can not get the line above, but you can get one line with hfc4s8s_l1, then please use the following command to delete the hfc4s8s_l1.ko module.

  • Page 11: Bchan

    # Span 3: B4/0/3 "B4XXP (PCI) Card 0 Span 3" YELLOW span=3,3,0,ccs,ami # termtype: te bchan=7-8 hardhdlc=9 echocanceller=mg2,7-8 # Span 4: B4/0/4 "B4XXP (PCI) Card 0 Span 4" RED span=4,4,0,ccs,ami # termtype: te bchan=10-11 hardhdlc=12 echocanceller=mg2,10-11 www.atcom.cn...
  • Page 12 = bri_cpe_ptmp channel => 7-8 context = default group = 63 ; Span 4: B4/0/4 "B4XXP (PCI) Card 0 Span 4" RED group=0,14 context=from-pstn switchtype = euroisdn signalling = bri_cpe_ptmp channel => 10-11 context = default group = 63 www.atcom.cn...
  • Page 13 4. Please run asterisk with the following command: asterisk asterisk -vvvgrc reload 5. Please run dahdi show channels command You should get the following channels: *CLI> dahdi show channels You can get the following 8 channels: 1, 2, 4, 5, 7, 8, 10, 11 www.atcom.cn...

  • Page 14: Chapter 5 Test

    1) Set the jumper to NT mode 2) Change the dahdi-channels.conf file, ; Span 4: B4/0/4 "B4XXP (PCI) Card 0 Span 4" RED group=0,14 context=from-pstn switchtype = euroisdn signalling = bri_cpe_ptmp change the cpe to net: signalling = bri_net_ptmp channel => 10-11 www.atcom.cn...

  • Page 15: Chapter 6 Reference

    Chapter 6 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.openippbx.org/index.php?title=Main_Page http://www.atcom.cn/ www.atcom.cn...
