Summary of Contents for ATCOM AXE4DL

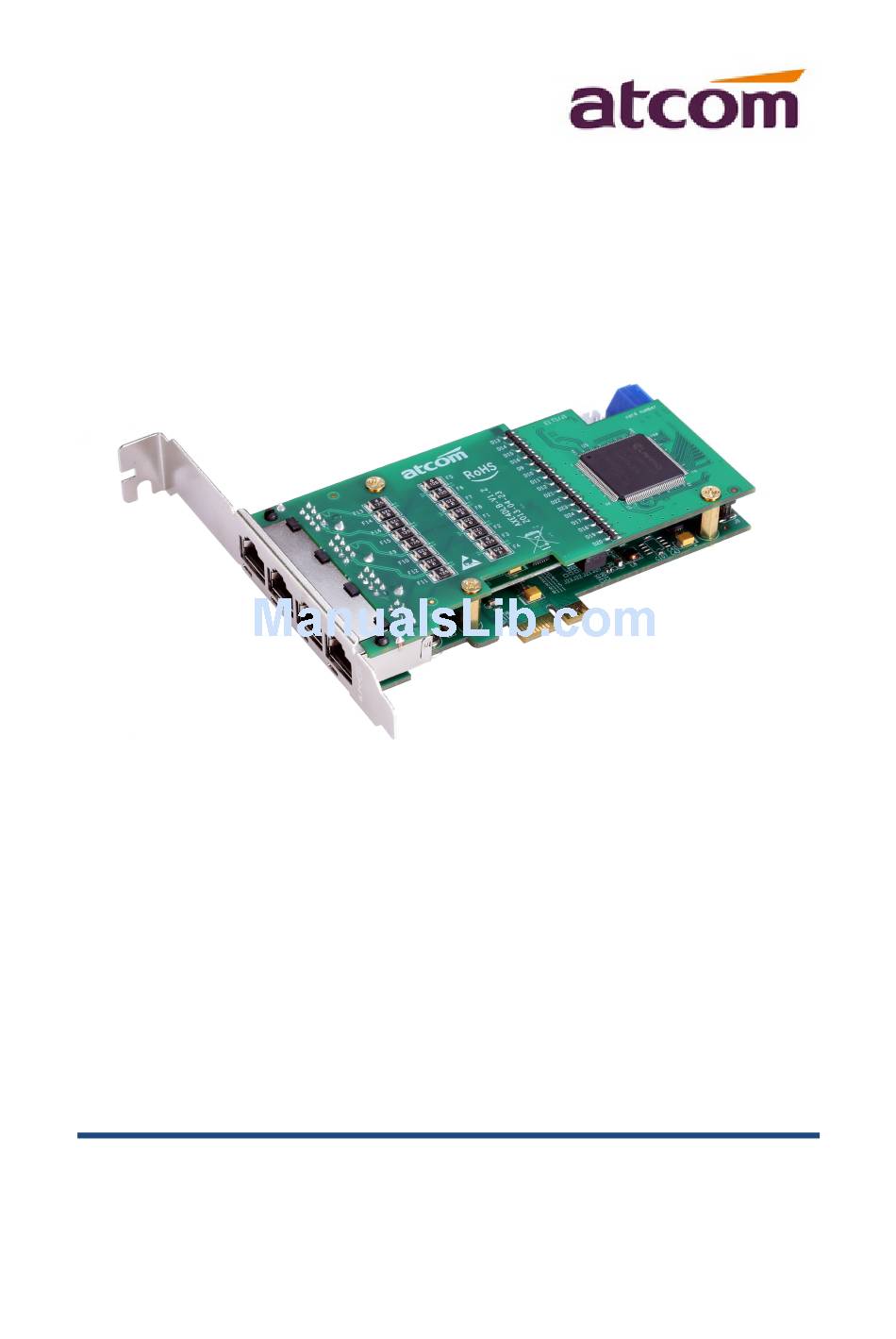

- Page 1 AXE4DL + EC128L ATCOM Digital Card AXE4DL ® User Manual Version: 1.0 2013-07-03...
-
Page 2: Table Of Contents
AXE4DL User Manual with DAHDI Content CHAPTER 1 THE INTRODUCTION OF AXE4DL....................3 CHAPTER 2 HARDWARE INTRODUCTION....................5 CHAPTER 2 TEST ENVIRONMENT......................8 CHAPTER 3 SOFTWARE INSTALLATION......................9 CHAPTER 4 SOFTWARE CONFIGURATION....................11 CHAPTER 5 TEST............................15 CHAPTER 6 REFERENCE........................... 17 www.atcom.cn... -
Page 3: Contact Atcom
Contact ATCOM The Introduction of ATCOM ATCOM is the leading VoIP hardware manufacturer in global market. We have been keeping innovating with customer’s needs oriented , working with partners to establish a total solution for SMB VoIP with IP phone , IP PBX and Asterisk cards. -
Page 4: Chapter 1 The Introduction Of Axe4Dl
Chapter 1 the Introduction of AXE4DL Overview of the AXE4DL AXE4DL Asterisk card is the asterisk PCI-E card which supports four ISDN PRI E1/T1/J1 ports, optional with teleco-grade hardware echo cancellation. Using AXE4DL digital PRI card, open source Asterisk PBX and stand alone PC, users can create their IP PBX telephony solution included all the sophisticated features of traditional PBX, and extended features such as voicemail in IP PBX. -
Page 5: Operating System
AXE4DL User Manual with DAHDI Voice Modes PRI CPE and PRI NET: EuroISDN 4ESS(AT&T) 5ESS(Lucent) DMS100 Hardware Requirement 1.6-Ghz Pentium IV 512 MB RAM PCI-E slot AXE4DL Dimension 120mm (Length)*64mm (height) Operating System Linux (all versions, releases and distributions from 1.0 up) -
Page 6: Chapter 2 Hardware Introduction
AXE4DL User Manual with DAHDI Chapter 2 Hardware Introduction AXE4DL The Front View of EC128L www.atcom.cn... - Page 7 AXE4DL User Manual with DAHDI LED: The LED of the four ports will be red clearly, when the driver of the card is loaded correctly and the “/etc/dahdi/system.conf” file is configured correctly, ; the LED will be green clearly, when the PRI line is connected correctly, and it synchronizes to the other equipment successfully, .
- Page 8 AXE4DL User Manual with DAHDI C1: It is used to select the hardware echo cancellation direction. In default, It will not use the jumper, and it will delete the echo for the far end side; if users need delete the echo for the local side, please use the jumper like the following illustration.
-
Page 9: Chapter 2 Test Environment
AXE4DL User Manual with DAHDI Chapter 2 Test Environment Test Environment: Libpri-1.4.7 dahdi-linux-complete-2.6.2+2.6.2 asterisk-1.8.7.0 Centos6.0 (kernel version: 2.6.32-279.22.1.el6.i686) AXE4DL+EC128L www.atcom.cn... -
Page 10: Chapter 3 Software Installation
AXE4DL User Manual with DAHDI Chapter 3 Software Installation After inserting the card into the PCI slot and boot the server, please use the “lspci” command to check the PCI bus compatibility. From the correct output, users can see the following line: ---------------------------------------------------------------------------------------------------------------------- 03:01.0 Communication controller: Digium, Inc. - Page 11 AXE4DL User Manual with DAHDI Installation the packages Install libpri [root@localhost src]# tar -xvzf libpri-1.4.14.tar.gz [root@localhost libpri-1.4.14]# make [root@localhost libpri-1.4.14]# make install Install dahdi-linux [root@localhost src]# tar -xvzf dahdi-linux-complete-2.6.2+2.6.2.tar.gz [root@localhost src]# cd dahdi-linux-complete-2.6.2+2.6.2 [root@localhost dahdi-linux-2.6.2]# make [root@localhost dahdi-linux-2.6.2]# make install [root@localhost dahdi-linux-2.6.2]# make config...
-
Page 12: Chapter 4 Software Configuration
AXE4DL User Manual with DAHDI Chapter 4 Software Configuration 1. Please run the “dahdi_genconf” command to configure the “/etc/dahdi/system.conf” file and generate “/etc/asterisk/dahdi-channels.conf” file. [root@localhost ~]# dahdi_genconf It will not show any output when the command run successfully. After do that successfully, it will get the following configuration in the “system.conf” file with E1 mode. - Page 13 AXE4DL User Manual with DAHDI After running dahdi_genconf successfully, the dahdi-channels.conf file will get the following configuration. [root@localhost ~]# cat /etc/asterisk/dahdi-channels.conf ; Autogenerated by /usr/sbin/dahdi_genconf on Mon Aug 5 15:02:51 2013 ; If you edit this file and execute /usr/sbin/dahdi_genconf again, ;...
- Page 14 AXE4DL User Manual with DAHDI 5. How to check if the hardware echo cancellation works or not After booting the server with the AXE4DL and the echo cancellation module, please run the “dmesg” command to check if the hardware is detected or not.
- Page 15 AXE4DL User Manual with DAHDI TDD: no Relax DTMF: no Dialing/CallwaitCAS: 0/0 Default law: alaw Fax Handled: no Pulse phone: no DND: no Echo Cancellation: 128 taps currently ON Wait for dialtone: 0ms PRI Flags: Call PRI Logical Span: Implicit...
-
Page 16: Chapter 5 Test
AXE4DL User Manual with DAHDI Chapter 5 Test LED state LED: If the driver of the card is loaded correctly and the “/etc/dahdi/system.conf” file is configured correctly, the four ports of LED will be red clearly. If the PRI line is connected correctly, and it synchronizes to the other equipment successfully, then the LED will be green clearly. - Page 17 AXE4DL User Manual with DAHDI Use a registered sip phone to make an outgoing call. According to the dial-plan above, if users want to make the outgoing call via the first port, users have to add a prefix “1”; If users want to make a calling via the second port, users have to add a prefix “2”.
-
Page 18: Chapter 6 Reference
AXE4DL User Manual with DAHDI Chapter 6 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.atcom.cn/ www.atcom.cn...
