Summary of Contents for ATCOM EC64

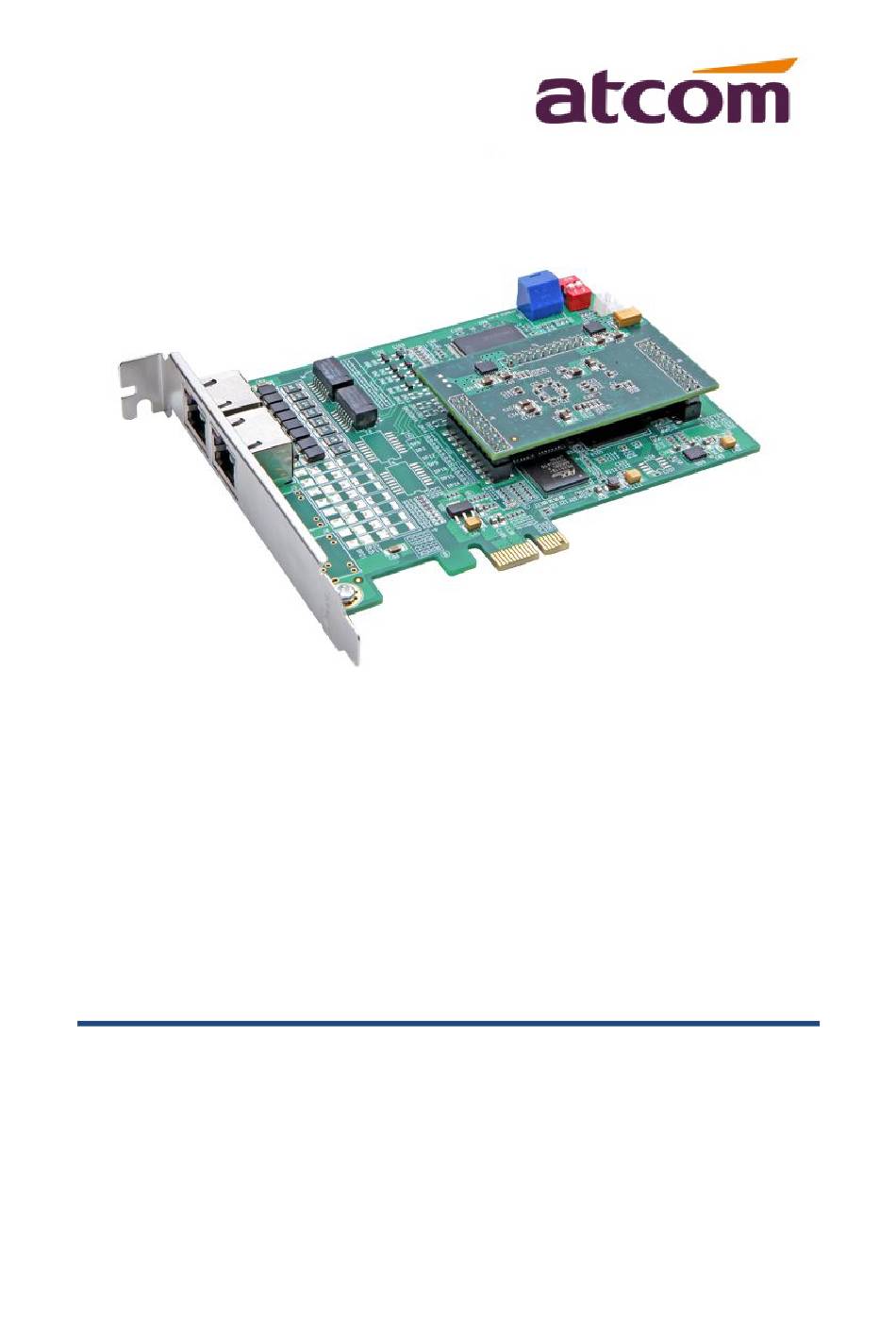

- Page 1 AXE2D+EC64 User Manual ATCOM Digital Card AXE2D ® User Manual Version: 2.0 2013-06-03...
- Page 2 AXE2D User Manual Release note Version Changed note Editor Date First Release Robert 2011-01-20 Release the User manual Deniel 2013-06-03 www.atcom.cn Email: support@atcomemail.com...
-
Page 3: Table Of Contents
AX1D User Manual Content Chapter 1 The Introduction of AXE2D....................1 Chapter 2 Hardware Introduction......................3 Chapter 3 Test Environment........................7 Chapter 4 Software Installation......................8 Chapter 5 Software Configuration....................10 Chapter 6 Reference.......................... 13 www.atcom.cn Email: support@atcomemail.com... -
Page 4: Contact Atcom
Contact ATCOM The Introduction of ATCOM ATCOM is the leading VoIP hardware manufacturer in global market. We have been keeping innovating with customer’s needs oriented , working with partners to establish a total solution for SMB VoIP with IP phone , IP PBX and Asterisk cards. -
Page 5: Chapter 1 The Introduction Of Axe2D
1024 taps/128 ms tail per channel on all channel densities DTMF decoding and tone recognition Voice quality enhancement: music protection, acoustic echo control, and adaptive noise reduction Does not increase the physical size of the card, and no additional slot is required www.atcom.cn Email: support@atcomemail.com... -
Page 6: Hardware Requirement
Pri CPE and PRI NET: EuroISDN 4ESS(AT&T) 5ESS(Lucent) DMS100 Hardware Requirement 1.6-Ghz Pentium IV 512 MB RAM 3.3V or 5V PCI 2.2 slot PCI Card Dimension 131.5mm (Length)*94mm (height) Operating System Linux (all versions, releases and distributions from 1.0 up) www.atcom.cn Email: support@atcomemail.com... -
Page 7: Chapter 2 Hardware Introduction
LED Green: If the PRI line is connected correctly, and it synchronizes to the other end successfully, then the LED Green will be green clearly. If the PRI line is connected correctly, and it is synchronizing to the other end, then both of the www.atcom.cn Email: support@atcomemail.com... - Page 8 LED Green and LED Red will be on clearly. SW1: It is used for selecting E1, T1, J1 mode, by default ATCOM will set it up according to your requirement before shipping out. Customer can set up E1, T1/J1 like the following:...
- Page 9 5.0v for power feedin g in the case that the 3.3v in the motherboard of PC is not enough for the card, but this phenomenon happens rarely. For Choosing 3.3v Power For Choosing 5.0v Power www.atcom.cn Email: support@atcomemail.com...
- Page 10 3.3v; the module can also choose 5.0v for power feeding in the case that the 3.3v in the motherboard of PC is not enough for the module, but this phenomenon happens rarely. For the latest version, the module does not need this jumper. For Selecting 3.3v Power For Selecting 5.0v Power www.atcom.cn Email: support@atcomemail.com...
-
Page 11: Chapter 3 Test Environment
AXE2D User Manual Chapter 3 Test Environment Test Environment: libpri-1.4.10.2 (download from Digium website) dahdi-linux-complete-2.6.2+2.6.2 (download from Digium website) asterisk-1.8 (download from Digium website) Centos6.0 (kernel version: 2.6.32-279.22.1.el6.i686) AXE2D+EC64 www.atcom.cn Email: support@atcomemail.com... -
Page 12: Chapter 4 Software Installation
[root@localhost src]# wget http://downloads.asterisk.org/pub/telephony/asterisk/releases/asterisk-1.8.7.0.tar.gz Install libpri [root@localhost src]# tar -xvzf libpri-1.4.10.2.tar.gz [root@localhost libpri-1.4.10.2]# make [root@localhost libpri-1.4.10.2]# make install Install dahdi-linux and dahdi-tools [root@localhost src]# tar -xvzf dahdi-linux-2.3.0.1.tar.gz [root@localhost src]# cd dahdi-linux-2.3.0.1/drivers/dahdi/ [root@localhost dahdi-linux-2.3.0.1]# make [root@localhost dahdi-linux-2.3.0.1]# make install www.atcom.cn Email: support@atcomemail.com... - Page 13 AXE2D User Manual Install asterisk 1) [root@localhost src]# tar -xvzf asterisk-1.6.2.6.tar.gz 2) [root@localhost asterisk-1.6.2.6]# ./configure 3) [root@localhost asterisk-1.6.2.6]# make 4) [root@localhost asterisk-1.6.2.6]# make install 5) [root@localhost asterisk-1.6.2.6]# make samples www.atcom.cn Email: support@atcomemail.com...
-
Page 14: Chapter 5 Software Configuration
2. Please add the following line in the end of the “/etc/asterisk/chan_dahdi.conf ” file. #include dahdi-channels.conf Or users can run the command in the CLI: [root@localhost ~]# echo #include dahdi-channels.conf >>/etc/asterisk/chan_dahdi.conf 3. Please load the asterisk with the following command: [root@localhost ~]# asterisk [root@localhost ~]# asterisk -vvgr www.atcom.cn Email: support@atcomemail.com... - Page 15 And users will get 48 channels messages in T1/J1 mode. 5. Check echo cancellation hardware state When users plug the EC64 into the card, please do not need to press hard, because the pin is a little longer than the slot.
- Page 16 Busy Detection: no TDD: no Relax DTMF: no Dialing/CallwaitCAS: 0/0 Default law: alaw Fax Handled: no Pulse phone: no DND: no Echo Cancellation: 128 taps currently ON Wait for dialtone: 0ms PRI Flags: Call PRI Logical Span: Implicit www.atcom.cn Email: support@atcomemail.com...
-
Page 17: Chapter 6 Reference
AXE2D User Manual Chapter 6 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.atcom.cn/ www.atcom.cn Email: support@atcomemail.com...
