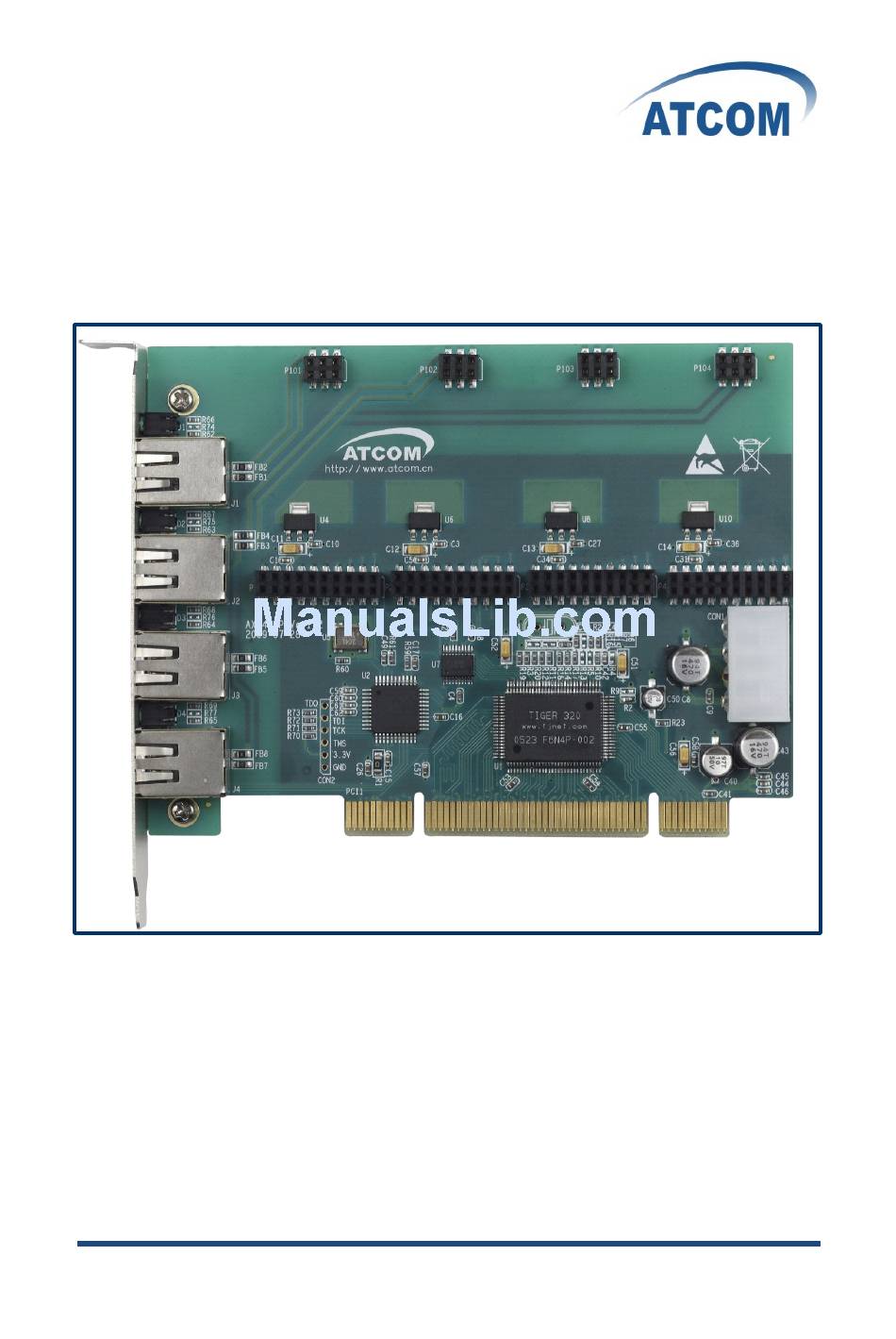

  • Page 1 ATCOM ATCOM ® ® ® ® Analog Analog Card Card AX-400P AX-400P ATCOM ATCOM Analog Analog Card Card AX-400P AX-400P Product Product Guide Guide Product Product Guide Guide Version: 1.0...

  • Page 2: Table Of Contents

    The Installation of AX-400P with Ubuntu 8.10 Content CONTACT ATCOM ..........................2 CHAPTER 1 THE INTRODUCTION OF AX-400P ................3 CHAPTER 2 HARDWARE INTRODUCTION ..................4 CHAPTER 3 SOFTWARE INSTALLATION ..................... 7 CHAPTER 4 SOFTWARE CONFIGURATION ..................10 CHAPTER 5 REFERENCE ........................12...

  • Page 3: Contact Atcom

    Contact ATCOM The Introduction of ATCOM Founded in 1998, ATCOM technology has been always endeavoring in the R&D and manufacturing of the internet communication terminals. The product line of ATCOM includes IP Phone, USB Phone, IP PBX, VoIP gateway and Asterisk Card.

  • Page 4: Chapter 1 The Introduction Of Ax-400P

    Chapter 1 the Introduction of AX-400P Overview of the AX-400P AX-400P Asterisk card is the TDM400P compatible PCI card that supports up to four FXO and FXS ports. Using AX-400P analog card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution includes all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX.

  • Page 5: Chapter 2 Hardware Introduction

    Chapter 2 Hardware Introduction Hardware Configuration Motherboard: AX-400P Modules:AX-110X,AX-110S Warning: Please do not plug and unplug the card when the PC power is on. Figure 1:AX-400P with 2 AX-110S and 2 AX-110X www.atcom.cn...
  • Page 6 Figure 2:AXE-400P with 2 AX-110S and 2 AX-110X Figure 3: AX-110X Single FXS Module www.atcom.cn...
  • Page 7 Figure 4: AX-110S Single FXO Module www.atcom.cn...

  • Page 8: Chapter 3 Software Installation

    Please install necessary packages as following: root@atcom-desktop:~# apt-get install g++ root@atcom-desktop:~# apt-get install libxml2-dev root@atcom-desktop:~# apt-get install ncurses-dev Before insert the AX-400P, please make sure that you have installed dahdi-linux,dahdi-tools and asterisk on your Ubuntu 8.10, if not ,please download them as...
  • Page 9 .. root@atcom-desktop:/usr/src# cd dahdi-tools-2.3.0 root@atcom-desktop:/usr/src/dahdi-tools-2.3.0# ./configure root@atcom-desktop:/usr/src/dahdi-tools-2.3.0# make root@atcom-desktop:/usr/src/dahdi-tools-2.3.0# make install You will see: ################################################### ### DAHDI tools installed successfully. ### If you have not done so before, install init scripts with: make config ################################################### root@atcom-desktop:/usr/src/dahdi-tools-2.3.0# make config Install asterisk: root@atcom-desktop:/usr/src/dahdi-tools-2.3.0# cd ..
  • Page 10 Shut down your server and insert AX-400P into your PCI slot then boot your server, please use the “lspci” command to check the PCI bus compatibility. The correct output will like the following: ================================================================== 05:02.0 Communication controller: Tiger Jet Network Inc. Tiger3XX Modem/ISDN interface ================================================================== An "Tiger3XX Modem/ISDN interface"...

  • Page 11: Chapter 4 Software Configuration

    It does not show any output if dahdi_genconf run successfully. 2. To check whether it has finished the configuration, please open the system.conf file: root@atcom-desktop:~# vi /etc/dahdi/system.conf You will see: ================================================================== # Autogenerated by /usr/sbin/dahdi_genconf on Wed May 19 03:53:49 2010 # If you edit this file and execute /usr/sbin/dahdi_genconf again, # your manual changes will be LOST.
  • Page 12 #include dahdi-channels.conf ================================================================= 4. root@atcom-desktop:~# dahdi_cfg -vvvvvvvvvvvvvvvvv You will see: ================================================================== DAHDI Tools Version - 2.3.0 DAHDI Version: 2.3.0 Echo Canceller(s): Configuration ====================== Channel map: Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01) Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)

  • Page 13: Chapter 5 Reference

    Chapter 5 Reference http://www.asteriskguru.com/ http://www.asterisk.org/downloads http://www.openippbx.org/index.php?title=Main_Page http://www.atcom.cn/ www.atcom.cn...
