Item:
16
USB port
iOS device connection
17
terminal (Mini Din)
18
SPEAKER ON/OFF switch
19
MASTER OUT terminals
HEADPHONE OUT terminal
20
AC adaptor terminal
21
Battery compartment
22
Speaker
23
iPhone holder/Slot
24
16
17
18
19
22
Description:
Connect with a computer's USB port.* Connect to a USB2.0 or higher USB port.
Connect the Mini Din plug of the included Lightning/Mini Din cable when using an
iOS device (iPad, iPhone, iPod touch).
Enable or disable output from the speaker on the bottom of TRACKFORMER.
Connect an RCA pin cable to an output device (amp, powered speakers, PA mixer, etc.)
Connect headphones. (Stereo mini plug)
This terminal outputs the playback of the deck whose sound is cut by the DJ software
crossfader. (Initial default setting)
Connect the supplied AC adaptor. Use of the AC adaptor is required when using
TRACKFORMER while charging an iOS device. See "Charging an iOS Device, Built-in
Speaker Operation" for more information.
Load six batteries (of the specified type) here to run TRACKFORMER under battery
power.
The MASTER sound is output from the built-in speaker when the SPEAKER ON/OFF
switch (18) is ON.
The included iPhone holder can be connected to TRACKFORMER by inserting it into
the slot.
20
21
23

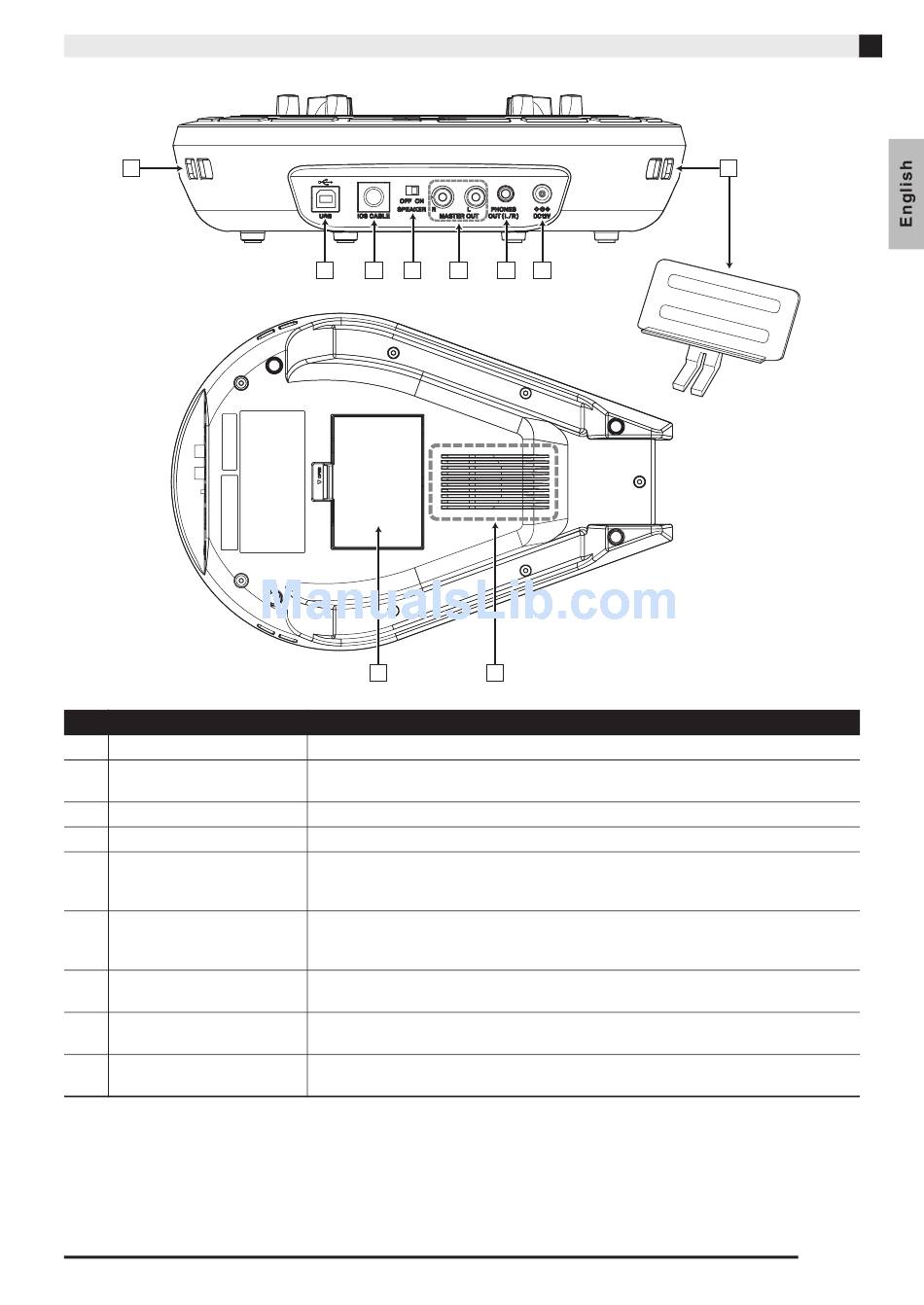

General Guide
24
EN-9
