Kenyon texan grill owners manual

Advertisement

www.CookWithKenyon.com
T E X A N G R ILL

OWNERS MANUAL

Part # 143644
Created: July 13, 2009
Revised: December 17, 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B70400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kenyon B70400

  • Page 1: Owners Manual

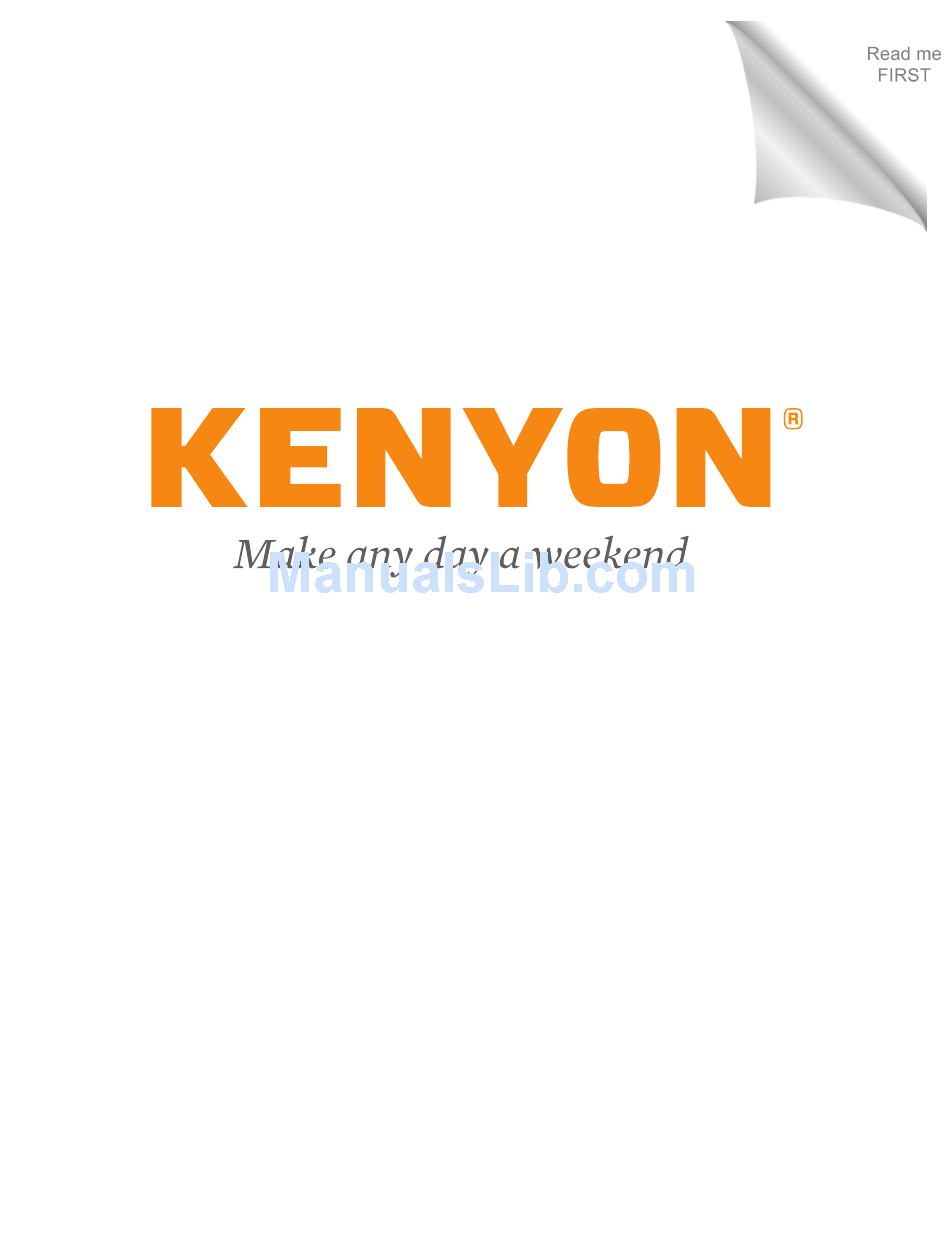

    www.CookWithKenyon.com T E X A N G R ILL OWNERS MANUAL Part # 143644 Created: July 13, 2009 Revised: December 17, 2012...
  • Page 2: Table Of Contents

    Final Preparations Prior to Use ..................Operation of Grill Touch Control ......................... Grill Parts ........................Lid Removal ........................Handle Lock ........................Warranty Information ......................Kenyon International, Inc. 8 Heritage Park Road P.O. Box 925 Clinton, CT 06413 USA Phone: 860-664-4906 www.CookWithKenyon.com...
  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read ALL instructions prior to using product. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock, do not immerse cord or plugs in water or other liquid. 4.
  • Page 4: How To Use Grill

    Always fill the drip tray(s) with 16 oz. of liquid. Water will work, but why not try beer or wine to add flavor to your favorite food. Then re-install cooking grate. Depending on model, either hardwire your Kenyon All Seasons® Grill or plug it directly into an outlet, do not use extension cords.
  • Page 5 1. Before using your grill, remove the cooking grate and drip tray from the grill. Wash the grill with warm soapy water using a non-abrasive cloth. USE ONLY HIGH TEMP PLASTIC UTENSILS WHEN GRILLING. Visit our web site to purchase a set of high quality stainless steel/ high temp plastic grill utensils, www.cookwithkenyon.com.
  • Page 6 13. Wipe the stainless steel surfaces with a damp cloth to remove any residue from previous grilling sessions. 14. Your Kenyon grill came with a sample bottle of stainless steel cleaner. Use this cleaner once a month to keep your grill looking like new.
  • Page 7: Stuffed French Toast

    Stuffed French Toast 16 slices Thin Sliced Bread “any kind but not the white stuff” 1 lb. Cream Cheese (softened) ½ cup Peach Preserves (or your favorite) 4 T. Butter French Toast Batter: Large eggs thoroughly beaten 1 cup Milk 1 T.
  • Page 8: Product Specifications

    PRODUCT SPECIFICATION The Texan Grill Model B70400 - 240V AC 50/60Hz - 2600 WATTS - 11 AMPS Overall dimensions: 29” x 21” x 4” (11” with lid) 736mm x 534mm x 114mm (292mm with lid) Depth does not include drain fitting - add 2” or 50.8mm Cut-out dimensions: 28”...
  • Page 9: Package Contents

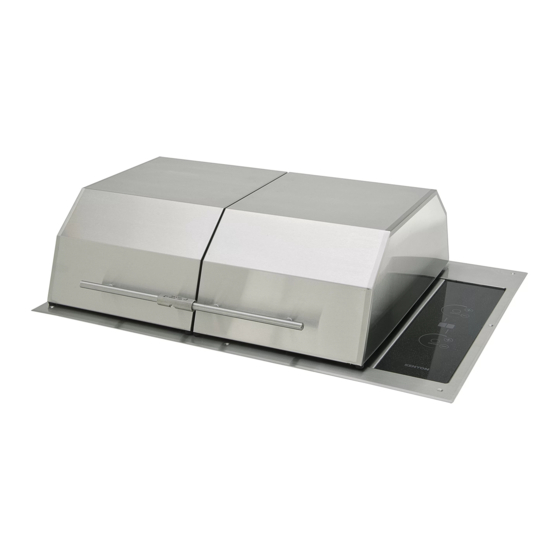

    Contained in the shipping container is the Texan Grill, nine (9) mounting screws, manual, stainless steel cleaner and three (3) feet of drain hose with brass fitting. If any components are missing or damaged, call KENYON immediately. Fig. 4...
  • Page 10: Electrical Requirements

    KENYON Max Load Power Supply Plug Type Part # B70400 2600 Watts 240V AC 11A 60Hz Flying leads in flexible conduit (designed to be hardwired into electrical system)
  • Page 11 Please read this section prior to making cutout for the grill. It is important to plan ahead for installation of the grill, keeping the following dimensions in mind (please refer to Figure 5 below). A - 13 inches maximum depth of overhead cabinets B - 36 inches is minimum height of countertop above floor C - The minimum flat countertop surface that the grill will rest upon must be equal to or greater than the overall...
  • Page 12: Drain Connection

    When making countertop cutout, radius the corner to help prevent cracking of the countertop material. A 1/4 inch radius is typical, but follow the countertop manufacturer’s instructions regarding the minimum radius and any reinforcements required to prevent damage to the countertop over time.
  • Page 13: Operation Of Grill

    DO NOT COOK ON BROKEN GRILL GRATE OR GRIDDLE If the grate should break, grease and oils may come into direct contact with the electric element and create a risk of electric shock or fire. Contact an authorized service center or KENYON Customer Care immediately at (860) 664-4906.
  • Page 14: Touch Control

    Touch Control To activate an element, first the master power must be turned on by placing and holding a finger over the circular area next to the master power graphic. An audible beep will be heard and a light next to the master power graphic will illuminate.
  • Page 15 CALIBRATION Upon application of electrical power to the grill, the controller will run a self-calibration process. The controller will then sound an audible confirmation tone and the display will briefly illuminate. The grill is now ready to be used. Fig. 9 POWER LEVEL HEAT SETTINGS...
  • Page 16 AUTOMATIC SHUT-OFF The electronic control of your KENYON grill has been programmed with safety in mind and features an automatic shut-off. The grill is programmed to shut down after predetermined time after being energized (see table below).
  • Page 17: Grill Parts

    1 cup of water (or enough to cover the bottom of the pan) in the drip trays before cooking. The replacement for the disposable drip tray is Kenyon part #B96001. Fig. 11 GRATES Grates must be cleaned after every use. The grates have a nonstick coating for ease of cleaning.
  • Page 18: Lid Removal

    Lid Removal LID REMOVAL The grill lids are removable for cleaning . To remove the lids, open it so the bearing are aligned with Notch in lidstay the notch in the lidstay. Pull the lidstay toward the center of the grill, over the bearing, releasing the lid from the lidstay mechanism.
  • Page 19: Handle Lock

    Handle Lock HANDLE LOCK The handle lock allows the user to lock both lids together for ease of opening and accessing the entire grilling surface. (See Fig. 15) The lids can also be unlocked and opened individually for access to either half of the grilling surface.
  • Page 20: Warranty Information

    Warranty Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
