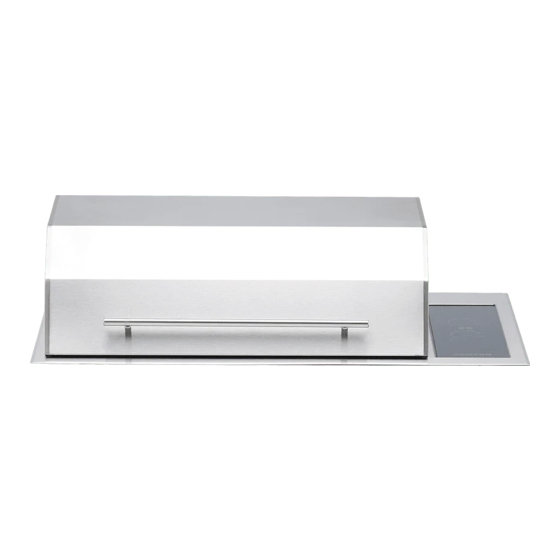

Kenyon B70415 Owner's Manual

Kenyon B70415 Owner's Manual

Texan knob control

Advertisement

Quick Links

www.CookWithKenyon.com
T E X AN K NO B C O N TR O L
OWNERS MANUAL
Part # 145639
Created: May 11, 2020
Revised: November 21, 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B70415 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kenyon B70415

  • Page 1 www.CookWithKenyon.com T E X AN K NO B C O N TR O L OWNERS MANUAL Part # 145639 Created: May 11, 2020 Revised: November 21, 2022...
  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS....3 Please read & save Product Specifications these instructions Electric Supply Requirements ......5 Dimensions ............6 Thank you for choosing Kenyon, Before Using the Grill the world’s leading manufacturer Quick Start Tips.............7 of specialty cooking appliances. Grilled Flank Steak (Recipe)........8...
  • Page 3: Important Safety Instructions

    If the appliance with reduced physical, sensory or mental malfunctions, discontinue use. Contact capabilities or lack of experience and KENYON Customer Care immediately at knowledge if they have been given supervision (860) 664-4906. or instruction concerning use of the appliance...
  • Page 4 Always fill the drip tray(s) with 2 cups of liquid. Water will work, but why not try beer or wine to add flavor to your favorite food. Then re-install cooking grate. Depending on model, either hardwire your Kenyon All Seasons® Grill or plug it directly into an outlet, do not use extension cords.
  • Page 5: Product Specifications

    Product Specifications ELECTRICAL SUPPLY REQUIREMENTS MODEL # MAX CONNECTED POWER SUPPLY PLUG LOAD INPUT TYPE B70415 3000 Watts 240V AC 13A 50/60Hz 3 wire molded plug, country specific B70415NH 3000 Watts 240V AC 13A 50/60Hz 3 wire molded plug, country specific...
  • Page 6: Dimensions

    Product Specifications Overall & Cutout Dimensions PRODUCT DIMENSIONS WIDTH DEPTH HEIGHT 29 1/2” 21” 5 1/2” (12 1/2” with lid) 750mm 533mm 139.7mm (317.5mm with lid) CUTOUT DIMENSIONS WIDTH DEPTH RADIUS 28” 18 1/2” 1/4” 711mm 470mm...
  • Page 7: Before Using The Grill

    Before Using the Grill Remove the cooking Preheat grill with the lid closed for 5 - 7 grates and drip trays minutes on desired heat setting for type of from the grill. Wash the food: grill with warm soapy water using a non-abrasive cloth.
  • Page 8: Grilled Flank Steak (Recipe)

    Before Using the Grill Wipe the stainless steel surfaces with a Your Kenyon grill came damp cloth to remove any residue from with a sample bottle of previous grilling sessions. stainless steel cleaner. Use this cleaner once a month to keep your grill looking like new.
  • Page 9: Operation

    DO NOT CLEAN UNIT WITH PRESSURIZED fire. Contact an authorized service center or WATER KENYON Customer Care immediately at Never clean the grill with any form of (860) 664-4906. pressurized water or other types of cleaners.
  • Page 10: Control Knobs

    Operation Control Knobs The burners are controlled independently. To operate the left burner, use the top control knob. To operate the right burner use the bottom control knob. Power On To turn on the power you must push the knob down and rotate either clockwise (highest) or POWER ON counter-clockwise (lowest) to activate the heat...
  • Page 11: Temperature Setting Guide

    T E X A N G R I L L W I T H K N O B C O N T R O L M A I N T E N A N C E The Kenyon Texan Grill with Knob Control is a sealed unit that does not require regular maintenance.
  • Page 12: Grill Parts

    The replacement for the disposable drip tray is Kenyon part #B96001. Grates Grates must be cleaned after every use. The grates have a nonstick coating for ease of cleaning.
  • Page 13: Lid Removal

    Operation Lid Removal Handle Lock The grill lids are removable for cleaning. The handle lock allows the user to lock both lids To remove the lids, open it so the bearing together for ease of opening and accessing the is aligned with the notch in the lidstay. Pull entire grilling surface.
  • Page 14: Installation

    Carefully unpack the grill from its shipping container. Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. Texan Grill with (1) Stainless Knob Control steel cleaner...
  • Page 15: Countertop Preparation

    Operation Countertop Preparation D - 30 inches minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet or 24 inch Your Texan Grill with Knob Control is minimum clearance when the bottom of the supplied with a factory installed polished wood or metal cabinet is protected by not less stainless steel flange that accepts nine oval head...
  • Page 16 Operation When making countertop cutout, radius the corner to help prevent cracking of the countertop WARNING! material. A 1/4 inch radius is typical, but follow the countertop manufacturer’s instructions To eliminate the risk of burns by regarding the minimum radius and any reaching over heated surface units, reinforcements required to prevent damage to the countertop over time.
  • Page 17: Drain Connection

    Operation Drain Connection Final Preparations Prior to Use For your convenience, the grill is equipped with a 1/2” NPT brass pipe fitting and 90º Remove the protective plastic film from the brass elbow which you can attach the 5/8” ID lid, trim flange and glass panel.
  • Page 18: Warranty

    Statement of Warranty KENYON Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
