Page 1: Electric Grill

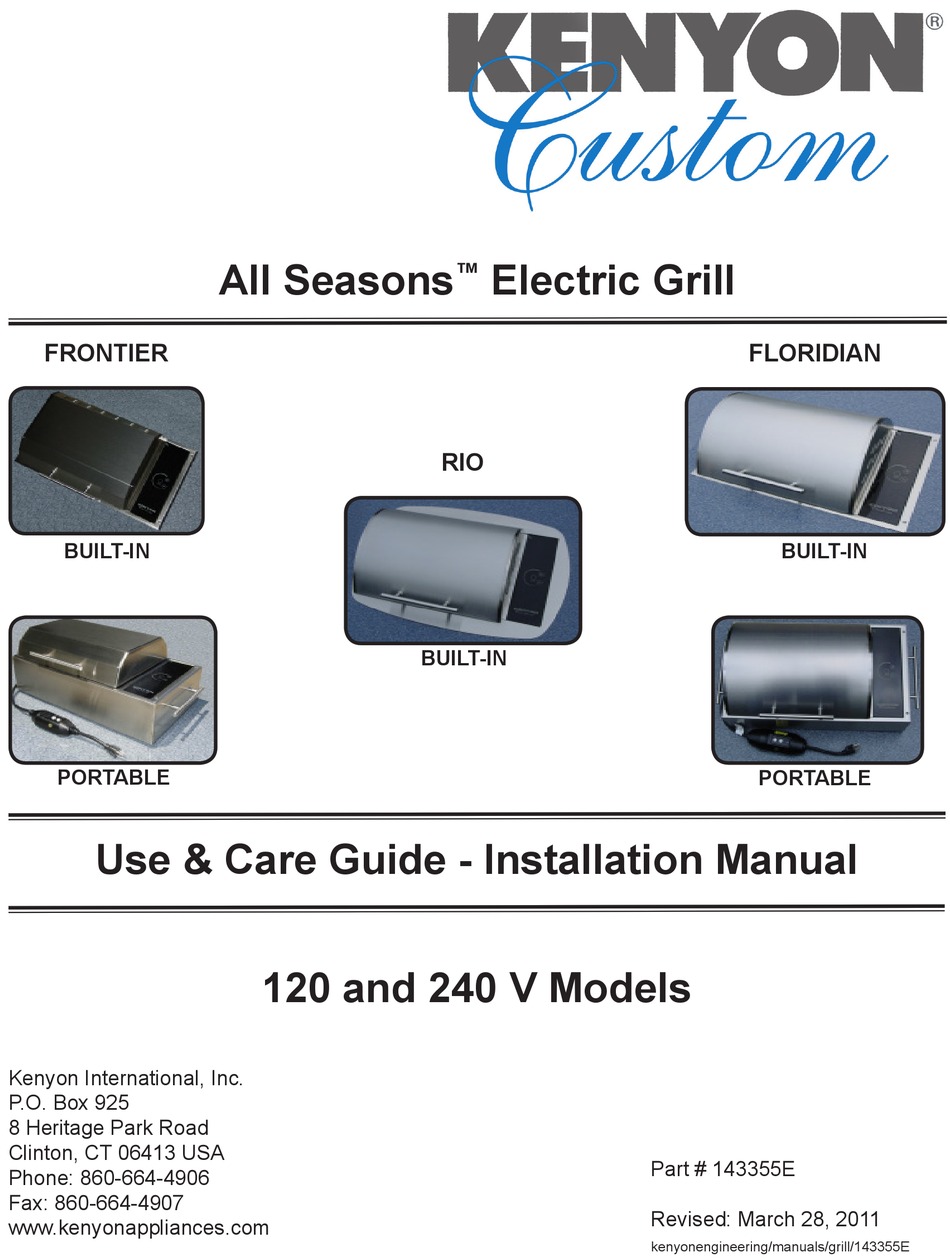

BUILT-IN BUILT-IN BUILT-IN PORTABLE PORTABLE Use & Care Guide - Installation Manual 120 and 240 V Models Kenyon International, Inc. P.O. Box 925 8 Heritage Park Road Clinton, CT 06413 USA Part # 143355E Phone: 860-664-4906 Fax: 860-664-4907 Revised: March 28, 2011 www.kenyonappliances.com... -
Page 2: Table Of Contents
Table of Contents Section Page Important Safeguards ......................How to Use Grill Quick Start Tips ....................... Stuffed French Toast ....................... Product Specifications ......................Installation Instructions Package Contents ......................Electrical Requirements ....................Countertop Installation ....................Drain Connection ......................Outlet Location ....................... Final Preparations Prior to Use .................. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read ALL instructions prior to using product. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock, do not immerse cord or plugs in water or other liquid. 4. -
Page 4: How To Use Grill
HOW TO USE GRILL THE ABOVE TAG IS AFFIXED TO THE LID HANDLE OF YOUR GRILL. READ THIS INFORMATIVE PIECE OF INFORMATION PRIOR TO USING YOUR GRILL. IT IS NOT ILLEGAL TO REMOVE THIS TAG HOWEVER ALL USERS OF THE GRILL SHOULD READ PRIOR TO REMOVAL. - Page 5 1. Before using your grill, remove the cooking grate and drip tray from the grill. Wash the grill with warm soapy water using a non-abrasive cloth. USE ONLY HIGH TEMP PLASTIC UTENSILS WHEN GRILLING. Visit our web site to purchase a set of high quality stainless steel/ high temp plastic grill utensils, www.kenyonappliances.com.
- Page 6 12. To clean the grill, first be sure the cooking surface has cooled enough to handle. Then remove the grates, lift up the electric elements until they lock in the up position, remove the middle grate support cross bar, then the drip trays. The grate support cross bar is removed by lifting the rear and pulling the front notch off of the supporting tab.
-
Page 7: Stuffed French Toast
Stuffed French Toast 16 slices Thin Sliced Bread “any kind but not the white stuff” 1 lb. Cream Cheese (softened) ½ cup Peach Preserves (or your favorite) 4 T. Butter French Toast Batter: Large eggs thoroughly beaten 1 cup Milk 1 T. -
Page 8: Product Specifications
PRODUCT SPECIFICATION Frontier Model B70050 - 120V AC - 1300 WATTS - 11 AMPS Model B70051 - 240V AC - 1300 WATTS - 6 AMPS Overall dimensions: 21” x 12” x 4 1/2” (7 3/4” with lid) 533mm x 305mm x 114mm (197mm with lid) -
Page 9: Package Contents
INSTALLATION Package Contents Your All Seasons™ Grill is assembled and ready for use. Before you use the grill write your unit’s serial number here for future reference: _________________. The serial number can be found on the short side of the grill at the end with the glass control panel. The serial number consists of six digits. -
Page 10: Electrical Requirements
Electrical Requirements Check the Electrical Supply Requirements This product must be installed in accordance with national, state and local electric codes. The following table provides the correct voltage, amperage and frequency that must be supplied to the grill. The supply must be from an individual grounded circuit that is protected by a circuit breaker and rated per the specifications for the model as shown in the table below. - Page 11 B70050 GRILL Countertop Cutout DIMENSIONS Please read this section prior to making cutout for the grill. It is important to plan ahead for installation of the grill, keeping the following dimensions in mind (please refer to Fig. 2 below). A - 13 inches maximum depth of overhead cabinets B - 36 inches is minimum height of counter top above floor C - The minimum flat countertop surface that the grill will rest upon must be equal to or greater than the overall...
- Page 12 WARNING: To eliminate the risk of burns from reaching over heated grill, cabinet storage space located above the grill should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
-
Page 13: Drain Connection
Drain Connection For your convenience, the grill is equipped with a 1/8” NPT brass pipe fitting and 90º brass elbow which you can attach the 1/4” ID flexible hose that came with your grill. The portable version of the grill comes with a brass pipe plug installed in the drain fitting. -
Page 14: Operation Of Grill
OPERATION OF GRILL DO NOT USE WATER ON GREASE FIRES Smother fire or flame or use dry chemical or foam-type extinguisher. USE ONLY DRY POT HOLDERS Moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holder touch the grate or element of the grill. -
Page 15: Touch Control
Touch Control (+) POWER POWER ON INDICATOR SENSOR This display indicates whether the grill is ON POWER ON POWER LEVEL or OFF. INDICATOR DISPLAY POWER LEVEL DISPLAY Digital display indicates heat output of grill. The indicator lamps follow the sweep of the screened graphic. - Page 16 CALIBRATION Upon application of electrical power to the grill, the controller will run a self-calibration process. The controller will then sound an audible confirmation tone and the display will briefly illuminate. The grill is now ready ON/OFF to be used. POWER ON INDICATOR ENERGIZING THE GRILL...
- Page 17 TURNING “OFF” THE GRILL To turn off the grill, simply touch and hold the Master Power Sensor for two seconds. The control- ler will de-energize and shut off the heating element. IN AN EMERGENCY THE GRILL CAN BE TURNED OFF BY PRESSING THE “TEST” BUTTON ON THE GFCI.
-
Page 18: Power Cord
Power Cord THIS PERTAINS TO 120V GROUNDED 3-PRONG PLUG MODELS ONLY GROUND FAULT CIRCUIT INTERRUPTER (GFCI) The GFCI is a safety device designed to protect the user from any electrical shock hazard. INDICATOR LIGHT The indicator light will stay illuminated when electrical power is applied and indicates that the GFCI is working properly. -
Page 19: Grill Parts
Grill Parts HEATING ELEMENT GRATE The heating element is designed to pivot as shown to remove/replace the baffle tray and drip tray. It will stay in the up position. To put down apply slight downward pressure. BAFFLE TRAY The baffle tray supports the drip tray, heating element and grate and must always DRIP TRAY be used when operating the grill. -
Page 20: Lid Removal
Lid Removal Fig. 7 LID REMOVAL The grill lid is removable for cleaning. To remove the lid, slide the quick release pin out of the hinge. (see Fig. 7) QUICK RELEASE QUICK RELEASE With the quick release pin removed, grasp the lid, lifting on the left side to clear the hinge and slide it the left until clear of the hinge pin on the right. -
Page 21: Warranty Information
