Summary of Contents for Kenyon B70426

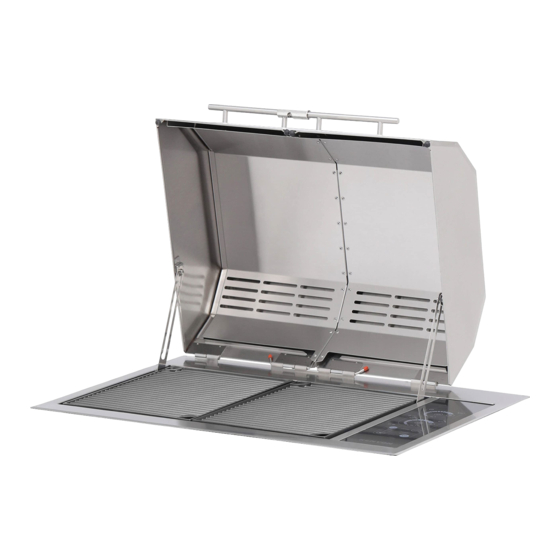

- Page 1 www.CookWithKenyon.com T E X AN W I TH I N TE LLI KEN TO U C H ™ OWNERS MANUAL Part # 145416 Created: May 19, 2017 Revised: November 11, 2022...
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS Please read & save Product Specifications these instructions Electric Supply Requirements ......5 Dimensions ............6 Thank you for choosing Kenyon, Before Using the Grill the world’s leading manufacturer Quick Start Tips.............7 of specialty cooking appliances. Grilled Flank Steak (Recipe) ........8... -
Page 3: Important Safety Instructions
If the appliance involved. malfunctions, discontinue use. Contact KENYON Customer Care immediately at Cleaning and user maintenance shall not (860) 664-4906. be made by children without supervision. The use of accessory attachments not... - Page 4 DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM WITH THE KENYON GRILL FOR FUTURE REFERENCE. WARNING! Charcoal or similar combustible fuels must not be used with this appliance. Q U I C K...
-
Page 5: Product Specifications
240V AC 13A 50/60Hz 3 wire cord no plug B70425AU 3000 Watts 240V AC 13A 50/60Hz AU 3 prong grounded cord B70426 3000 Watts 240V AC 13A 50/60Hz 3 wire cord no plug B70426NH 3000 Watts 240V AC 13A 50/60Hz... -
Page 6: Dimensions
Product Specifications Overall & Cutout Dimensions PRODUCT DIMENSIONS WIDTH DEPTH HEIGHT 29 1/2” 21” 5 1/2” (12 1/2” with lid) 750mm 533mm 139.7mm (317.5mm with lid) CUTOUT DIMENSIONS WIDTH DEPTH RADIUS 28” 18 1/2” 1/4” 711mm 470mm... -
Page 7: Before Using The Grill
Before Using the Grill Remove the cooking Preheat grill with the lid closed for 5 - 7 grates and drip trays minutes on desired heat setting for type of from the grill. Wash the food: • Steak - Temp setting 550˚F/ Power setting 16 grill with warm soapy water •... -
Page 8: Grilled Flank Steak (Recipe)
If stains appear, use a previous grilling sessions. ceramic glass cleaner which can be found in your local grocery store. Your Kenyon grill came with a sample bottle of stainless steel cleaner. Use this cleaner once a month to keep your grill looking like new. -
Page 9: Operation
Contact an authorized service center or DO NOT CLEAN UNIT WITH PRESSURIZED KENYON Customer Care immediately at WATER (860) 664-4906. Never clean the grill with any form of pressurized water or other types of cleaners. -
Page 10: Indicator Lights
Operation Indicator Lights Safety Lock Feature There are a series of lights that provide When the LOCKED LED is illuminated in indications of element operation and hot the main power control frame, the grill touch surfaces. control power settings can’t be adjusted from the current setting. -
Page 11: Heat Level Cooking Mode
Operation Heat Level Cooking Mode With the main power on and the element powered on, swipe your finger along the temperature control arc and release at the desired setting. The settings range from LOW-MED-HIGH in 16 increments, as Select the desired cooking temperature, indicated by the LED light array that ranging from 150°... -
Page 12: Timer Options
Operation Timer Options Cooking Timer Each element has its own cooking timer that can be activated to shut the heating element Kitchen Timer off at the end of the set time. The kitchen timer is a general timer that has many uses around the kitchen, independent of At any time during cooking for each element, cooking activity on the grill. -
Page 13: Automatic Shut-Off Time
Operation Automatic Shut-Off Time Temperature Guide The table below displays the automatic shut-off The following is meant to be a guideline. time corresponding to each heat setting. Individual results may vary depending on conditions. Factors such as wind, and outside temperatures, food temperature when placed on AUTOMATIC grill can affect cooking times. -
Page 14: Error Code Readout
T E X A N G R I L L W I T H I N T E L L I K E N T O U C H ™ M A I N T E N A N C E The Kenyon Texan Grill with IntelliKEN Touch™ is a sealed unit that does not require regular maintenance. -
Page 15: Grill Parts
Operation Grill Parts Heating Elements The heating elements are designed to pivot as shown to remove/replace the baffle tray and drip trays. They will stay in the up position. To put down apply slight downward pressure. Baffle Tray The baffle tray supports the drip trays, heating elements and grates and must always be used when operating the grill. -
Page 16: Lid Removal
Operation Lid Removal Handle Lock The grill lids are removable for cleaning. The handle lock allows the user to lock both lids To remove the lids, open it so the bearing together for ease of opening and accessing the is aligned with the notch in the lidstay. Pull entire grilling surface. -
Page 17: Installation
Carefully unpack the grill from its shipping container. Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. Texan Grill with (1) Stainless IntelliKEN Touch™ steel cleaner... -
Page 18: Countertop Preparation
Installation Countertop Preparation D - 30 inches minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet or 24 inch Your Texan Grill with IntelliKEN Touch™ is minimum clearance when the bottom of the supplied with a factory installed polished wood or metal cabinet is protected by not less stainless steel flange that accepts nine oval head... - Page 19 Installation When making countertop cutout, radius the WARNING! corner to help prevent cracking of the countertop material. A 1/4 inch radius is typical, but follow the countertop manufacturer’s instructions To eliminate the risk of burns by regarding the minimum radius and any reaching over heated surface units, reinforcements required to prevent damage to the countertop over time.
-
Page 20: Drain Connection
Installation Drain Connection Final Preparations Prior to Use For your convenience, the grill is equipped with a 1/2” NPT brass pipe fitting and 90º Remove the protective plastic film from the brass elbow which you can attach the 5/8” ID lid, trim flange and glass panel. -
Page 21: Warranty
Statement of Warranty KENYON Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
