Summary of Contents for Kenyon BIG AMERICAN GRILL

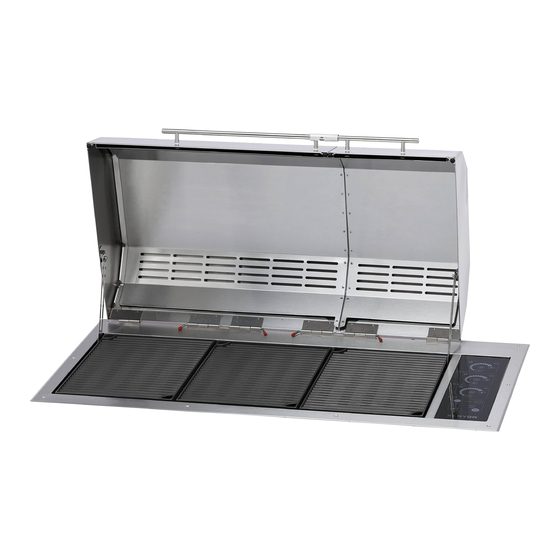

- Page 1 www.CookWithKenyon.com BI G AM E RICA N G R I LL™ - 24 0 V OWNERS MANUAL Part # 145412 Created: April 4, 2017 Revised: June 17, 2020...
-
Page 2: Table Of Contents
IMPORTANT SAFETY INSTRUCTIONS Please read & save Product Specifications these instructions Before Using the Grill Quick Start Tips Thank you for choosing Kenyon, Stuffed French Toast the world’s leading manufacturer of specialty cooking appliances. Operation By following the instructions in... -
Page 3: Important Safety Instructions
Do not operate appliance with a damaged involved. power cord or plug. If the appliance malfunctions, discontinue use. Contact KENYON Customer Care immediately at Cleaning and user maintenance shall not (860) 664-4906. be made by children without supervision. Allow the grill to cool before taking off The use of accessory attachments not cooking grates, disposable drip trays or lids. - Page 4 DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM WITH THE KENYON GRILL FOR FUTURE REFERENCE. WARNING! Charcoal or similar combustible fuels must not be used with this appliance. Q U I C K...
-
Page 5: Product Specifications
Product Specifications Big American Grill™ BURNER DATA - Model B70430 (240V) VOLTAGE AMPS OUTPUT IN WATTS 240V AC 4500 PRODUCT DIMENSIONS WIDTH DEPTH HEIGHT 40.91” 21” 5.5” (12.5” with lid) 1039mm 533mm 139.7mm (317.5mm with lid) 20.00in 508mm CUTOUT DIMENSIONS... -
Page 6: Before Using The Grill
Before Using the Grill Remove the cooking Preheat grill with the lid closed for 5 - 7 grates and drip trays minutes on desired heat setting for type of from the grill. Wash the food: • Steak - Temp setting 550˚F/ Power setting 16 grill with warm soapy water •... -
Page 7: Stuffed French Toast
If stains appear, use a previous grilling sessions. ceramic glass cleaner which can be found in your local grocery store. Your Kenyon grill came with a sample bottle of stainless steel cleaner. Use this cleaner once a month to keep your grill looking like new. -
Page 8: Operation
Contact an authorized service center or DO NOT CLEAN UNIT WITH PRESSURIZED KENYON Customer Care immediately at WATER (860) 664-4906. Never clean the grill with any form of pressurized water or other types of cleaners. -
Page 9: Indicator Lights
Operation Indicator Lights Safety Lock Feature There are a series of lights that provide When the LOCKED LED is illuminated in indications of element operation and hot the main power control frame, the grill touch surfaces. control power settings can’t be adjusted from the current setting. -
Page 10: Heat Level Cooking Mode
Operation Heat Level Cooking Mode 16 LED LIGHT ARRAY With the main power on and the element powered on, swipe your finger along the ELEMENT CONTROL FRAME temperature control arc and release at the COOKING TEMPERATURE desired setting. The settings range from READOUT LOW-MED-HIGH in 16 increments, as LED LIGHT ARRAY... -
Page 11: Timer Options
Operation Timer Options The time reading will speed up as the touch is held. Touch the timer button to start. If no time is set, the timer will deactivate after 20 Kitchen Timer seconds and normal cooking will resume. The kitchen timer is a general timer that has many uses around the kitchen, independent of As the set time elapses, the display will show cooking activity on the grill. -
Page 12: Automatic Shut-Off Time
Operation Automatic Shut-Off Time Temperature Guide The table below displays the automatic shut-off The following is meant to be a guideline. time corresponding to each heat setting. Individual results may vary depending on conditions. Factors such as wind, and outside temperatures, food temperature when placed on AUTOMATIC grill can affect cooking times. -
Page 13: Error Code Readout
B I G A M E R I C A N G R I L L ™ M A I N T E N A N C E The Kenyon Big American Grill™ is a sealed unit that does not require regular maintenance. -
Page 14: Grill Parts
The replacement for the disposable drip tray is Kenyon part #B96001. Grates Grates must be cleaned after every use. The grates have a nonstick coating for ease of cleaning. -
Page 15: Lid Removal
Operation Lid Removal Handle Lock The grill lids are removable for cleaning . The handle lock allows the user to lock both lids To remove the lids, open it so the bearing together for ease of opening and accessing the is aligned with the notch in the lidstay. -
Page 16: Installation
Carefully unpack the grill from its shipping container. Verify and identify the package contents. The following items should be included in the carton. If any components are missing or damaged, call KENYON immediately. Big American (1) Stainless Grill™ steel cleaner... -
Page 17: Countertop Preparation
D - 30 inches minimum clearance between the top of the cooking surface and the bottom of an unprotected wood or metal cabinet or 24 inch Your Big American Grill™ is supplied with a minimum clearance when the bottom of the factory installed polished stainless steel flange... -
Page 18: Drain Connection
Installation If your countertop is made of stone you will need to use an acrylic latex to mount the grill WARNING! in place. Put a large bead of caulk around the cutout opening and place the grill in place. Wipe To eliminate the risk of burns by away any excess caulk, use water to remove the excess caulk. -
Page 19: Warranty
Statement of Warranty KENYON Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
