Use & Care Guide - Installation Manual
Kenyon International, Inc.
P.O. Box 925
8 Heritage Park Road
Clinton, CT 06413 USA
Phone: 860-664-4906
Fax: 860-664-4907
www.kenyonappliances.com
All Seasons
120 and 240 V Models
Electric Grill
™
RIO
BUILT-IN
FLORIDIAN
BUILT-IN
PORTABLE
Part # 143355E
Revised: March 28, 2011
kenyonengineering/manuals/grill/143355E
Advertisement
Table of Contents
Related Manuals for Kenyon All Seasons Frontier B70050
Summary of Contents for Kenyon All Seasons Frontier B70050
-
Page 1: Electric Grill
BUILT-IN BUILT-IN BUILT-IN PORTABLE PORTABLE Use & Care Guide - Installation Manual 120 and 240 V Models Kenyon International, Inc. P.O. Box 925 8 Heritage Park Road Clinton, CT 06413 USA Part # 143355E Phone: 860-664-4906 Fax: 860-664-4907 Revised: March 28, 2011 www.kenyonappliances.com... -
Page 2: Table Of Contents
Table of Contents Section Page Important Safeguards ......................How to Use Grill Quick Start Tips ....................... Stuffed French Toast ....................... Product Specifications ......................Installation Instructions Package Contents ......................Electrical Requirements ....................Countertop Installation ....................Drain Connection ......................Outlet Location ....................... Final Preparations Prior to Use .................. -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read ALL instructions prior to using product. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against electrical shock, do not immerse cord or plugs in water or other liquid. 4. -
Page 4: How To Use Grill
HOW TO USE GRILL THE ABOVE TAG IS AFFIXED TO THE LID HANDLE OF YOUR GRILL. READ THIS INFORMATIVE PIECE OF INFORMATION PRIOR TO USING YOUR GRILL. IT IS NOT ILLEGAL TO REMOVE THIS TAG HOWEVER ALL USERS OF THE GRILL SHOULD READ PRIOR TO REMOVAL. - Page 5 1. Before using your grill, remove the cooking grate and drip tray from the grill. Wash the grill with warm soapy water using a non-abrasive cloth. USE ONLY HIGH TEMP PLASTIC UTENSILS WHEN GRILLING. Visit our web site to purchase a set of high quality stainless steel/ high temp plastic grill utensils, www.cookwithkenyon.com.
- Page 6 13. Wipe the stainless steel surfaces with a damp cloth to remove any residue from previous grilling sessions. 14. Your Kenyon grill came with a sample bottle of stainless steel cleaner. Use this cleaner once a month to keep your grill looking like new.
-
Page 7: Stuffed French Toast
Stuffed French Toast 16 slices Thin Sliced Bread “any kind but not the white stuff” 1 lb. Cream Cheese (softened) ½ cup Peach Preserves (or your favorite) 4 T. Butter French Toast Batter: Large eggs thoroughly beaten 1 cup Milk 1 T. -
Page 8: Product Specifications

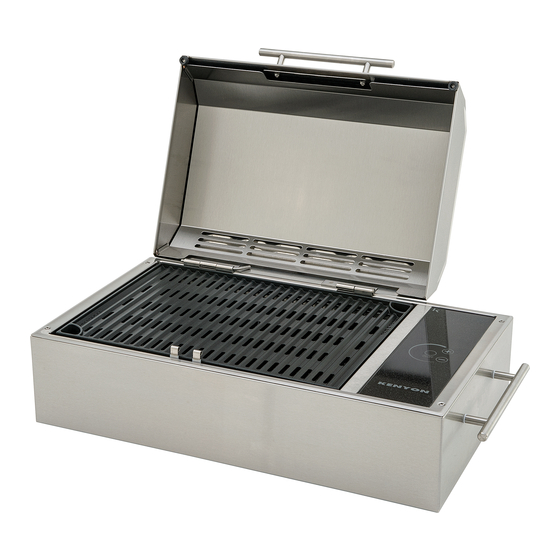

PRODUCT SPECIFICATION Frontier Model B70050 - 120V AC - 1300 WATTS - 11 AMPS Model B70051 - 240V AC - 1300 WATTS - 6 AMPS Overall dimensions: 21” x 12” x 4 1/2” (7 3/4” with lid) 533mm x 305mm x 114mm (197mm with lid) -
Page 9: Package Contents
Contained in the shipping container is the All Seasons™ Grill, four (4) mounting screws, three (3) feet of drain hose, elbow fitting or drain plug depending on if portable or built-in, manual and stainless steel cleaner. If any components are missing or damaged, call KENYON immediately. Fig. 1... -
Page 10: Electrical Requirements
The supply must be from an individual grounded circuit that is protected by a circuit breaker and rated per the specifications for the model as shown in the table below. KENYON Max Load Power Supply Plug Type Part # B70050 B70080 B70082 1300 Watts 120V AC 11A 60Hz 3 prong grounded B70085... - Page 11 B70050 GRILL Countertop Cutout DIMENSIONS Please read this section prior to making cutout for the grill. It is important to plan ahead for installation of the grill, keeping the following dimensions in mind (please refer to Fig. 2 below). A - 13 inches maximum depth of overhead cabinets...
- Page 12 WARNING: To eliminate the risk of burns from reaching over heated grill, cabinet storage space located above the grill should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
-
Page 13: Drain Connection
Drain Connection For your convenience, the grill is equipped with a 1/8” NPT brass pipe fitting and 90º brass elbow which you can attach the 1/4” ID flexible hose that came with your grill. The portable version of the grill comes with a brass pipe plug installed in the drain fitting. -
Page 14: Operation Of Grill
DO NOT COOK ON BROKEN GRILL GRATE OR GRIDDLE If the grate should break, grease and oils may come into direct contact with the electric element and create a risk of electric shock or fire. Contact an authorized service center or KENYON Customer Care immediately at (860) 664-4906. -
Page 15: Touch Control
Touch Control (+) POWER POWER ON INDICATOR SENSOR This display indicates whether the grill is ON POWER ON POWER LEVEL or OFF. INDICATOR DISPLAY POWER LEVEL DISPLAY Digital display indicates heat output of grill. The indicator lamps follow the sweep of the screened graphic. - Page 16 HEAT SETTINGS DISPLAY (HEAT SETTING 8 SELECTED) Your KENYON grill has 8 different heat set- tings, from 1 through 8, selected using the (-) and (+) sensors. The heat setting is displayed as shown at the right. The heating element cycles at different time intervals to vary the heat level.
- Page 17 ON THE GFCI. AUTOMATIC SHUT-OFF The electronic control of your KENYON grill has been programmed with safety in mind and features an automatic shut-off. The grill is programmed to shut down after a predetermined time after being energized (see table below). The control will also shut off if it reaches a preset temperature limit. If this occurs, allow the grill to cool down for 20-30 minutes.
-
Page 18: Power Cord
Power Cord THIS PERTAINS TO 120V GROUNDED 3-PRONG PLUG MODELS ONLY GROUND FAULT CIRCUIT INTERRUPTER (GFCI) The GFCI is a safety device designed to protect the user from any electrical shock hazard. INDICATOR LIGHT The indicator light will stay illuminated when electrical power is applied and indicates that the GFCI is working properly. -
Page 19: Grill Parts
BAFFLE in the drip tray before cooking. The TRAY replacement for the disposable drip tray is Kenyon part #B96001. GRATE The grate must be cleaned after every use. HEATING The grate has a nonstick coating for ease of ELEMENT cleaning. -
Page 20: Lid Removal
Lid Removal Fig. 7 LID REMOVAL The grill lid is removable for cleaning. To remove the lid, slide the quick release pin out of the hinge. (see Fig. 7) QUICK RELEASE QUICK RELEASE With the quick release pin removed, grasp the lid, lifting on the left side to clear the hinge and slide it the left until clear of the hinge pin on the right. -
Page 21: Warranty Information
Warranty Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
