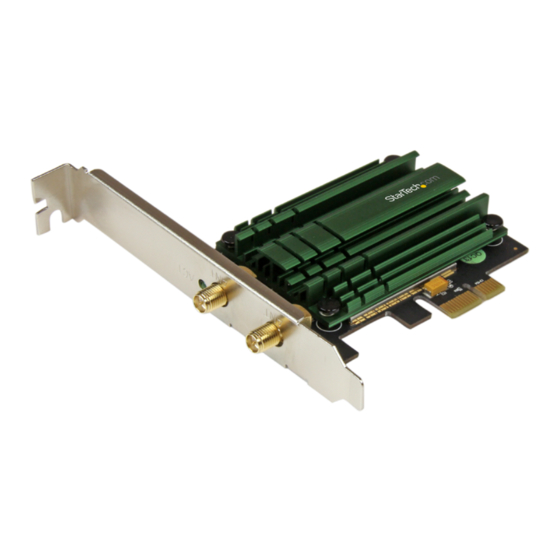

PCI Express to AC1200 Wireless-AC
Network Card
PEX867WAC22
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/16/2014
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com PEX867WAC22
Summary of Contents for StarTech.com PEX867WAC22
-
Page 1: Network Card
DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/16/2014... -
Page 2: Industry Canada Statement
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user’s authority to operate the equipment. - Page 3 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 4: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Product Overview ..................1 LED Indicator .............................. 1 Installation ....................2 Hardware Installation ..........................2 Software Installation ..........................3 Verifying Installation ..........................3 Operation ....................4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 5: Introduction
Introduction Packaging Contents • 1 x PCI Express Wireless-AC Card • 2 x 5 dBi Dual Band Antennas • 1 x Antenna Stand • 1 x Low Profile Bracket • 1 x Driver CD • 1 x Instruction Manual System Requirements •... -
Page 6: Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 7: Software Installation
Software Installation 1. Insert the provided CD into your DVD/CD-ROM drive. 2. Select Autorun.exe from the Autoplay menu. If Autoplay is disabled on your system, browse to your CD/DVD drive and run the application. 3. Select the Driver Installation option. 4. -
Page 8: Operation
Bar, select Settings and then select Wifi Windows 7 Click the network adapter tray icon Windows Vista Click Start, then Connect To Right-click the wireless adapter tray icon and select View Windows XP Available Wireless Networks For full operating instructions, please visit www.startech.com/PEX867WAC22 Instruction Manual... -
Page 9: Specifications
Specifications Host Interface PCI Express Chipset Realtek - RTL8812AE 2 x RP-SMA (Coax; Reverse Polarity External Connectors SubMiniature A) Female IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE Supported Standards 802.11n, IEEE 802.11ac Antenna Configuration 2x2:2 (TxR:S) 2.400GHz ~ 2.484GHz Wireless Frequencies 5.180GHz ~ 5.850GHz Supported Security Schemes 64/128 bit WEP, WPA, WPA2 (TKIP/AES) -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
