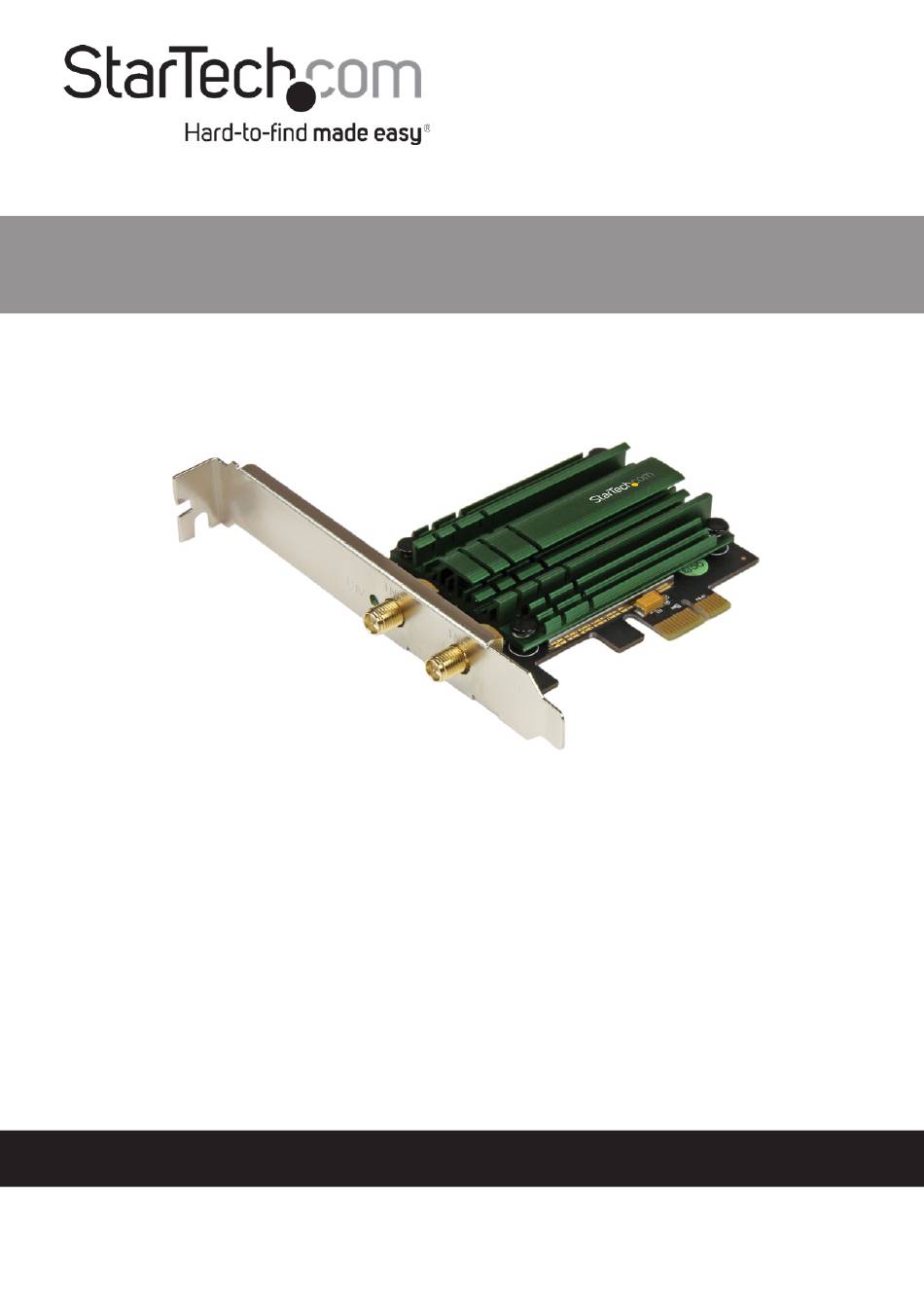

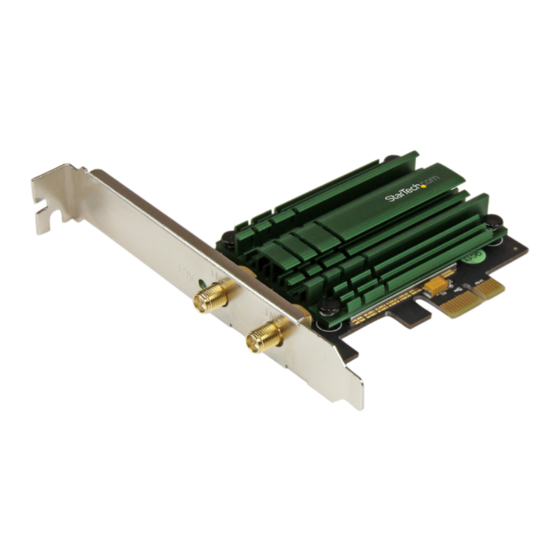

- Page 1 PCI Express to AC1200 Wireless-AC Network Card Actual product may vary from photos User Manual SKU#: PEX867WAC22 For the latest information and specifications visit www.startech.com/PEX867WAC22 Manual Revision: 05/08/2020...
-
Page 2: Compliance Statements
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 3 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 4: Safety Statements
• 電源が入っている状態の製品または電線の終端処理を行わないでくださ い。 • ケーブル （電源ケーブルと充電ケーブルを含む） は、 適切な配置と引き回し を行い、 電気障害やつまづきの危険性など、 安全上のリスクを回避するよう にしてください。 Misure di sicurezza • I terminiali dei fili elettrici non devono essere realizzate con il prodotto e/o le linee elettriche sotto tensione. • I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. Säkerhetsåtgärder • Montering av kabelavslutningar får inte göras när produkten och/eller elledningarna är strömförda. • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 5: Table Of Contents
Installing the Low Profile Bracket ......................7 Hardware Installation ..........................8 Attaching the Dual Band Antennas ....................9 Downloading the Driver ......................... 9 Verifying Installation ..........................10 Operation ....................10 Specifications ..................11 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Product Diagram
Product Diagram Component Description LED Indicator Flashing: Indicates • activity 2.4 to 5GHz. Antenna Connectors Used to connect the • 5 dBi Dual Band Antennas to the Network Card. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Information
Computer with an available PCI Express® slot (x4, x8, or x16) • Tools Small Phillips® Head Screwdriver • Windows® 8, 7, Vista, or XP • Windows Server® 2012, 2008 R2, or 2003 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Hardware Installation
Insert the Bracket Screws through the Network Card and into the Screw Holes on the Low Profile Bracket. Using the Small Phillips Head Screwdriver, tighten the Bracket Screws, being careful not to over-tighten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Hardware Installation
Slot and fasten the Bracket to the back of the Computer Case. (Optional) Connect a 15 Pin SATA Power Connector from the Power Supply to the SATA Power Connector on the Network Card. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Attaching The Dual Band Antennas
Operating System running on the Host Computer. When you have downloaded and unzipped the driver. Click on the Installation Guide PDF and follow the instructions. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Verifying Installation
Name of the wireless network (SSID) • Security type (if any) • Password • Consult the documentation for your wireless access point (AP) or contact your network administrator for details. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 12: Specifications
Operating 0°C ~ 60°C (32°F ~ 140°F) Temperature Storage Temperature 0°C ~ 70°C (32°F ~ 158°F) Humidity 10% ~ 90% RH Dimensions 83 x 18 x 120mm Weight To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 13 Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Compatible Operating Systems Windows Server® 2012, 2008 R2, 2003(32/64) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
