Instruction Manual

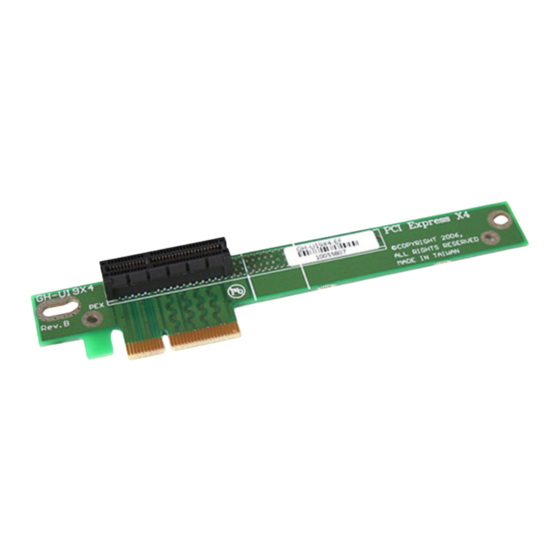

PCI Express Riser Card - x4 Left Slot Adapter for 1U Servers
PEX4RISER / PEX8RISER
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1x Riser Card
• 1x Instruction Manual
System Requirements
• PCI Express enabled computer system with available x4/x8 PCIe
slot
• 1U server chassis
Installation
WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly
grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static
strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by
touching a large grounded metal surface (such as the computer case) for several seconds. Also be careful to handle the PCI Express card by
its edges and not the gold connectors.
1. Make sure that your system is unpowered and unplugged and you are grounded.
2. Remove the cover of your system (refer to computer system documentation, if necessary) so that the PCI Express expansion slot openings
on the motherboard are accessible.
3. Align the PCI Express connector on the riser card with an available PCI Express slot.
4. Gently insert the card into the empty slot, making sure it is seated firmly. Fasten the card to the riser card mounting bracket on the
computer chassis (refer to computer system documentation, if necessary).
5. Install the desired PCI Express card into the PCIe slot on the riser card and fasten securely to the computer chassis (refer to computer
system documentation, if necessary).
6. Replace and fasten the computer cover.
For the most up-to-date information, please visit: www.startech.com

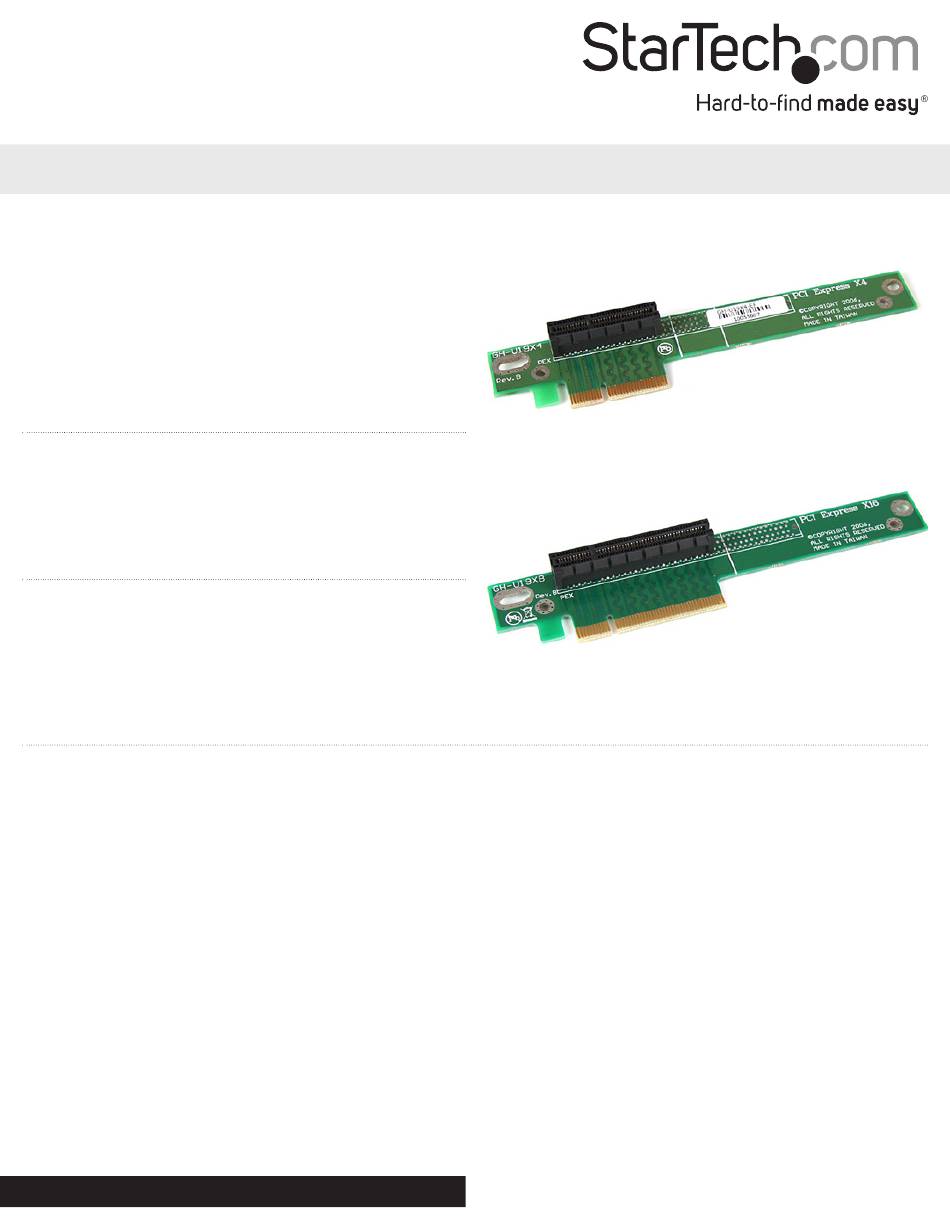

PEX4RISER
PEX8RISER
*actual product may vary from photos
Manual Revision: 01/31/2012
Advertisement
Related Manuals for StarTech.com PEX4RISER
Summary of Contents for StarTech.com PEX4RISER
- Page 1 PEX8RISER System Requirements • PCI Express enabled computer system with available x4/x8 PCIe slot • 1U server chassis Installation WARNING! PCI Express cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI Express card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. Also be careful to handle the PCI Express card by its edges and not the gold connectors. 1. Make sure that your system is unpowered and unplugged and you are grounded. 2. Remove the cover of your system (refer to computer system documentation, if necessary) so that the PCI Express expansion slot openings on the motherboard are accessible. 3. Align the PCI Express connector on the riser card with an available PCI Express slot. 4. Gently insert the card into the empty slot, making sure it is seated firmly. Fasten the card to the riser card mounting bracket on the computer chassis (refer to computer system documentation, if necessary). 5. Install the desired PCI Express card into the PCIe slot on the riser card and fasten securely to the computer chassis (refer to computer system documentation, if necessary). 6. Replace and fasten the computer cover. For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/31/2012...
- Page 2 Specifications PEX4RISER PEX8RISER PCI Express PCI Express Bus Interface (x4 slot connector) (x8 slot connector) Connectors x4 PCI Express slot x8 PCI Express slot Operating Temperature 0°C ~ 60°C (32°F ~ 140°F) Storage Temperature 0°C ~ 60°C (32°F ~ 140°F) Humidity 5% ~ 95% RH Dimensions (LxWxH) 158.0mm x 32.0mm x 15.0mm Weight FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)
