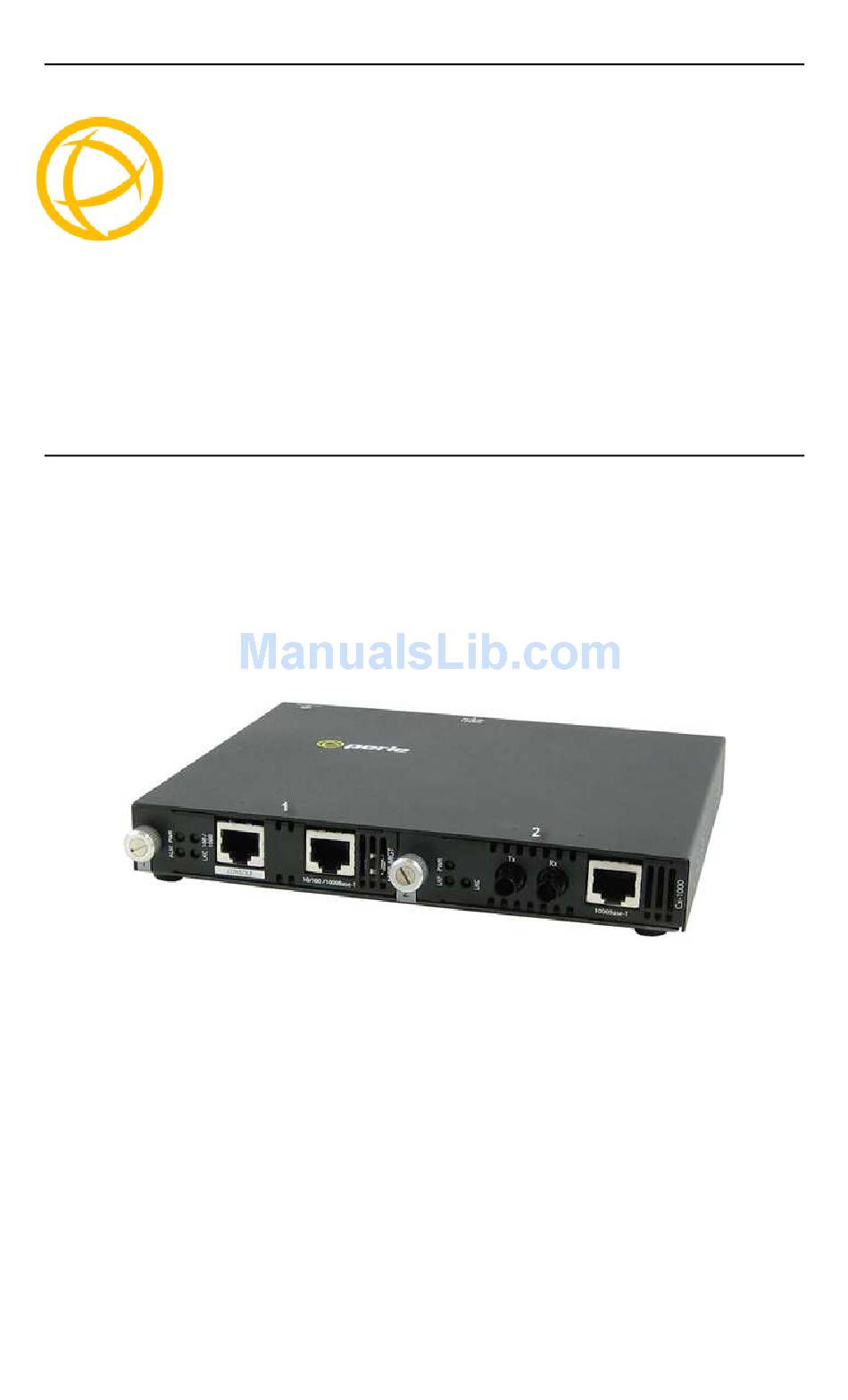

Page 1: Installation Guide

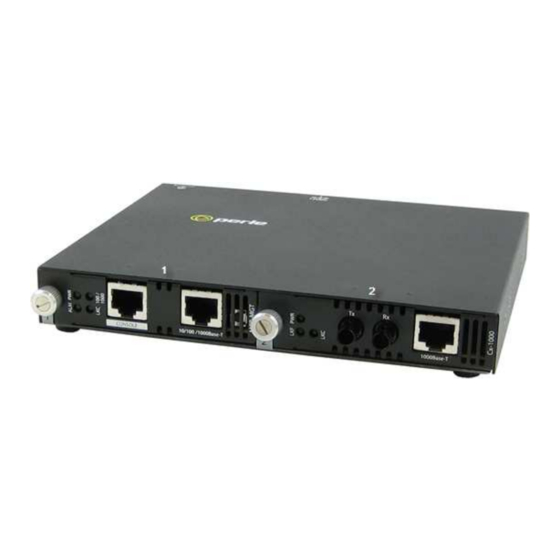

Perle MCR200 Installation Guide P/N 5500322-10... - Page 2 Introduction The Perle MCR200 Chassis is a 2 slot chassis able to accommodate up to 2 Perle Media Converter modules or 1 Media Converter Module and an MCR-MGT management Module. Overview This guide provides an overview of instructions necessary for the installation and operation of the MCR200 chassis.
- Page 3 Front and Rear Panel Components Front View (with modules installed) Rear View Powering up the MCR200 Note: The MCR200 should always be grounded for safe and proper operation. See Grounding the MCR200 Chassis Install desired Perle modules following the instructions in this guide or those supplied with the Module.
- Page 4 Tighten the Captive retainer screw to ensure the module is locked in place. Note: An open slot in the chassis should be covered with the supplied face plate (available as an accessory). Removing: Perle MCR200 Guide...
- Page 5 Module then cover the opening slot with a face plate and secure the screw. Note: Blanking face plates are available as an accessory. Grounding the MCR200 Chassis (Optional) If your installation requires additional grounding the following procedure can be followed.
- Page 6 Attach the power cord relief clip to the chassis and secure with the provided screw. Plug the power cord into the AC power connector at the rear of the chassis. Plug the other end of the power cord into an appropriate power outlet. Perle MCR200 Guide...
-
Page 7: Technical Specifications
EN 55024 Class A WARNING: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Perle MCR200 Guide... - Page 8 Warranty / Registration Perle’s Systems Ltd. standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
