A L L E G R O H A N D U S E R S M A N U A L

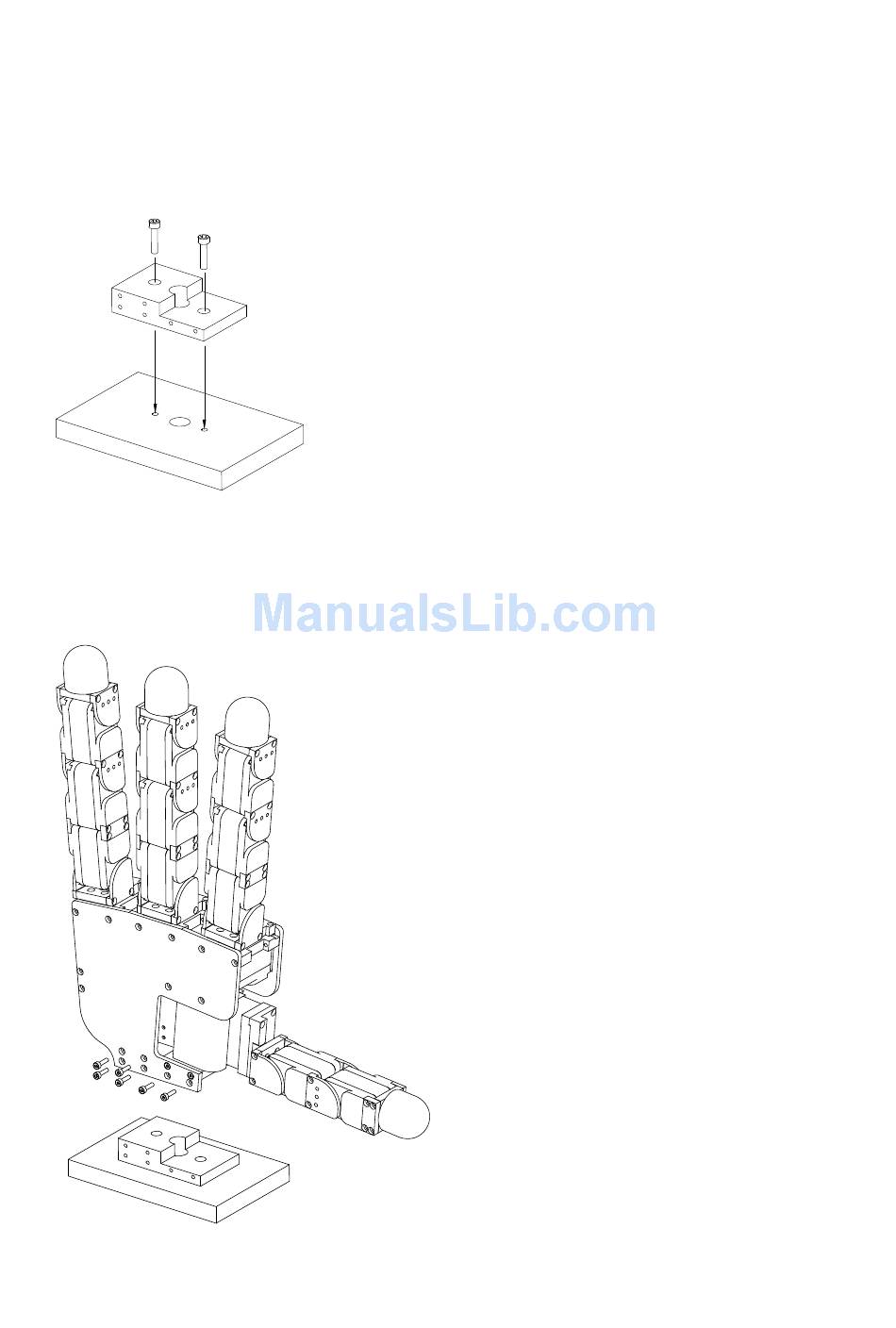

Mounting
The block can be mounted to a surface using two (2) M3 socket-head cap screws.
Note: The hand should be mounted to a raised area so as to avoid thumb-mount interference during
hand movement.
Reassembly
Place the hand onto the mounting block and replace the twelve (12) M2 socket-head cap screws
(6 on each side).
Copyright 2008-2012 SimLab Co., Ltd. All rights reserved.
23
