A L L E G R O H A N D U S E R S M A N U A L

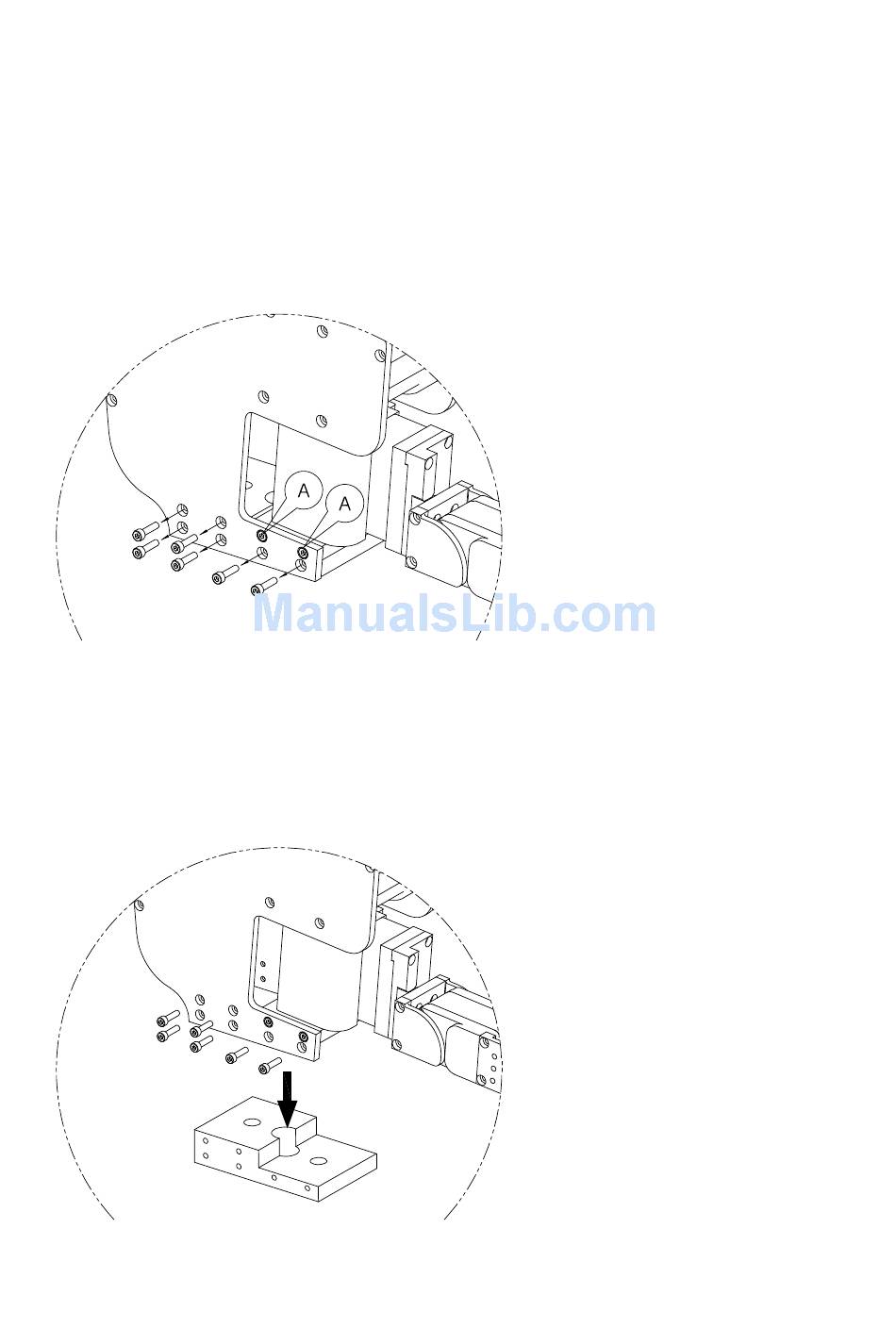

Remove six (6) screws on either side of the hand.
DO NOT remove the two (2) screws labeled A or the corresponding screws on the other side of the
hand.
Note: Secure the hand while unscrewing the mounting block to avoid dropping the hand once
disconnected.
Once the twelve (12) screws have been removed, the mounting block can be removed from the
bottom of the hand.
Copyright 2008-2012 SimLab Co., Ltd. All rights reserved.
22
