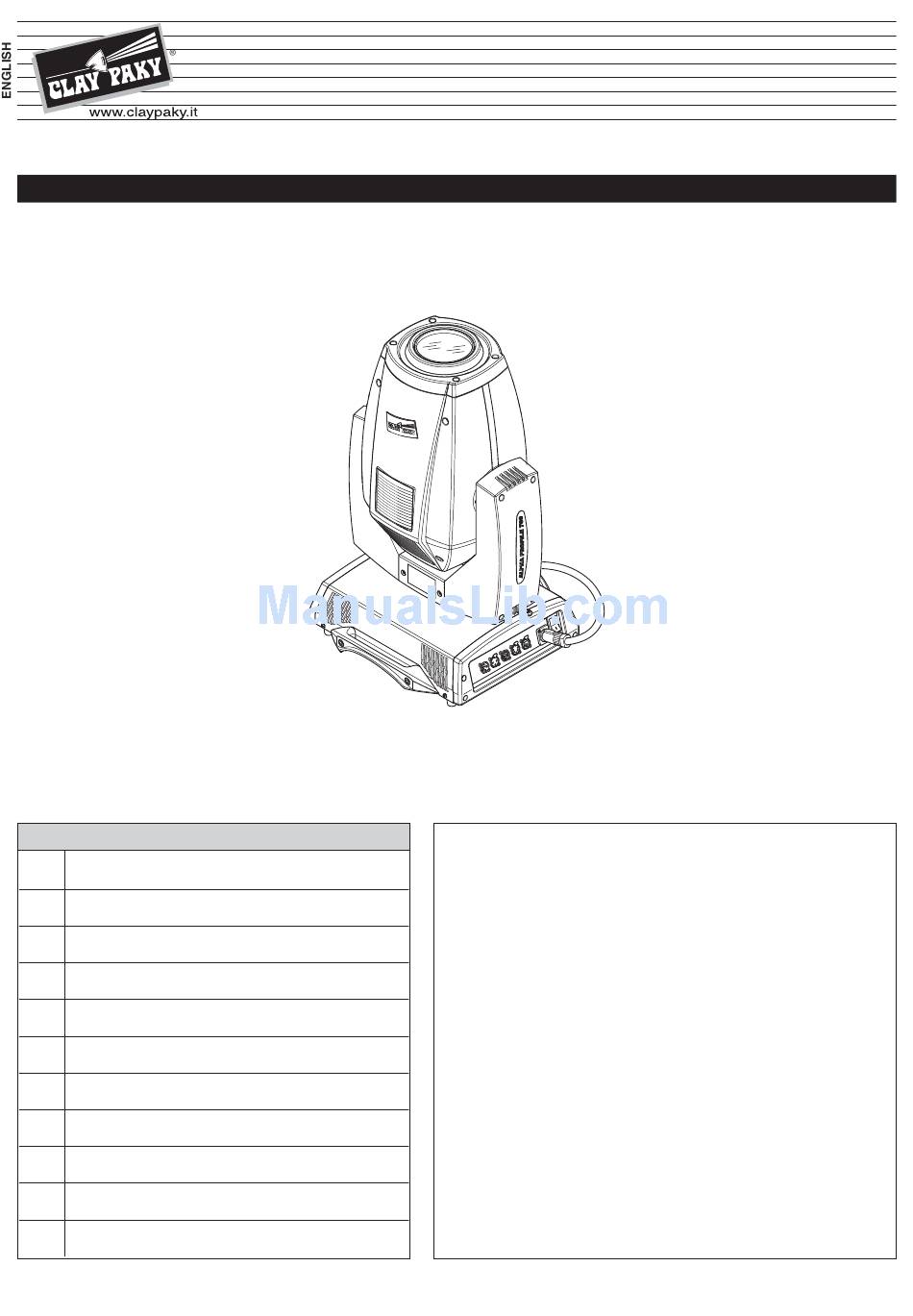

Clay Paky ALPHA PROFILE 700 Instruction Manual

Hide thumbs Also See for ALPHA PROFILE 700:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , Manual
INDEX
Pag.
Contents
2
3
4
5
7
14
Maintenance
23
24
24
25
ALPHA PROFILE 700
INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product!
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
1
C61365
ST
"
"
C61366

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALPHA PROFILE 700 and is the answer not in the manual?

Questions and answers

Related Manuals for Clay Paky ALPHA PROFILE 700

Summary of Contents for Clay Paky ALPHA PROFILE 700

  • Page 1: Table Of Contents

    Menu setting CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Maintenance or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    LiFePO4 The products referred to in this manual conform to the European Community Directives to which they are subject: • Low Voltage 2006/95/CE • Electromagnetic Compatibility 2004/108/CE “ ” ALPHA PROFILE 700 &...

  • Page 3: Unpacking And Preparation

    Lamp 700W (fitted into projector) Packing contents - Fig. 1 UNLOCKED LOCKED LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 “ ” ALPHA PROFILE 700 &...

  • Page 4: Installation And Start-Up

    WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. Connecting and disconnecting power cable - Fig. 5 “ ” ALPHA PROFILE 700 &...

  • Page 5: Control Panel

    During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the key will be cancelled. ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 6 All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. “ ” ALPHA PROFILE 700 &...

  • Page 7: Menu Setting

    Setting Preset User Preset 1 User Preset 2 User Preset 3 Manual Access code Lamp Test Pan / Tilt Advanced Control 1234 Colour Reset Upload Firmware Beam Channel Setup Model Gobo Calibration ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 8 – the current Universe address appears on the display. 2) Use the UP , DOWN , RIGHT keys to set the Universe address. 3) Press to confirm the selection or LEFT to keep the current setting. “ ” ALPHA PROFILE 700 &...
  • Page 9 1) Use the UP and DOWN keys to enable (On) or disable (Off) the overwriting. 2) Press to confirm the selection or LEFT to keep the current setting. ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 10 Preset 3 (*) DEFAULT PRESET Save To Used for restoring default values on all options menu items and relevant Preset 3 submenus. 1) Press , a confirmation message (Are you sure?) appears on the display. “ ” ALPHA PROFILE 700 &...
  • Page 11 (Are you sure ?) appears on the display. 3) Select YES to reset partial counter or NO to keep the current setting and return to the top menu level ➔ Continue “ ” ALPHA PROFILE 700 &...

  • Page 12: Manual Control

    3) Press and use the UP and DOWN keys to select the required DMX level (value between 0 and 255). 4) Press LEFT to return to the top menu level. “ ” ALPHA PROFILE 700 &...
  • Page 13 – a confirmation message appears on the display (Reset calibration to factory default ?). 2) Select YES to reset calibration to factory default or NO to keep the current setting and return to the top menu level. “ ” ALPHA PROFILE 700 &...
  • Page 14 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10 Closing the head covers - Fig. 11 “ ” ALPHA PROFILE 700 &...
  • Page 15 Opening and closing lamp compartment - Fig. 12 contact (A) facing the elliptical reflector’s slot. Upper Side Lower Side Lamp regulation - Fig. 14 To centre the lamp, turn the three adjusting screws as shown in the figure. ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 16 085531/001 Replacing rotating gobos (ø 25.7 mm - max 19 mm image – thickness 1.1 mm) - Fig. 16 IMPORTANT: Please contact CLAY PAKY before using customized gobos. GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2...
  • Page 17 • General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. • General visual check of the internal components, cabling, mechanical parts, etc.
  • Page 18 Upper Side Lower Side Extraction of the effect modules: Preliminary operations - Fig. 19 “ ” ALPHA PROFILE 700 &...
  • Page 19 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 20 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. “ ” ALPHA PROFILE 700 &...
  • Page 21 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 20, 21 and 22 in reverse order. ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 22 Battery removal - Fig. 23 This product contains a rechargeable lead-acid or lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 “ ” ALPHA PROFILE 700 &...

  • Page 23: Optional Accessories

    OPTIONAL ACCESSORIES C61188 - HEAVY FROST FILTER KIT “ ” ALPHA PROFILE 700 &...

  • Page 24: Technical Information

    Signal transmission cable faulty or disconnected. Replace the cables. Incorrect addressing. Check addresses (see instructions). Fault in the electronic circuits. Call an authorised technician. Lenses or reflector broken Call an authorised technician. Dust or grease deposited. Clean (see instructions). “ ” ALPHA PROFILE 700 &...

  • Page 25: Channel Functions

    PAN FINE TILT TILT TILT FINE TILT FINE FUNCTION FUNCTION RESET RESET LAMP CONTROL (with Option "Lamp DMX" ON) LAMP CONTROL (with Option "Lamp DMX" ON) PAN-TILT TIME COLOUR TIME BEAM TIME GOBO TIME “ ” ALPHA PROFILE 700 &...
  • Page 26 Random Macro Color 26.2 LIGHT GREEN + LAVENDER (only for Macro effects) 23.7 LIGHT GREEN 20.5 GREEN + LIGHT GREEN 17.5 GREEN Unused Range 14.2 CTO + GREEN 11.7 RED + CTO WHITE + RED WHITE “ ” ALPHA PROFILE 700 &...
  • Page 27 FAST PULSATION, FAST CLOSING 83.2 SLOW PULSATION, FAST CLOSING FAST PULSATION, FAST OPENING SLOW PULSATION, FAST OPENING 67.5 FAST PULSATION 51.7 SLOW PULSATION 128 - 131 50.0 - 51.2 MAXIMUM APERTURE 50.0 MINIMUM APERTURE ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 28 BLADE IN 50.0 50.0 BLADE OUT BLADE OUT • BLADE RG 2 - channel: 21 • BLADE UP 2 - channel: 17 EFFECT BLADE IN EFFECT BLADE IN 50.0 50.0 BLADE OUT BLADE OUT “ ” ALPHA PROFILE 700 &...
  • Page 29 1 - Blades 100 METRES 2 - Rotating Gobo 3 - Iris 50.0 10.0 10 METRES 9 METRES 8 METRES 7 METRES 6 METRES 5 METRES 4 METRES 3 METRES 0.0-2.5 AUTOFOCUS OFF ➔ Continue “ ” ALPHA PROFILE 700 &...
  • Page 30 28-39 11,0-15,0 MACRO 2 16-27 6,2-10,5 MACRO 1 12-15 4,7-6,0 STAND BY BLACK 8-11 3,2-4,2 STAND BY 0,0-3,0 MACRO OFF Operation with option InvertPan (Tilt conventionally represented at 14% and option Invert Tilt Off) “ ” ALPHA PROFILE 700 &...
  • Page 31 • LAMP CONTROL (only with option LAMP DMX On) - channel: 37 (Pan conventionally represented at 0% and option Invert Pan Off) IMPORTANT: Alpha Profile 700 is not provided with hot restrike igniter EFFECT LAMP ON (FULL POWER) Lamp ignition after 5 s in full power levels.
  • Page 32 Rotating Gobo change - Framing - Framing rotation TIME TABLE Seconds Seconds Seconds Seconds Seconds Seconds Full 10.2 10.4 10.6 Follow cue Data CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
